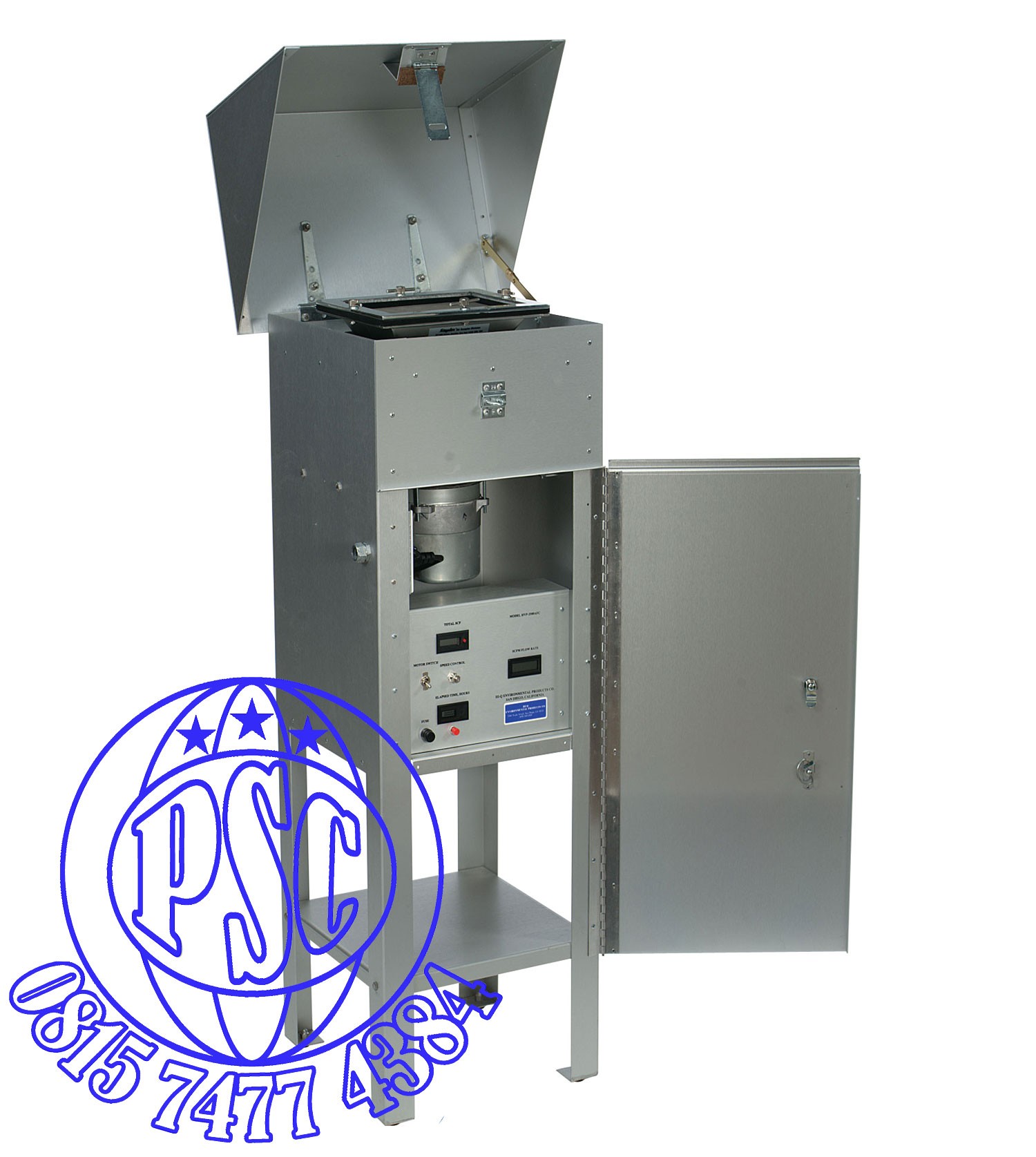

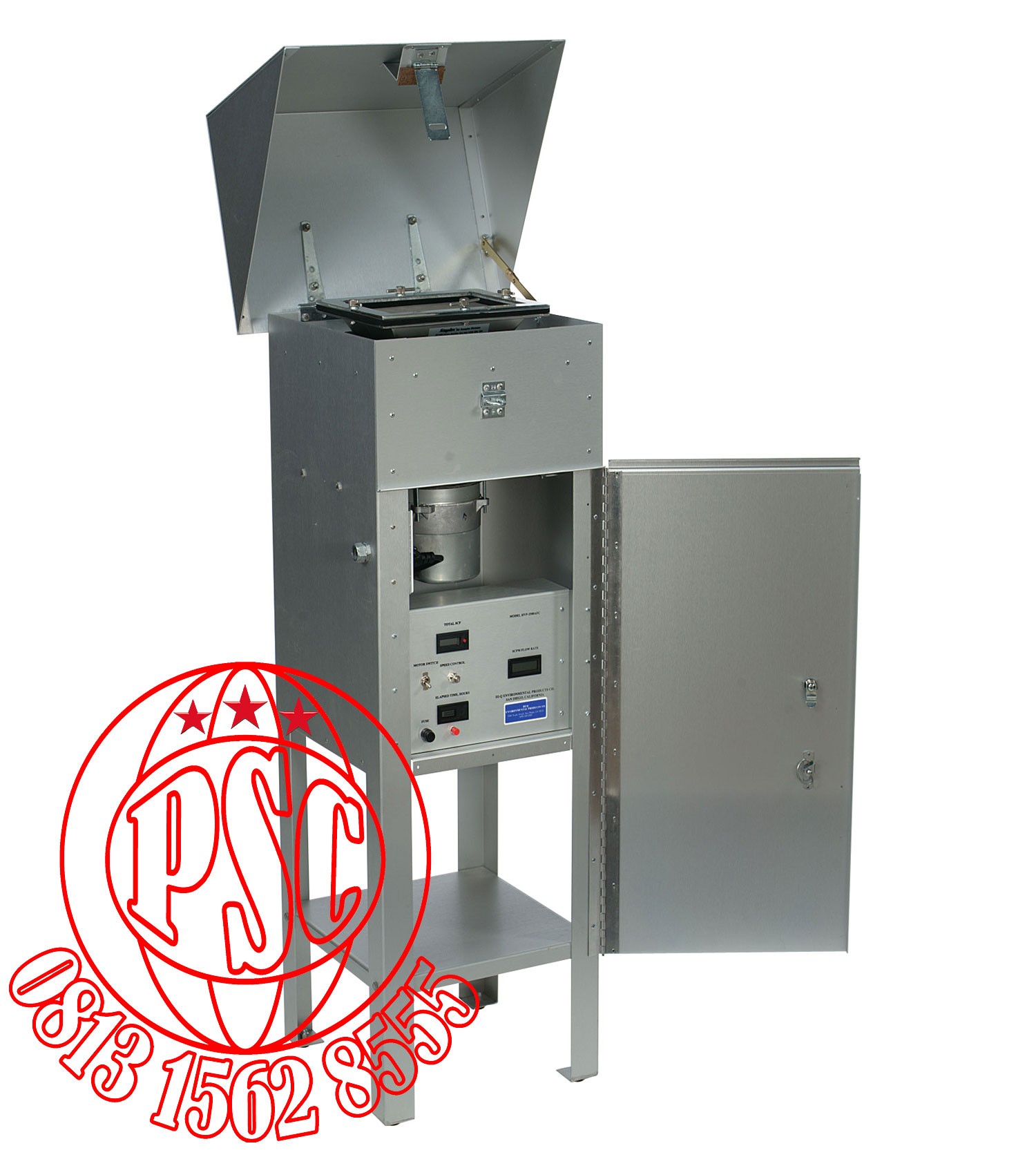

High Volume Air Sampler 3500 Series Hi-Q Environmental

3500-Series Automatic Flow Control High Volume TSP w/ Brushless Blower

Specification

Motor/Pump

Brushless, 2 or 3 Stage Centrifugal Blower. For motor specification see product description under Replacement Blowers.

Housing

Anodized Aluminum Outdoor Shelter with lockable control panel door and filter media roof. Please see model # HVP-2000 for overall cabinet dimensions.

Calibrated Flow Range

10-50 SCFM

( HVP-3500/3800AFC )

( SCMM or SLPM unit calibration upon request )

Calibrated Flow Range

2-15 SCFM

(HVP-3504/3804AFC)

(SCMM or SLPM unit calibration upon request)

Flow Totalizer

Resettable Standard Cubic Feet

(total volume in cubic meters or  liters upon request)

Elapsed Timer

Electronic, Resettable Hours & Tenths of Hours, LCD read out, 5 year internal battery.

Unit Net Weight

49 lbs.

Shipping Weights & Dimensions

19" x 19" x 49" @ 55 lbs. ( Box 1 )

17" x 17" x 22" @ 11 lbs. ( Box 2 )

HVP-3800/4AFC

230 VAC, 50/60 Hz., 10.5 Amp,

Power Specifications

1200 Watt / Max Vacuum Capacity 118" H20

115 VAC, 50/60Hz., 5.0 Amp, 250 Watt / Max Vacuum Capacity 49" H20

HVP-3500/4AFC

115 VAC, 50/60Hz., 5.0 Amp,

Power Specifications

250 Watt / Max Vacuum Capacity 49" H20

230 VAC, 50/60Hz., 4.5 Amp,

400 Watt / Max Vacuum Capacity 39" H20

Flow Calibrator

See Air Flow Calibrators

Filter Paper

See Filter Paper For Air Sampling

PM-10

See Size Selective Inlets

Optional Equipment

See Air Sampling Accessories

Ordering Information

HVP-3800AFC

(3-Stage)

Automatic Flow Control, HI-Vol Air Sampler, 115 VAC, with 3-Stage Brushless Blower. Unit includes 8" x 10" filter paper holder. ** Please note that this unit has been replaced by HI-Q model # HVP-4300AFC **

HVP-3500AFC

(2-Stage)

Automatic Flow Control, HI-Vol Air Sampler, 115 VAC, with 2-Stage Brushless Blower. Unit includes 8" x 10" filter paper holder.  ** Please note that this unit has been replaced by HI-Q model # HVP-4200AFC **

HVP-3804AFC

(3-Stage)

Automatic Flow Control, HI-Vol Air Sampler, 115 VAC, with 3-Stage Brushless Blower. Unit includes 4" Diameter filter paper holder.  ** Please note that this unit has been replaced by HI-Q model # HVP-4304AFC **

HVP-3504AFC

(2-Stage)

Automatic Flow Control, HI-Vol Air Sampler, 115 VAC, with 2-Stage Brushless Blower. Unit includes 4" Diameter filter paper holder.  ** Please note that this unit has been replaced by HI-Q model # HVP-4204AFC **

HVP-3800AFC/230

230 Volt versions of units described above.
