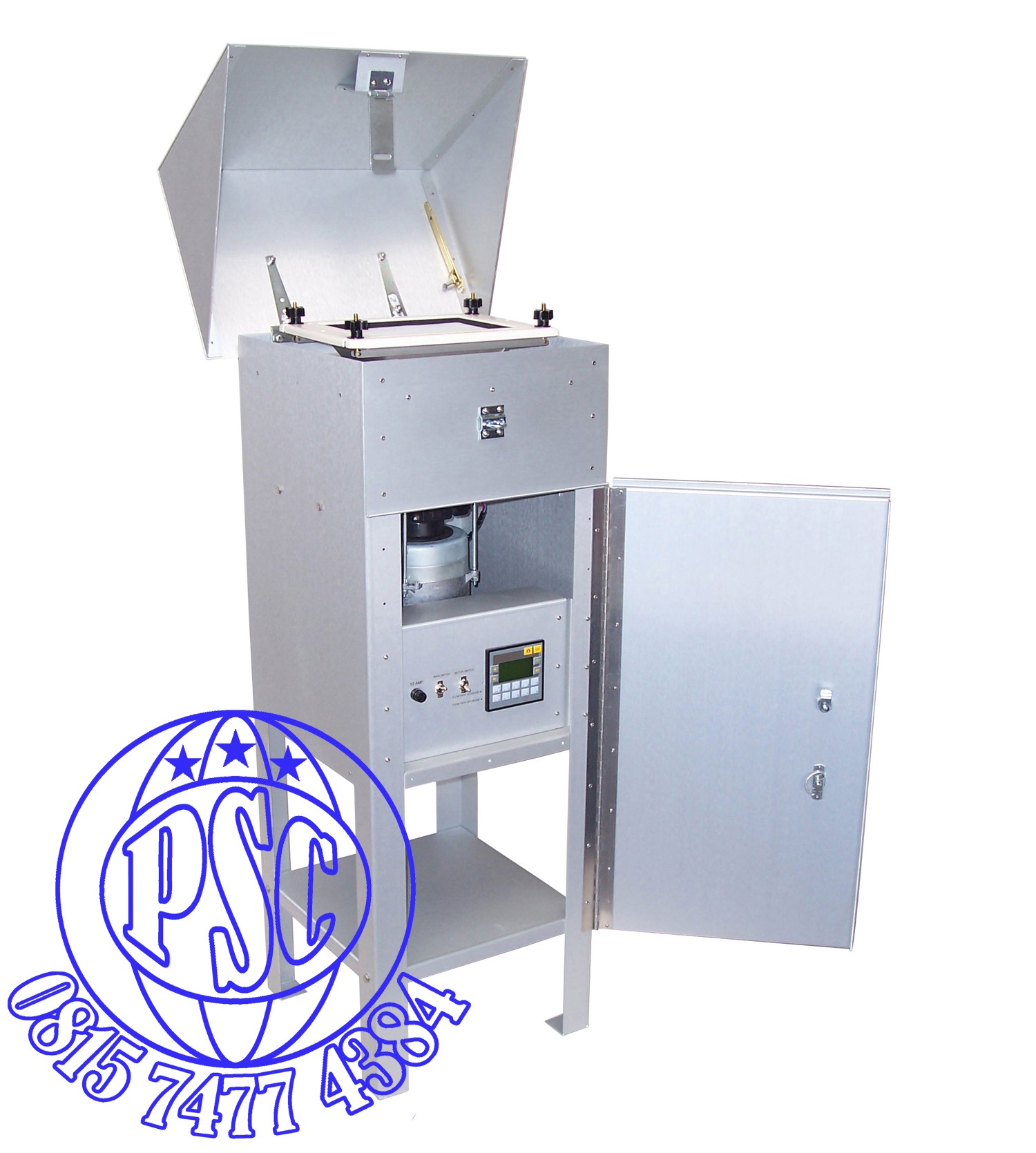

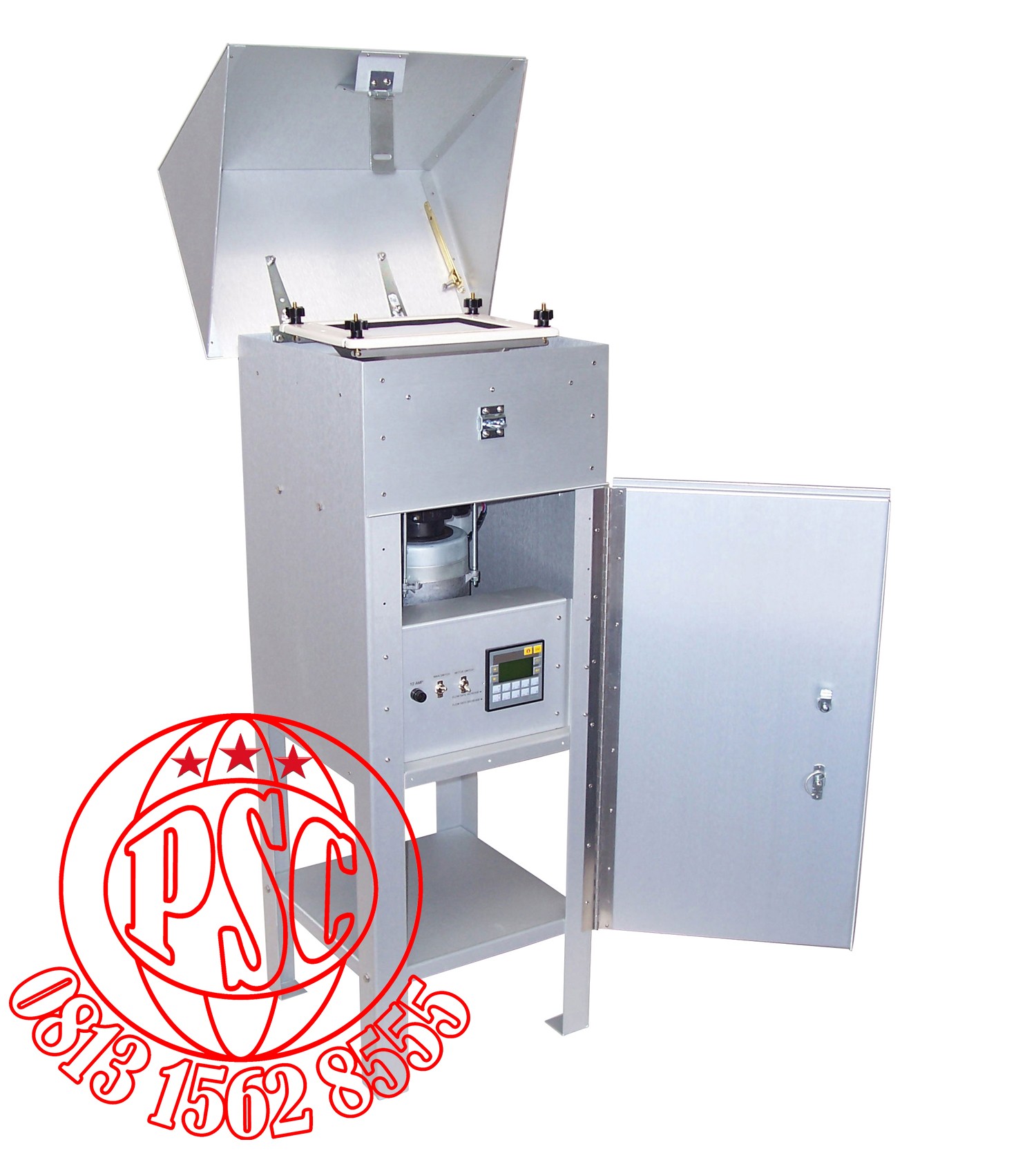

4000-Series Automatic Flow Control High Volume TSP
Specifications
Motor/Pump	Brushless, 2 or 3 Stage Centrifugal Blower. For motor specification see product description under Replacement Blowers.
Housing	Anodized Aluminum Outdoor Shelter with lockable control panel door and filter media roof. Please see model # HVP-2000 for overall cabinet dimensions.
Display	Illuminated, Graphic LCD Screen
Calibrated Flow Range	10-50 SCFM
( HVP-4200/4300AFC )	( SCMM or SLPM unit calibration upon request )
Calibrated Flow Range	2-15 SCFM
( HVP-4204/4304AFC )	( SCMM or SLPM unit calibration upon request )
Flow Totalizer	Default to Resettable Standard Cubic Feet
	( total volume in cubic meters or liters upon request )
Elapsed Timer	Default to Resettable Hours & Tenths of Hours ( minutes & tenths also available )
Unit Net Weight	49 lbs.
Shipping Weights & Dimensions	19" x 19" x 49" @ 55 lbs. ( Box 1 )
	17" x 17" x 22" @ 11 lbs. ( Box 2 )
HVP-4300/4AFC	115 VAC, 50/60 Hz., 9.0 Amp,
Power Specifications	800 Watt / Max Vacuum Capacity 85" H20
	230 VAC, 50/60 Hz., 10.5 Amp,
	1200 Watt / Max Vacuum Capacity 118" H20
HVP-4200/4AFC	115 VAC, 50/60Hz., 5.0 Amp,
Power Specifications	250 Watt / Max Vacuum Capacity 49" H20
	230 VAC, 50/60Hz., 4.5 Amp,
	400 Watt / Max Vacuum Capacity 39" H20
Flow Calibrator	See Air Flow Calibrators
Filter Paper	See Filter Paper For Air Sampling
PM-10	See Size Selective Inlets
Optional Equipment	See Air Sampling Accessories
Ordering Information
HVP-4200AFC ( 2-stage )	Automatic Flow Control, HI-Vol Air Sampler, 115 VAC, with 3-Stage Brushless Blower. Unit includes 8" x 10" filter paper holder.
HVP-4300AFC ( 3-stage )	Automatic Flow Control, HI-Vol Air Sampler, 115 VAC, with 2-Stage Brushless Blower. Unit includes 8" x 10" filter paper holder.
HVP-4204AFC ( 2-stage )	Automatic Flow Control, HI-Vol Air Sampler, 115 VAC, with 3-Stage Brushless Blower. Unit includes 4" Diameter filter paper holder.
HVP-4304AFC ( 3-stage )	Automatic Flow Control, HI-Vol Air Sampler, 115 VAC, with 2-Stage Brushless Blower. Unit includes 4" Diameter filter paper holder.
HVP-4200AFC/230	230 Volt versions of units described above.
HVP-4300AFC/230
HVP-4204AFC/230
HVP-4304AFC/230
