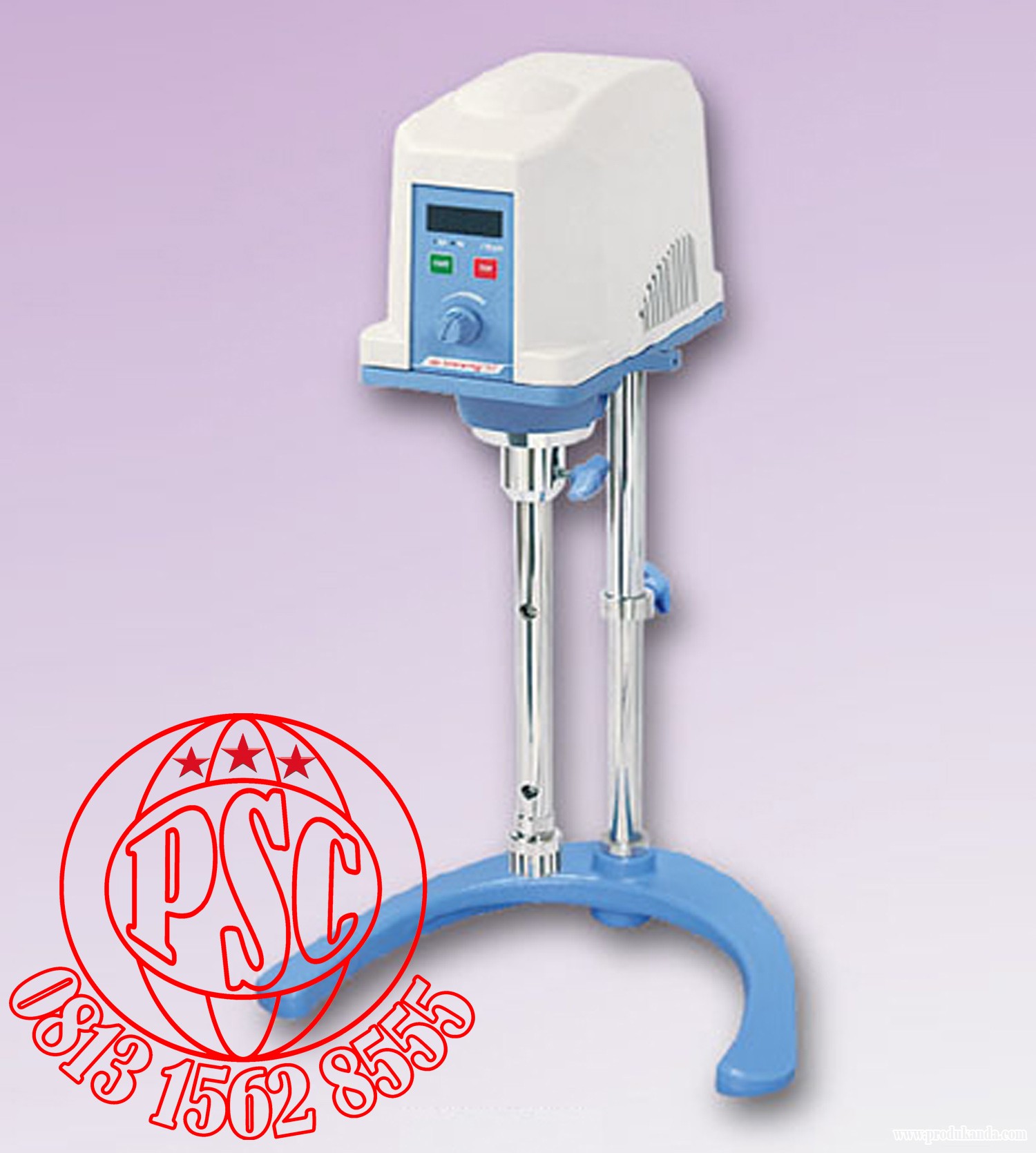

Homogenizer HG-202 Hsiang Tai

without Dispersing Element

Feature

Digital speed ( rpm ) display.

Spring lift pole for easy operation.

Over heat and fuse protection devices.

No special containers, as long as the dispersing element can be placed in.

With same one driver different dispersing elements for purchasing separately to deal with different capacities from 0.3 ml ~ 3 L.

A mechanical crushing effect from the composition of the fixed cutter and inner cutter of dispersing element.

Applications

Widely use in homogenizing - blending - dispersing - emulsifying - suspending and combining various materials.

Biology and medicine research included skin tissue, cell disruption, isolated nuclei, vaccines, enzymes and so on.

Processing of natural/ artificial fibers and dyes.

Fine breaking and crushing of cellulose, hard tissue, paper, cloth, and so on.

Fine breaking and blending the rubber, resin, natural/ artificial materials.

Mixing and emulsifying lubricants, other oil product, water and oil, adhesives, coatings, inks, cosmetics.

Specifications

Model

HG-202

Motor

DC250 W

Speed

500 ~ 20000 Rpm

Weight

10 kg

Body Size ( W x L x H )

146 x 283 x 250 mm

Overall dimension ( W x L x H )

328 x 303 x 540 mm

Power

AC 110 V/220 V, 50/60 Hz

Standard base 3.3 kg ( W 328 x L 262 x H 55 mm )
