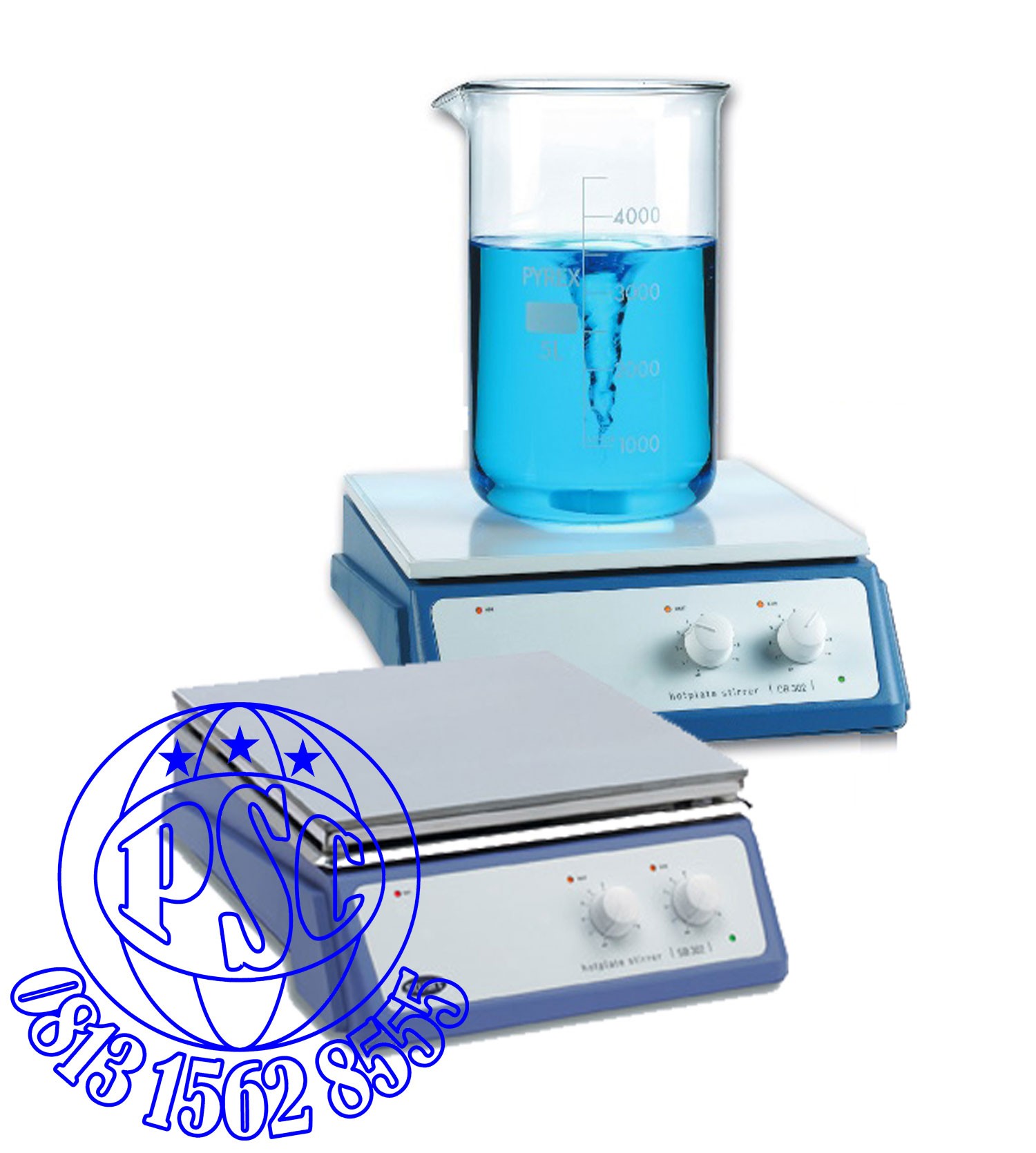

Hotplate Stirrer, 30 x 30 cm, Analogue, SB302, CB302 Stuart

Choice of robust aluminum or chemically resistant

Flashing "Hot" warning light to warn when top plate is

Independent safety circuit to protect against overheating

Powerful stirring action

Ideal for handling large vessels

Stylish and economical, general purpose stirrer hotplates designed with safety as well as performance in mind.

The "Hot" warning light will flash whenever the plate temperature is above 50°C and will operate even when the hotplate is turned off and connected to the mains. Powerful magnets and motor give stirring speed up to 1500rpm and volumes up to 15 litres.

Model CB302 has a glass ceramic top that has excellent chemical and temperature resistance. The chemical properties make the surface very easy to keep clean and the thermal properties allow very high plate temperatures while ensuring the edges stay cooler, reducing the chance of accidental burns.

Model SB302 has a robust aluminium/silicon alloy top plate. The very good heat transmission of this material gives rapid heating and ensures even temperature distribution across the whole of the plate.

With fitting for retort rod and supplied complete with 2 x 25 mm PTFE coated stir bars.

Technical Specification

Model

CB302

SB302

Plate dimensions, mm

300 x 300

300 x 300

Heated area, mm

200 x 200

300 x 300

Plate material

Glass ceramic

Al / Si alloy

Heater power, W

1200

600

Max. plate temp. °C

450

300

Stirrer speed, rpm

100 to 1500

100 to 1500

Maximum stirring capacity, litres

15

15

Overall dimensions ( w x d x h ), mm

300 x 365 x 105

300 x 365 x 105

Net weight, kg

7

7

Electrical supply

230 V, 50 Hz

230 V, 50 Hz

Ordering Information

Model

Description

CB302

Stirrer/hotplate, ceramic plate, 1200 W

SB302

Stirrer/hotplate, aluminum plate, 600 W

SR1

Retort rod, 600 x 12 mm
