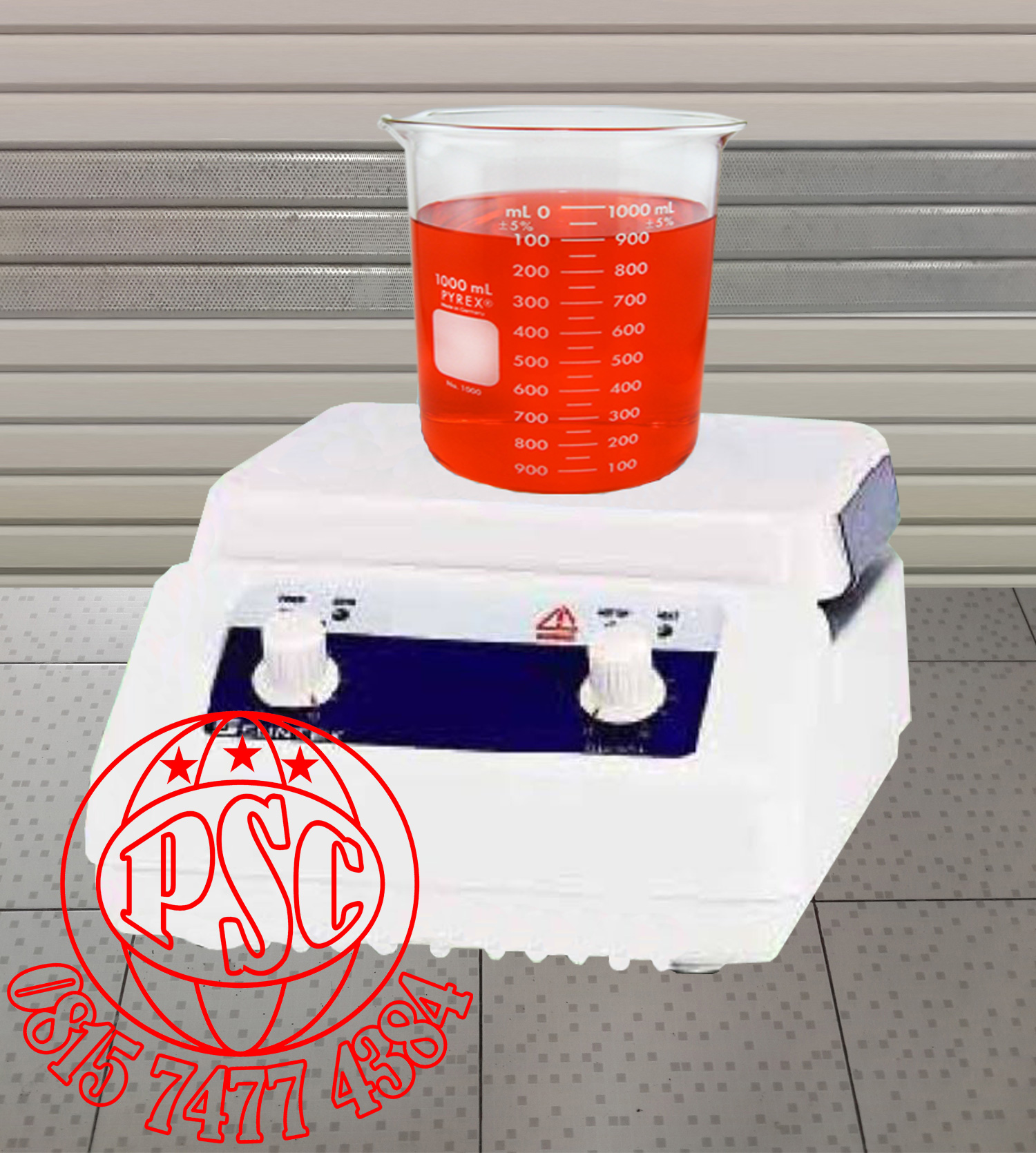

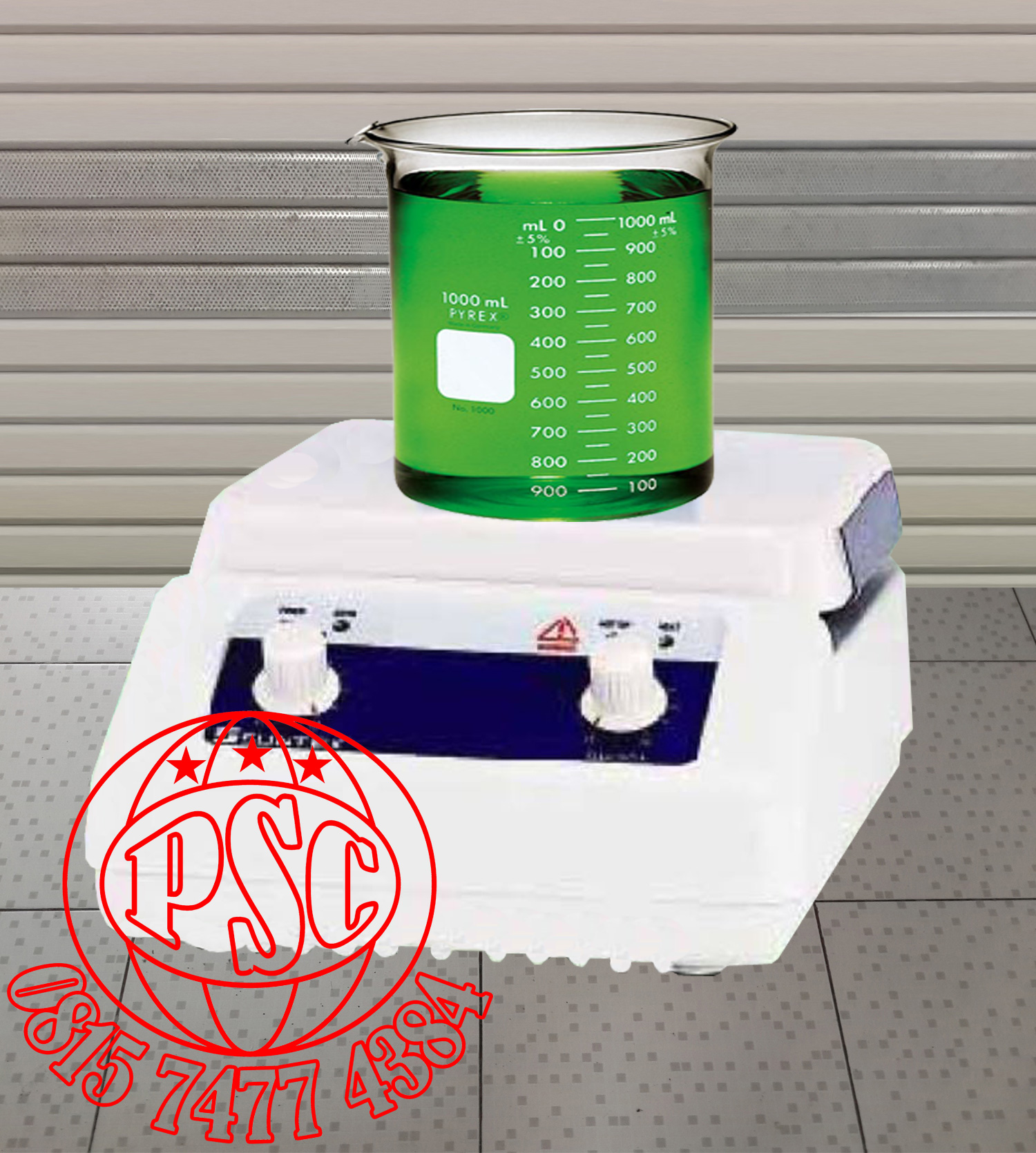

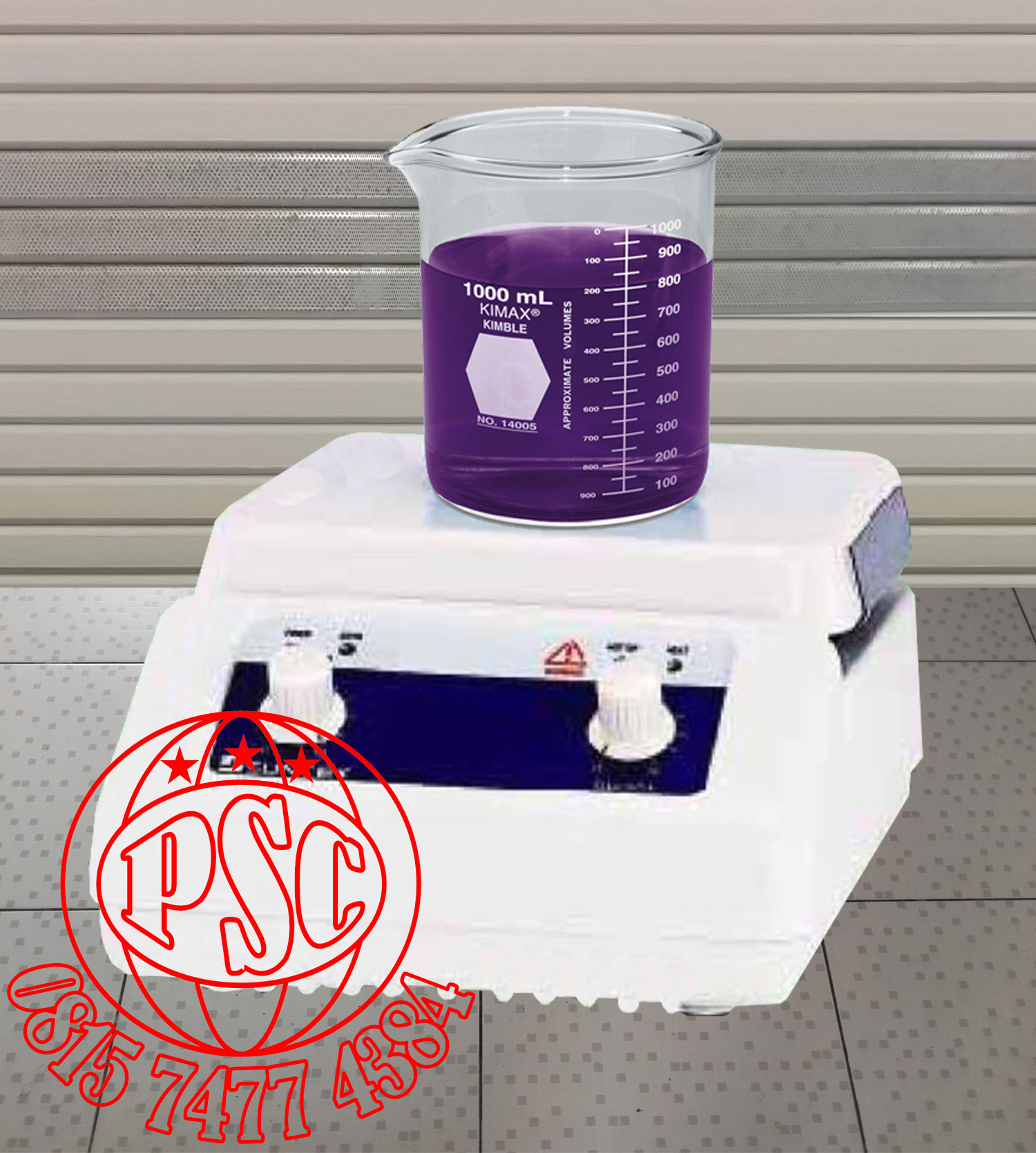

Hotplate & Stirrer SH-301 Suntex Instrument

Specifications

Function

Hotplate / Stirrer

Top plate Material

Glass ceramic

Dimensions

200 mm x 200 mm

Speed Range

60 ~ 1100 rpm

Control

Adjustable

Temperature

Ambient temperature to 450 °C

Control Adjustable

Heating capacity

Max. 750 W

Hot warning indicator

YES

Heating indiccator

YES

External temp.probe

NO

Ambient temperature

5 °C ~40 °C

Power supply

220 VAC ±10 %, 50/60 Hz

Dimensions ( L x W x H )

320 mm x 210 mm x 117 mm

Weight

3.6 kg

All-in-one ceramic top & safety-first design

The SH-301 is designed for your general laboratory applications. This hotplate & stirrer features all-in-one glass-ceramic top providing uniform heating, easy-to-clean, and resistant to scratches, corrosions and chemicals.

Safety-first philosophy design :

Hot warning indicating light: Automatic warning when temperature of the ceramic top is over 55 ˚C

Overheating protection safety device: Automatic heat cutoff when the heating temp is over 550 ˚C

Splash resistant design: Avoiding sample permeating from the plate or switch

Features

Easy and user-friendly operation

Precise heating and accurate temperature control

Integrated glass-ceramic top plate: easy clean, chemical-resistant, corrosion-resistant, and scrap-resistant

LED indicators for Power, Heating, and Stirring

Safety design

Special circuit board design for power saving and efficient heat distributing

Microprocessor adjustable speed control from 60~1100 rpm

Advanced motor for extremely smooth rotation, low noise and long life
