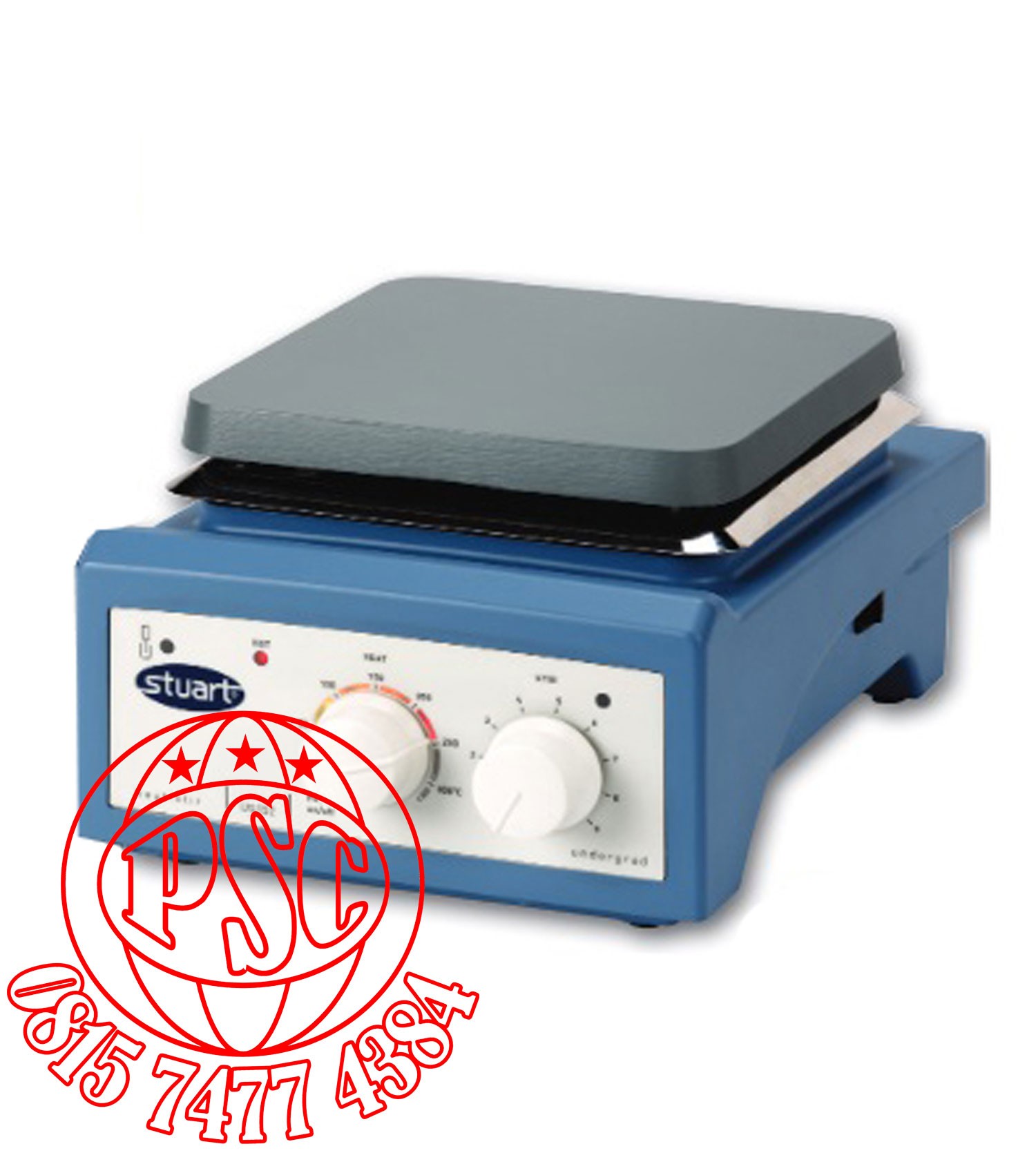

Hotplate with Stirrer, UC152 & US152 Stuart
Technical Specification
Model	US152	UC152
Plate Material	Coated AluminiumSilicon	Glass ceramic
Plate Dimensions, mm	150 x 150	150 x 150
Heated Area, mm	150 x 150	120 x 120
Heater Power, Watt	700	500
Max plate temp, °:C	325	450
Stirrer Speed, rpm	100 - 2000	100 - 2000
Maximum Stirring Capacity, L *	15	15
Dimensions ( w x d x h ), mm	172 x 248 x 120	172 x 248 x 122
Net weight, kg	2.9	2.9
Electrical supply	230 V, 50 Hz, 750 W	230 V, 50 Hz, 550 W
IP Rating	32	32
Ordering Information
Model	Description
US152	Stirrer/ hotplate, coated aluminium plate
UC152	Stirrer/ hotplate, ceramic plate
US152/ 120V/ 60	Stirrer/ hotplate, coated aluminium plate, US 120V version
UC152/ 120V/ 60	Stirrer/ hotplate, ceramic plate, US 120V version
US152/ 220/ 60	Stirrer/ hotplate, coated aluminium plate, 220V version
UC152/ 220/ 60	Stirrer/ hotplate, ceramic plate, 220V version
SCT1	Digital contact thermometer
SR1	Retort rod, 600 mm x 12 mm diameter
