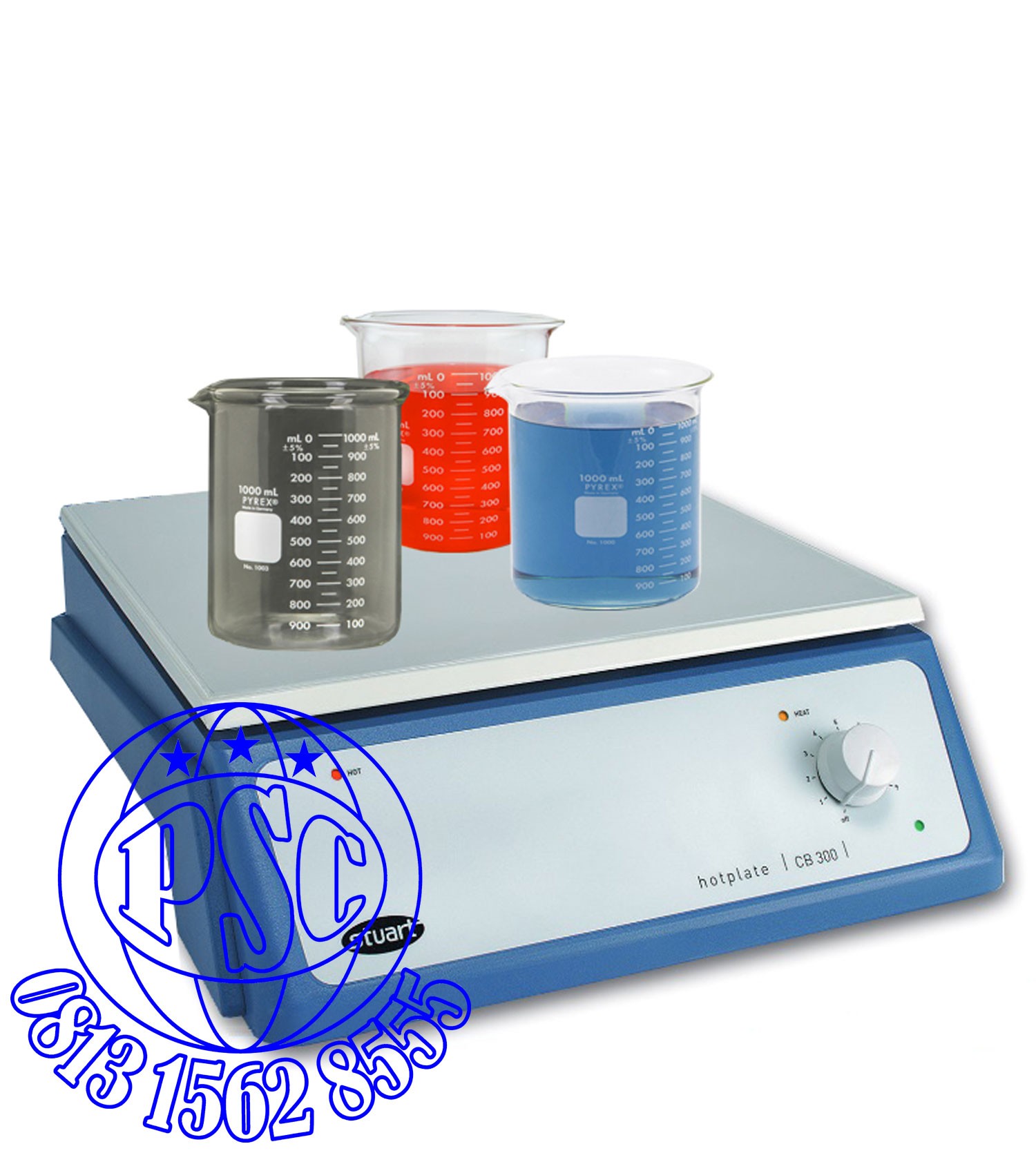

Hotplates, 30 x 30 cm, Analogue, CB300, SB300 Stuart

Choice of top plate material

Large square plate area ideal for heating one large vessel or several smaller ones

Accommodates vessels up to 10 litre capacity

Hotplate temperature controlled by easy to use dial. Fitted with a "Hot" warning light which will flash whenever the plate temperature is above 50 °C and will operate even when the hotplate is turned off and connected to the mains.

Model CB300 has a glass ceramic top which has excellent chemical resistance and allows much higher plate temperature.

Model SB300 has a robust aluminium/silicon alloy top plate which

gives even plate temperature and will withstand the knocks of everyday use.

Technical Specification

Model

CB300

SB300

Plate material

Glass ceramic

Al/Si alloy

Plate dimensions, mm

300 x 300

300 x 300

Heated area, mm

200 x 200

300 x 300

Heater power, W

1200

600

Max. plate temp. °C

450

300

Overall dimensions, ( w x d x h )

300 x 365 x 105 mm

300 x 365 x 105 mm

Net weight, kg

6

6

Electricity supply

230 V, 50-60 Hz

230 V, 50-60 Hz

Ordering Information

Model

Description

CB300

Hotplate, ceramic top, analogue

SB300

Hotplate, metal top, analogue
