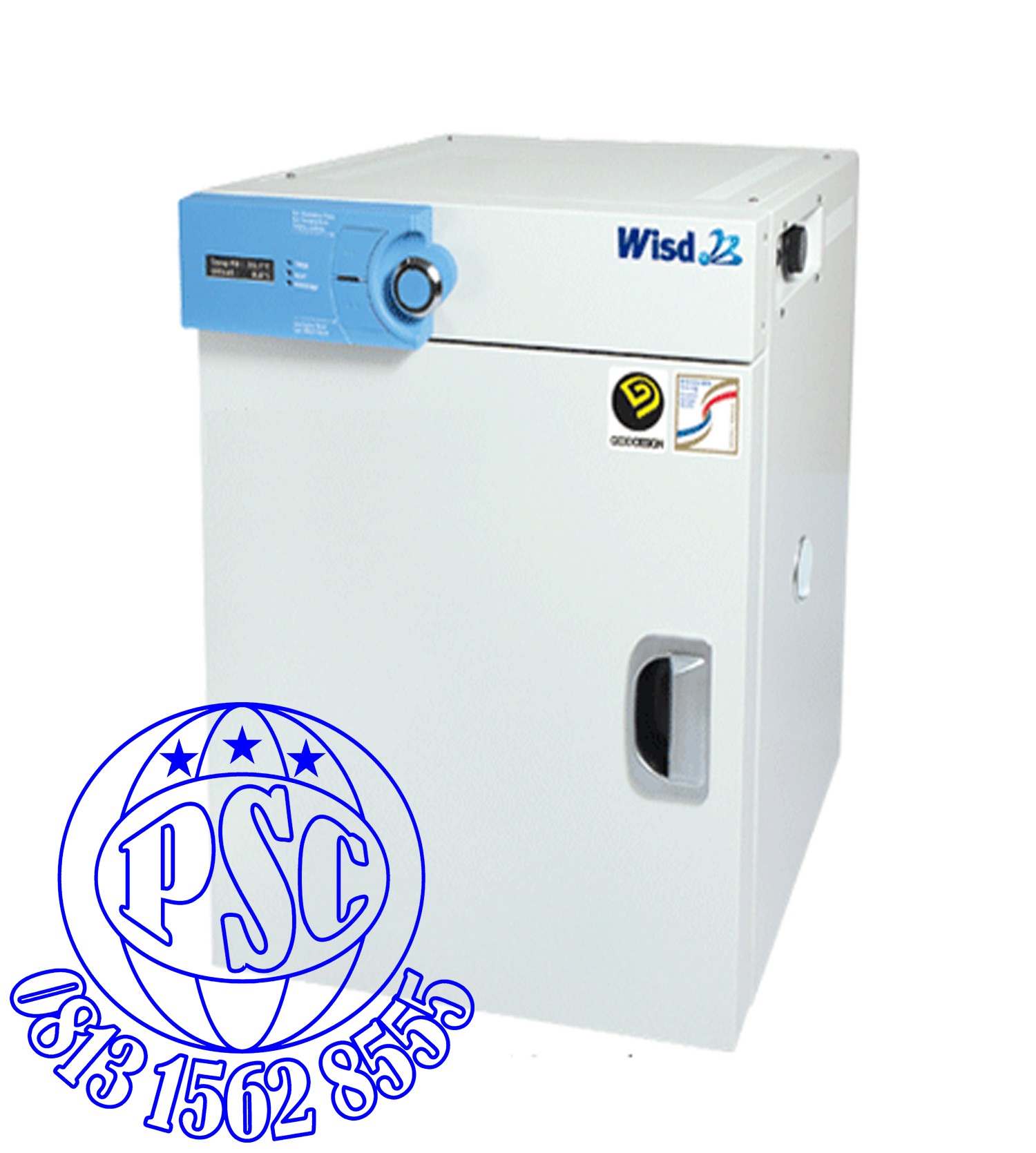

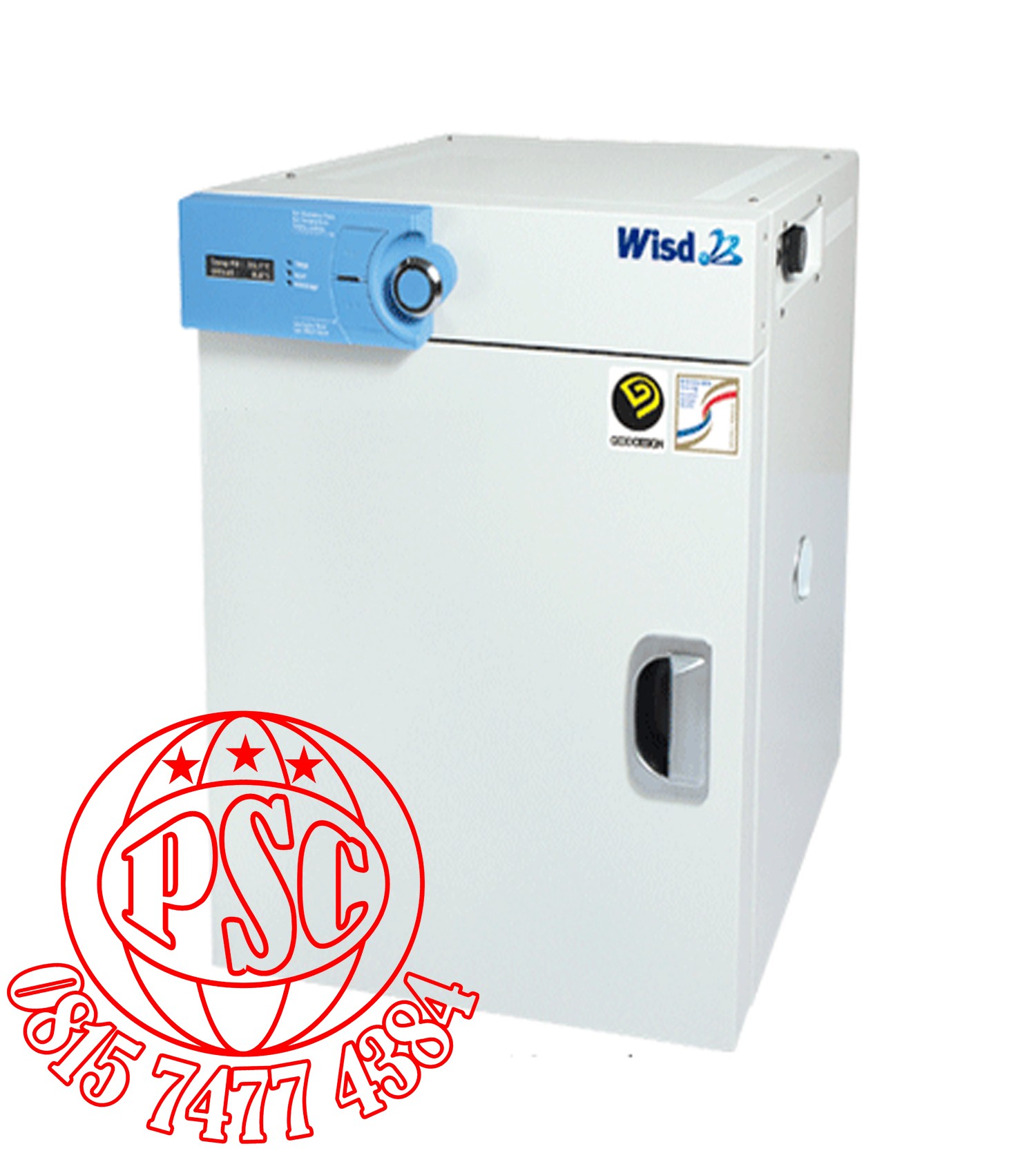

ThermoStable IF Incubators Forced Convection Daihan Scientific

Specification

Models

ThermoStable

ThermoStable

ThermoStable

IF-50

IF- 105

IF- 155

Capacity

50 Lit.

105 Lit.

155 Lit.

Dimension

( W x D x H )

Interior

370 × 350 × 419 mm

485 × 410 × 533 mm

550 × 475 × 600 mm

Exterior

518 × 637 × 700 mm

635 × 695 × 841 mm

700 × 760 × 906 mm

Heater Power

200 W

300 W

400 W

Temp.

Range

Ambient Temp. +5 ℃ to 70 ℃

Fluctuation

± 0.2 ℃ at 37 ℃, ± 0.3 ℃ at 50 ℃

Variation

± 0.5 ℃ at 37 ℃,

± 0.4 ℃ at 37 ℃,

± 0.9 ℃ at 50 ℃

± 0.7 ℃ at 50 ℃

Sensor

PT 100

Control Resolution

±0.1 ℃

Heat-up Time

17 min. to 37 ℃,

17 min. to 37 ℃,

28 min. to 50 ℃

30 min. to 50 ℃

Recovery Time

3 min. to 37 ℃,

( Door open 30 sec )

4 min. to 50 ℃

Controller

Digital Fuzzy Control by Advanced Microprocessor

Jog-Dial with Push Button

RS232 Port

Available to connect with PC

Display

Digital LCD with Back Light

Timer

99 hr 59 min ( delay/continuous function )

Material

Internal

Stainless steel ( #304 )

External

Powder Coated steel

Inner Door

Inner Tempered Glass Door

Shelves

2 ea of Teflon-coated steel Wire Shelves included, Load per Shelf : 16 kg

Ventilation

1ea of Ventilation hole with Stainless steel Cap, Hole Diameter 40mm

Circulation

Forced Air Type

Safety device

Over Temp. and Over Current Protector, Sensor Error Detector

Others

UL/CUL Certified, CE Certified, GD-mark Storage Function ( Temp. and Time ) Locking Mode ( Jog-Dial Input Disabled ) Alarm ( Error Status and Timer-end )

Net Weight

46 kg

66 kg

81 kg

Packing Size ( W x D x H )

628 × 752 × 775 mm

710 × 731 × 1,018 mm

731 × 810 × 1,018 mm

Shipping Weight

58 kg

74 kg

92 kg

Power Consumption

216.3 W

302.9 W

438.1 W

Energy Consumption, at 37°C

28 Wh

43 Wh

58 Wh

Energy Consumption, at 50°C

84 Wh

129 Wh

145 Wh

Power Supply

1 Phase 120 V, 60 Hz or 230 V, 50/60 Hz
