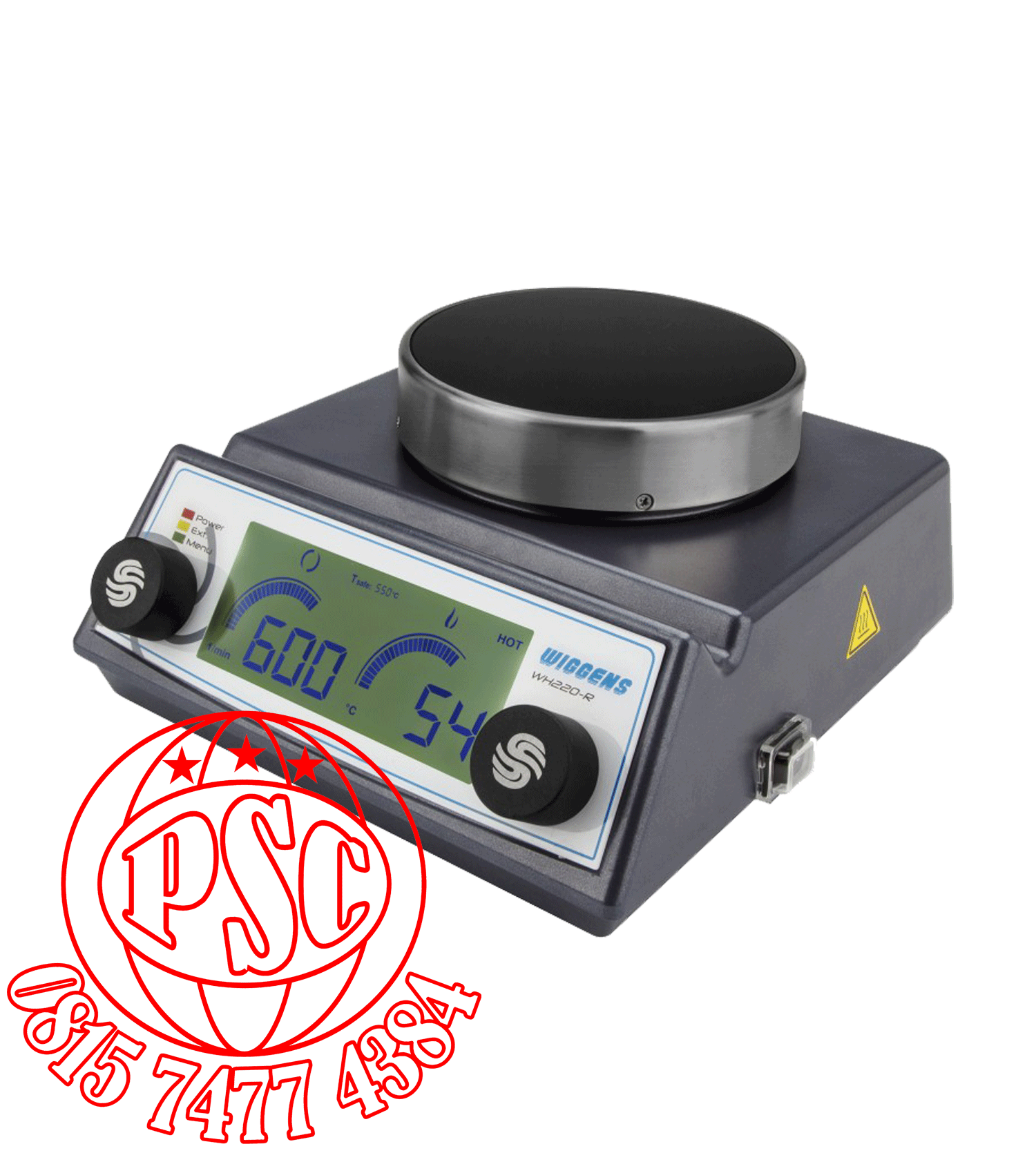

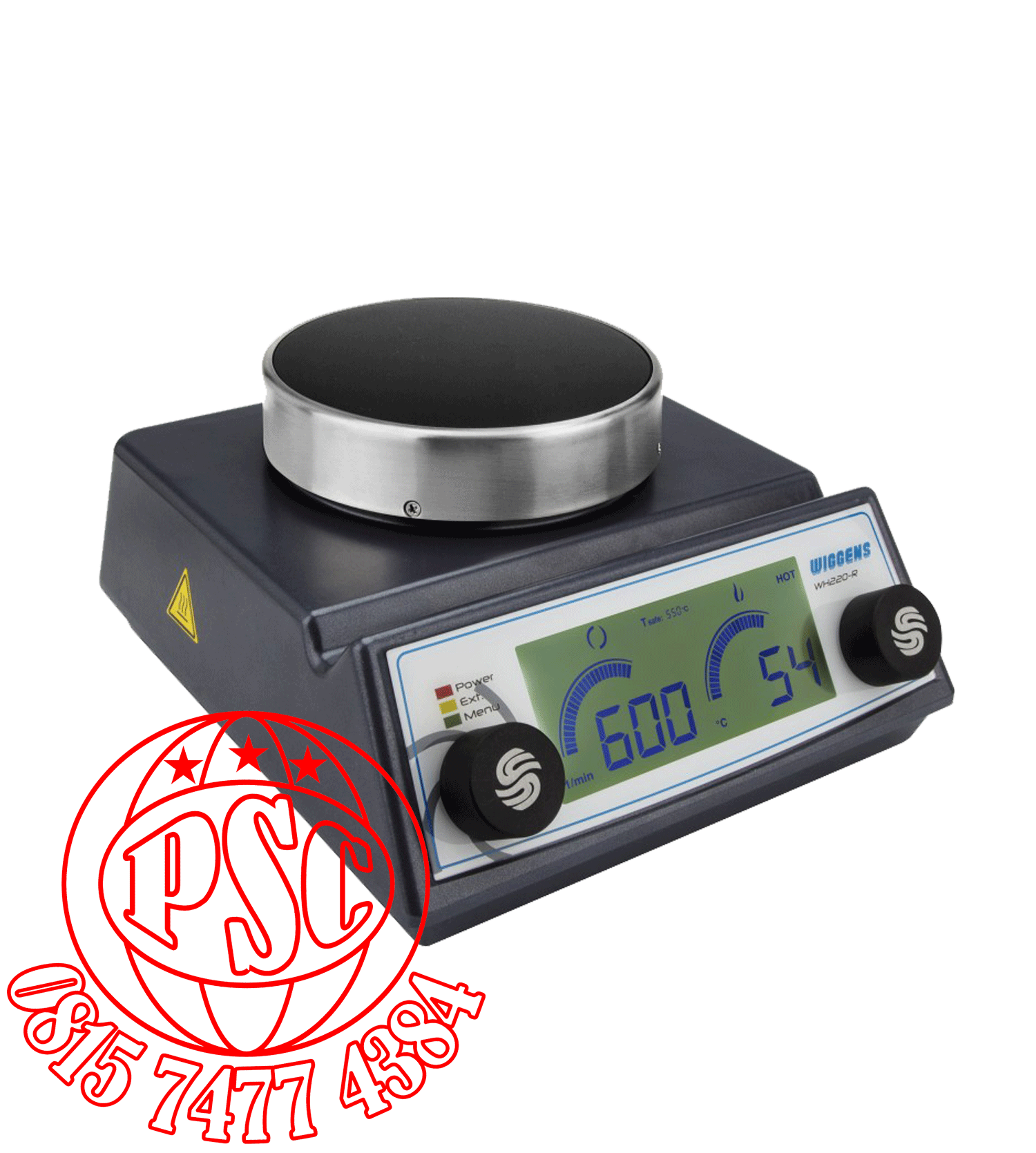

| Top Plate Temperature Range 0-500℃,Rotating Speed 100-1200rpm,Temperature Stability ±2℃ | |
| Specifications | |
| Model | WH240-R |
| Display Mode | LCD |
| Control | Digital set and control |
| Top Plate Temperature Range (℃ ) | 0~500（Continuous） |
| Solvent Temperature (Pt100 sensor)(℃ ) | 0~300 |
| Temperature Stability (Pt100sensor)(℃ ) | ±2 |
| Safety Temp. (℃ ) | 50~550 adjustable |
| Rotating Speed (rpm) | 100~1200 |
| Heating Capacity (W) | 600 |
| Max. Capacity (L) H2O | 20 |
| Top Plate Material | Ceramic glass |
| Top Plate Dimensions (mm) | Ø135 |
| Dimensions (mm) | 225x215xx115 |
| High Temperature Protection( △ T) | 25℃ ( Factory set value 25℃ ,10-50℃ adjustable) |
| Timer（min） | 1 - 1999 / continuous |
| PID Parameters | 2 set of PID |
| Communication | USB（COM） |
| Interface | USB |
| Order No. | 400501 |
