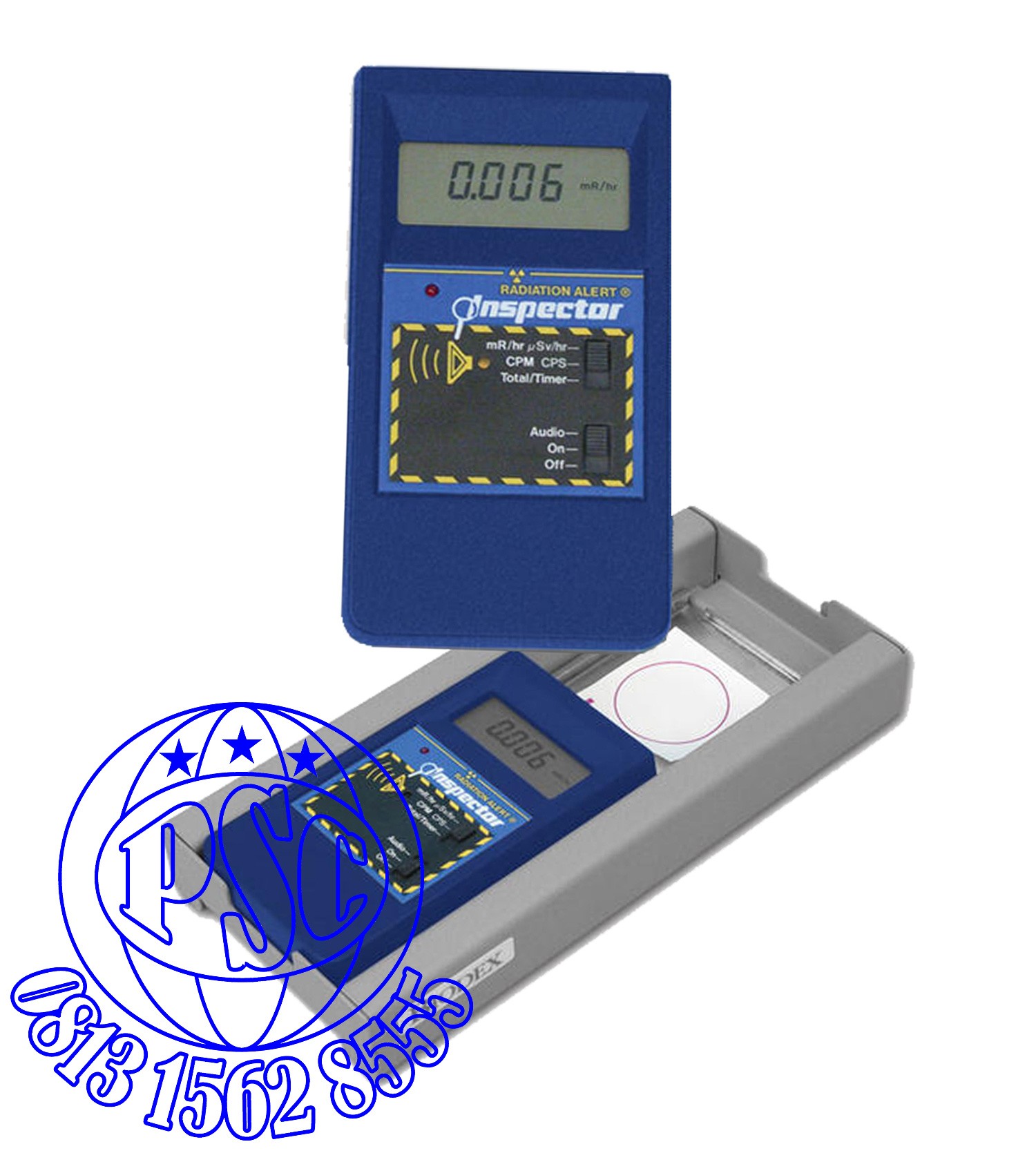

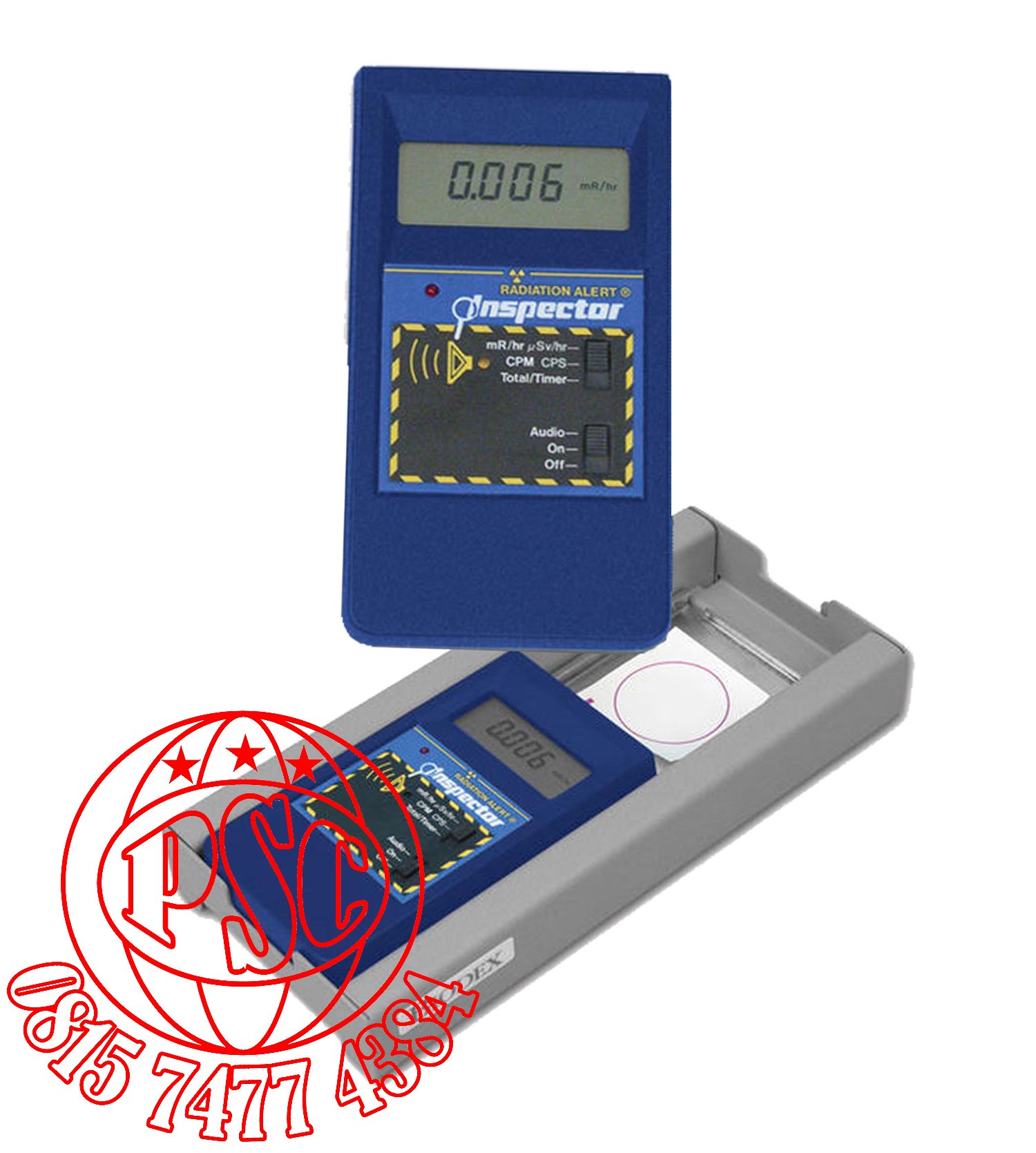

Inspector Survey Meter Biodex |
|
|
Specifications |
|
|
Detector |
Halogen-quenched uncompensated GM tube with thin mica window, 1.4-2.0 mg/cm2 area density. |
|
Window |
1.77" ( 45 mm ) effective diameter |
|
Display |
Four-digit liquid crystal display with indicators |
|
Averaging Periods |
Display will update every three seconds; at low background levels, the update is the moving average for the past 30-second time period; time period for moving average decreases as radiation level increases |
|
Gamma Sensitivity |
3340 cpm/mR/hr (referenced to Cs-137); smallest detectable level for I-125 is .02 µCi at contact |
|
Operating Range |
- mR/hr - .001 (1µR) to 100; CPM - 0 to 350,000 |
|
- µSv/hr - .01 to 1000; CPS - 0 to 5000 |
|
|
Energy Sensitivity |
Detects Alpha down to 2 MeV. Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is approx. 25%. |
|
Accuracy ( Referenced to Cs-137 ) |
Typically ± 15% from 0 to 100 mR/hr |
|
Timer |
One minute to 24 hours, default is 10 minutes |
|
Count Light |
Red LED flashes with each radiation event |
|
Audio Indicator |
Internally mounted beeper ( can be switched off for silent operation ) |
|
Outputs |
Dual miniature jack drives CMOS or TTL devices for counting to computer or data logger |
|
Utility Menu |
Options accessed by holding down “+” button while turning instrument on : 3-second ( fast response ), switch from mR/hr and CPM to µSv/hr and CPS, adjust probe settings, reset all setting to original factory setting (default) |
|
Anti-Saturation |
Meter will hold at full scale in fields as high as 100 times the maximum reading |
|
Built-In Efficiencies |
5Sulfur (S35), 90Strontium (Sr/y90), 137Cesium (Cs137), 32Phosphorus (P32), 14Carbon (C14), 131Iodine (I131), 60Cobalt (Co60), and Alpha |
|
Power Requirements |
(1) 9-volt alkaline battery |
|
Temperature Range |
14°F to 122°F ( -10°C to +50°C ) |
|
Battery Life |
Typically 2000 hours at normal background radiation levels |
|
Dimensions |
5.9" h x 3.2" w x 1.2" d ( 15 x 8 x 3 cm ) |
|
078-514 Inspector Survey Meter Shield |
|
|
Dimensions |
10.3" l x 4.8" w x 1.5" h ( 26 x 12 x 4 cm ) |
|
Construction |
Steel, with lead lining in left and right side walls |
|
Lead Shielding |
0.5" thick ( 1.3 cm ) laterally |
|
Weight |
7.8 lb ( 3.5 kg ) |
|
078-510 |
Survey Meter, Inspector |
|
078-513 |
Survey Meter, Inspector |
|
Includes: Wipe test plate and adapter ( installed ) |
|
