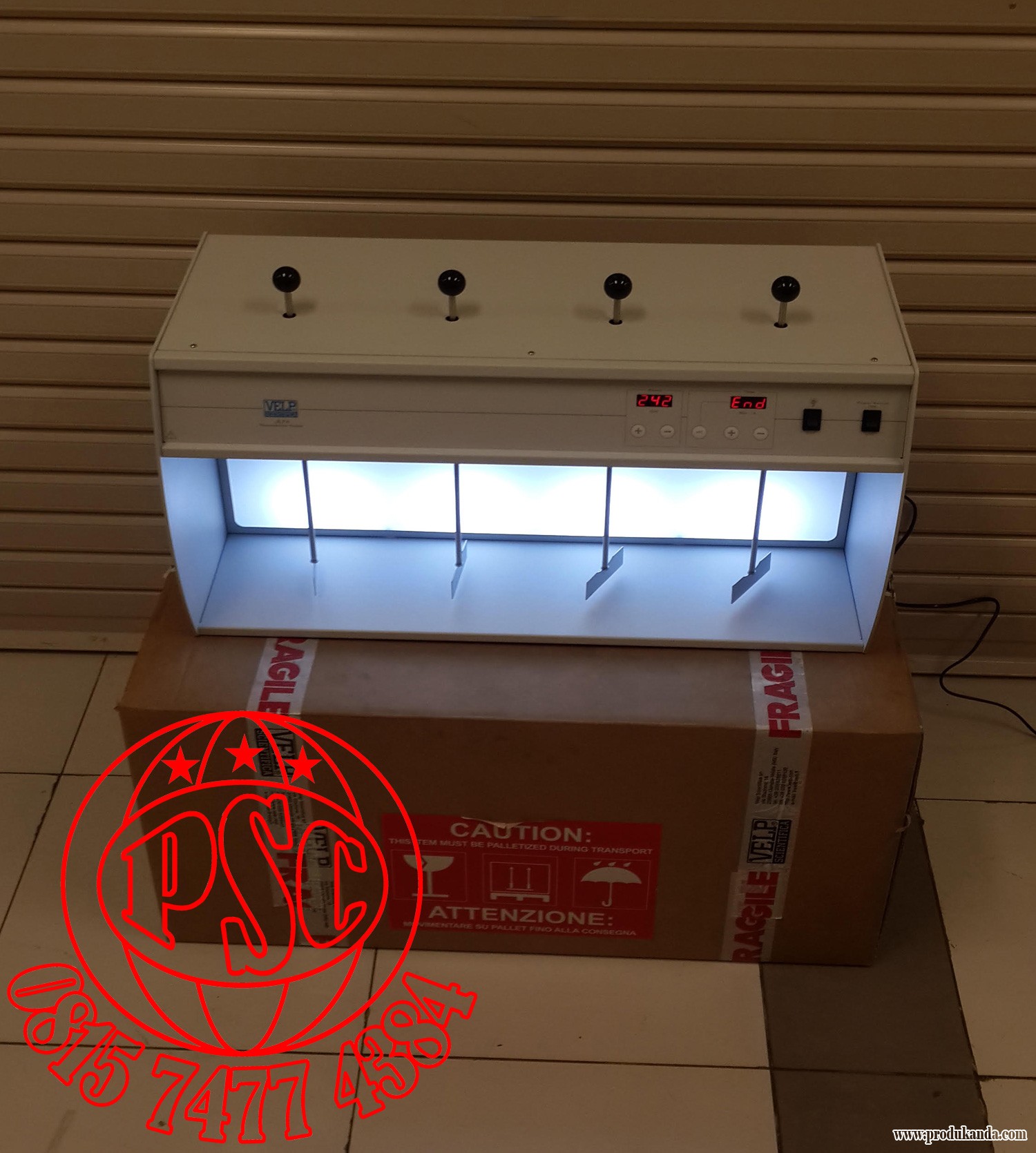

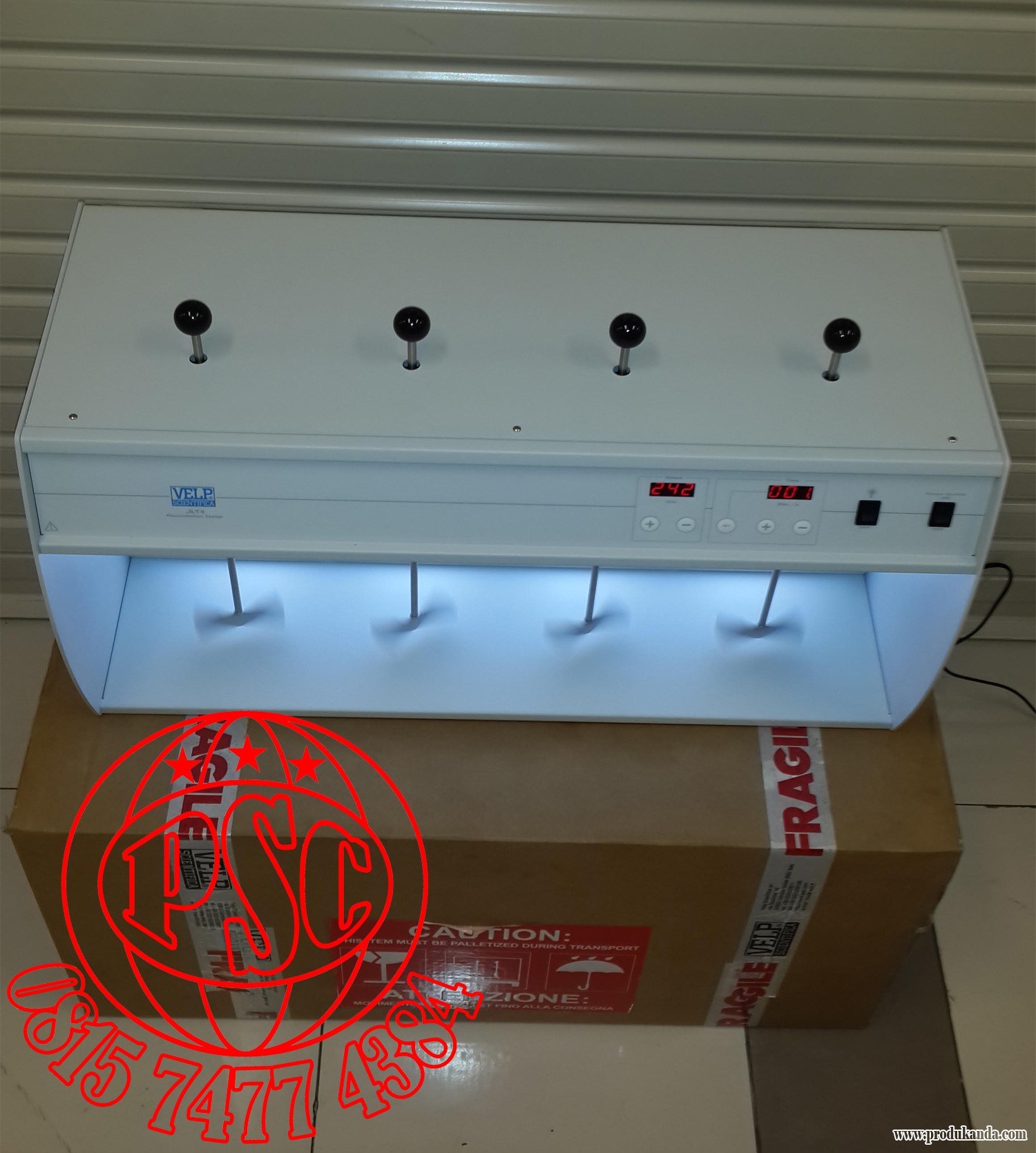

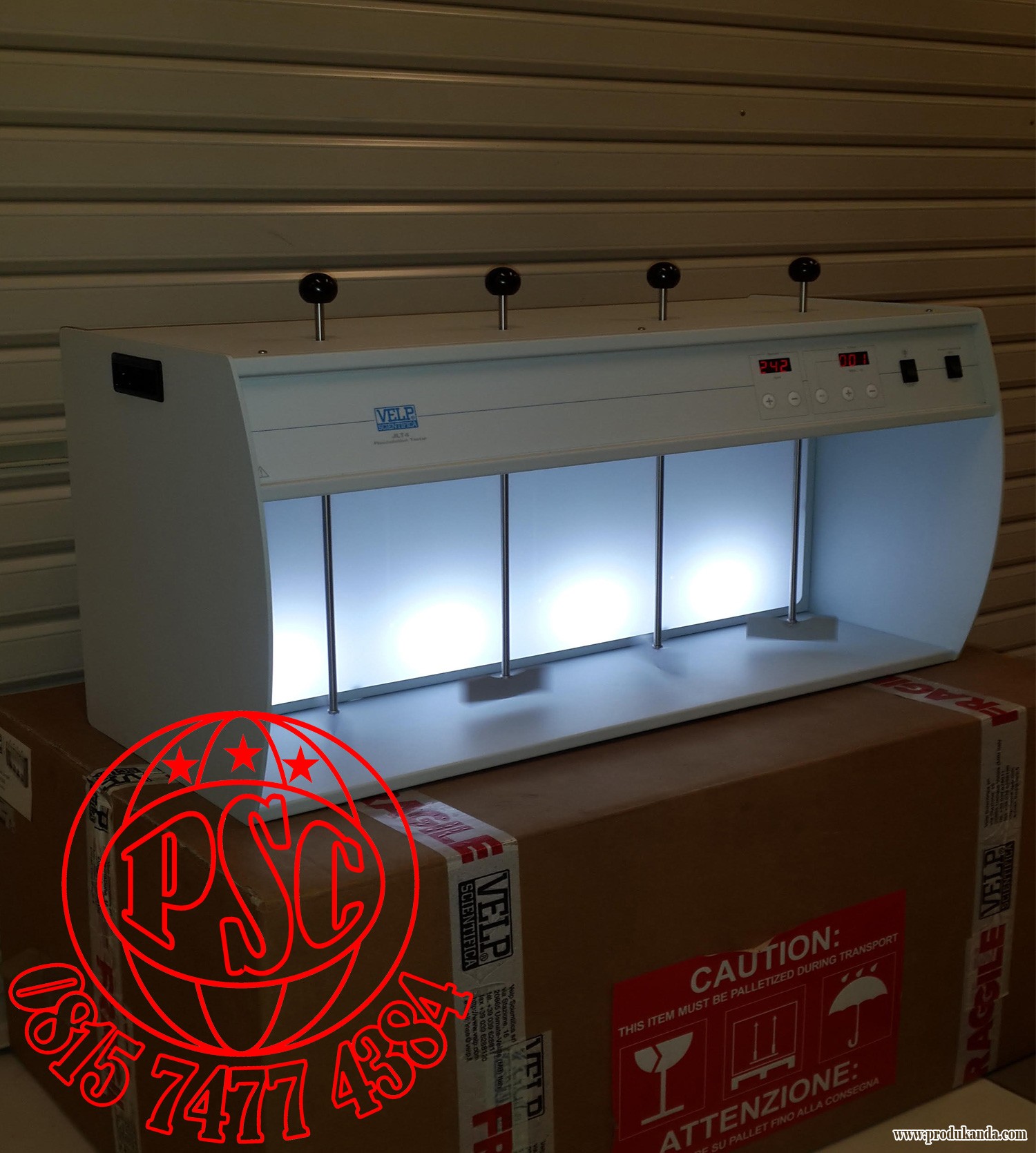

Jar Tester-Flocculator JLT4-JLT6 Velp

Standardized Control

Digitally selectable speed from 10 to 300 rpm

Microprocessor controlled operating time for unattended operation

Identical speed and time for all positions for comparable results

Reliable and repeatable results from VELP stirring quality

Precise speed from an electronically controlled DC gear motor

Practical Operation

Choice of 4- or 6-place models

JLT 4, 4-position jar tester

JLT 6, 6-position jar tester

High visibility LED displays for speed and time

Illuminated back panel to simplify sample observation

Stirring rods adjustable in height without tools

Robust Design

Strong resistance to chemical and mechanical corrosion

Recommendations

Select the accessories that match your requirements

Product Code

Description

Power Supply

Code

JLT 4

100-240 V / 50-60 Hz

F105A0108

JLT 6

100-240 V / 50-60 Hz

F105A0109

Technical Data

Construction material

Epoxy painted metal structure

Models

JLT 4 : 4 positions

JLT 6 : 6 positions

Back panel

Disconnectable illuminated

Stainless steel stirring rods

Adjustable in height by a selfblocking chuck

DC gear motor

Monoselector

Same speed for each rod

Power

JLT 4 : 11 W

JLT 6 : 19 W

Dimensions ( W x H x D )

JLT 4 : 645 x 347 x 260 mm ( 25.4 x 13.7 x 10.2 in )

JLT 6 : 935 x 347 x 260 mm ( 36.8 x 13.7 x 10.2 in )

Weight

JLT 4 : 13 kg ( 28.6 lb )

JLT 6 : 17 kg ( 37.4 lb )

Performance

Electronic speed control

From 10 to 300 rpm

Speed setting interval

1 rpm

Microprocessor controlled timer

0÷999 min or 0 ÷99 hours ( or continuous )
