Jar Tester Flocculators - SW5 & SW6 Stuart
A mini version of the SW6 that accepts two samples ( without timer function ). The case incorporates a handle for easy transportation.
Accepts six samples
Digital indication of speed and time
Two pre-set programs
Built in illumination for easy viewing of samples
For flocculation ( jar ) tests on water and effluent samples.

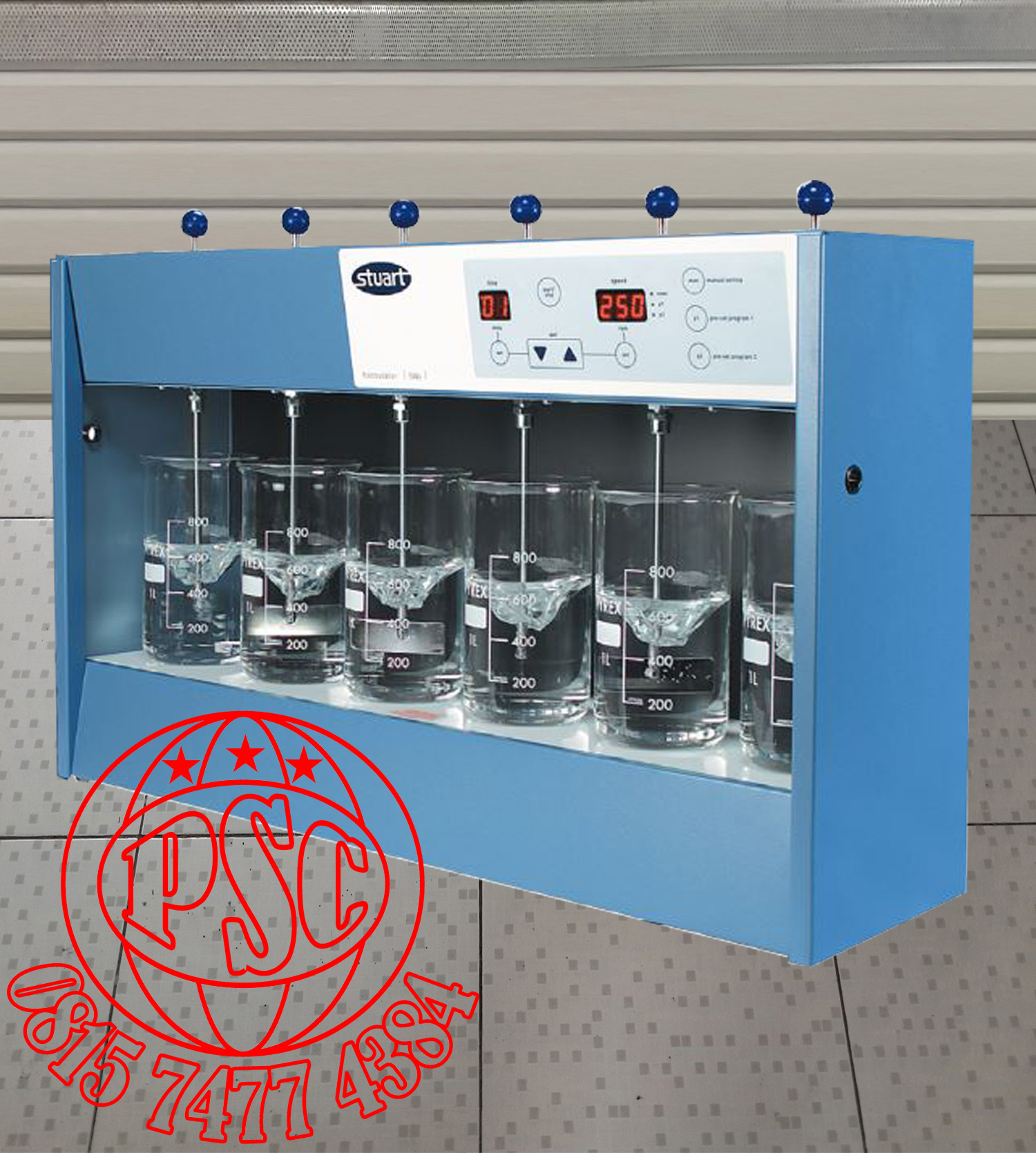

The SW6 accommodates up to six samples and is specially designed for repeatable conditions between samples and from run to run.
A digital display clearly indicates the speed of the rotational stainless steel paddles, which can be varied from 25 to 250 rpm. The digital timer can be set to count down from 1 to 99 minutes. After count down, the paddles stop and an alert sounds. The timer then counts up in minutes in order to measure settling time. Two pre-set programs allow routine speed and time parameters to be input and then selected by simply pressing one button. Parameters are stored in the memory and can be recalled or altered at any time. The intuitive touch sensitive keypad is totally flat for easy cleaning. Sample monitoring is assisted by diffused base illumination and black background.
A simultaneous coagulant doser is available as an accessory.
Specifications
Model	SW5	SW6
No. of samples	2	6
Speed range	25 to 250 rpm	25 to 250 rpm
Timer	No	0 to 99 minutes
Pre-set programs	2	2
Controls keypad	Dial	Touch sensitive
Digital displays	LCD	LED
Dimensions ( W x D x H )	320 x 210 x 500 mm	750 x 210 x 460 mm
Net weight	8.6 kg	17 kg
