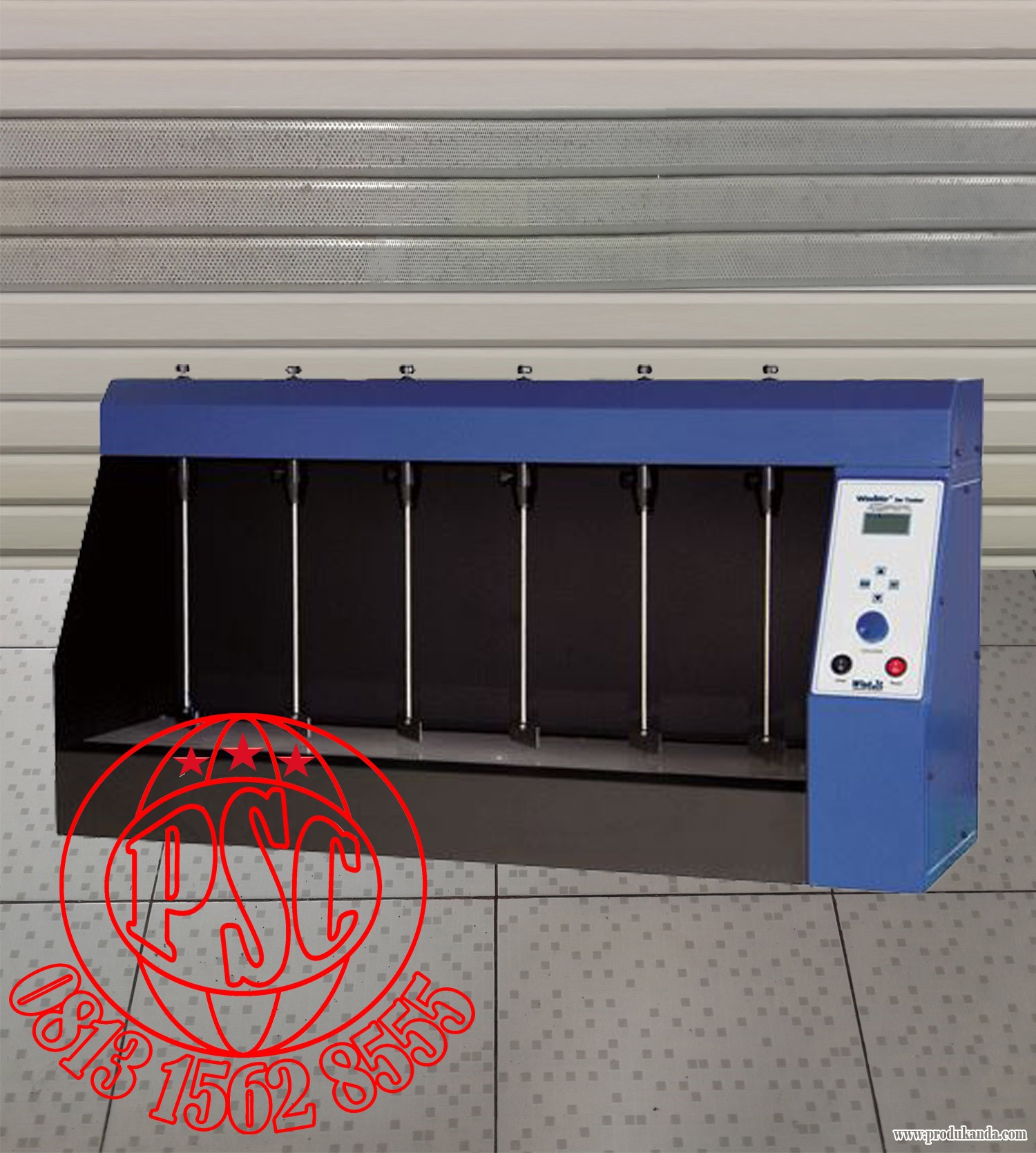

Jar Tester JT-M6C Daihan Scientific

Specification

Model

Shaft : Φ6 × L400 mm “JT - M6”

Shaft  Φ8 × L400 mm “JT - M6C”

6 × Paddler ( SS Shaft )

Straight Blade W 75 × H 25 mm

Stirring Capacity

6 × 1 Liter Beaker

Motor

Geared DC Motor ( 10 : 1 ratio ), 40 W

Speed

20 ~ 300 rpm

Speed Accuracy

±5 rpm

Timer

99 hr 59 min 59 sec ( Programmable )

Display

Digital LCD with Back-Light Function

Controller

Programmable Digital Feedback Controller with Jog-Shuttle Switch ( Turn + Push )

Program Function

10 Steps, 6 Programs

Florescent Lamp

20 W × 6 ( Independent Light Source for Each Sample )

Dimension ( W x D x H )

1,000 × 310 × 535 mm

Safety Device

Overload & Over Heat Protector for motor

Others

CE Certified PL ( Product Liability ) Insurance Storage Function ( RPM, Timer )

Packing Dimension ( W x D x H )

1,120 × 430 × 740 mm

Gross Weight

69 kg

Power Consumption

40 W.

Power Supply & Cord Plug*

1 Phase, AC 120 V, 60 Hz or  AC 230 V, 50/60 Hz, with Cord/Plug

With Certificate & Traceability : Controlled by Serial Number, Certificate,Delivery-information,and Traceable Data base System

Ideal for Flocculation Testing in Water Treatment Laboratories

6 Independent Light Source for Each Stirring Point

Geared DC Motor and Specially Designed Timing Belt Used

CE Certified

PL ( Product Liability ) Insurance

Deciding on Coagulant Chemistries

Ideal for Flocculation Testing in Water Treatment Laboratories

6 Independent Light Source for each Stirring Point

Digital Feedback Control using Microprocessor

Geared DC Motor and Specially Designed Timing Belt used

Stable and Accurate Stirring Speed by Feedback Control

Digital Display for RPM, Power Bar-Graph and Status

Digital LCD with Back-Light Function

Programmable Operation : 10 Steps, 6 Programs

Overload Protection and Over-Heat Protection Functions for Motor

Storage Function for Set Values : RPM and Timer
