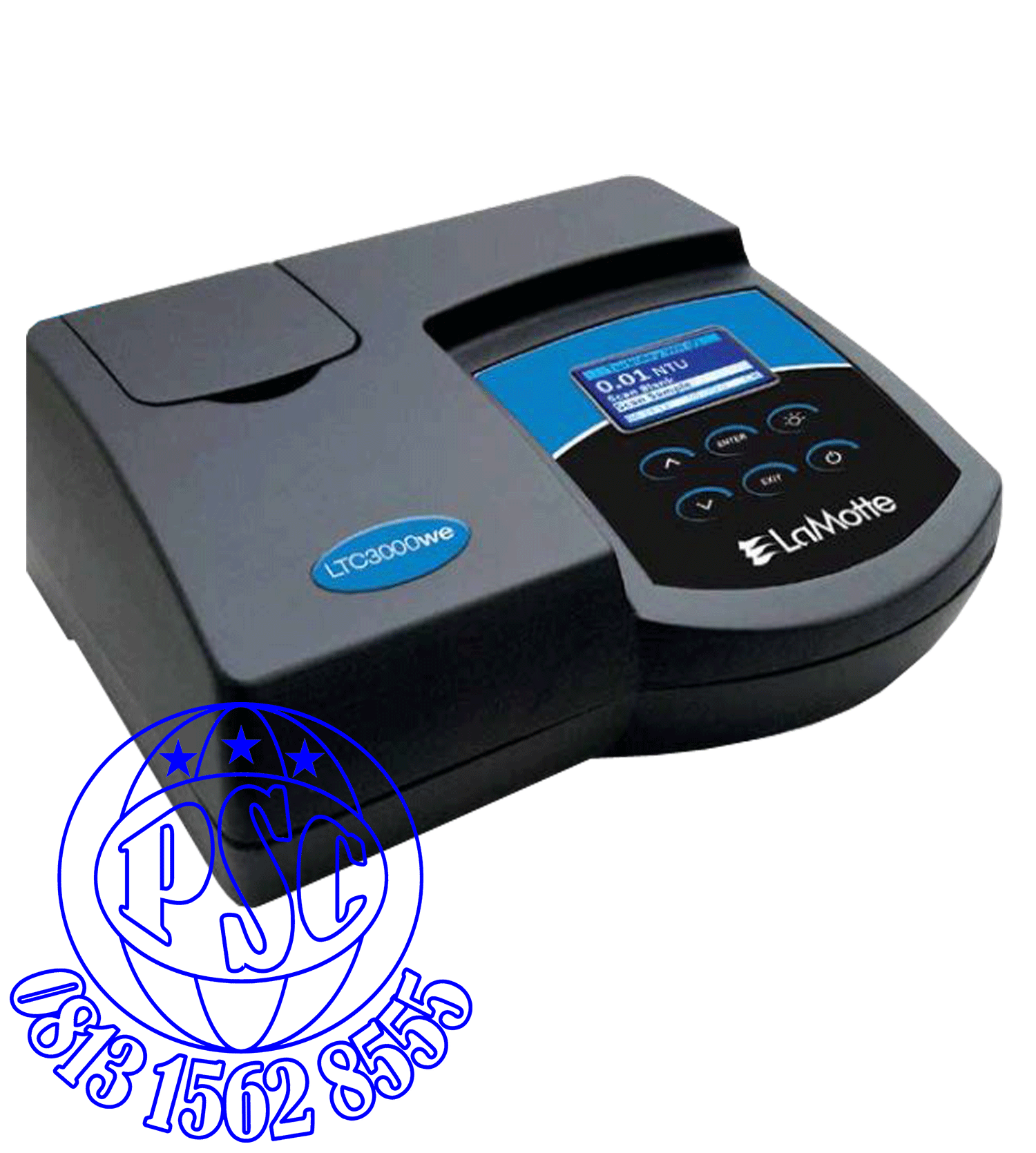

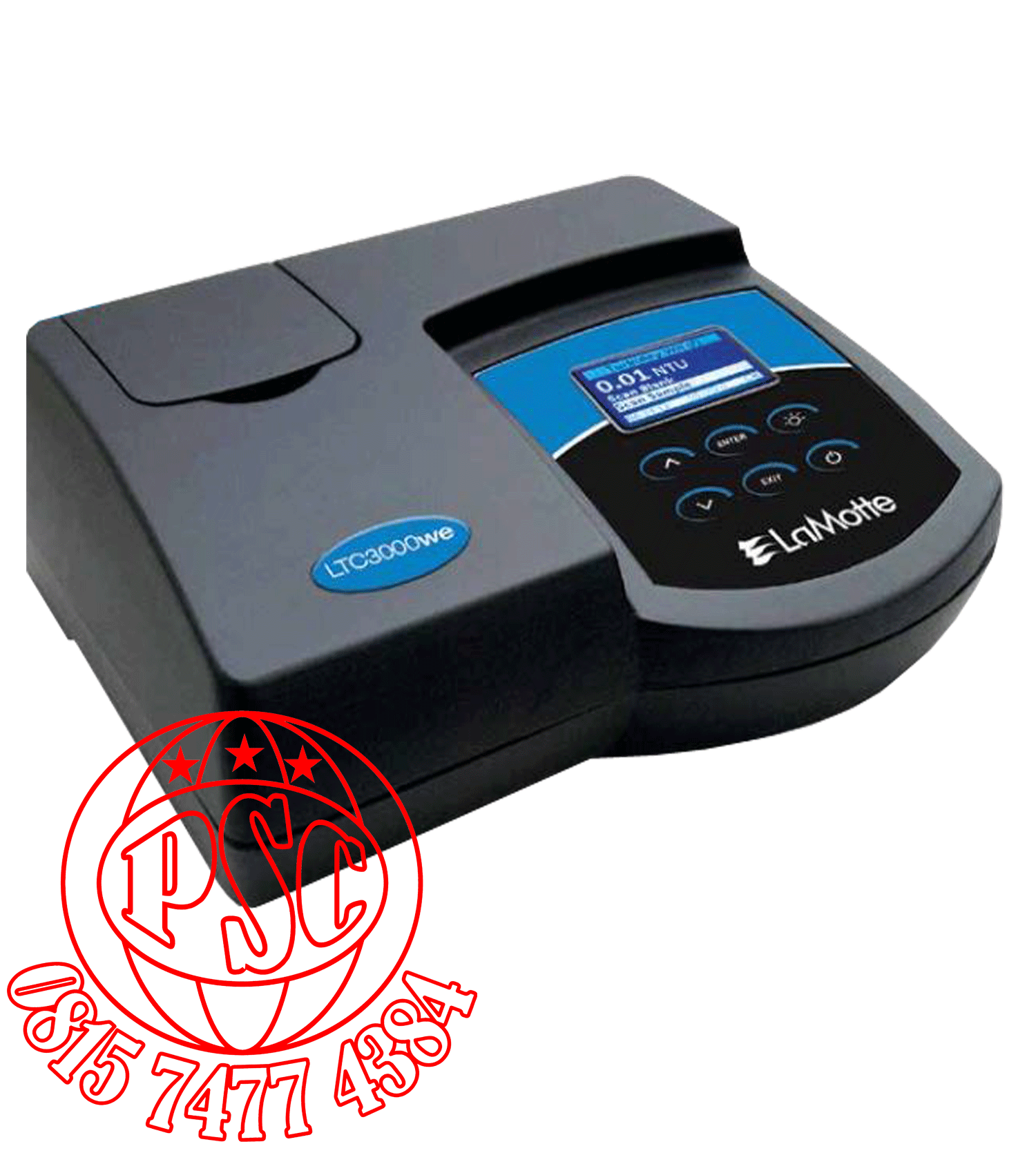

LTC3000W Series Laboratory Turbidity, Chlorine and Color Meter Lamotte
1. LTC3000we Laboratory Turbidity & Chlorine Meter;
Turbidity ( EPA 180.1 ), Chlorine ( EPA 330.5 ), Color ( based on Standard Methods 2120C ) :1972-EPA
2. LTC3000wi Laboratory Turbidity & Chlorine Meter;
Turbidity ( ISO 2027 ), Chlorine ( Standard Methods 4500-Cl-G ), Color ( based on Standard Methods 2120C ):1972-ISO
Turbidity Specifications
Unit of Measure	NTU, FNU, AU, FAU, ASBC, EBC
Range*	0-4000, 0-10,500 ASBC, 0-150 EBC
Resolution*	0.01 NTU/FNU 0.00-10.99
	0.1 NTU/FNU 11.00-109.9
	1 NTU/FNU 110-4000
Accuracy*	From 0-2.5 NTU the accuracy is ±0.05 NTU.
	From 2.5-100 NTU the accuracy is ±2 %.
	Above 100 NTU the accuracy is ±3 %
Range Selection	Automatic
Detection Limit	0.05 NTU/FNU
Reproducibility*	0.02 NTU/FNU, or 1 %
Light Source	Tungsten ( EPA ), complies with EPA 180.1860mm LED ( ISO ), compies with ISO 7027
Chlorine Specifications
Range	0-10 ppm, Free and Total Chlorine
Resolution	0.00-5.00 ppm Range : 0.01 ppm
	5.0-10.0 ppm Range : 0.1 ppm
Accuracy  Tablet	0-1.0 ppm Range : ±0.03 ppm
	1.0-3.0 ppm Range : ±0.06 ppm
	3.0-6.0 ppm Range : ±0.3 ppm
	6.0-10.0 ppm Range : ±2.5 ppm
Liquid	0-0.5 ppm Range : ±0.03 ppm
	0.6-3.0 ppm Range : ±0.06 ppm
	3.0-6.0 ppm Range : ±0.4 ppm
	6.0-10.0 ppm Range : ±1.5 ppm
Detection Limit	0.03 ppm
Response Time	<2 seconds="" --2--="">
Light Source	525 nm LED, complies with EPA 330.5
Color Specifications
Range	0-1000 cu
Detection Limit	20 cu
Accuracy	±15 cu
Light Source	428 nm LED
Meter Features
Signal Averaging	Disabled, 2, 5, 10
Power	USB computer cable or wall adapter or  Lithium ion rechargeable battery, 3.7 V, 2.5" x .75", 1.7 oz.
Data Logging	500 points
Auto Shut-Off	Disabled, 5, 10, 30 minutes
Languages	English, French, Spanish, Japanese, Italian, Portuguese, Chinese
Response Time	<2 seconds="" --2--="">
Dimensions	8.75 W x 7.75 D x 3 H inches
	22.2 W x 19.7 D x 7.6 H cm
Meter Weight	1.5 lbs; 680 g
Ship Weight	6 lbs; 2.72 Kg
Optional Components
0290-6  Six-pack of Glass Vials
1480  0 NTU Standard ( EPA and ISO ), 60 mL
1450  1 NTU Standard ( EPA ), 60 mL
1451  10 NTU Standard ( EPA ), 60 mL
1452  100 NTU Standard ( EPA ), 60 mL
1453  1 NTU Standard ( ISO ), 60 mL
1454  10 NTU Standard ( ISO ), 60 mL
1455 100 NTU Standard ( ISO ), 60 mL
6903A-J Chlorine DPD #1 Instrument Grade Tablets ( 100/box )
6197A-J Chlorine DPD #3 Instrument Grade Tablets ( 100/box )
1720 USB Cable
1721 USB Wall Plug ( Requires 1720 )
1901-CD Optional Smartlink3 Software
