LB 126 Portable Dose Rate Monitor Berthold

Features

Compact and power-saving microprocessor electronics with charging circuit for 4 rechargeable batteries ( AA cells )

Measurement of the new quantities ambient dose and ambient dose rate equivalent H*( 10 )

Energy-compensated low dose counter tube LB 6006-H10 according to ICRU Report 39

Easy operation by means of 3 softkeys

Signal and alarm indication

Free selectable alarm thresholds for dose and dose rate

Data storage for 1000 measurements

RS232 and RS485 data interface for printout and communication; RS485 networking for up to 32 devices

Detail

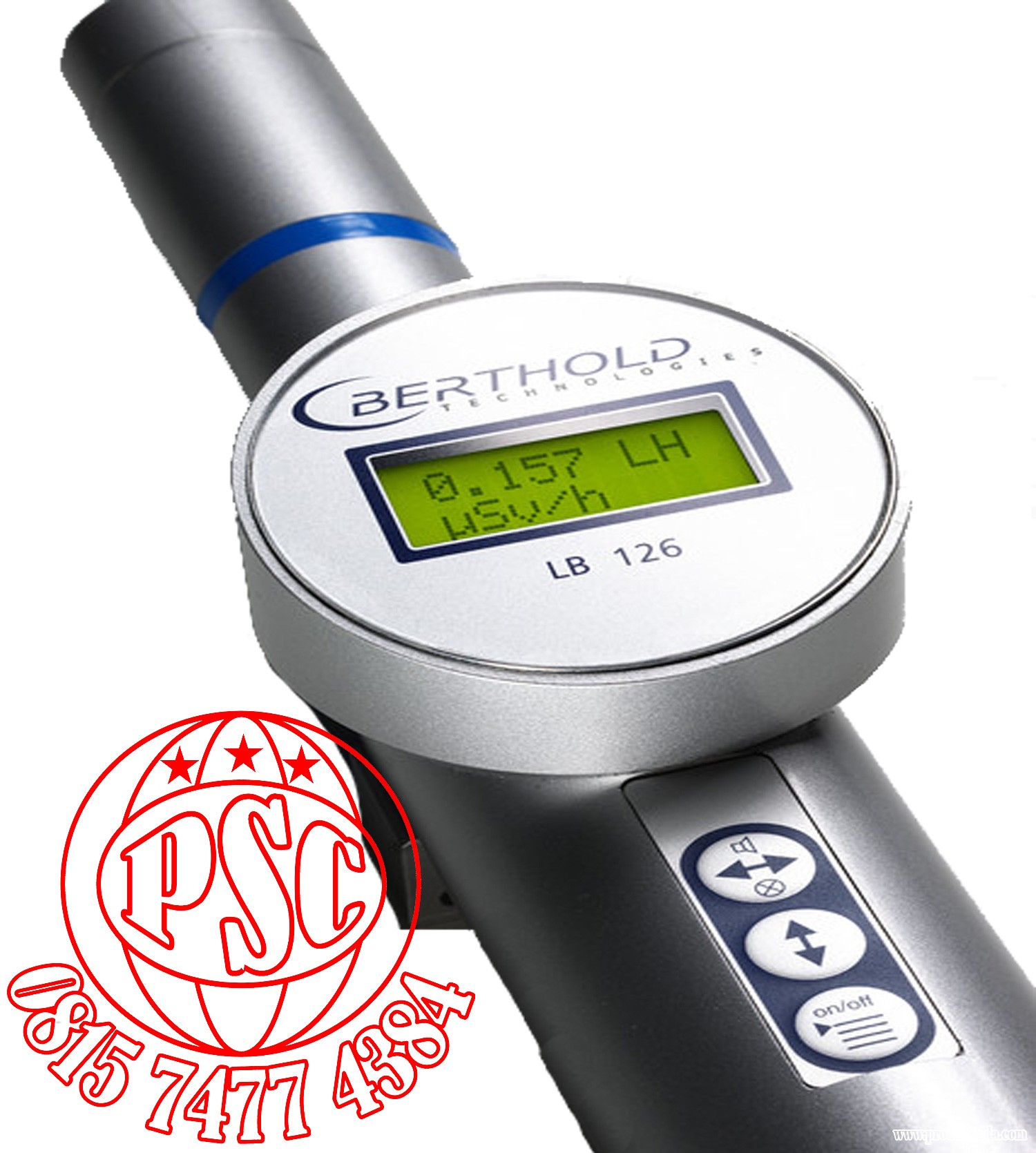

The LB 126 is a portable Dose Rate Monitor which is used in the entire field of radiation protection. A sealed off proportional counter tube, approved in accordance with the new standard H*10, is used as detector.

Three buttons suffice to navigate through the clearly arranged and userfriendly menu prompting.

Up to 1000 measurements can be stored in the data memory and this data can be accessed and printed out via a RS232 and/or a RS485 interface. Serial data communication with the PC, i.e. reading and reset of the data memory, acquisition of the measurement values, reading the parameters and reset of the dose, takes place via F2C Protocol.

Up to 32 devices can be linked via the integrated RS485 interface within a RS485 bus system.

Digital Electronics

Microprocessor electronics with charging circuit for 4 rechargeable batteries ( AA cells )

Alternative operation with 4 batteries ( AA batteries )

32 kB Eeprom memory for parameters and 1000 measurement data

Real time clock, battery-buffered

Acoustics for single pulses and alarm

Free selectable alarm thresholds for dose and dose rate

RS232 and RS485 interface with adjustable baud rate

Specifications

Selectable Units

µSv/h, µSv or mrem/h, mrem

Operating temperature

-10 to +40 °C

Relative humidity

30 % to 75 %

External charging voltage

+9 VDC, <0.6 V

Detector

Energy-compensated proportional counter tube according ICRU Report 39; H*10 ( ambient dose equivalent )

Measuring Range

50 nSv/h to 50 mSv/h

Energy Range

30 keV – 1.3 MeV

Angle dependence

± 45°

Operation point

1750 V

Calibration factor

0.214 µSv/h

Intrinsic Background

0.07 cps

Dead time

2.6 µs

Digital Electronics

Lenght x diameter

370 mm x 50 mm

Weight

950 g

Display Ranges

Doserate

0 to 50000 mSv/h

Dose

0 to 999 mSv

Dose Integral time

up to 99:59:59 ( hh:mm:ss )
