MQ Series Macro-Kjeldahl Extraction Equipment
The Macro-Kjeldahl Extraction equipment has been designed for Kjeldahl extraction on a macro scale to determine the protein content of food.

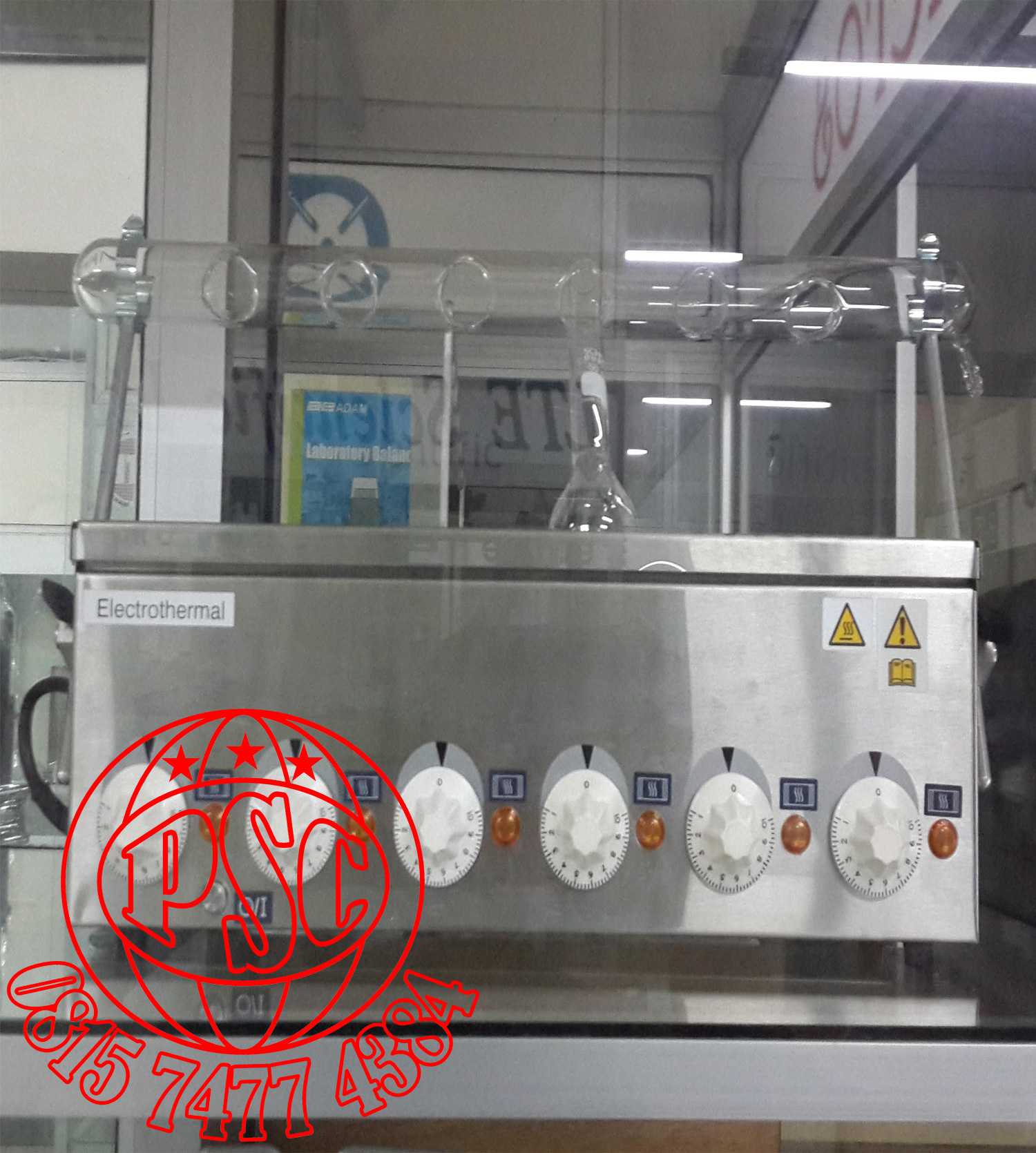

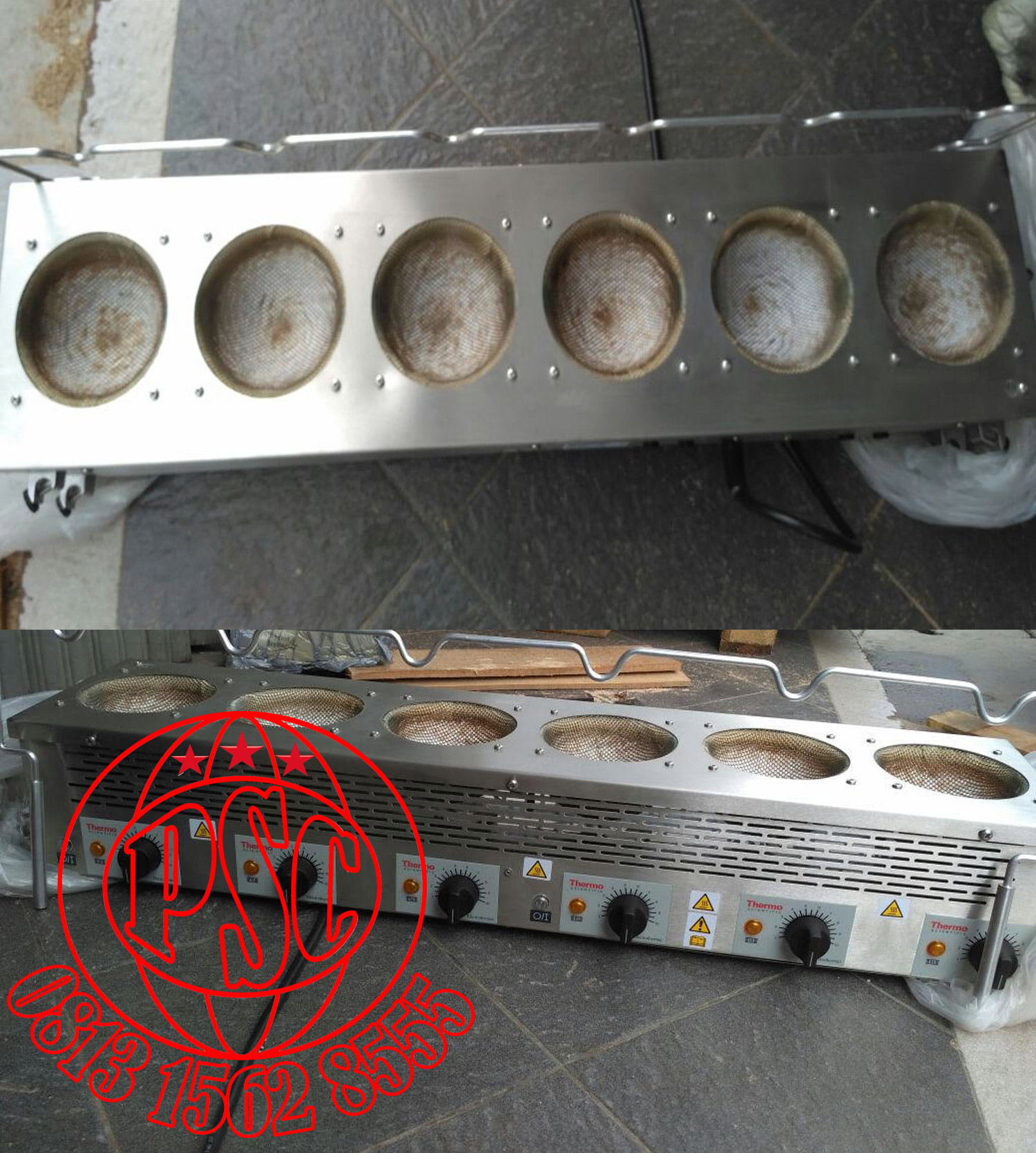

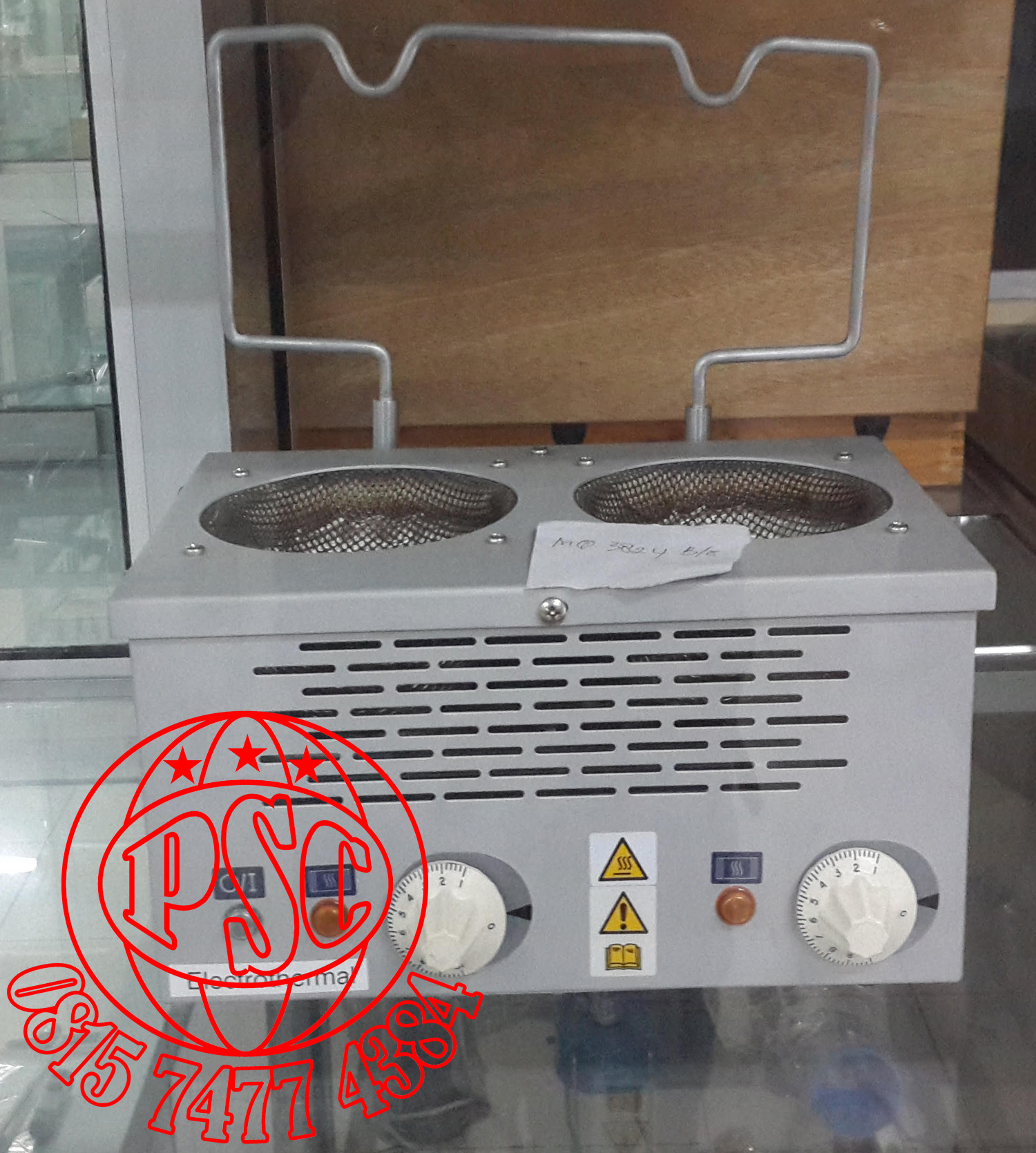

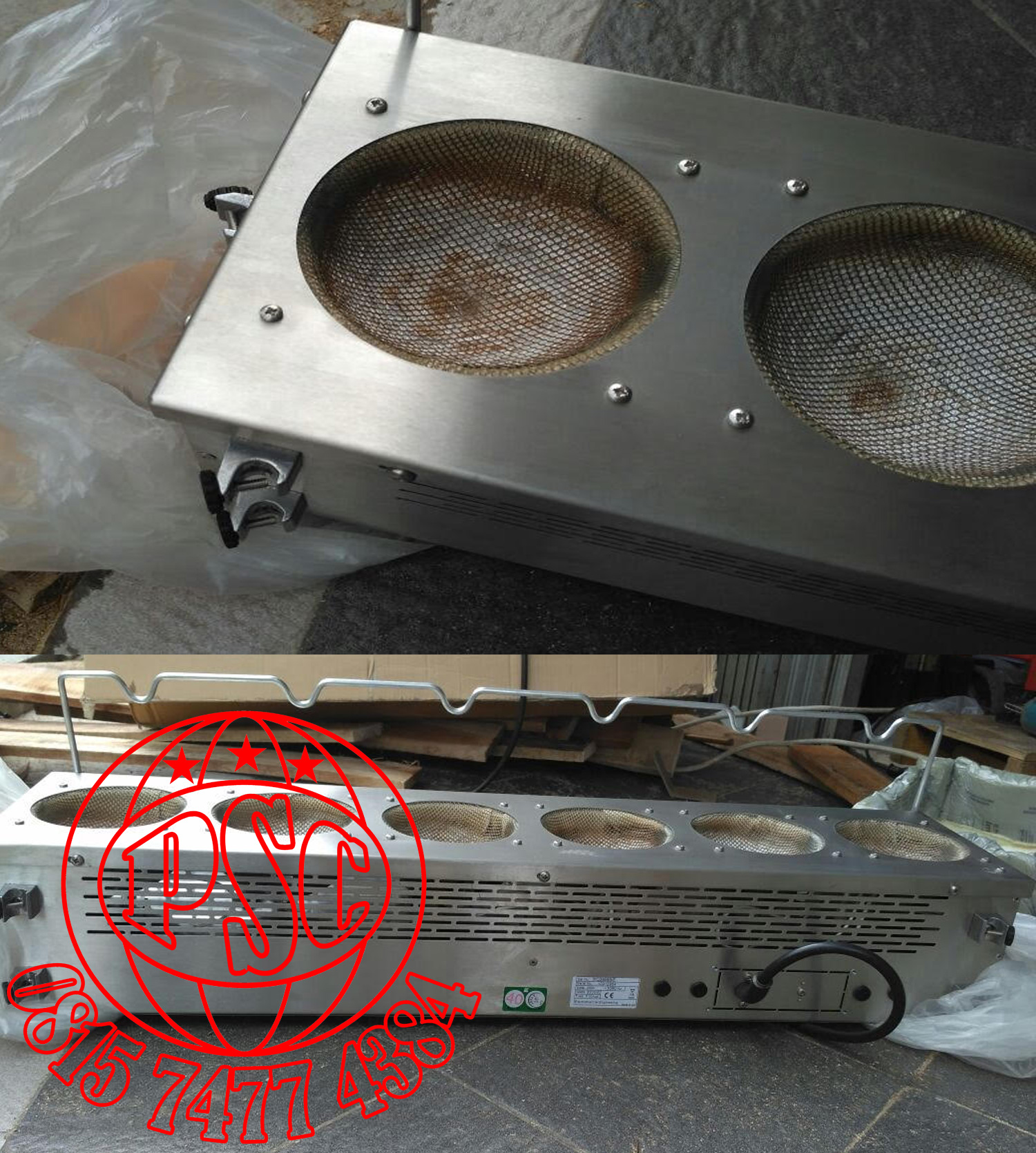

These multibank units with either 2 or 6 recesses, have a stainless steel outer casing with back-mounted brackets ( supplied with each unit ), which can hold support rods of 12.7 mm diamter max. There are 2 volume sizes available for both the 2 and 6 recess models, one for 100 – 300 ml vessels and the second for 500 – 800 ml vessels.

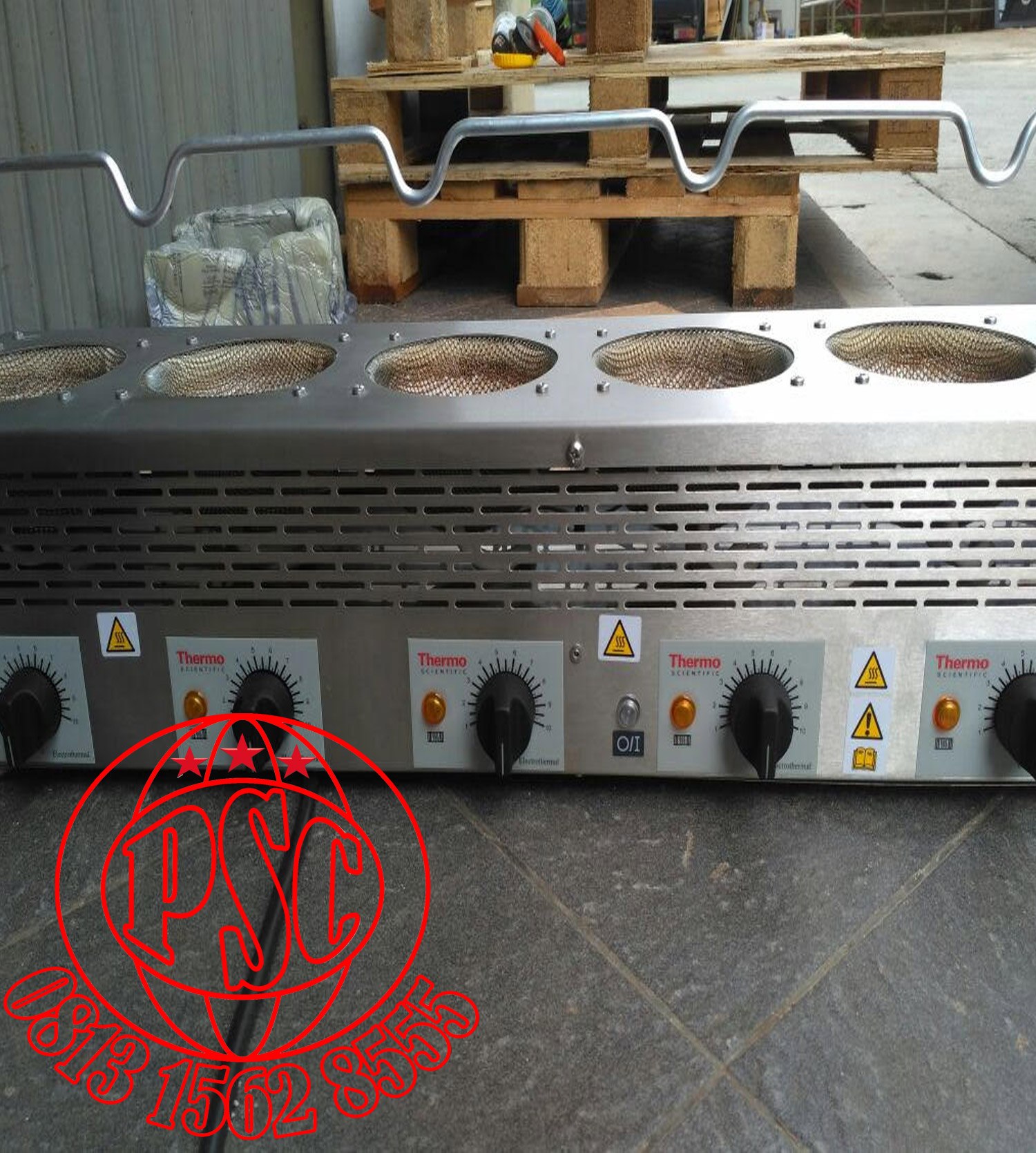

Each heating mantle has its own energy regulator incorporating an On/Off switch and a "Mains to Heater" amber neon indicator. There is also a "Mains On" clear neon indicator on the front panel.
The lower part of the unit houses dedicated controllers for each recess. This "cool zone" housing is separated from the heating elements by a stainless steel screen and a well-ventilated air space. The heating element consists of thermally insulated element wire stitched into a cartridge, and operates up to a maximum element temperature range of 550 °C to 800 °C.
All MQ Macro-Kjeldahl Equipment models incorporate an earth screen to protect the user from electric shocks and are double-fused for extra safety ( except for the MQ3868B/E which is only available as the 230 V model as it is wired in directly ). The rugged stainless steel outer casing is durable and easy to clean.
Key Features
Rugged, easy to clean stainless-steel construction

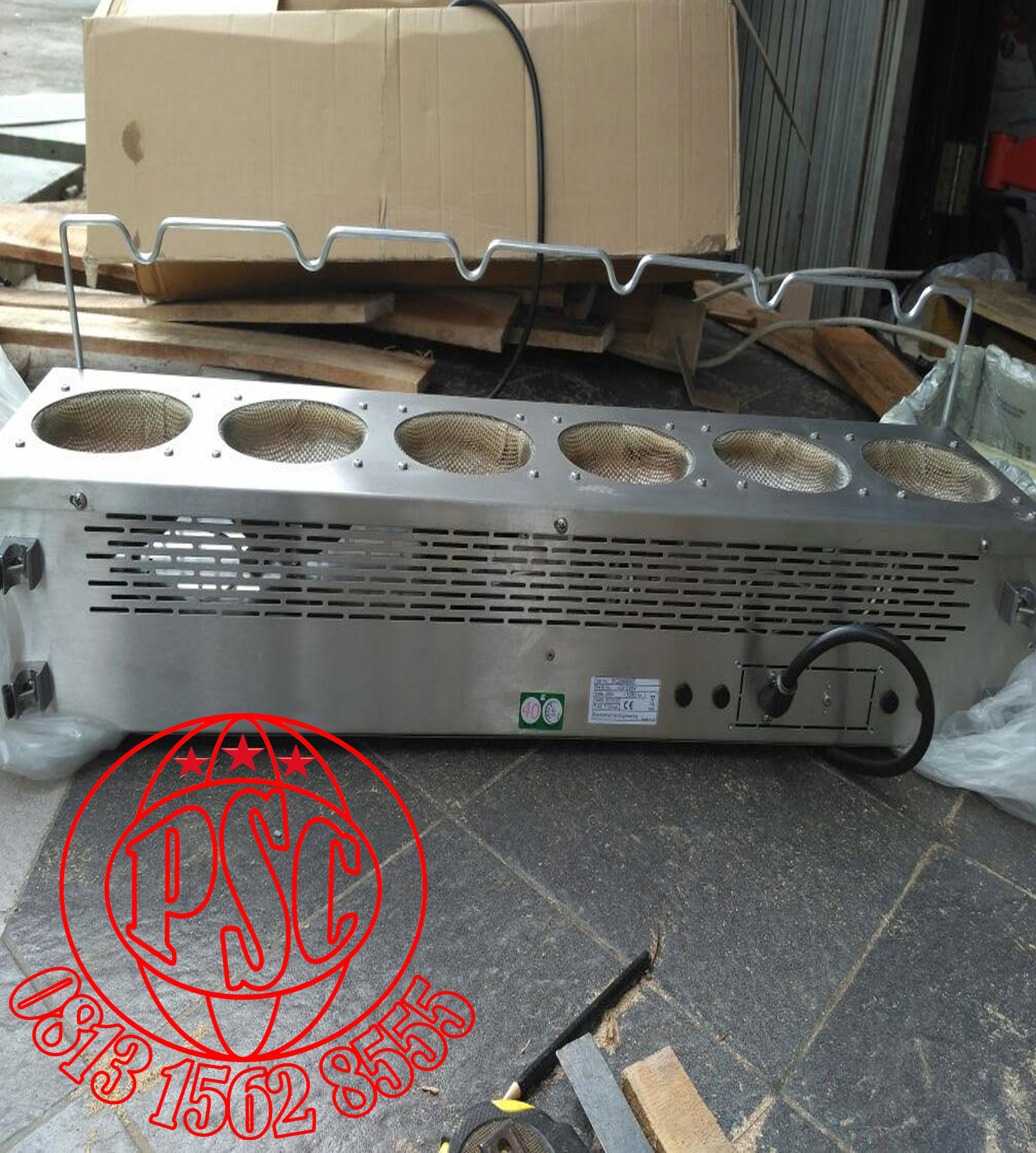

Back-mounted brackets hold flask support rods ( supplied with each unit )
Choice of 2 or 6 positions
Choice of 2 flask capacity sizes : 100 - 300 ml and 500 - 800 ml for both the 2 and 6 position models
Operates up to a maximum element temperature range of 550 °C to 800 °C
Dedicated controllers for each recess are housed in a "cool zone"
Grounded stainless steel earth screen covering the heating element
Units are double fused for added safety ( except for the MQ3868B/E which is only available as the 230 V model as it is wired in directly )
Please note that glassware is not included
Technical Specification
Element temperature range		550 °C to 800 °C maximum
Case material		Stainless steel
Thermal insulation		Ceramic fibre/ mineral wool
Clamps for support rods		Fitted with adjustable clamps to accept the standard arms supplied
Wells capacity		100 – 300 ml
Wells dim ( dia x depth )		89 x 45 mm
Wells capacity		500 – 800 ml
Wells dim ( dia x depth )		117 x 59 mm
Ordering Information
Model	Positons	Capacity per position	Max. Temp.	Electrical Requirements	Dimensions ( D x W x H )	Weight kg
MQ3822B/E	2	100 to 300 ml	800ºC	230v 50/ 60Hz, 600w	26.0 x 32.0 x 16.5 cm	2
MQ3822B/EX1	2	100 to 300 ml	800ºC	115v 50/ 60Hz, 600w	26.0 x 32.0 x 16.5 cm	2
MQ3822B/EX6	2	100 to 300 ml	800ºC	230v 50/ 60Hz, 600w, EU Plug	26.0 x 32.0 x 16.5 cm	2
MQ3824B/E	2	500 to 800 ml	800ºC	230v 50/ 60Hz, 1100w	26.0 x 32.0 x 16.5 cm	2
MQ3824B/EX1	2	500 to 800 ml	800ºC	115v 50/ 60Hz, 1100w	26.0 x 32.0 x 16.5 cm	2
MQ3824B/EX6	2	500 to 800 ml	800ºC	230v 50/ 60Hz, 1100W, EU Plug	26.0 x 32.0 x 16.5 cm	2
MQ3866B/E	6	100 to 300 ml	800ºC	230v 50/ 60Hz, 1800w	26.0 x 97.0 x 16.5 cm	5.8
MQ3866B/EX1	6	100 to 300 ml	800ºC	115v 50/ 60Hz, 1800w	26.0 x 97.0 x 16.5 cm	5.8
MQ3866B/EX6	6	100 to 300 ml	800ºC	230v 50/ 60Hz, 1800w, EU Plug	26.0 x 97.0 x 16.5 cm	5.8
MQ3868B/E	6	500 to 800 ml	800ºC	230v 50/ 60Hz, 3300w	26.0 x 97.0 x 16.5 cm	5.8
MQ3868B/EX1	6	500 to 800 ml	800ºC	115V 50/ 60Hz, 3300w	26.0 x 97.0 x 16.5 cm	5.8
MQ3868B/EX6	6	500 to 800 ml	800ºC	230v 50/ 60Hz, 3300w, EU Plug	26.0 x 97.0 x 16.5 cm	5.8
