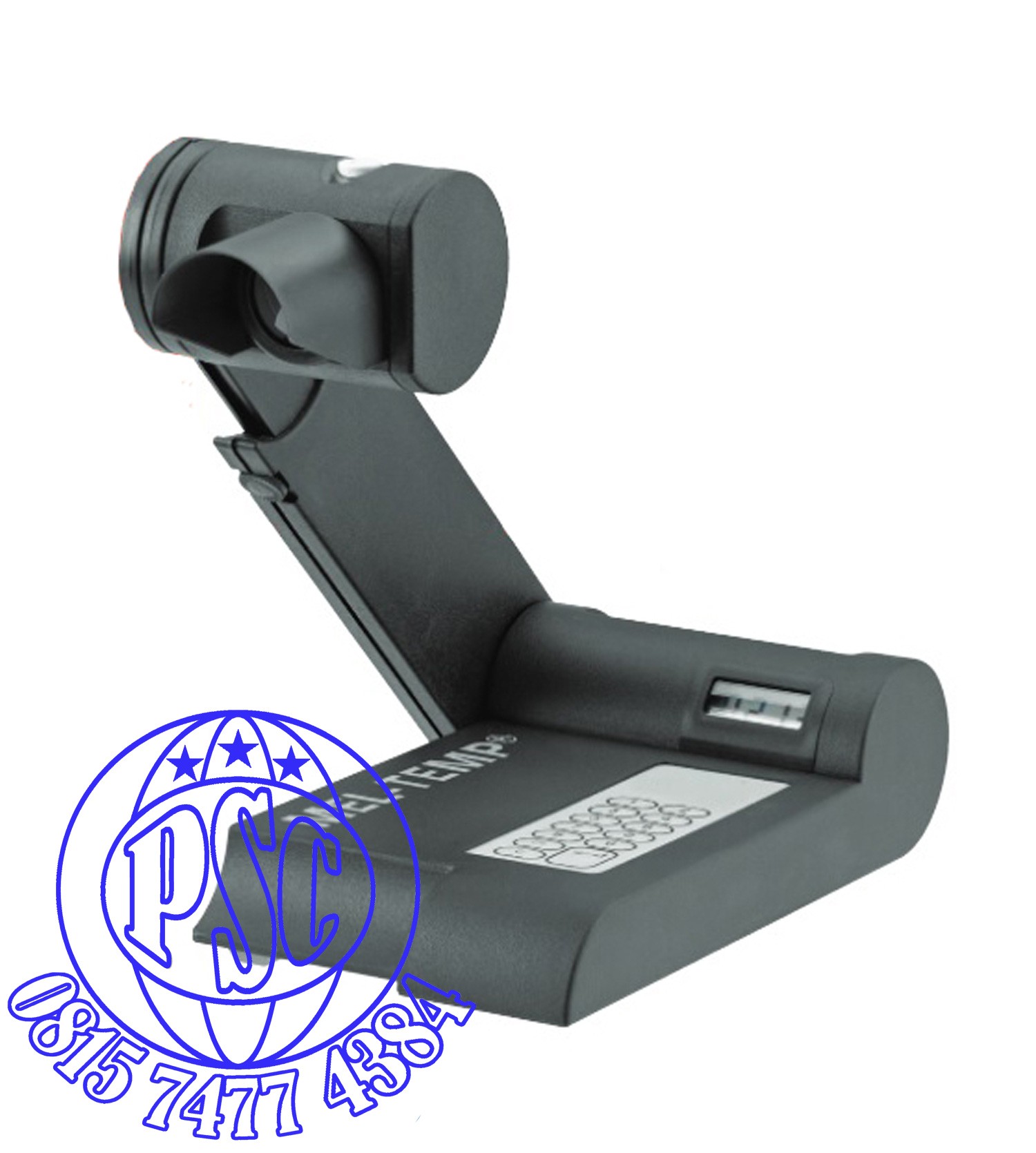

Digital Melting Point Apparatus 1101D & 1102D Mel-Temp Electrothermal

Technical specification

Mel-Temp® Model

1101D

1102D

Temperature range

Ambient to 400 °C

Ambient to 400 °C

Fixed temperature ramp rate

1 °C per minute

1 °C per minute

Fast temperature ramp rate

10 °C per minute

10 °C per minute

Temperature resolution

± 1 °C

± 1 °C

Accuracy

± 1 %

± 1 %

Temperature sensor

PT100 Platinum Resistance

PT100 Platinum Resistance

40mm diameter removable lens

8X magnification with adjustable focus

8X magnification with adjustable focus

Display

2 rows of 12 characters with backlit LCD

2 rows of 12 characters with backlit LCD

Colour

Black

Black

Processor

32-bit processor

32-bit processor

Keypad

13-key membrane

13-key membrane

Capillary tubes

Accommodates 3 tubes up to 2 mm OD

Accommodates 3 tubes up to 2 mm OD

Tube Guide

Removal for cleaning and use of cold finger

Removal for cleaning and use of cold finger

LED

White LED illuminated oven

White LED illuminated oven

Melt memory

4 x 1 Melt memory capacity

4 x 1 Melt memory capacity

Power requirements

115V, 50-60 Hz, 45 W

230 V, 50-60 Hz, 45 W

Dimensions ( D x W x H )

35.5 x 20 x 8 cm

35.5 x 20 x 8 cm

Weight

2.5 kg

2.5 kg
