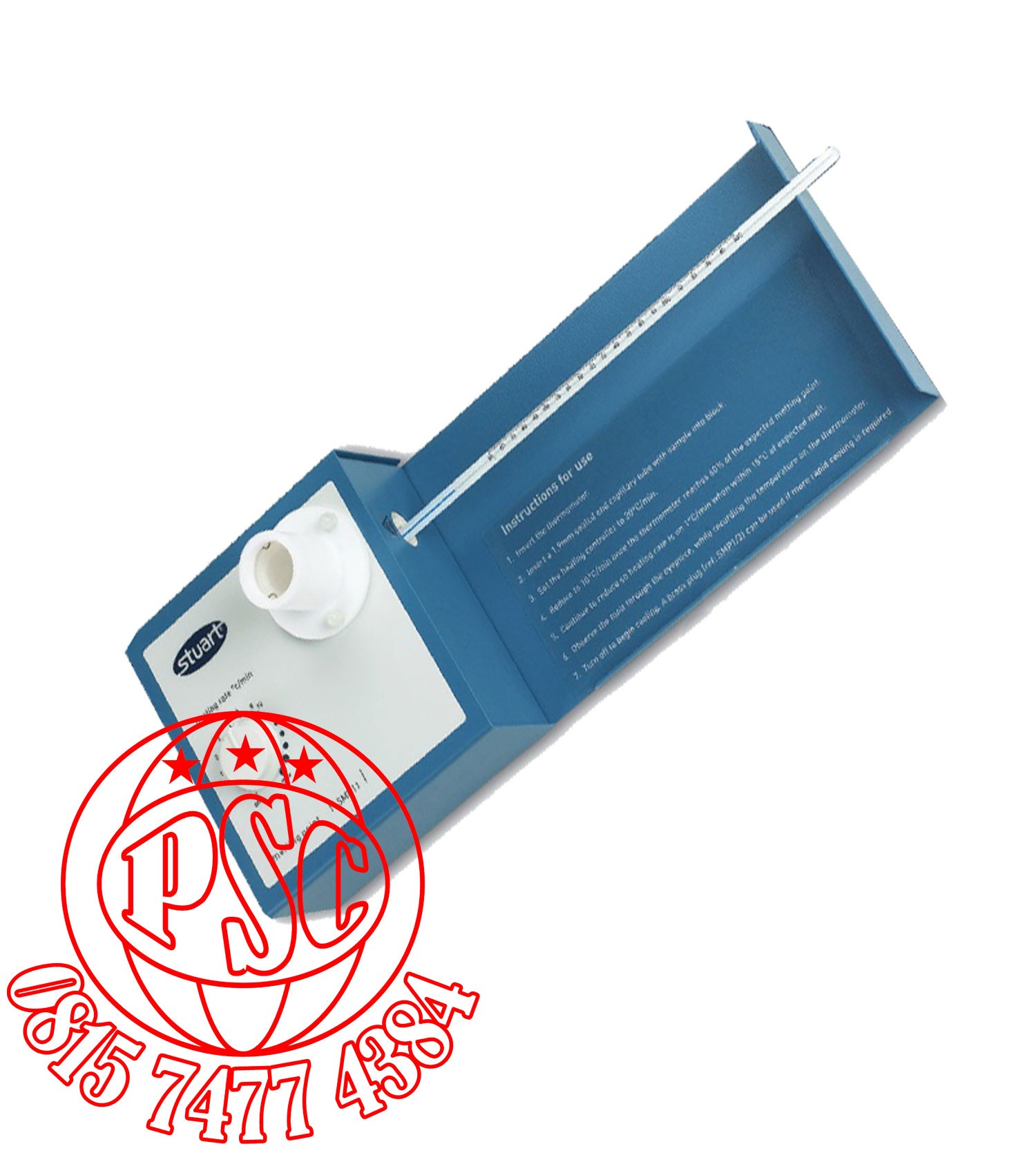

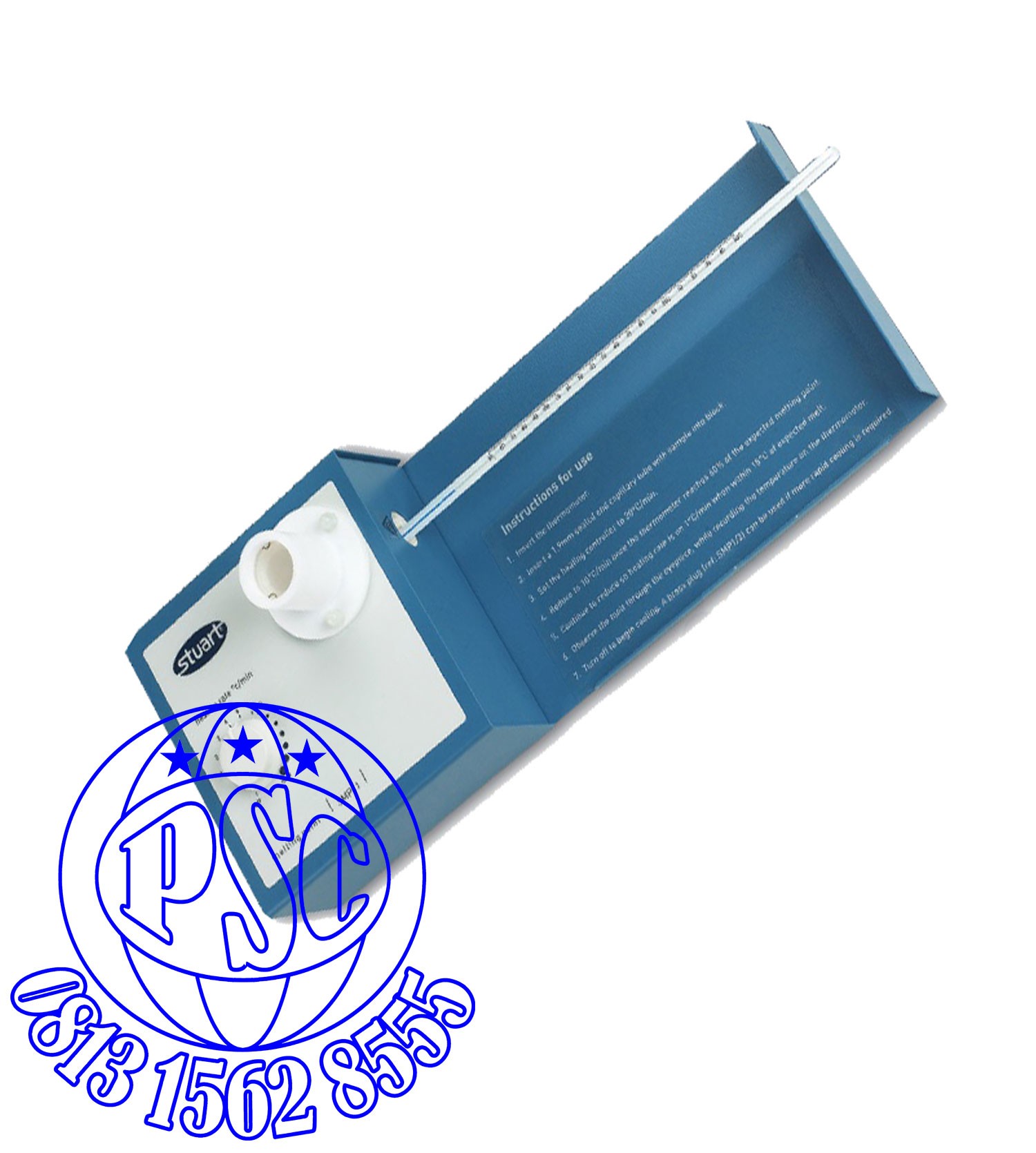

Melting Point Apparatus Analogue SMP11 Stuart

Up to three samples can be viewed and tested at any one time. Samples are illuminated by a bright white LED and viewed via a magnifying lens. The magnifying lens can be detached for cleaning using the simple to follow instructions printed on to the instrument.

No. of samples

Up to 3

Temperature range

50 to 250 °C

Heating rate

1 to 10 °C min

Dimensions ( W x D x H )

370 x 140 x 110 mm

Net weight

1.7 kg

Electrical supply

230 V, 50 Hz, 50 W

Melting point tubes

Made from soda glass, these tubes are easy to seal in a Bunsen flame and break into two. Supplied in robust tube holder, pack of 100 tubes. Tube overall length is 100 mm Tube diameter = 1.9 mm, inner diameter = 1.3 mm and wall thickness = 0.3 mm.

Melting Point Apparatus, Analogue, SMP11

Model

Description

SMP11

Melting point Apparatus, complete with thermometer and pack of 100 melting point tubes ( open both ends )

SMP111

Spare thermometer, spirit filled, 50 °C to 250 °C

SMP12

Cooling plug ( brass ) for rapidly reducing heating block temperature after use

SMP14

Glass melting point tubes, open at both ends, pack of 100

SMP21

Glass melting point tubes, closed at both ends, pack of 100

SMP101

Glass melting point tubes, closed at one end, pack of 100

Easy to operate - ideal for educational use

Supplied with safe spirit filled thermometer

Economical price

With new safety features and easy to use, the SMP11 is ideal for use in education.

Supplied with a safe, spirit filled mercury free thermometer, the low toxic blue spirit will not pose a health hazard in the event of a breakage. Easy to follow instructions are printed directly on to the apparatus and are available in most European languages.

With a manually adjustable heating rate, the SMP11 will rapidly heat samples up to 20 °C per minute to the melt temperature and up to the maximum temperature of 250 °C. Accurate readings to within 1 °C of the melt temperature can be achieved by using a slower heating rate of between 1 and 10 °C per minute.

Up to three samples can be viewed and tested at any one time. Samples are illuminated by a bright white LED and viewed via a magnifying lens. The magnifying lens can be detached for cleaning using the simple to follow instructions printed on to the instrument.
