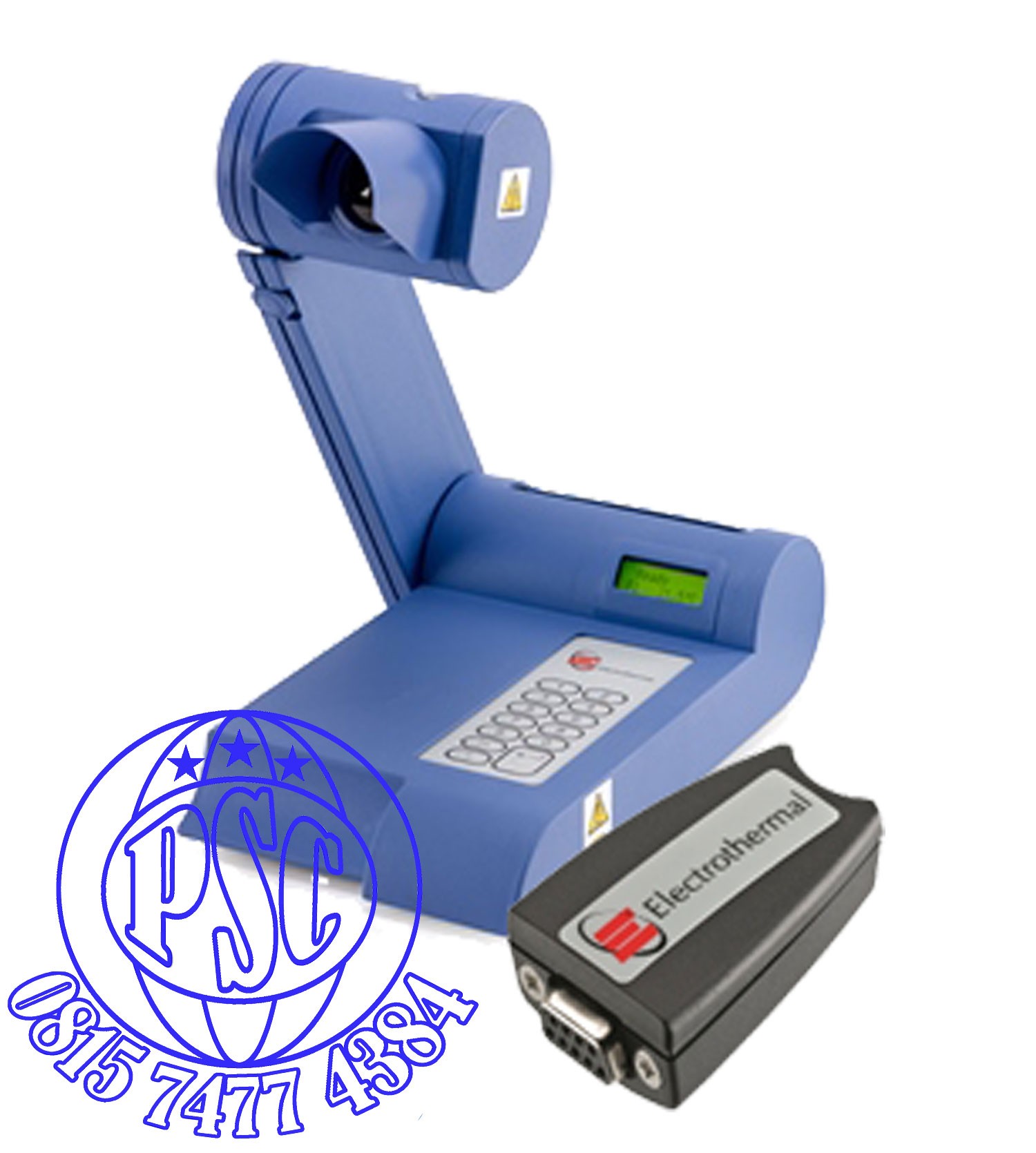

Melting Point Apparatus IA9000 Electrothermal

Performance

• Membrane keypad with simple menus for intuitive use

• Push button controls are conveniently located to ensure that temperatures can be recorded without looking away from the sample

• Digital microprocessor with ±0.1°C resolution provides fast warm-up and accurate temperature control

• Samples in 3 capillary tubes may be viewed simultaneously.

Safety and convenience

• 3 Audible beeps indicate that the oven temperature is stable and ready for sample

• Adjustable arm with viewing magnifier can be folded away into the unit

• Adjustable object lens for sharp focus

• Rotating viewing head and safety eye piece to protect against glare and hot zone

• Integral light and wide angle 8X viewing magnifier enhance sample observation, so that all 3 samples can be viewed without eye strain

• Units can be calibrated by the user on their site or by the manufacturer/service organisation. If calibrated by the user, a calibration kit is required

• Improved calibration procedure using a calibration key

Technical Specification

IA9000 series Model

IA9100

IA9200

IA9300

32-bit Processor

+

+

+

Accommodates 3 capillary tubes up to 2mm OD ( storage for 100 pack )

+

+

+

Tube Guide removal for cleaning and use of cold finger

+

+

+

40mm dia. lens ( magnification 8X ) removable and with adjustable focus

+

+

+

Oven temperature range ambient to 400 °C

+

+

+

Temperature resolution ± 0.1 °C

+

+

+

Accuracy ± 1 %

+

+

+

13-key membrane keypad

+

+

+

Cooling rate choice

+

+

+

Choice of ramp rate of 1.0 °C/minute & 10 °C/minute

+

-

+

Choice of ramp rates of 0.2 - 10 °C/minute

-

+ ( default 0.2 °C minute )

+ ( default 1.0 °C minute )

Fast ramp rate of 10 °C/minute

+

+

+

White LED illuminated oven

+

+

+

Nicad battery for memory, clock back-up

-

+

+

Date & time facility

-

+

+

PC output facility

-

+

+

Printer output facility

-

+

+

USB output to flash drive

-

+

+

Display ( 2 rows of characters with backlit LCD )

+

+

+

4 x 1 Melt memory capacity

+

+

-

3 x 2 Melt memory capacity

-

-

+

Batch memory capacity of 500 melts

-

-

+

Batch memory capacity of 1000 melts

-

+

-

RS232C Serial port for printer

-

+

+

Dimensions ( D x W x H )

35.5 x 20 x 8 cm

35.5 x 20 x 8 cm

35.5 x 20 x 8 cm

Shipping weight

2.5 kg

2.5 kg

2.5 kg

+ Feature present on this model

Ordering Information

Model

Description

Electrical Requirements

IA9100

Fixed Ramp Rate Model

230 V, 50/60 Hz, 45 W UK and EU plug

IA9100X1

Fixed Ramp Rate Model

115 V, 50/60 Hz, 45 W

IA9200

Programmable Ramp Rate Model

230 V, 50/60 Hz, 45 W UK and EU plug

IA9200X1

Programmable Ramp Rate Model

115 V, 50/60 Hz, 45 W

IA9300

Beginning/Ending Recording Model for Pharmacopeia Requirements

230 V, 50/60 Hz, 45 W UK and EU plug

IA9300X1

Beginning/Ending Recording Model for Pharmacopeia Requirements

115 V, 50/60 Hz, 45 W

Please note that each instrument is supplied with a pack of 50 capillary tubes, power supply and power cable.

Accessories Ordering Information

Part Code

Description

AZ9253

Calibration key

AT4042

Capillary tubes 1.5 mm ( 10 x 100 pack )

AT4043

Capillary tubes 2.0 mm ( 10 x 100 pack )

AZ9220

1A PSU mains ( UK )

AZ9220X1

1A PSU mains ( 115 V for US )

AZ9220X6

1A PSU mains ( EU )

SMP-KIT

Melting Point Standards, Vanillin, Caffeine & Sulphanilamide
