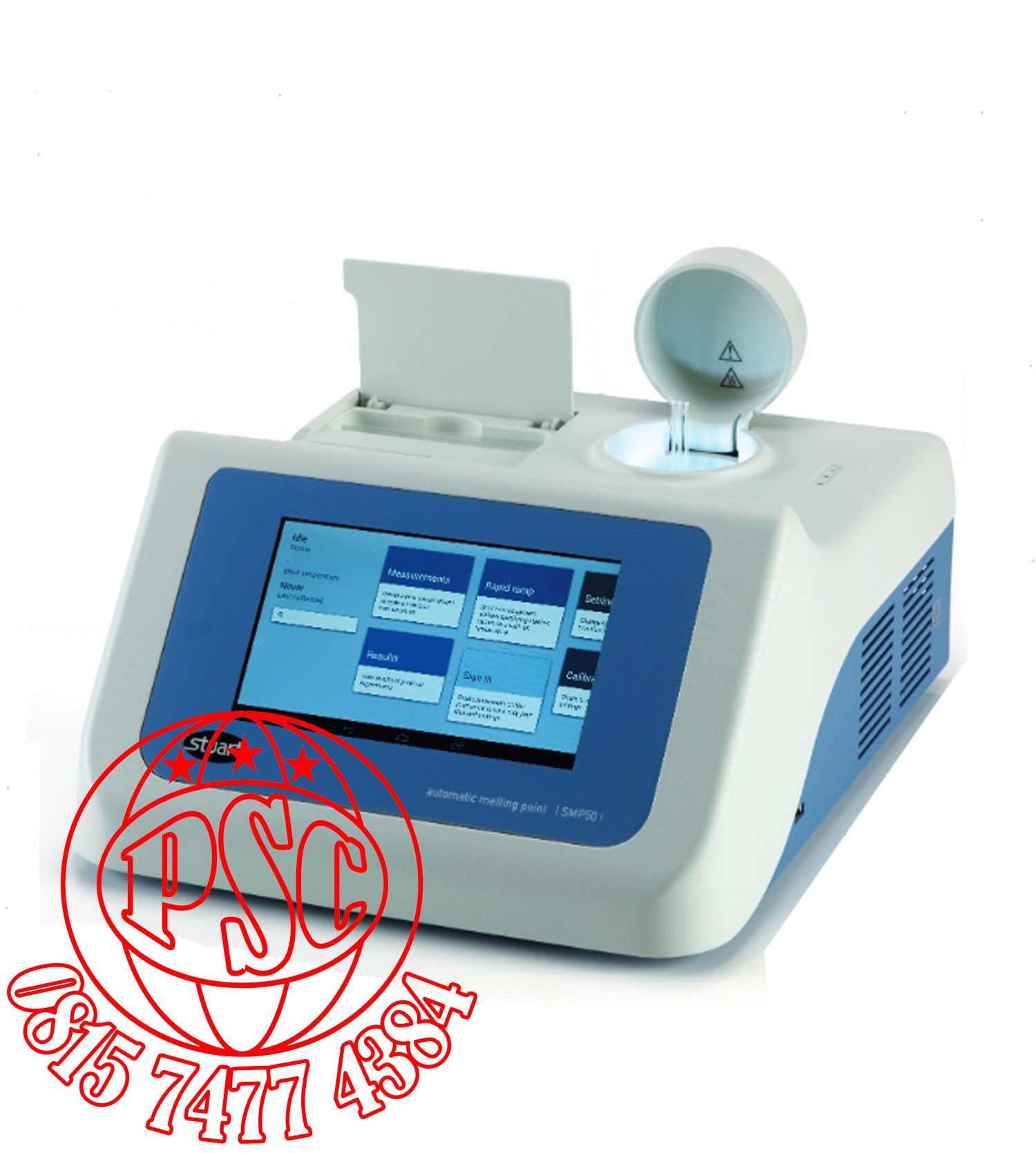

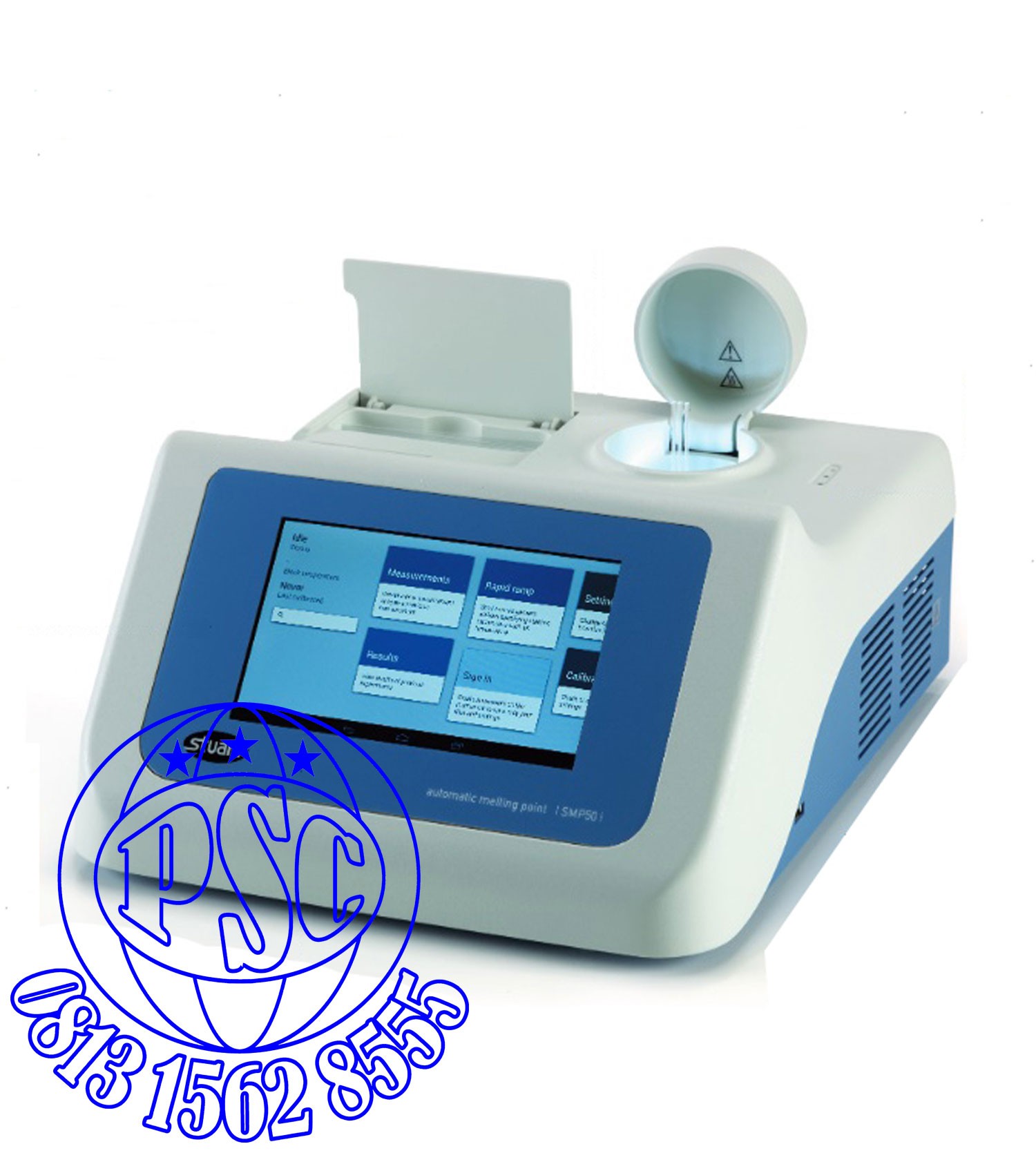

SMP50 Automatic Melting Point Stuart
All units are factory supplied with a calibration certificate showing individual serial number for traceability. The SMP50 also conforms to Pharmacopeia and GLP
Technical Specification	SMP50
No of samples	3 simultaneously
Temperature range	Ambient to 400 °C
Temperature resolution	0.1 °C
Display	7 inch HD Colour
Ramp rates	0.1-20 °C in 0.1 °C increments
Temperature sensor	PT1000 Platinum resistance
Memory	8 GB ( approx. 300 results with video )
Cool down time 350 – 50 °C	~12 mins
Heat up time 50 – 350 °C	~ 6 mins
Oven control	Closed loop PID
Data transfer	USB Flash drive
Sample level	2-3 mm in 50 mm or 100 mm length capillaries
Electrical supply	120 V 230 V, 50-60 Hz
Temperature units	°C or °F
Size ( h x d x w )	164 x 360 x 300 mm
Net Weight	4.6 Kg
Languages	English, French
Product Information
Product code	Description
SMP50	Automatic melting point
SMP50 / IQOQ	Automatic melting point with IQ / OQ documentation
SMP50 / PRINTER	Accessory Printer
SMP2 / 1	Glass melting point tubes, closed at both ends, pack of 100
SMP10 / 1	Glass melting point tubes, closed at one end, pack of 100
