Mini Rae Lite Monitor PGM-7300 Raesystems Produk Terbaik dari
PALLSCIENTIFIC Environmental '|' Instrumen '|' Laboratorium '|' Pertanian '|' Safety
Detail Produk

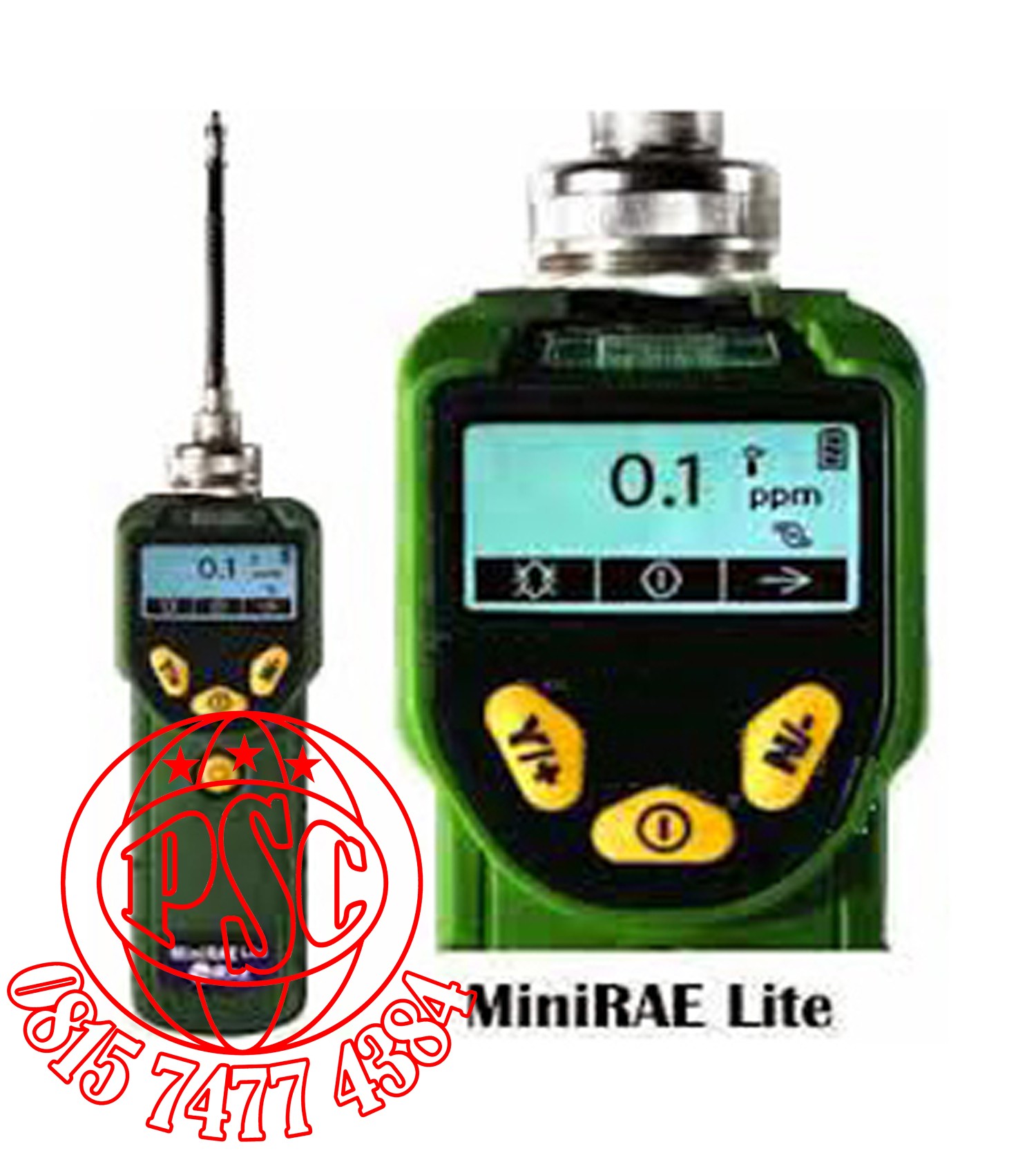

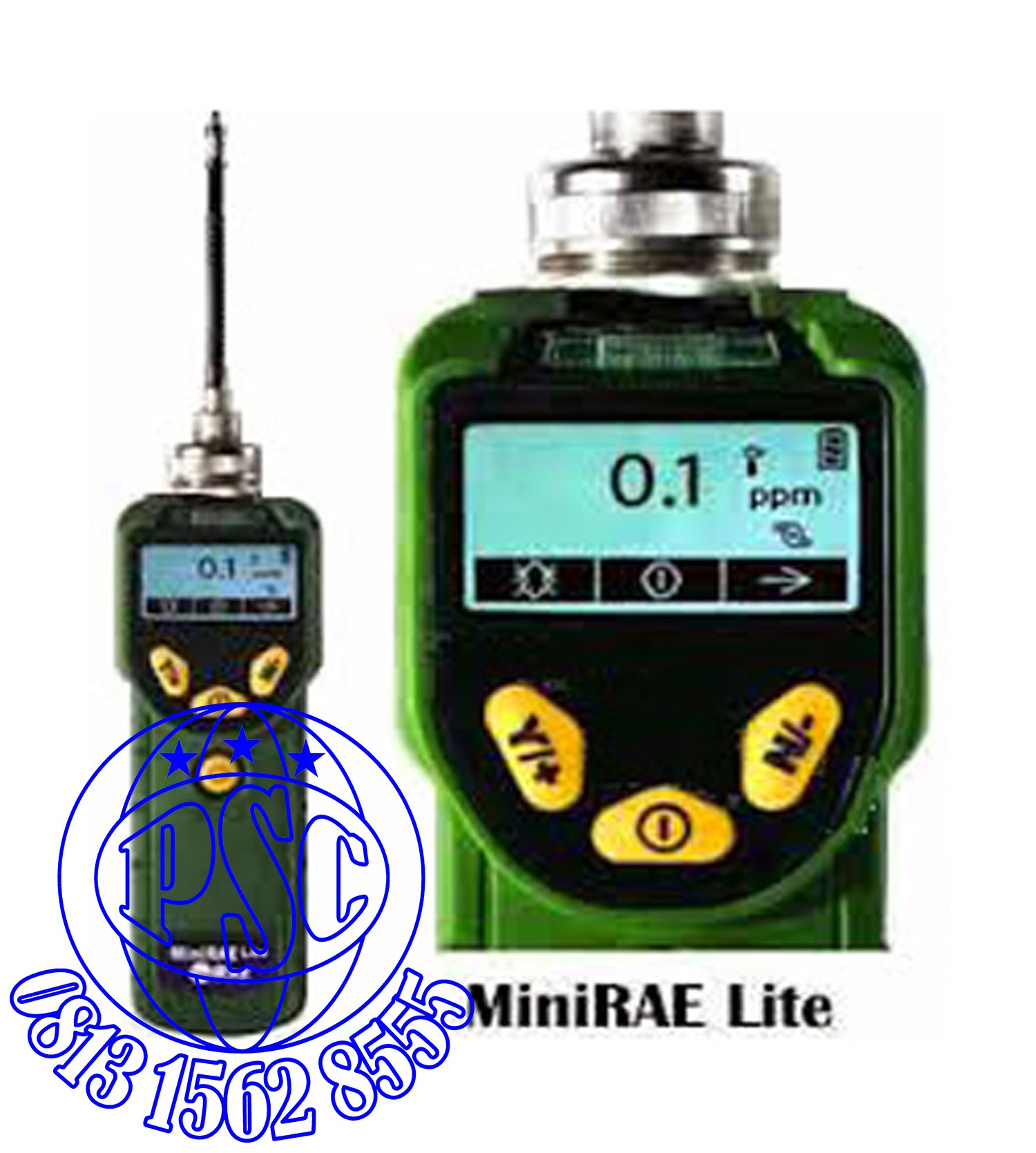

Mini Rae Lite Monitor PGM-7300 Raesystems
MiniRAE Lite Por table Handheld VOC Monitor
| Specifications |
| GAS MONITOR |
RANGE |
RESOLUTION |
RESPonSE TIME |
| VOCS |
0 to 999.9 ppm |
0.1 ppm |
< 3 sec |
| VOCS |
1000 to 5,000 ppm |
1 ppm |
< 3 sec |
| SIZE |
10" L x 3.0" W x 2.5" H ( 25.5 x 7.6 x 6.4 cm ) |
| WEIGHT |
26 oz ( 738 g ) |
| SENSORS |
Photoionization sensor with standard 10.6eV lamp |
| BATTERY |
- Alkaline battery adapter |
| |
- External field-replaceable lithium-ion battery pack, if specified |
| OPERATING HOURS |
12 hours of operation on alkaline battery adapter |
| |
( 12 hours with lithium-ion battery pack ) |
| DISPLAY GRAPHIC |
4 lines, 28 x 43 mm, with LED back light |
| KEYPAD |
1 operation and 2 programming keys, 1 flashlight on/off Instantaneous reading of: |
| |
- VOCs as ppm by volume |
| DIRECT READOUT |
- High and low values |
| |
- Date and time |
| |
95 dB buzzer ( at 30 cm ) and flashing red LED to indicate exceeded preset limits |
| |
- High : 3 beeps and flashes per second |
| ALARMS |
- Low : 2 beeps and flashes per second |
| |
- Alarm latching with manual override or automatic reset |
| |
- Additional diagnostic alarm and display message for low battery and pump stall |
| |
- Highly resistant to EMI/RFI. |
| EMI/RFI |
- Compliant with EMC directive 89/336/EEC |
| IP RATING |
IP-65 |
| DATALOGGING |
Standard 6 months at one-minute intervals |
| CALIBRATION |
Two-point calibration for zero and span |
| LOW FLOW ALARM |
Auto shut-off pump at low-flow condition |
| SAFETY CERTIFICATION |
ATEX II 2G EEx ia IIC T4 |
| OPERATING TEMPERATURE |
-4° to 113 °F ( -20° to 50 °C ) |
| HUMIDITY |
0 to 95 % relative humidity ( non-condensing ) |
| ATTACHMENTS |
Durable green rubber boot |
| WARRANTY |
1 year for 10.6 eV lamp, 1 year for pump, battery and instrument |
