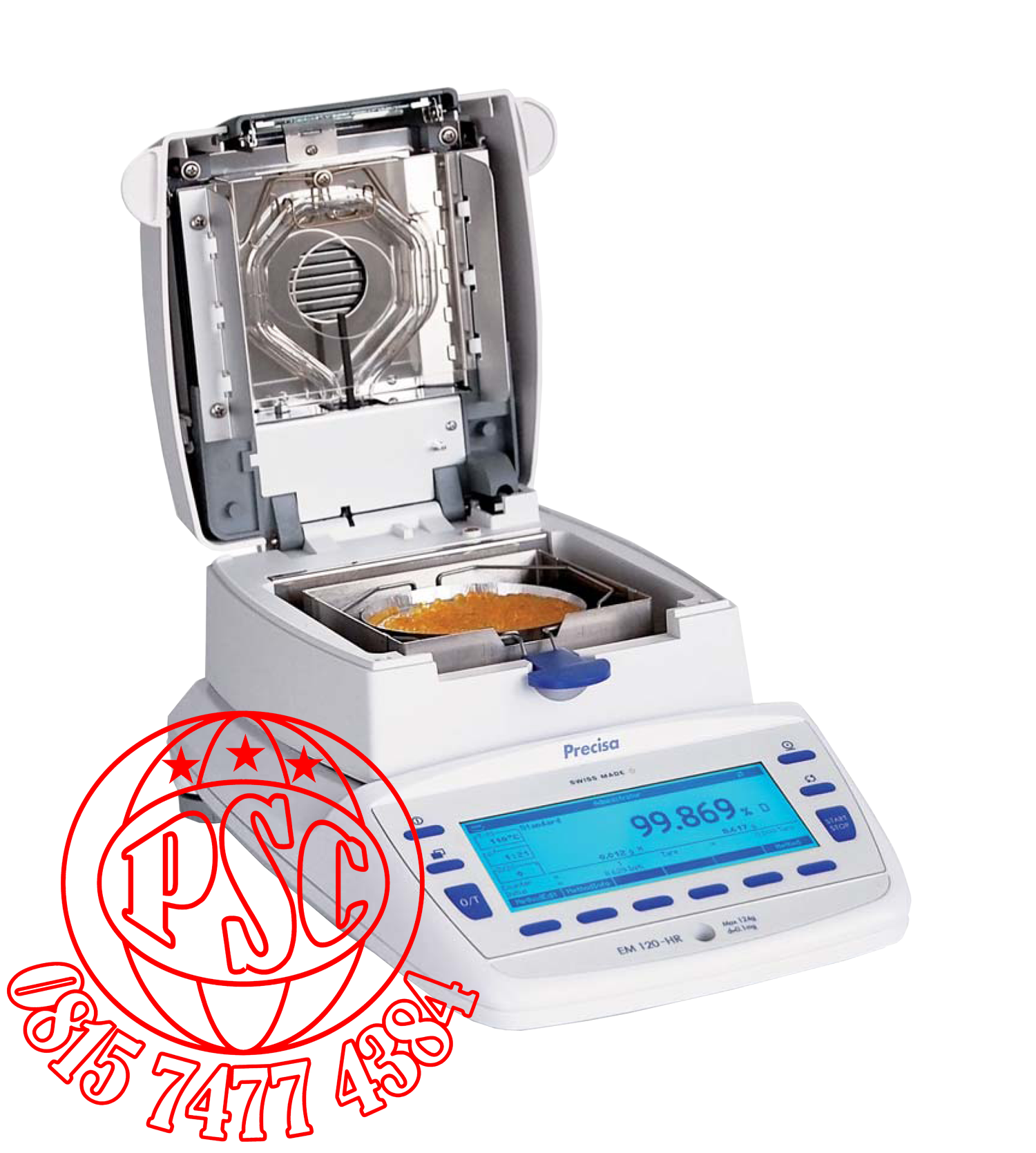

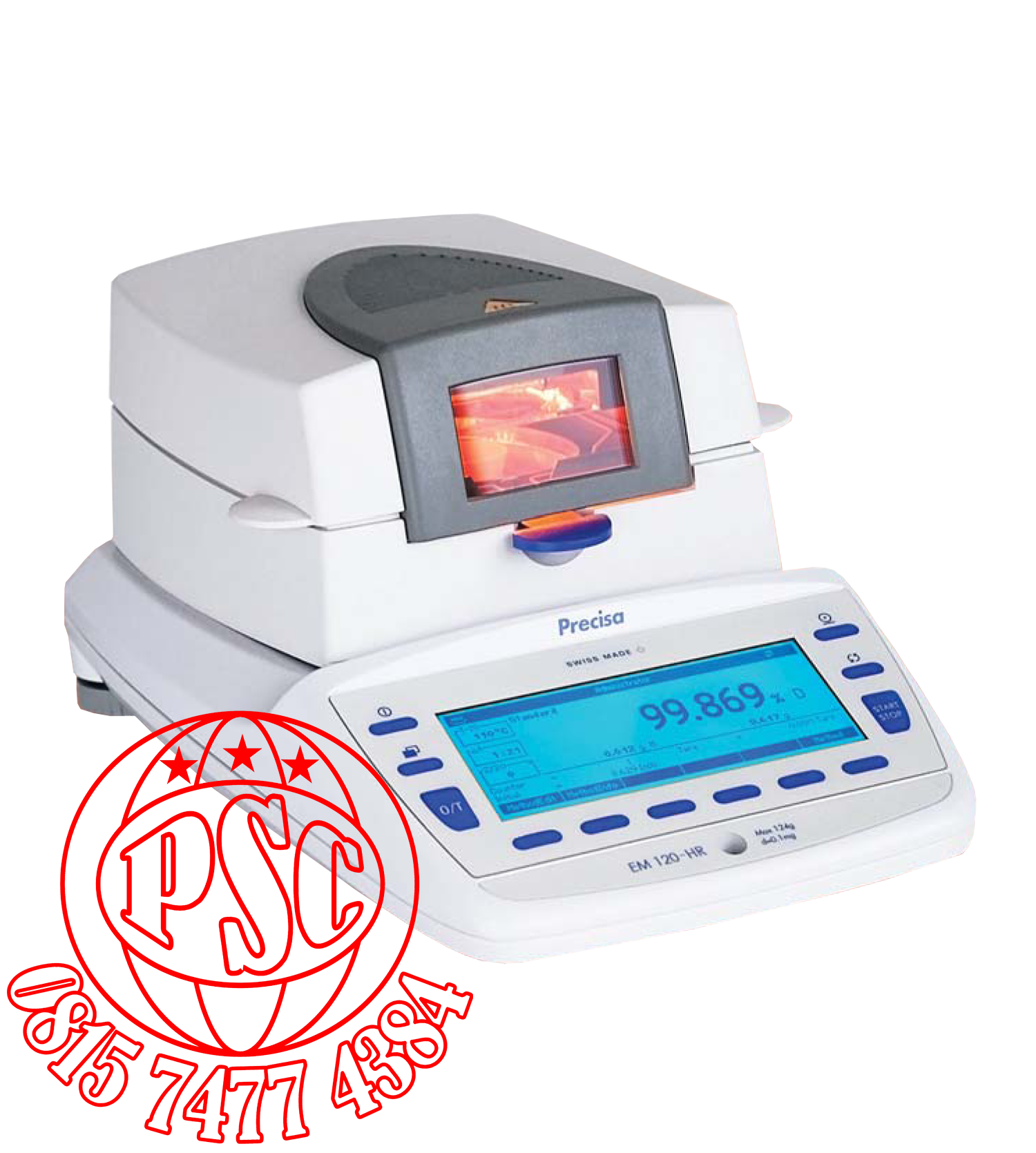

Moisture Analyzers EM120-HR Precisa |
|
|
Technical Specification |
EM 120-HR |
|
Heat Source |
Halogen / Infrared / Dark |
|
Weighing range ( g ) |
124 |
|
Readability ( g ) |
0.001 / 0.0001 |
|
Pan Size Ø ( mm ) |
100 |
|
Smallest sample weight ( g ) |
0.2 |
|
Readability ( % ) |
0.01 / 0.001 |
|
Reproducibility ( % ) at approx … g / … % |
1 / 0.1 |
|
Reproducibility ( % ) at approx … g / … % |
10 / 0.01 |
|
Results calculations : |
|
|
Risidual weight ( g ), Weight loss ( g ), g/kg |
• |
|
100% ... 0 %, 0 % ... 100 % |
• |
|
ATRO 100% ... 999 %, ATRO 0 % ... 999 % |
• |
|
Temperature range / Step ( °C ) |
50 - 230 / 1 |
|
Heating modes |
standard, boost, ramp |
|
Auto Stop ( d/s ) / ( %/s ) |
free definable |
|
Minimum Stop ( % ) |
01 - 99.9 |
|
Timer Stop |
1 s - 600 min |
|
AdapStop |
• |
|
Print-out GLP |
• |
|
Methods ( with all settings ) |
100 |
|
Dimensions W x L x H ( mm ) |
240 x 380 x 177 |
|
Weight ( kg ) |
6.7 |
|
Power Consumption ( W ) |
420 |
|
Accessories |
EM 120-HR |
|
Aluminium dishes, Ø 100 mm, ( Box with 80 pcs.) |
350-2032 |
|
Stainless steel dish, reusable, Ø 100 mm (1 pcs.) |
330-2018 |
|
Fibreglass-filters, Ø 90 mm, ( box with 80 pcs.) |
350-4130 |
|
Temperature sensor plate, Sensor - type K |
350-8580 |
|
Temperature calibration set, Sensor - Typ K with certificate |
350-8585 |
|
Temperature calibration set, Sensor - Typ K without certificate |
350-8584 |
|
Calibration weight, 50 g |
350-8241 |
|
Printer CBM910 230V - with cable and paper roll |
350-8379 |
|
Printer CBM910 115V - with cable and paper roll |
350-8380 |
|
Paper roll for Printer CMB910 |
350-8366 |
|
Ribbon for printer CBM910 |
350-8367 |
|
Data cable DB9 male / DB9 female 1.5 m ( PC ) |
350-8672 |
|
Data cable DB9 male / DB25 male 1.5 m ( Printer ) |
350-8673 |
|
Options |
EM 120-HR |
|
Halogen heating system |
standard |
|
Infrared heating system |
available |
|
Dark radiator heating system |
available |
|
Slide-in Modules |
EM 120-HR |
|
USB Host |
350-8665 |
|
Ethernet wired |
350-8666 |
|
Ethernet wireless |
350-8667 |
|
Bluetooth |
350-8668 |
|
PS 2 Female & RS 232 DB9 Female |
350-8670 |
