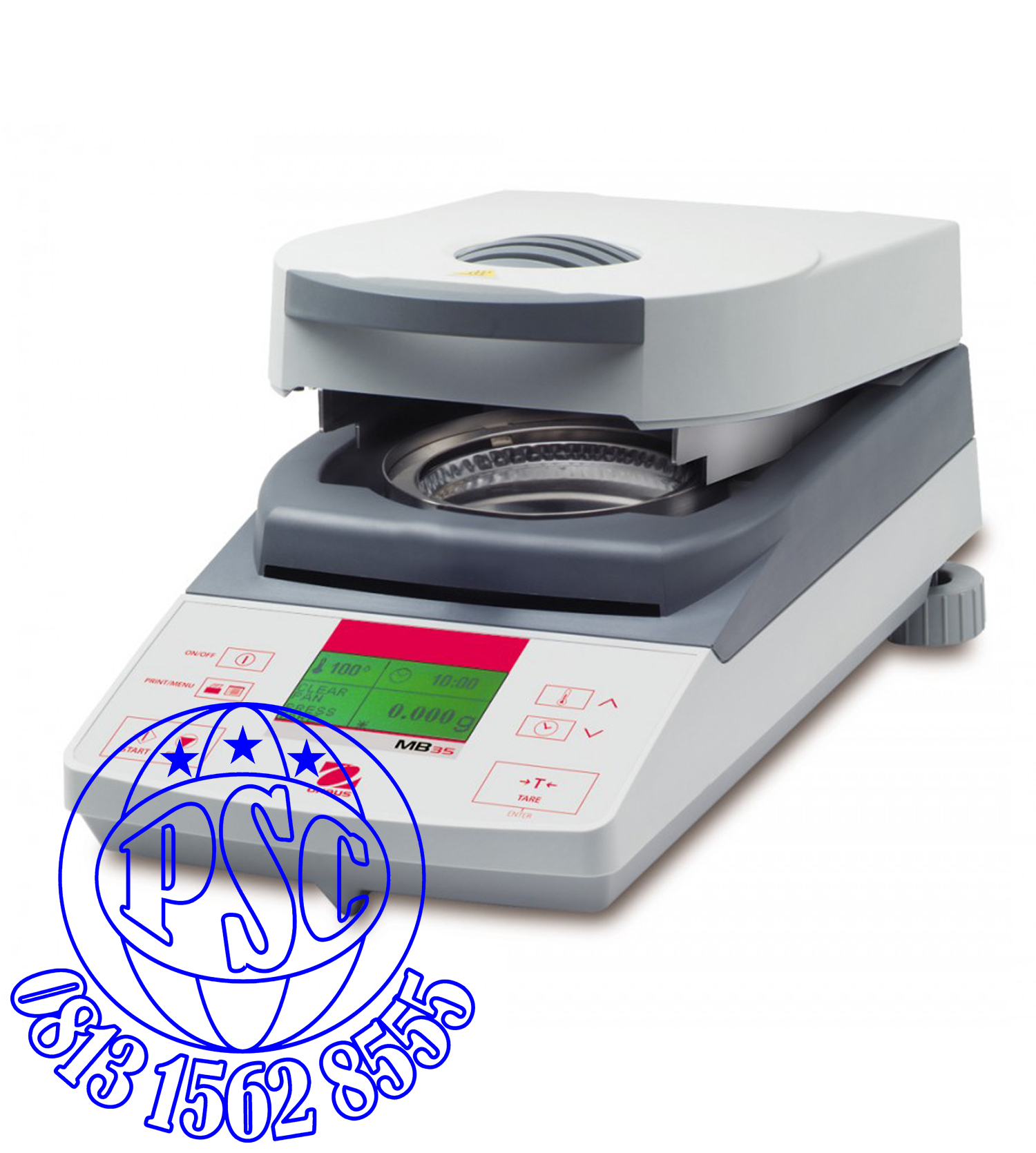

Moisture Analyzers MB35 & MB45 Ohaus

Specifications

Model

MB45

MB35

Capacity

45 g

35 g

Readability

0.01 % / 0.001 g

0.01 %/ 0.001 g

Repeatability (Std Dev)

0.05 % ( 3 g sample )

0.10 % ( 3 g sample )

0.015 % ( 10 g sample )

0.03 % ( 10 g sample )

Moisture range

0.01 % to 100 %

0.01 % to 100 %

( 0.01 % to 1000 % for regain mode )

Output

Bidirectional RS-232

Timer

1– 120 minutes

1– 120 minutes

in 10-second increments

30-second increments to 60 min.

1 min. increments from 60 – 120 min.

Heater type

Halogen

Temp range

50° to 200 °C in 1°C increments

50° to 160 °C ( 5 °C increments )

Power

100 – 120 VAC, 50/60 Hz or 220 – 240 VAC, 50/60 Hz

Tare range

To capacity by subtraction

Operating temp. range

10° to 40 °C

Display type

128 x 64 pixel graphical backlit LCD display

Displays

% moisture, % solids, time, temperature, weight, test ID, and drying curve

% moisture, time, temperature, weight

Pan size

9 cm

Dimensions (Wx H x D)

19 x 15 x 35 cm

Net wt.

4.6 kg

Shipping wt.

6.4 kg
