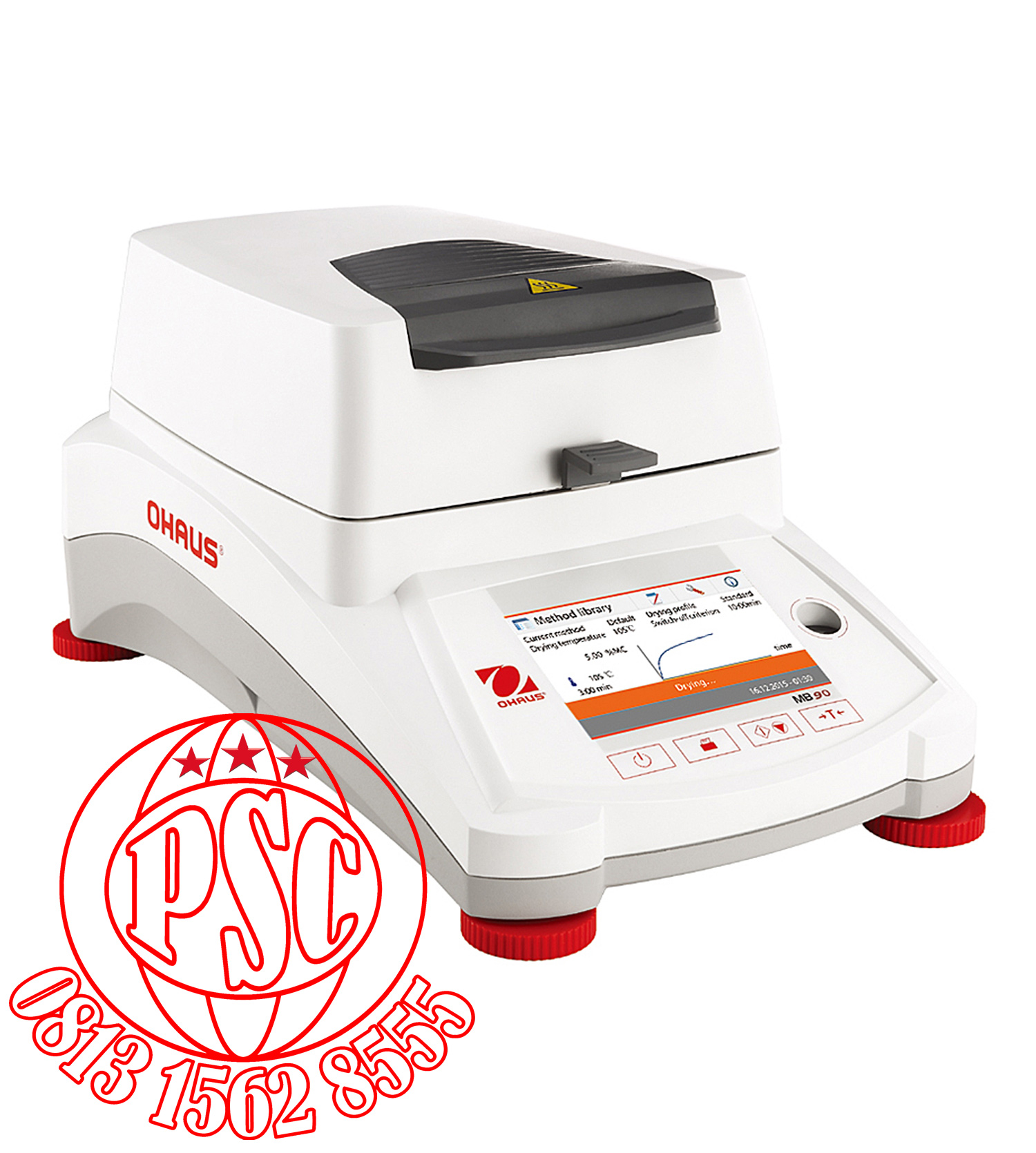

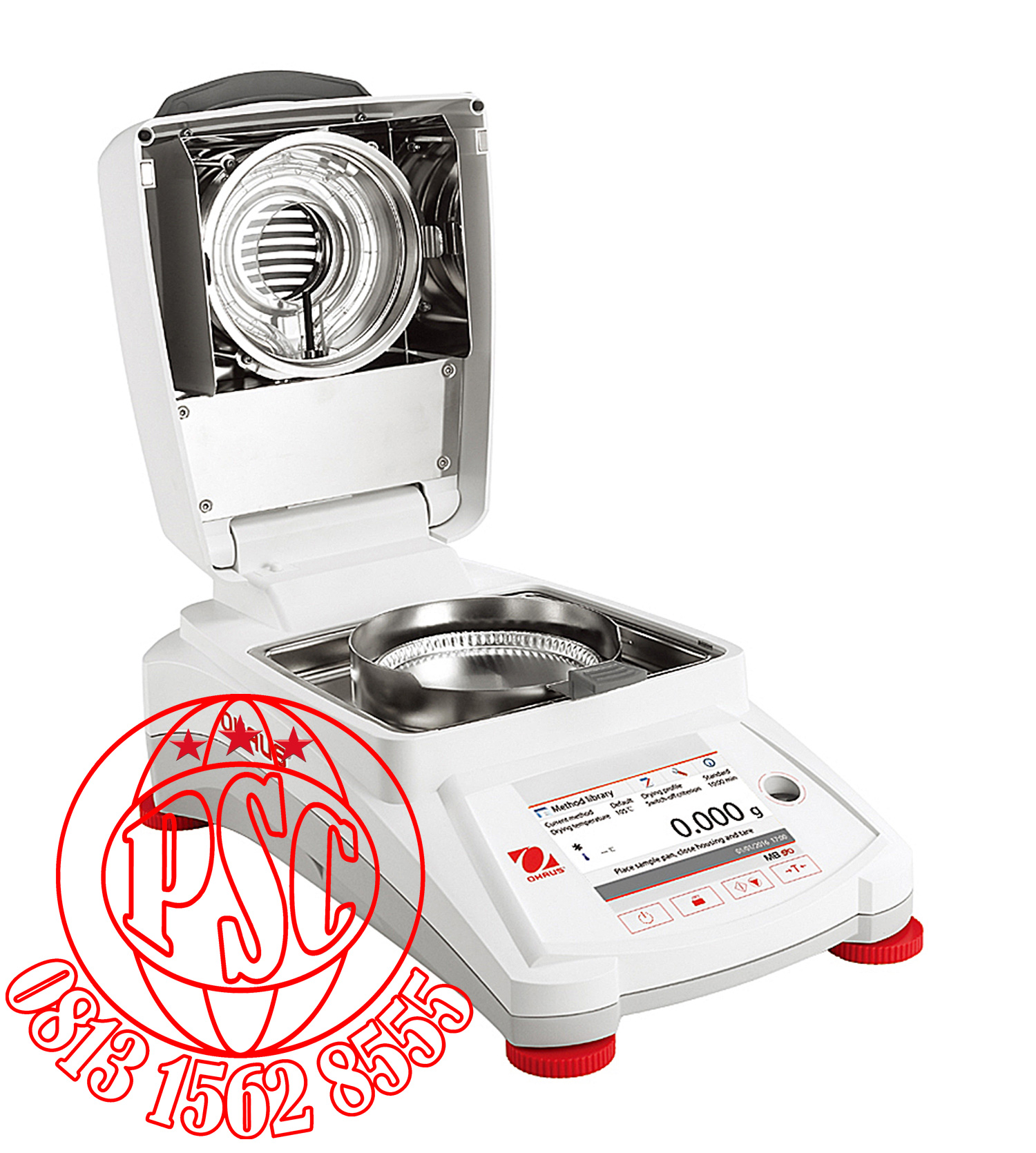

Moisture Analyzers MB90 Ohaus

Specifications

Model

MB90

Capacity

90 g

Readability

0.01 %/0.001 g

Repeatability (Std Dev) (g)

0.18 % ( 3 g sample )

0.02 % ( 10 g sample )

Moisture Range

0.01 % to 100%

( 0.01 % to 1000 % for regain mode )

Output

RS232, USB Host, USB Device

Heating Element

Halogen

Temp. Range

40–200 °C

Power

120 or 240 VAC 50/60 Hz

Operating Temp. Range

50–104 °F/10–40 °C

Display Type

4.3 in/109 mm, QVGA, TFT touch screen

Display Results

% moisture, % solids, % regain, time, temp, weight, method name, drying curve & statistics

Pan Size

3.5 in/90 mm

Dimensions ( W × H × D )

8.3 × 7.7 × 14.0 in/211 × 180 × 355 mm

Net Weight

11.5 lb/5.23 kg

Shipping Weight

18.4 lb/8.35 kg
