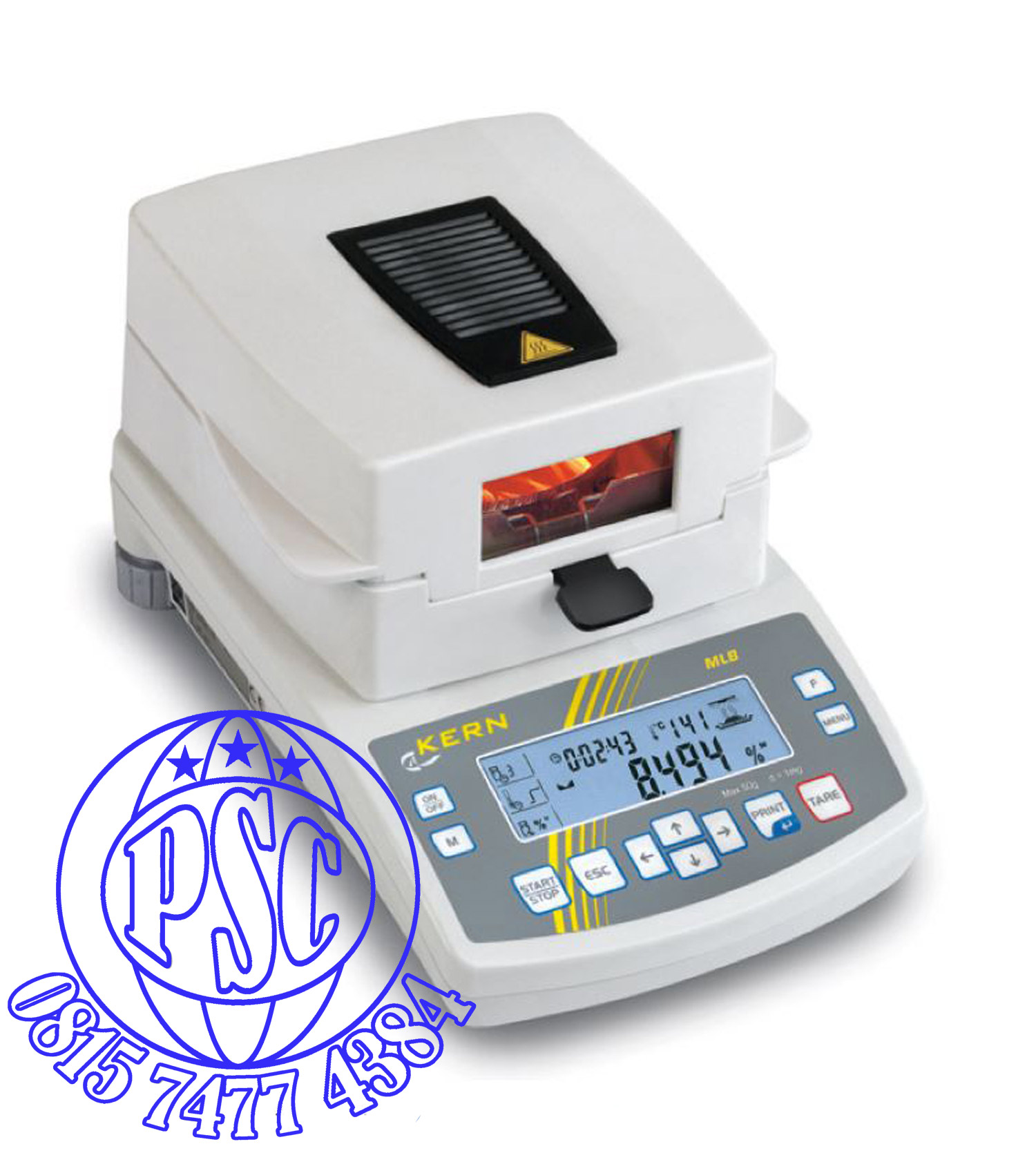

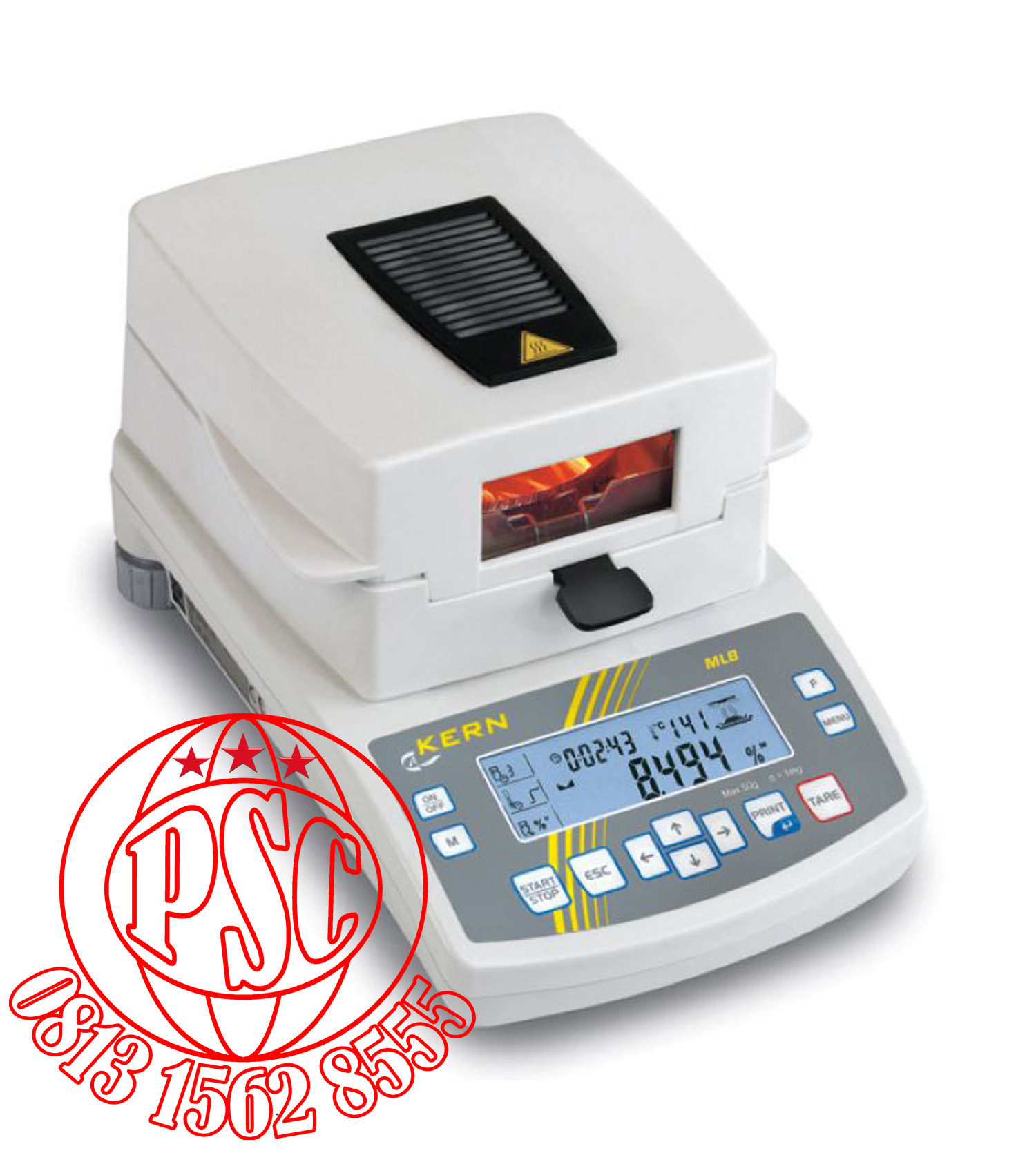

Moisture Analyzers MLB 50-3N Kern

Specifications

Model

MLB 50-3N

Weighing range

50 g

Readability

0.001 g

Moisture range

0  to 100 %

Readability

0.01 %

Reproducibility of sample weight 2 g

0.5 %

Reproducibility of sample weight 10 g

0.02 %

Temperature  range

50 C to 160 C

Drying modes

Standard drying, Gentle drying, Pre-heat level

Moisture = Weight loss

0 to 100 %

Dry mass = Residual weight

100 to 0 %

Auto switch off options

3 modes ( manual, automatic, time defined )

Heating module

Halogen

Drying modes

Standard drying

Gentle drying

Pre-heat level, can be switched on

Switch off criteria

When the set time has expired ( 1 - 9 h 59 min )

When a constant weight per adjustable time unit has been reached ( 1 - 59 sec )

Recall of measurement Interval adjustable from 1 - 180 sec ( only in connection with KERN YKB-01N printer or PC )

Overall dimensions W x D x H : 210 x 335 x 156 mm

Net weight approx. 6 kg

Option DKD Calibr. Certificate 963-127

Features

Backlit LCD display, digit height 14 mm

1. Moisture display in %

2. Current moisture content in %

3. Printout in moisture %

4. Type of drying Standard

5. Switch off mode

6. Previous drying time

7. Current temperature

8. Drying process active

Halogen quartz glass heater 400 W

The last value measured remains on the display until it is replaced by a new measurement

10 sample plates included

Application handbook : On the internet, you will find a practical application handbook containing many examples, field reports, adjustments and tips for each KERN moisture analyser

Accessories

Sample plates aluminium, Ø 92 mm. Unit of 80 pieces, KERN MLB-A01

Round fiberglass filter e.g. for samples that splash or become encrusted.Unit of 80 pieces, KERN RH-A02

Temperature calibration set consists of measuring sensor and display device, KERN MLB-A11
