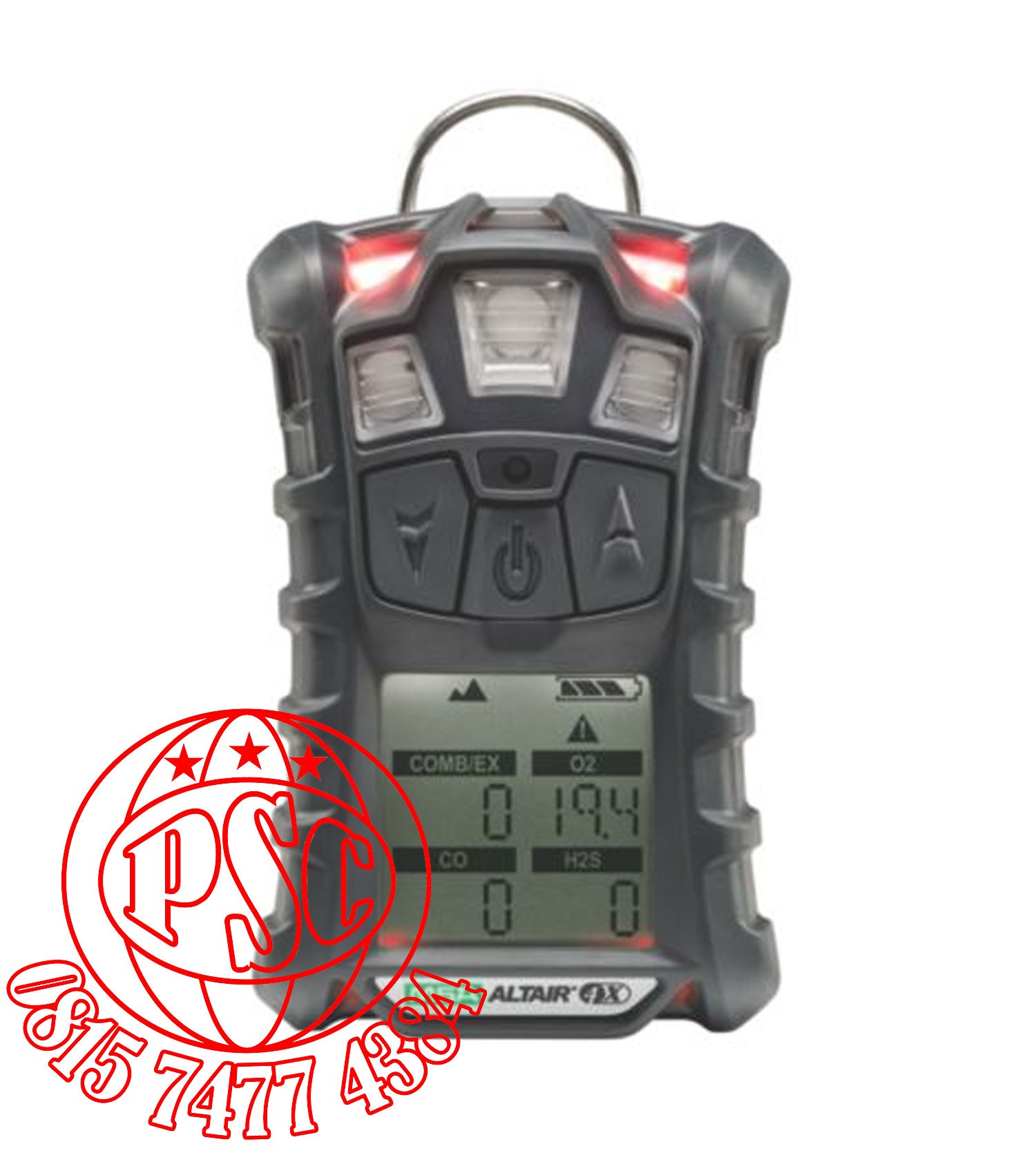

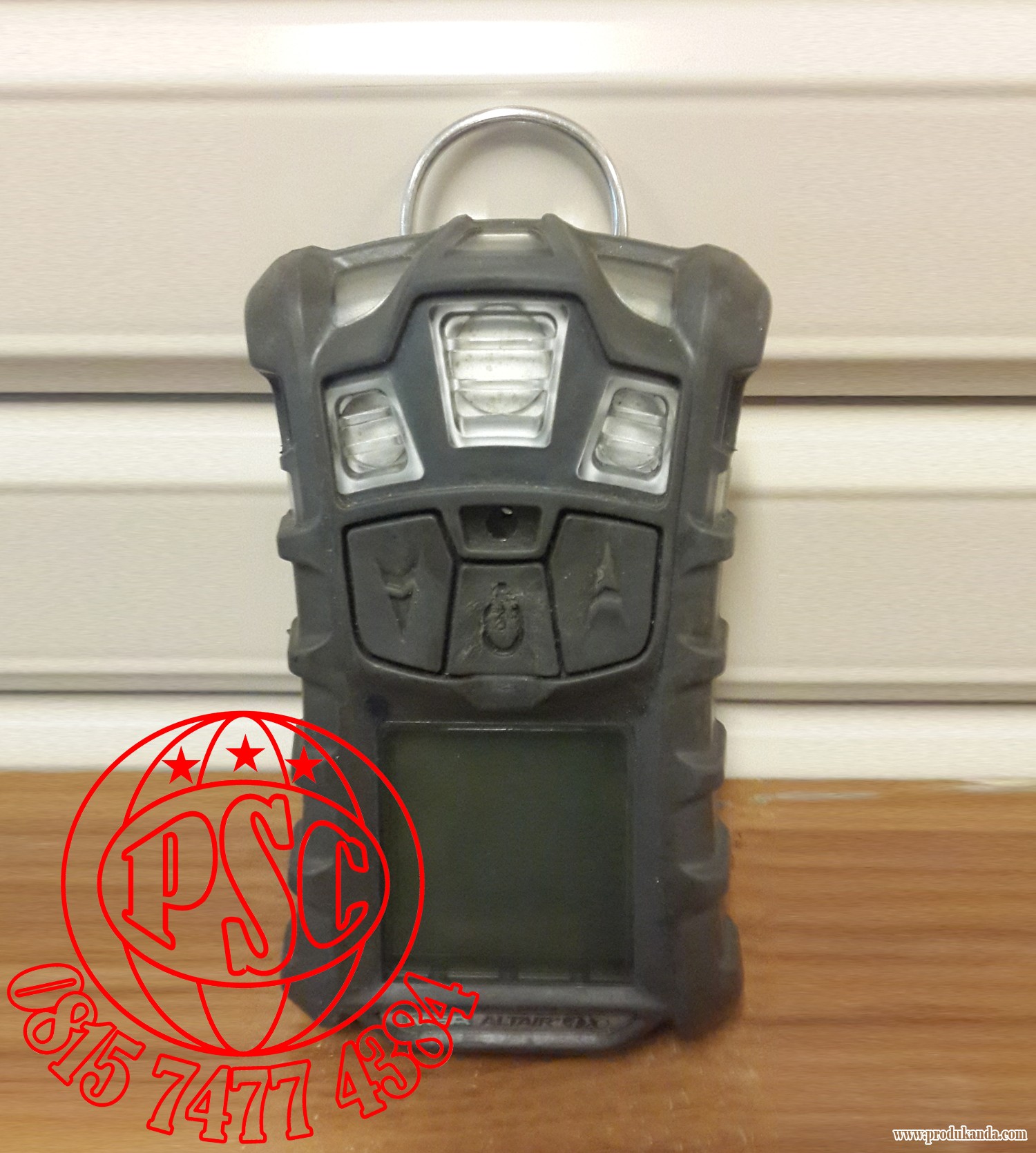

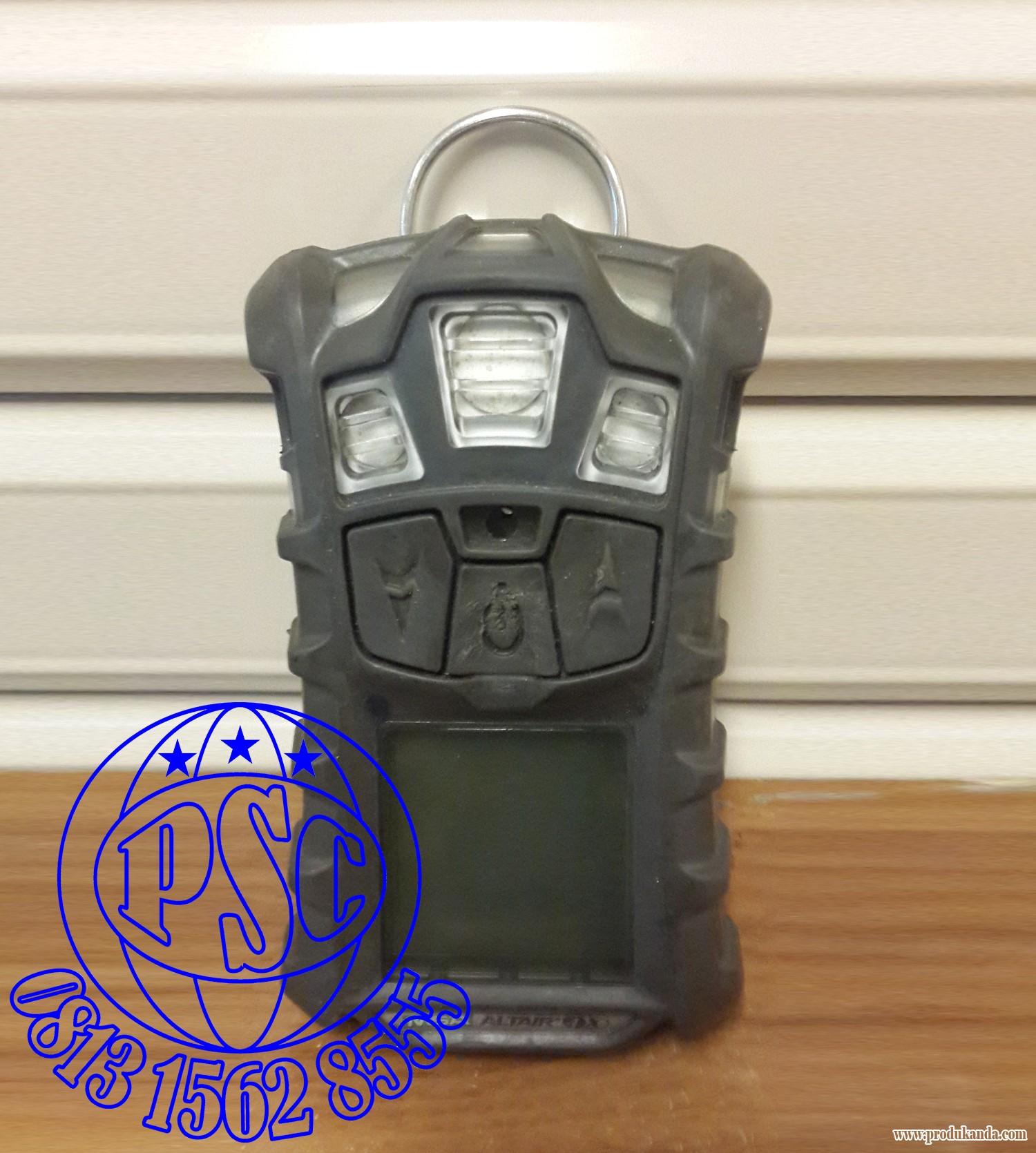

Altair 4 X Multi Gas Detector MSA

Technical Specifications

Gas

Range

Resolution

LEL

0-100 %

1 %

O₂

0-30 % vol

0.1 % vol

CO

0-1999 ppm

1 ppm

H₂S

0-200 ppm

1 ppm

Drop test

20 ft

Housing

Rugged rubberized armor

Weight

7.9 oz

Dimensions ( L x W x D )

4.4 x 3.0 x 1.31

Audible alarm

>95 dB at 1 ft

Visual alarm

4 ultra-bright LEDs on top and bottom

Vibrating alarm

Standard

Motionalert & Instantalert

Optional

Display

High-contrast LCD

Backlight

Adjustable time-out

Battery

Rechargeable

li-polymer

Run time

24 hours

@ room temperature

Charging time

< 4 hrs

Operating temp. range

-10 °C to +40 °C

Extended temp. range

-20 °C to +50 °C

Short period ( 15 minutes )

temperature range

-40 °C to +60 °C

Humidity

15 – 90 % RH

non-condensing

Ingress protection

IP67

Data log

( adjustable )

50-hour minimum

Event log

Standard 500

events

ALTAIR 4X Detector with 3-year warranty, data logging, charger, calibration cap, and tubing

Approvals

U.S./CAN

ATEX

ANZ

Configuration

Case Color

10107602

10110453

10110447

LEL, O₂, CO, H₂S

Charcoal

10107603

10110456

10110450

LEL, O₂, CO, H₂S

Phosphorescent

10110443

10110454

10110448

LEL, O₂, CO

Charcoal

10110445

10110457

10110451

LEL, O₂, CO

Phosphorescent

10110444

10110455

10110449

LEL, O₂

Charcoal

10110446

10110458

10110452

LEL, O₂

Phosphorescent

10148343

—

—

LEL, O₂, CO, H₂S-LC

Charcoal

ALTAIR 4X Detector, 4-gas, in black case with calibration cylinder and 0.25 lpm regulator

U.S./CAN Approval

Configuration

Case Color

10110488

LEL, O₂, CO, H₂S

Charcoal

ALTAIR 4X GALAXY GX2 Automated Test System

N. America

EU

UK

AUS

Configuration

10128630

10128639

10128659

10128669

1 cylinder, charging

10128629

10128638

10128658

10128668

Up to 4 cylinders, charging

10128642

10128651

10128661

10128671

1 cylinder, non-charging

10128641

10128640

10128660

10128670

Up to 4 cylinders, non-charging

Replacement Sensors

10106722

XCell Ex Combustible Sensor

10106729

XCell O₂ Sensor

10106725

XCell CO/H₂S Two-tox Sensor

10121213

XCell CO/H₂S-LC Two-tox Sensor

10121214

XCell CO H2₂RES/H2₂ Two-tox Sensor

10121215

XCell SO₂/H₂S-LC Two-tox Sensor

10121217

XCell NO₂/CO Two-tox Sensor

Accessories

10152669

ALTAIR Pump Probe ( U.S./CAN )

10153039

ALTAIR Pump Probe No Charger ( U.S./CAN )

10152668

ALTAIR Pump Probe Euro Charger ( ATEX/IEC )

10153040

ALTAIR Pump Probe No Charger ( ATEX/IEC )
