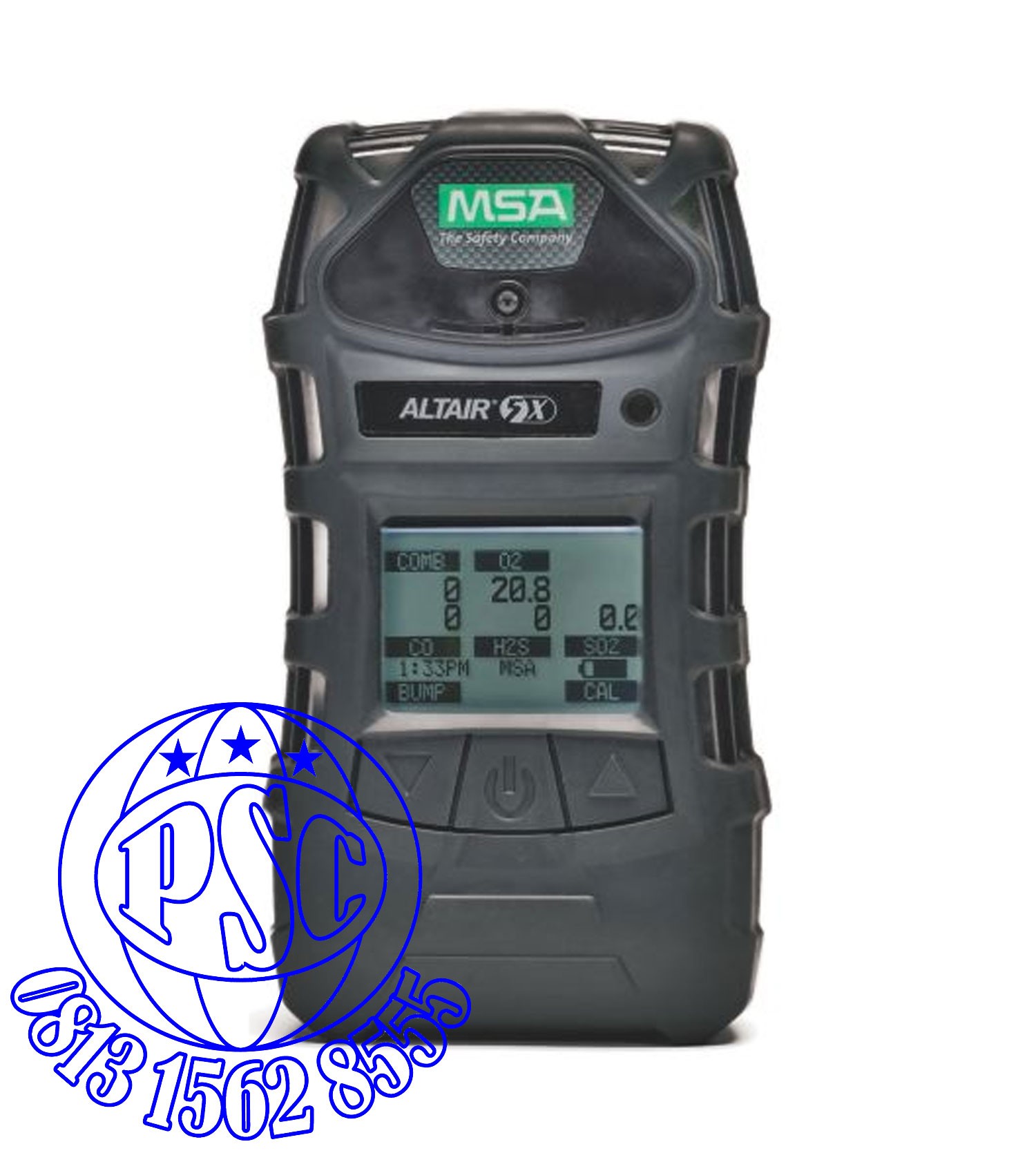

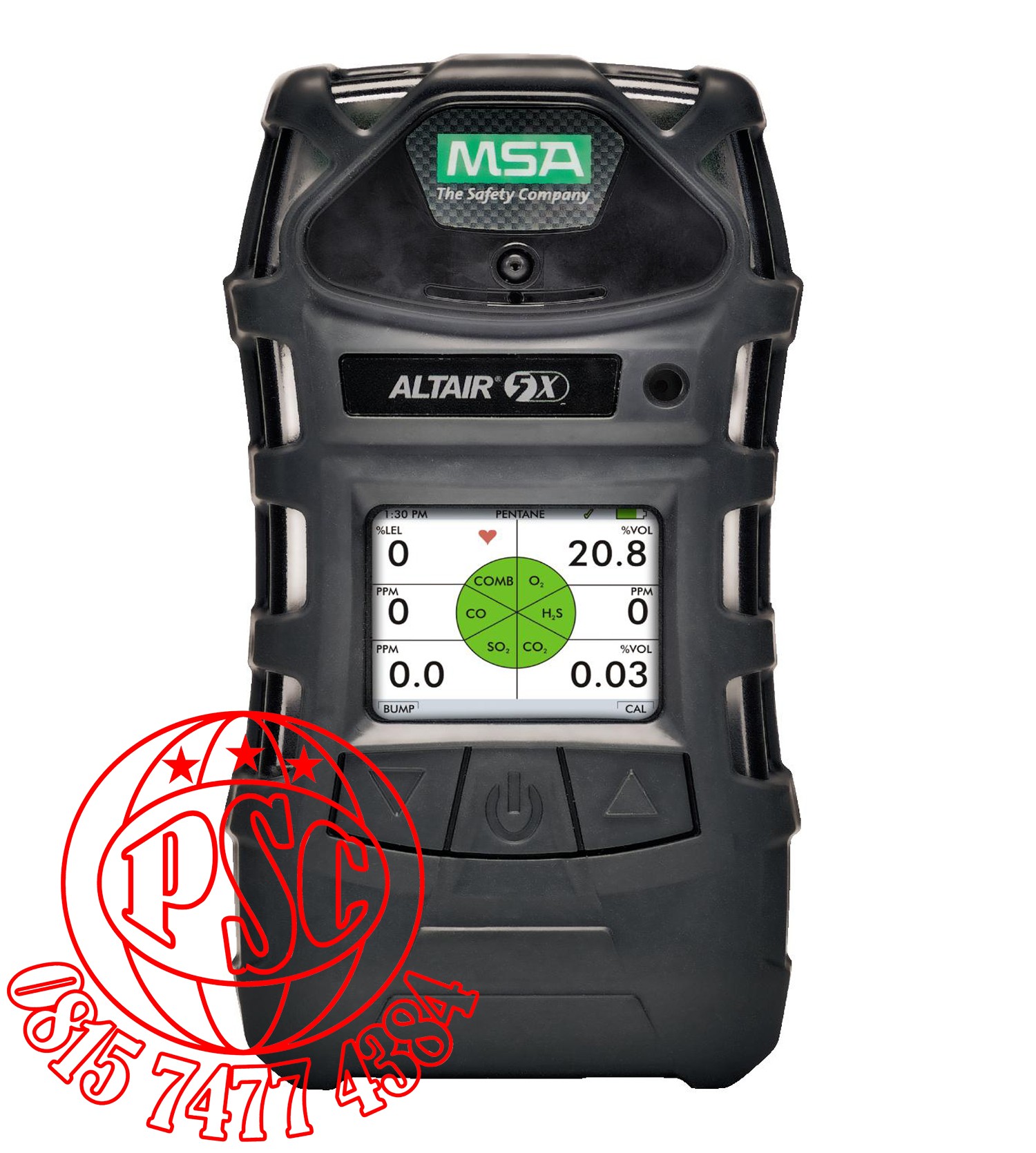

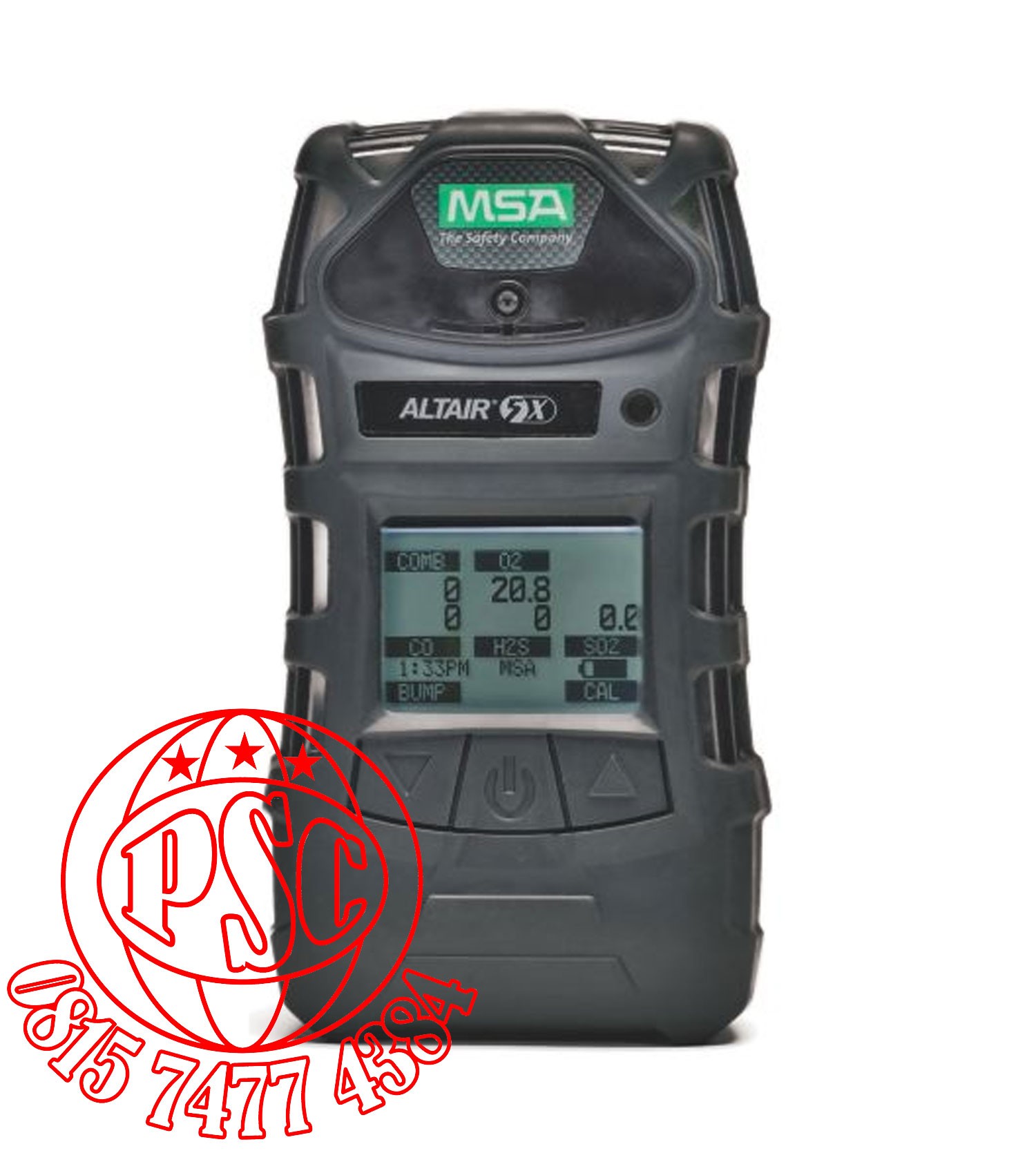

Altair 5 X MultiGas Detector MSA

Technical Specifications

Gas type

Range

Resolution

COMBuSTIBLE

0-100 % LEL

1 % LEL

COMBuSTIBLE

0-5 % Vol, CH₄

0.05 % Vol CH₄

OXygEN

0-30 %Vol

0.1 %Vol

CARBON MONOXIDE

0-2000 ppm

1 ppm

CARBON MONOXIDE

0-10,000 ppm

5 ppm

HyDROgEN SuLfIDE

0-200 ppm

1 ppm

HyDROgEN SuLfIDE - LC

0-100 ppm

0.1 ppm

SuLfuR DIOXIDE

0-20 ppm

0.1 ppm

CHLORINE

0-10 ppm

0.05 ppm

AMMONIA

0-100 ppm

1 ppm

NITROgEN DIOXIDE

0-20 ppm

0.1 ppm

NITROgEN DIOXIDE (XCELL)

0-50 ppm

0.1 ppm

CHLORINE DIOXIDE

0-1 ppm

0.01 ppm

pHOSpHINE

0-5 ppm

0.05 ppm

HyDROgEN CyANIDE

0-30 ppm

0.5 ppm

CARBON DIOXIDE, CO₂

0-10 %Vol

0.01 %Vol

BuTANE, C₄H₁₀

0-25 %Vol

0.1 %Vol

METHANE, CH₄

0-100 %Vol

1 %Vol

pROpANE, C₃H₈

0-100 %Vol

1 %Vol

pID - 10.6Ev

0-2000 ppm

0.1 ppm

DROp TEST

10 feet

HOuSINg

Rugged rubberized armor

WEIgHT

1 lb ( without IR sensor )

DIMENSIONS ( L X W X D )

6.69'' H x 3.49'' W x 1.79'' D

without belt clip, PID, or IR sensor

AuDIBLE ALARM

>95 dB typical

vISuAL ALARM

2 ultra-bright LEDs, on top

vIBRATINg ALARM

Standard

MOTION alert& INSTANT alert

Standard

DISpLAy

High-contrast monochrome or color display

BACkLIgHT

Adjustable time-out

BATTERy

Rechargeable Li-ION or AA alkaline

RuN TIME

20 hrs @ room temperature

INgRESS pROTECTION

IP65

STANDARD WARRANTy

3 years on CO, H₂S, LEL, O₂, SO₂, and IR sensors

2 years on NH₃, Cl₂ sensors

1 year on other sensors

Order Information

DEscriptION

uL p/N

CSA p/N

INSTRuMENT onLy kITS

ALTAIR 5X DETECTOR MONO, ( LEL, O₂, CO, H₂S )

10116924

10115118

ALTAIR 5X DETECTOR MONO, ( LEL, O₂, CO, H₂S, SO₂ )

10116925

10115119

ALTAIR 5X DETECTOR COLOR, ( LEL, O₂, CO, H₂S, PID )

10165445

STANDARD kITS - MonOCHROME DISpLAy, 10-fT SAMpLINg LINE, 1-fT pROBE

ALTAIR 5X DETECTOR MONO, ( LEL, O₂, CO, H₂S )

10116926

10115120

ALTAIR 5X DETECTOR MONO, ( LEL, O₂, CO, H₂S, SO₂ )

10116927

10115141

DELuXE kITS - COLOR DISpLAy, 10-fT SAMpLINg LINE, 1-fT pROBE

ALTAIR 5X DETECTOR COLOR, ( LEL, O₂, CO, H₂S )

10116928

10115142

ALTAIR 5X DETECTOR COLOR, ( LEL, O₂, CO, H₂S, SO₂ )

10116929

10115143

ALTAIR 5X DETECTOR COLOR, ( LEL, O₂, CO, H₂S, PID )

10165446

ALTAIR 5X gALAXy gX2 AuTOMATED TEST SySTEM – N. America Configuration

1 CyLINDER, CHARgINg

10128626

up TO 4 CyLINDERS, CHARgINg

10128625

1 CyLINDER, NON-CHARgINg

10128628

up TO 4 CyLINDERS, NON-CHARgINg

10128627

PART NUMBERS

BOM_A5X-P-080001

Altair 5X Mono LEL O₂ ,CO H₂S Plastic Packaging UL w/ Global Power Supply w/ Sampling Probe Kit Non

BOM_A5X-P-080004

Altair 5X Mono LEL, O₂, CO H₂S, CO₂, Plastic Packaging UL w/ Global Pwr Supply w/ Sampling Probe Kit

BOM_A5X-P-080005

Altair 5X Mono LEL O₂, NO₂, CO H₂S, CO₂, Plastic Packaging UL w/ Global Pwr Supply w/ Sampling Probe

BOM_A5X-P-080006

Altair 5X Mono LEL O₂, SO₂, CO H₂S, Plastic Packaging UL w/ Global Pwr Supply w/ Sampling Probe Kit

SEA00000010

A5X w/ MN, C₅H₁₂ 100%, 0, 0, 0, 0, Blk, UL Global, 0,NR,0

SEA00000078

A5X Mono, LEL, O₂, HCN, CO+H₂S

SEA00000409

A5X Mono, LEL, O₂, NO₂, CO+H₂S

SEA00000635

A5X w/ MN, CH₄ 5%V, 0, NO₂, CO+H₂S, 0, Blk, UL Global, 0,NR,0

SEA00000637

A5X w/ CL, C₅H₁₂ 100 %, O2, SO₂, CO+H₂S, 0, Blk, UL Global, 0,NR,0

SEA00000643

A5X w/ MN, LEL,0₂, PH₃, CO & H₂S, R, Charcoal

SEA00000644

A5X w/ MN, LEL, O₂, NH₃, CO & H₂S, CO₂, R, Charcoal

SEA00000645

A5X w/ MN, LEL, O₂, NH₃, CO, CO₂, R, Charcoal

SEA00000654

A5X Color, LEL

SEA00000703

A5X w/ MN, LEL, O₂, NH₃, H₂S, CO₂, Charcoal

SEA00000717

ALTAIR 5X MONO, LEL,CO/H₂S, CL,SO₂, ECO PLASTIC, GLOBAL POWER SUPPLY,SAMPLING PROBE KIT REACTIVE

SEA00000718

ALTAIR 5X MONO, CO/H₂S, CLO₂,SO₂,CO₂,ECO PLASTIC, GLOBAL, SAMPLING PROBE REACTIVE

SEA00000719

ALTAIR 5X MONO, O₂,SO₂,SO.H₂S,CO₂,ECO PLASTIC, GLOBAL, SAMPLING PROBE REACTIVE

SEA00000722

ALTAIR 5X LEL,O₂,CO/H₂S,C₃H ( Propane Sensor )

SEA00000807

ALTAIR 5X MONO,LEL,O₂,NH₃,0,CO₂,ECO PLASTIC,GLOBAL,SAMPLING REACTIVE

SEA00000808

ALTAIR 5X MONO, CO₂,CL₂,SO₂,CH₄,ECO PLASTIC.GLOBAL,SAMPLING REACTIVE
