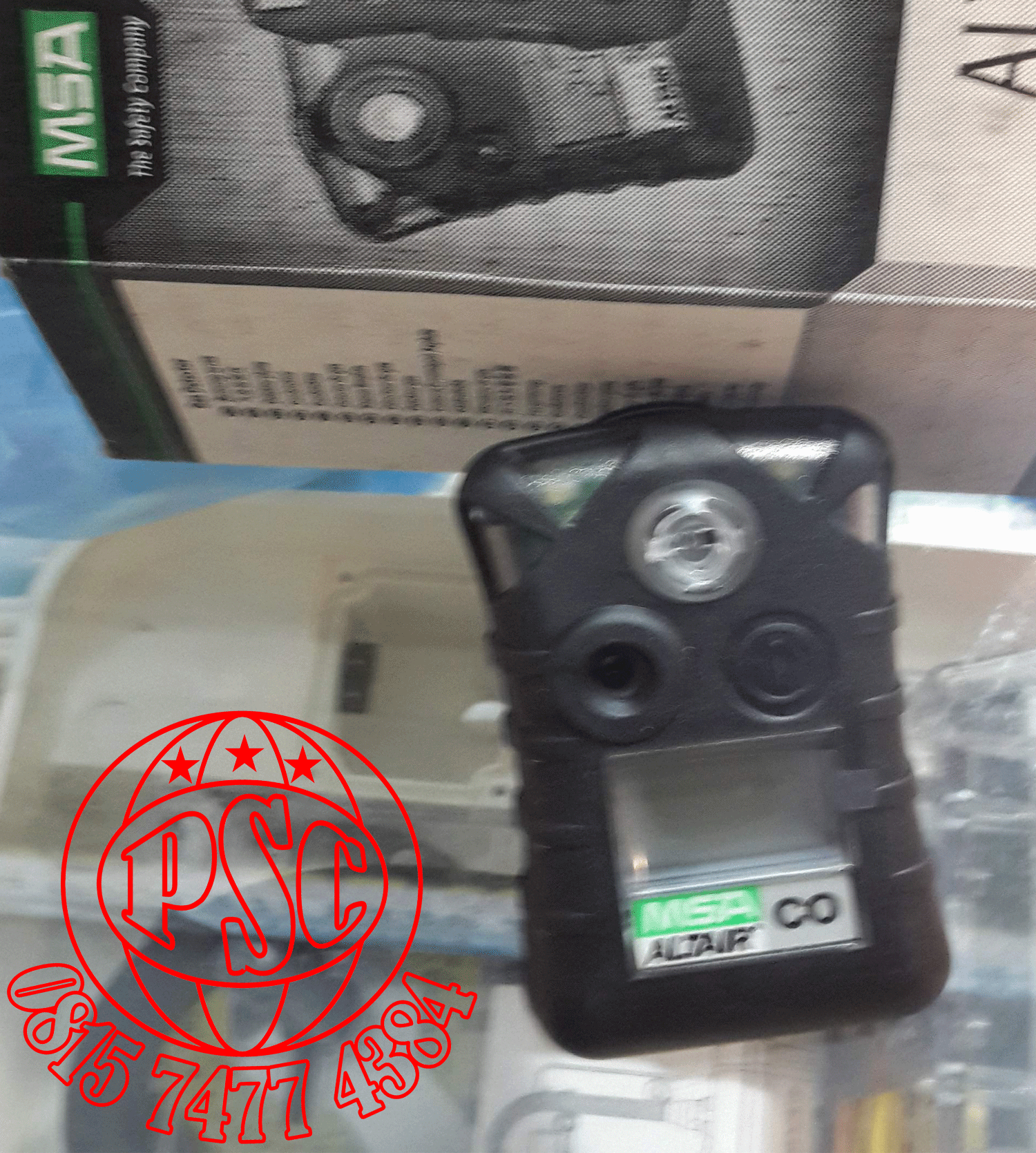

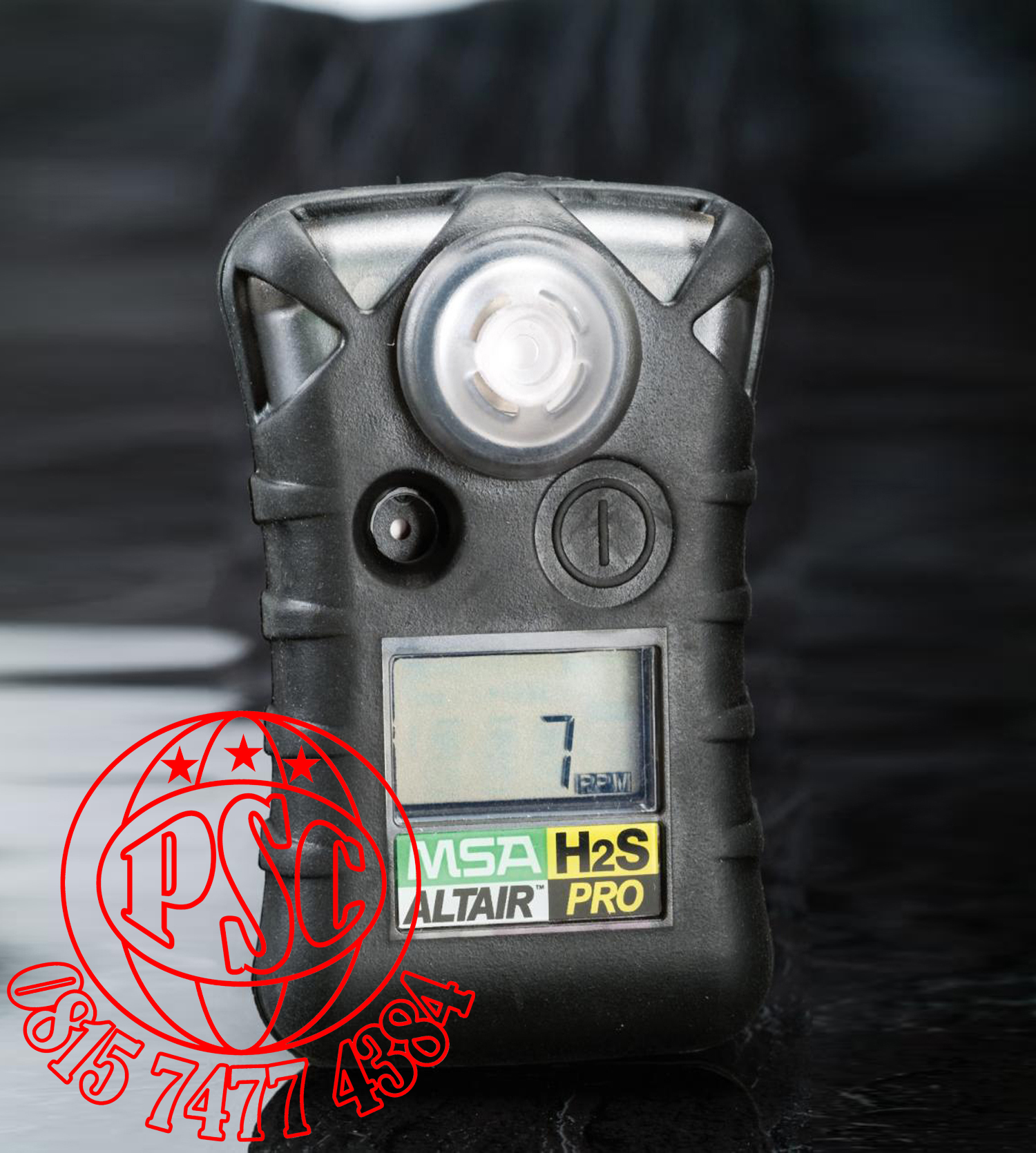

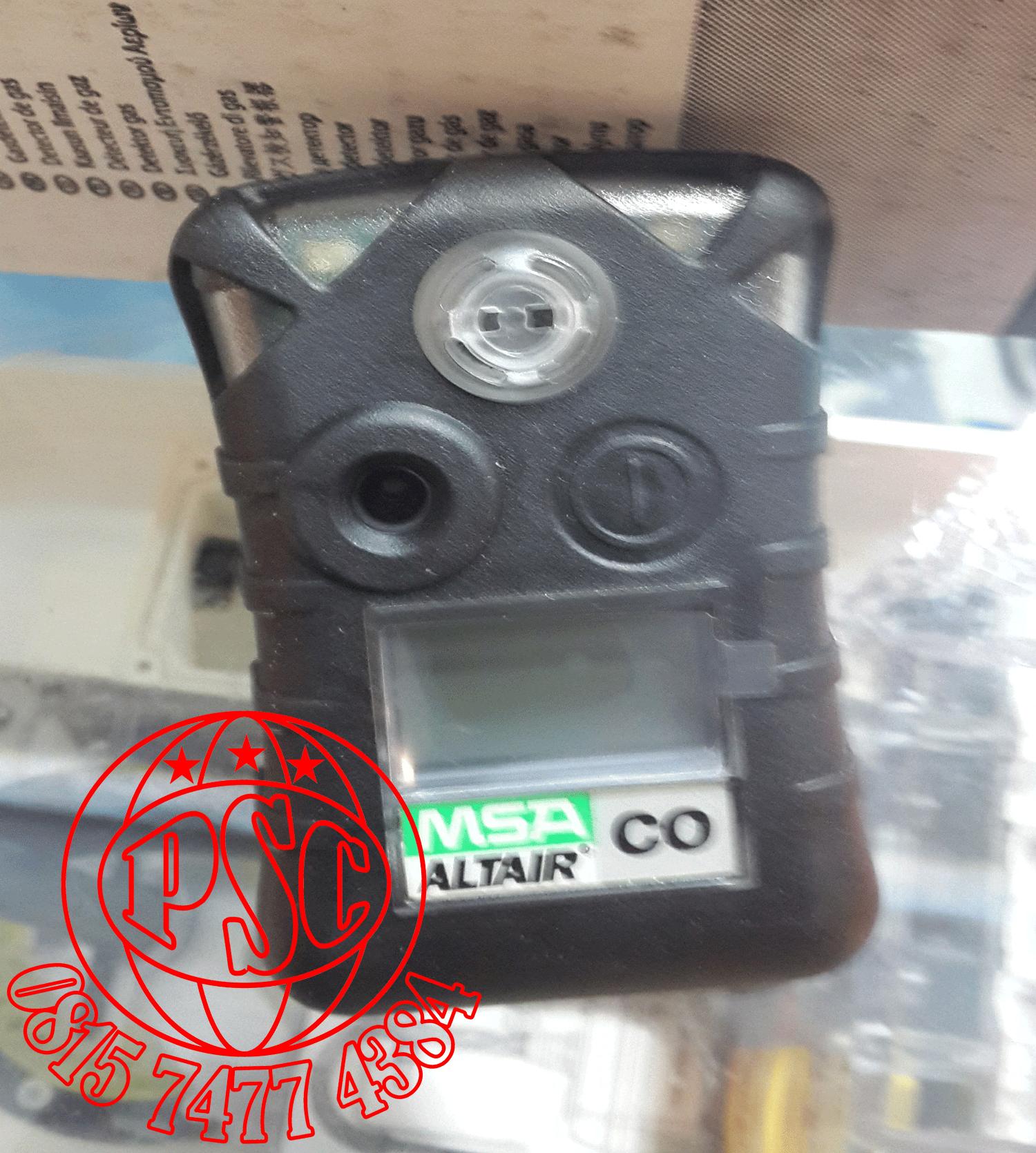

Altair Pro Single Gas Detector MSA |
||
|
Specifications |
||
|
Weight |
4.0 oz including clip |
|
|
Dimensions |
3.4" x 2.0" x 1.0" |
|
|
Operating Range |
-20 ˚C to +50 ˚C ( -4 to +122 ˚F ) |
|
|
Humidity |
10 - 95 % RH non-condensing |
|
|
Warranty |
See instruction manual for full warranty information |
|
|
Instrument Life |
Indefinite with sensor and battery replacement as needed |
|
|
Gallery |
CR2 lithium camera battery ( 9000 hour installed life – typical ) |
|
|
Case |
Polycarbonate with rubberized shell |
|
|
Display |
Large LCD with backlight |
|
|
Humidity |
10 – 95 % RH non-condensing |
|
|
IP |
IP67 ( except O2-R is IP54 ) |
|
|
Data Logging |
50 latest events in session log. Peak value every 3 minutes in periodic log. |
|
|
Certification US & Canada |
Class I, Div. 1, Groups A, B, C and D; Class II, Div. 1, Group G |
|
|
Europe |
Ex ia IIC T4 |
|
|
USA |
AEx ia IIC T4 |
|
|
European Union |
ATEX II 2G Ex ia IIC T4 |
|
|
Australia |
Ex ia IIC T4 ( Ta = 50 ˚C ) |
|
|
Gases Measuring Ranges |
||
|
Gas |
Range |
Resolution |
|
Oxygen |
0-25 % by vol |
0.1 Vol.% |
|
Carbon Monoxide |
0-1500 ppm |
1 ppm |
|
Hydrogen Sulfide |
0-200 ppm |
1 ppm |
|
HydrogenCyanide |
0-30 ppm |
0.5 ppm |
|
Chlorine |
0-20 ppm |
0.1 ppm |
|
Chlorine Dioxide |
0-1.00 ppm |
0.02 ppm |
|
Sulfur Dioxide |
0-20 ppm |
0.1 ppm |
|
Nitrogen Dioxide |
0-20 ppm |
0.1 ppm |
|
Ammonia |
0-100 ppm |
1 ppm |
|
Phospine |
0-5.00 ppm |
0.05 ppm |
|
Remote Oxygen ( O₂-R ) |
0-25 % by vol |
0.1 Vol % |
|
Alarms |
Average > 95 dB @ 1 ft, bright LEDs, vibrating alarm standard |
|
