| Reference Data |
| Overall Unit |
Weight ( less hard case ) |
| TransAire 5 : 6.8 lbs. |
| TransAire 10 : 10.1 lbs. |
| Donning time |
| The unit can be donned and flowing in under 10 seconds, after it is removed from the case or storage area. |
| Duration |
| TransAire 5 : 5 minutes |
| TransAire 10 : 10 minutes |
| Individual Components |
| Hood |
Materials |
| Standard urethane or optional Teflon materials available |
| Options |
| Standard version with elastic neck seal |
| ( available in both Urethane and Teflon ) |
| Operational temperature range |
| 0° to 160 °F |
| Regulator |
Type |
| Constant-flow regulator with no external adjustments |
| Materials |
| Nickel-plated brass |
| Flow Rate |
| Nominal flow is 40 LPM ( +/- 4 LPM ) from service pressure to 500 psig. |
| Operational Temperature range |
| |
0° to 160 °F |
| Cylinder Valve |
Components |
| Valve/regulator Threaded port for regulator |
| Burst disc Hand wheel for opening/ closing valve |
| Port for gauge Threaded port for cylinder assembly w/undercut for O-ring |
| Material |
| Nickel-plated brass |
| Maximum working pressure |
| 5-minute : 2216 psig breathing air ( Grade D or better ) |
| 10-minute : 3000 psig breathing air ( Grade D or better ) |
| Cylinder |
Materials |
| 6061 T6 high-strength aluminum ( Yellow for 5-min, Gray for 10-min ) |
| Maximum service pressure |
| 2216 psig ( Yellow ) |
| 3000 psig ( Gray ) |
| Minimum pressurized volume |
| 5-minute : 8 cu. ft. |
| 10-minute : 15 cu. ft. |
| Gauge |
Working pressure range |
| 0 to 3000 psig |
| Materials |
| Main body : Aluminum |
| Fitting : Brass |
| Guard : Rubber |
| Lens : Clear polycarbonate |
| Accuracy |
| +/- 5 % full scale at room temperature |
| Operational temperature range |
| 0° to 160 °F |
| Carrier |
The carrier is made of washable nylon cloth. |
| It can be worn on the waist, neck or shoulder. |
| Approvals |
The devices meet or exceed the relevant requirements as outlined in the |
| NIOSH regulation 42 CFR Part 84, Subpart H. |

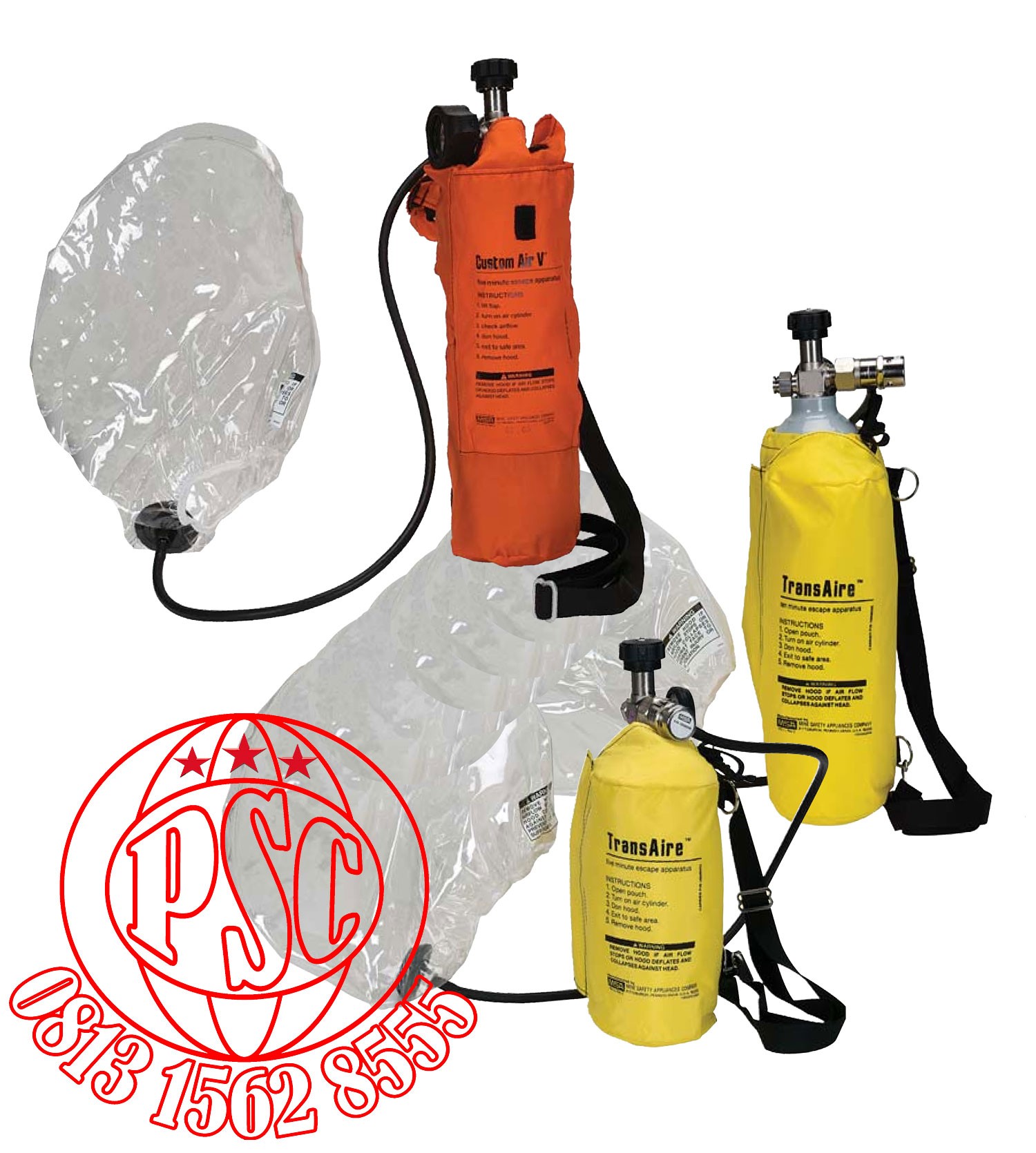

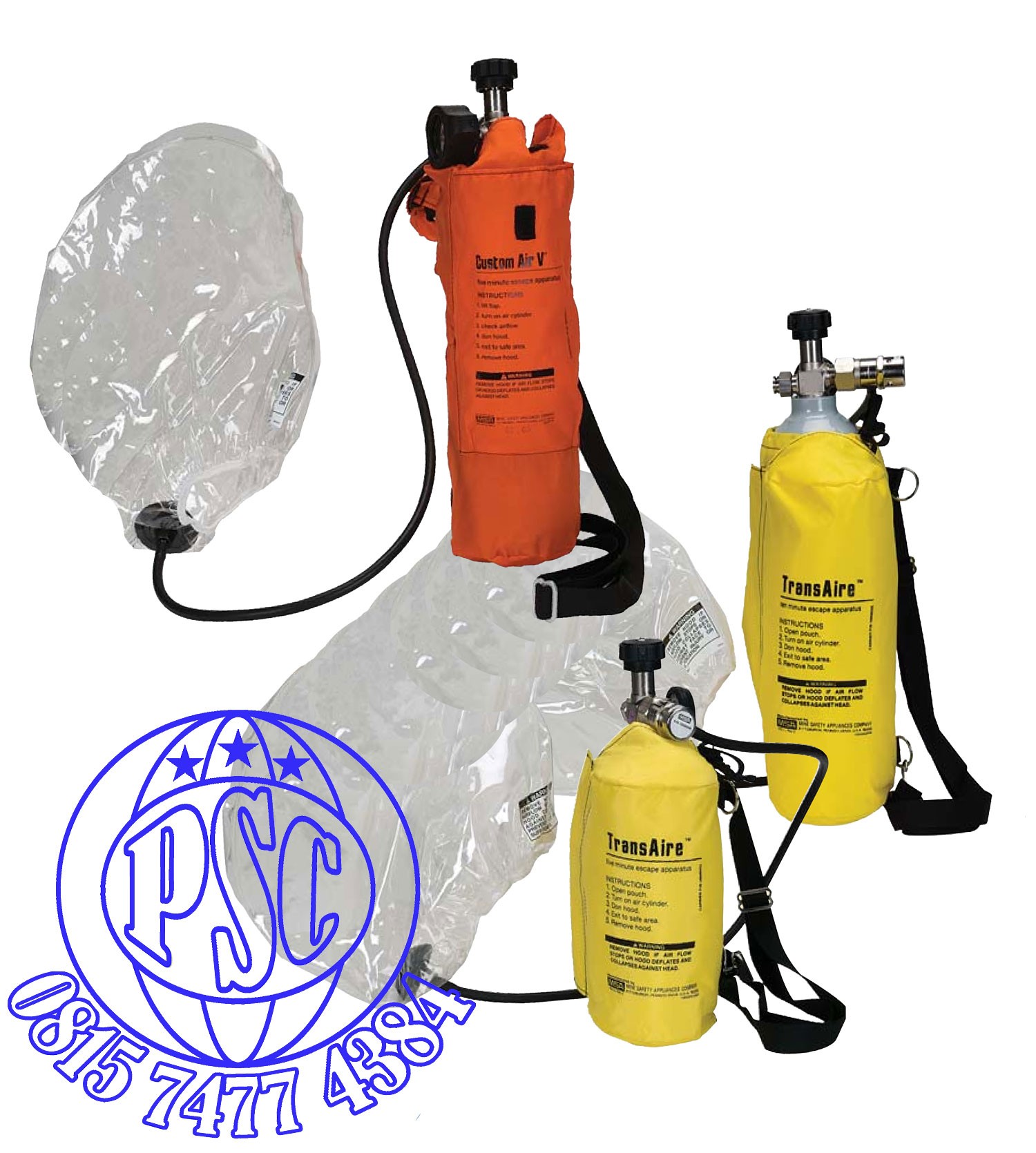

| TransAire® 5, TransAire 10, and Custom Air V |
| Escape Respirators |
| • Safety Features |
| - Highly visible, abrasion resistant color coded carriers |
| - Single control for fast escape |
| - Lightweight and compact |
| - Withstands exposure of up to 160° F |
| • Low Cost of Ownership |
| - TransAire 5 and TransAire10 Escape Respirators have reduced parts and inventory costs |
| - Limited inspection and maintenance |
| - online user training on MSA U |
| • Options & Flexibility |
| - Aluminum or carbon-fiber cylinders |
| - Custom Air® V offers high flow rate |
| - Single unit carrying case and single or dual wall mounting cases available |
| Part Number |
Description |
| VALUE MODELS |
| 10008292 |
TransAire 5 with aluminum cylinder |
| 10008293 |
TransAire 10 with aluminum cylinder |
| 10083327 |
TransAire 10 Escape Respirator complete ( includes fully-wound carbon fiber cylinder, carrier, hood tube, hood assembly ) |
| 484353 |
Custom Air V Escape Respirator complete ( includes fully-wound carbon fiber cylinder, carrier, hood tube, hood assembly ) |
| 802197 |
Custom Air V Escape Respirator complete ( includes aluminum cylinder, hood tube, hood assembly ) |
| 696192 |
Single-unit wall-mounting case |
| 696193 |
Two-unit wall-mounting case |
| 10012530 |
Single unit carrying case, yellow polyethylene, with handle |
