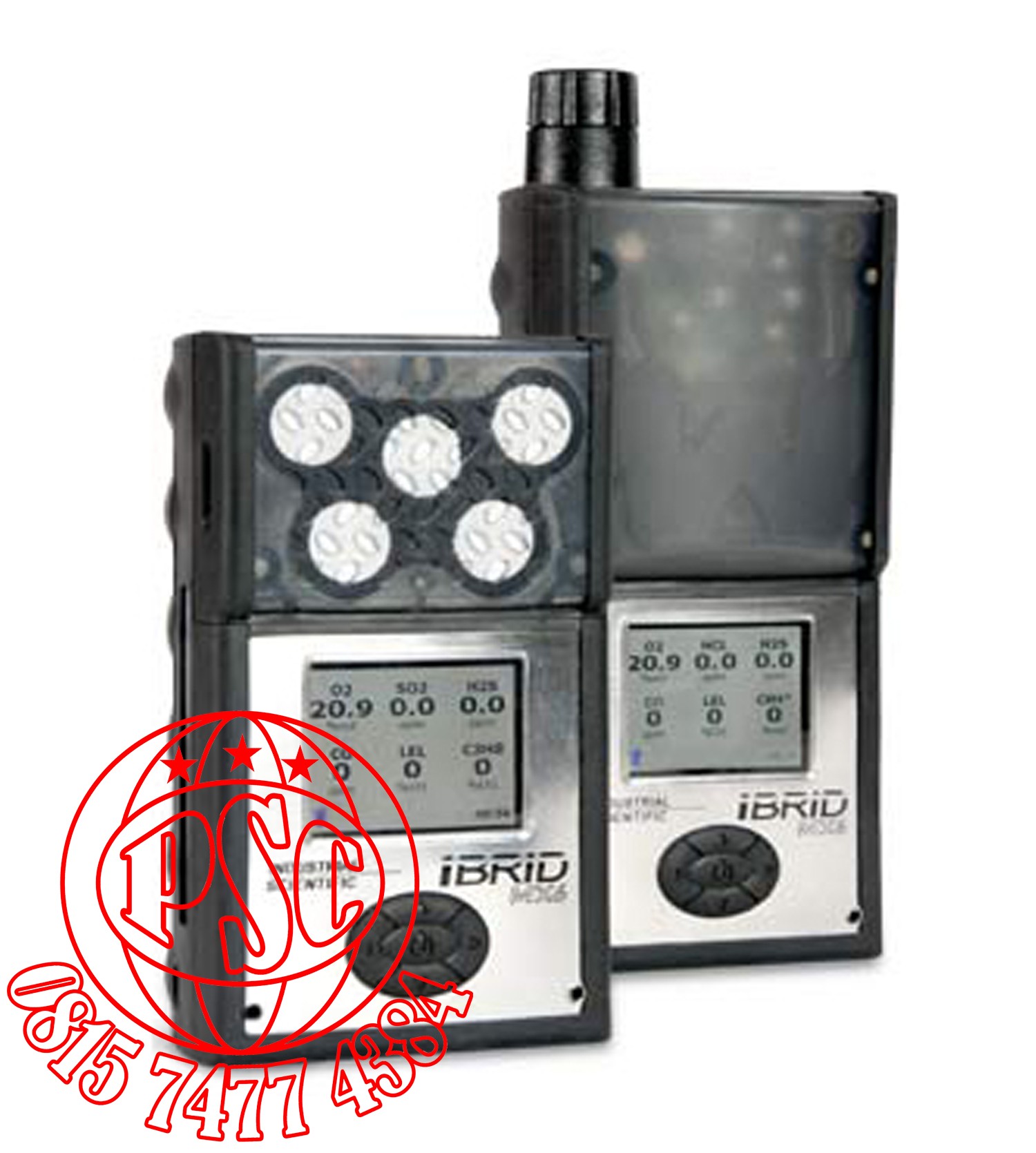

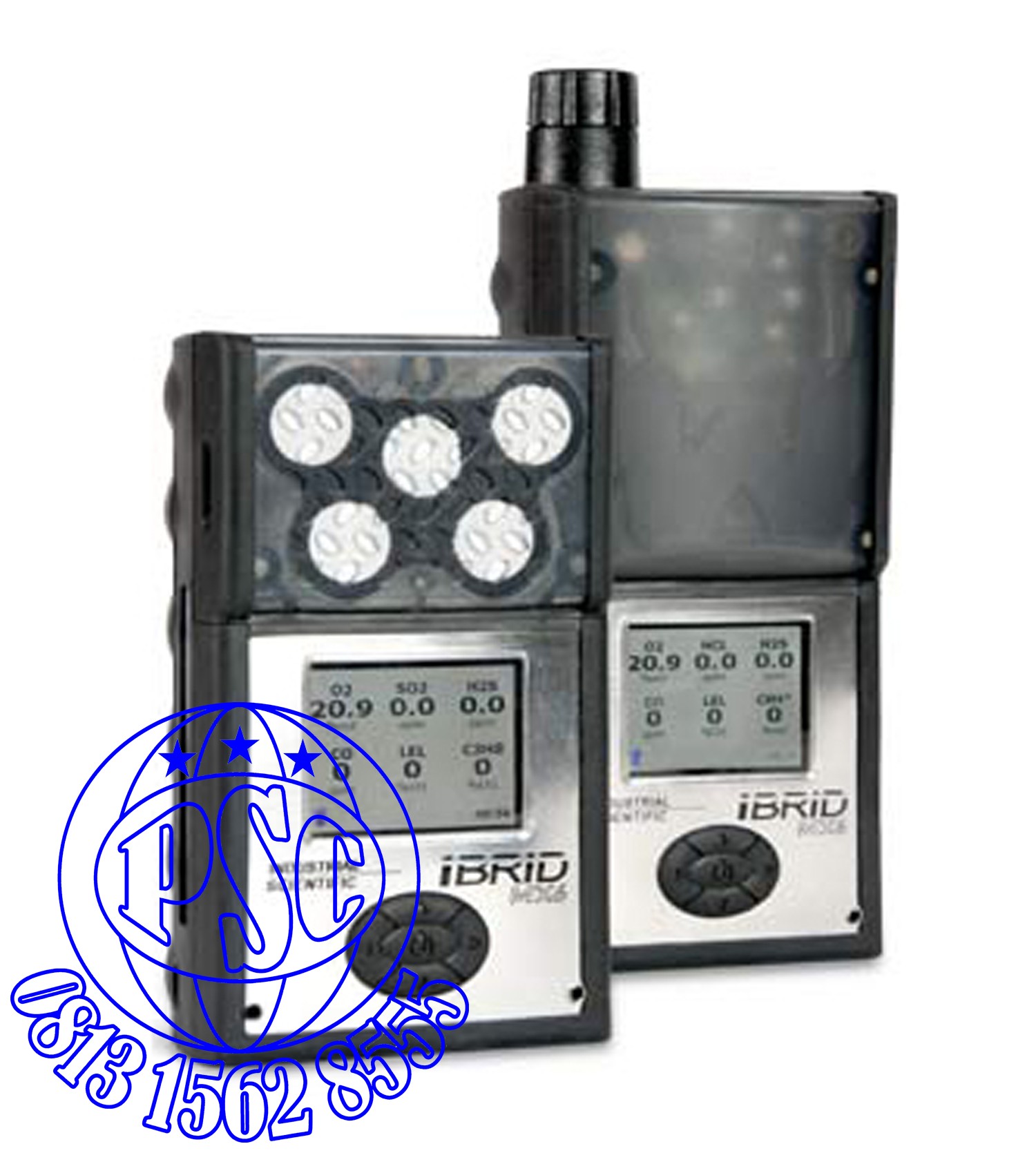

MX6 iBrid Gas Detector Indsci

Specifications

Instrument Warranty

Warranted for as long as the instrument is supported by

Industrial Scientific Corporation

Case Material

Lexan/ABS/Stainless Steel w/protective rubber overmold

Dimensions

135 mm x 77 mm x 43 mm ( 5.3" x 3.05" x 1.7" ) - without pump

167 mm x 77 mm x 56 mm ( 6.6" x 3.1" x 2.2" ) - with pump

Weight

409 g (14.4 oz) typical - without pump; 511 g ( 18.0 oz ) typical - with pump

Display/Readout

Color Graphic Liquid Crystal Display

Power Source/Run Times

Rechargeable Lithium-ion (Li-ion) Battery Pack (24 hours) - without pump

Rechargeable, Extended-Range Lithium-ion (Li-ion) Battery Pack (36 hours) - without pump

Replaceable AA Alkaline Battery Pack (10.5 hours) - without pump

Operating Temp. Range

-20 ºC to 55 ºC ( -4 ºF to 131 ºF C6 )

Operating Humidity Range

15 % to 95 % non-condensing ( continuous )

MOST COMMON INSTRUMENT ConFIGURATIONS for (UL/CSA)

PART NO.

DEscriptION

MX6-K1230201

MX6 - LEL, CO, H2S, O2, Ext. Li-ion

MX6-K0230201

MX6 - LEL, H2S, O2, Ext. Li-ion

MX6-K1030201

MX6 - LEL, CO, O2, Ext. Li-ion

MX6-K0030201

MX6 - LEL, O2, Ext. Li-ion

MX6-K123R211

MX6 - LEL, CO, H2S, O2, PID, Ext. Li-ion, Pump

MX6-K1235201

MX6 - LEL, CO, H2S, O2, SO2, Ext. Li-ion

MX6-K0235201

MX6 - LEL, H2S, O2, SO2, Ext. Li-ion

MX6-0000R211

MX6 - PID, Ext. Li-ion, Pump

COMMON INDUSTRY ConFIGURATIONS for ( UL/CSA )

Petroleum Refining

MX6-KJ53R211

MX6 - LEL, CO/H2S, O2, SO2, PID, Ext. Li-ion, Pump

Brewing/Bottling/Wineries

MX6-K103Q211

MX6 - LEL, CO, O2, CO2, Ext. Li-ion, Pump

Pulp/Paper

MX6-KJ835201

MX6 - LEL, CO/H2S, O2, SO2, ClO2, Ext. Li-ion

HazMat

MX6-K673R211

MX6 - LEL, O2, NH3, Cl2, PID, Ext. Li-ion, Pump

Mining

MX6-M1030501

MX6 - CH4 (%), CO, O2, Ext. Li-ion, (MSHA/AUS)

Mining ( Diesel Applications )

MX6-M1D34501

MX6 - CH4 (%), CO, O2, NO2, NO, Ext. Li-ion
