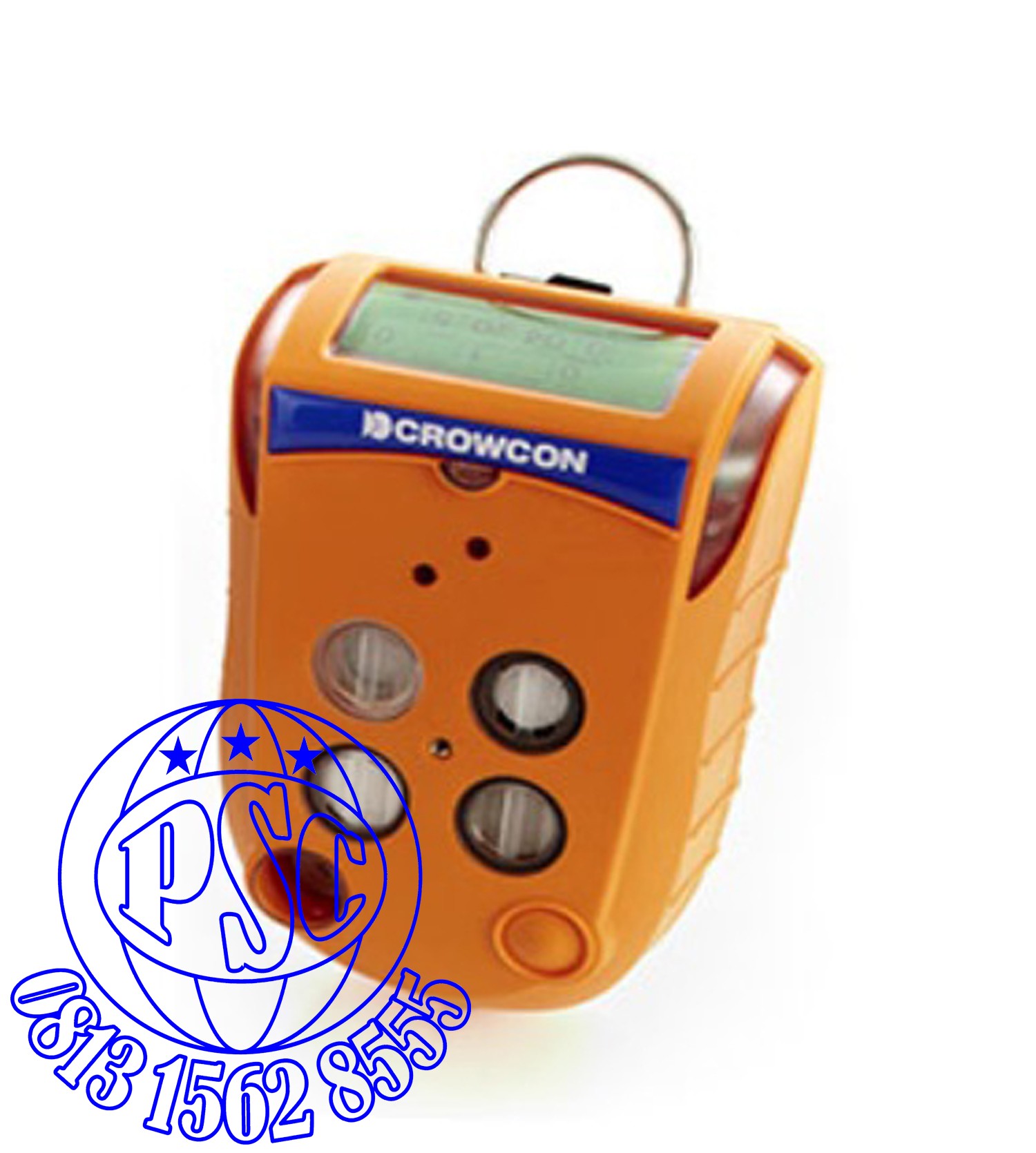

Multi Gas Detector Gas-Pro Crowcon

Specifications

Size

43 x 130 x 84 mm ( 1.7 x 5.1 x 3.3 ins )

Weight

309 g 4 gas ( 10.8 oz ) / 340 g pumped (11.9 oz) 333 g 5 gas ( 11.7 oz ) / 362 g pumped ( 12.7 oz )

Alarms

Audible >95 dB @ 30 cm ( 98 dB @ 30 cm in loud mode )

Visual - all angle dual red/blue LEDs

Vibrating alert

Display

Top mount for ease of view with dual colour backlight ( green/red )

Data logging

125 hr at 10-second intervals ( 45,000 logs )

Event logging

Alarm, over range, calibration, bump, on/off, TWA, 1000 events

Battery

Rechargeable Li-ion, >14 hr ( 13 hours pumped operation ) based on CH4, O2, H2S, CO

Typical charge time 7.5 hr

Sampling

Internal pump as option

Operating temp.

-20 °C to +55 °C ( -4 °F to +131 °F )

Storage

-25 °C to +65 °C ( -13 °F to +149 °F )

Humidity

10 to 95 % RH+

Ingress protection

Independently tested to IP65 and IP67

Approvals

IECEx: Ex d ia IIC T4 Gb Tamb -20 °C to +55 °C

ATEX: II 2 G Ex d ia IIC T4 Gb Tamb -20 °C to +55 °C

UL : Gas detector use in hazardous locations Class 1, Division 1, Groups A, B, C, and D only as to intrinsic safety

INMETRO

Compliance

FCC and CE. Complies with EMC Directive 2014/30/EU, EN50270 and ICES-003

Interface

Data connection for gas test solutions and direct to PC

Charging

Direct connection to multi-regional power supply

Vehicle charger adaptor

Desktop cradle

USB power and communications lead
