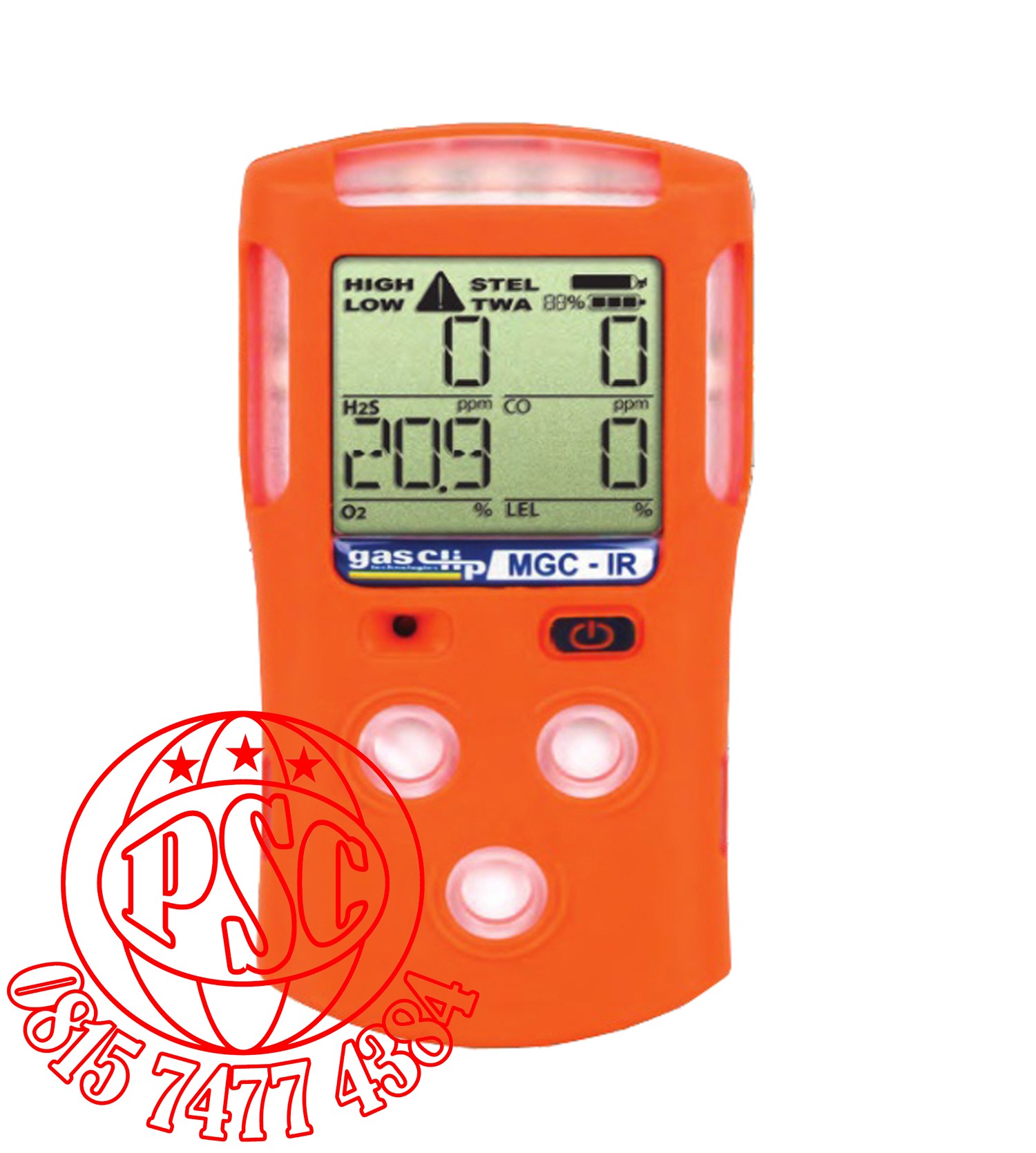

Multi Gas Clip Technologies
Specifications
Size	4.7” H × 2.4” W × 1.2” D
	( 118.6 mm H × 61.6 mm W × 31.7 mm D )
Weight	7.7 oz. ( 240 g )
Temperature	-4 °F to +122 °F / -20 °C to +50 °C
Humidity	5 % to 95 % RH ( non-condensing )
Battery Life IR	2 months continuous
Pellistor	30 hours Alarms Visual, Vibrating, Audible ( minimum 95 dB )
	Low, High, STEL, TWA and OL ( Over Limit ) LEDs 4 red alarm bar LEDs
Yellow backlight ( activated on button press )
Red backlight ( activated on alarm condition )
Yellow Maintenance Notification LED Tests Full function self-test upon activation
Sensors, battery and circuitry continuous
Ingress Protection	IP 67
Certifications CSA	Class 1 Div 1 Groups A, B, C and D
	CAN/CSA C22.2 No. 157 & C22.2 No. 152
	ANS/UL 913 and ANSI?ISA-S12.13 Part 1
	ATEX : CE Sira 14ATEX2013 II 1 G, Ex ia IIC T4 Ga
	InMetro :IECEx:Ex: EXia IIC T4 GA
Warranty	Full 2 years
Gases	H2S	0-100 ppm
	CO	0-500 ppm
	Combustible	0-100 % LEL
	O2	0-30 %
User Options User ID/Message Maintenance Notification TWA/STEL Intervals TWA Method Language ( 6 ) Sensor Disable Latching Alarms SAFE Display Self-Test Lock Dock Lock Auto-zero on start up Calibration gas Bump Test Interval Calibration Interval
