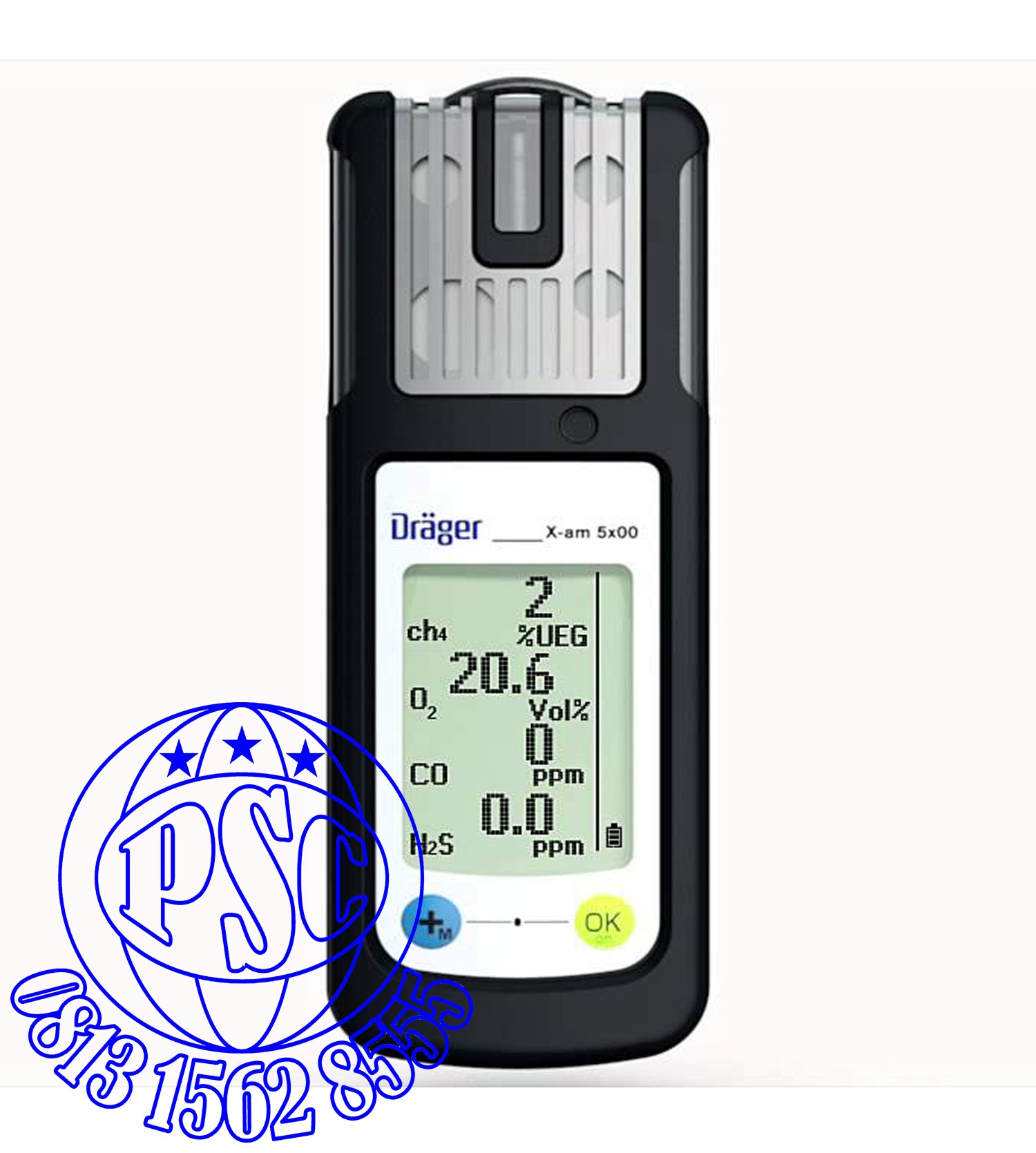

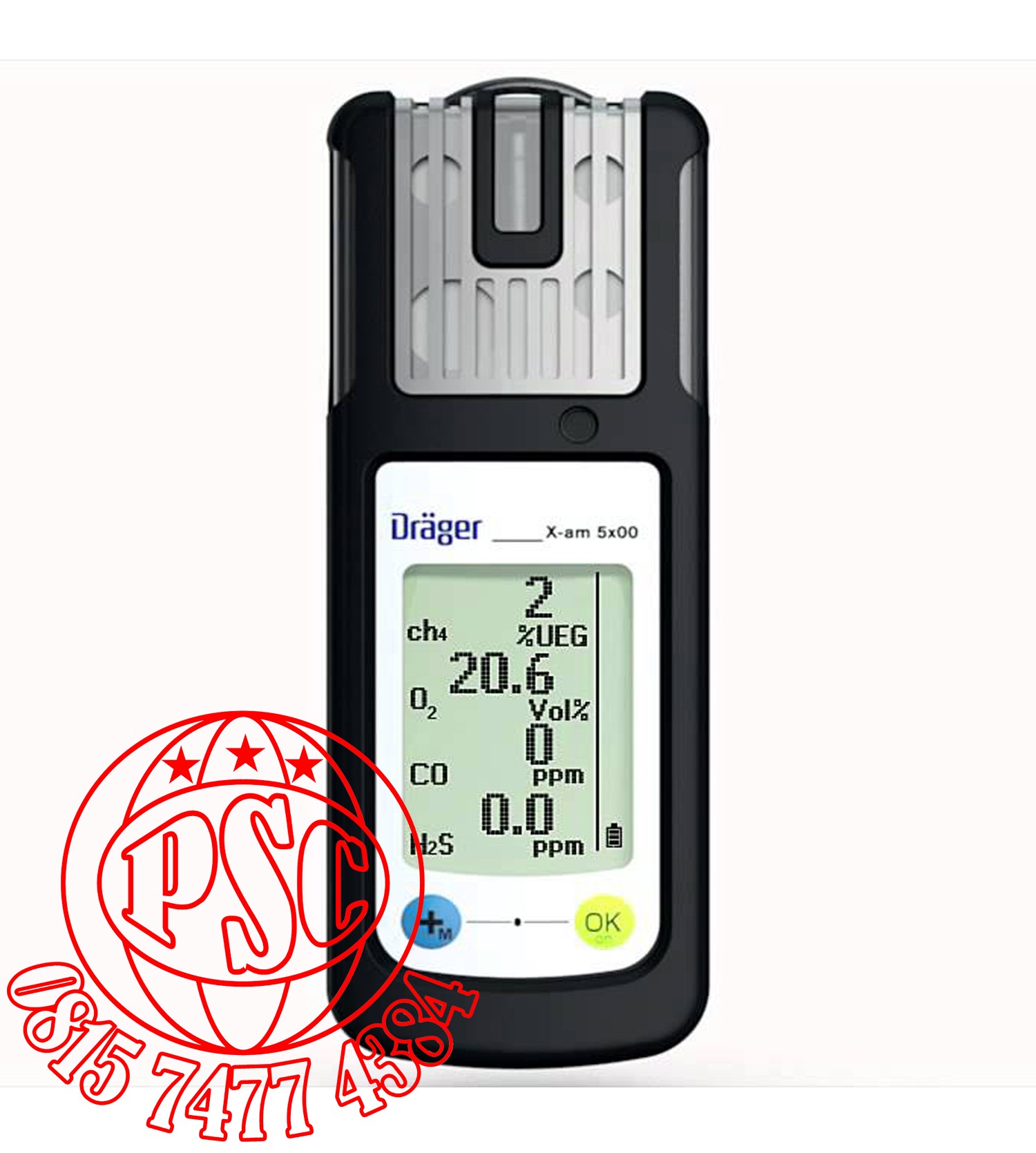

MultiGas Detector X-AM 5000 Drager
Specifications
Dimensions ( W x H x D )	1.85” x 5.08” x 1.22”, ( 47 x 129  x 31 mm )
Weight	Approximately 7.8 oz ( 220 g )
Ambient conditions	Temperature	-4 to +122 °F, ( -20 to +50 °C )
	Pressure	20.7 to 38.4 inch Hg, ( 700 to 1300 mbar )
	Humidity	10 to 95 % RH
Alarms	Visual	180°
	Audible	Multi-tone >90 dB at 1 ft., ( 30 cm ) Vibration
Battery options	Alkaline, rechargeable NiMH cells for alkaline pack, T4 battery pack
Operating times	> 12 hours; with pulsed mode  > 40 hours  ( units after Jan. 2009 )
Charging times	< 4 hours
Data logger	Can be read  out via infrared approx.1000 hours with 5 gases and a recording interval of 1 reading per minute
Pump operation	Maximum hose  length 65.6 ft., ( 20 M ); 30 hours  with 3 ”AA” alkaline
Approvals	ATEX	I M1 Ex ia I
		II 1G  Ex ia IIC T3
		I M2 Ex d ia I
		II 2G Ex d ia IIC T4/T3
	UL	Class I & II, Div.1 Group  A, B, C, D, E, F, G T.-Code T4/T3
	CSA	Class I, Div.  I Group  A, B, C, D, T-Code T4/T3
	MSHA	Pending
	IECEx	Ex ia I
		Ex ia IIC T3
		Ex d ia I
		Ex d ia IIC T4/T3
	CE mark	Electromagnetic compatibility ( directive 89/336/EWG )
