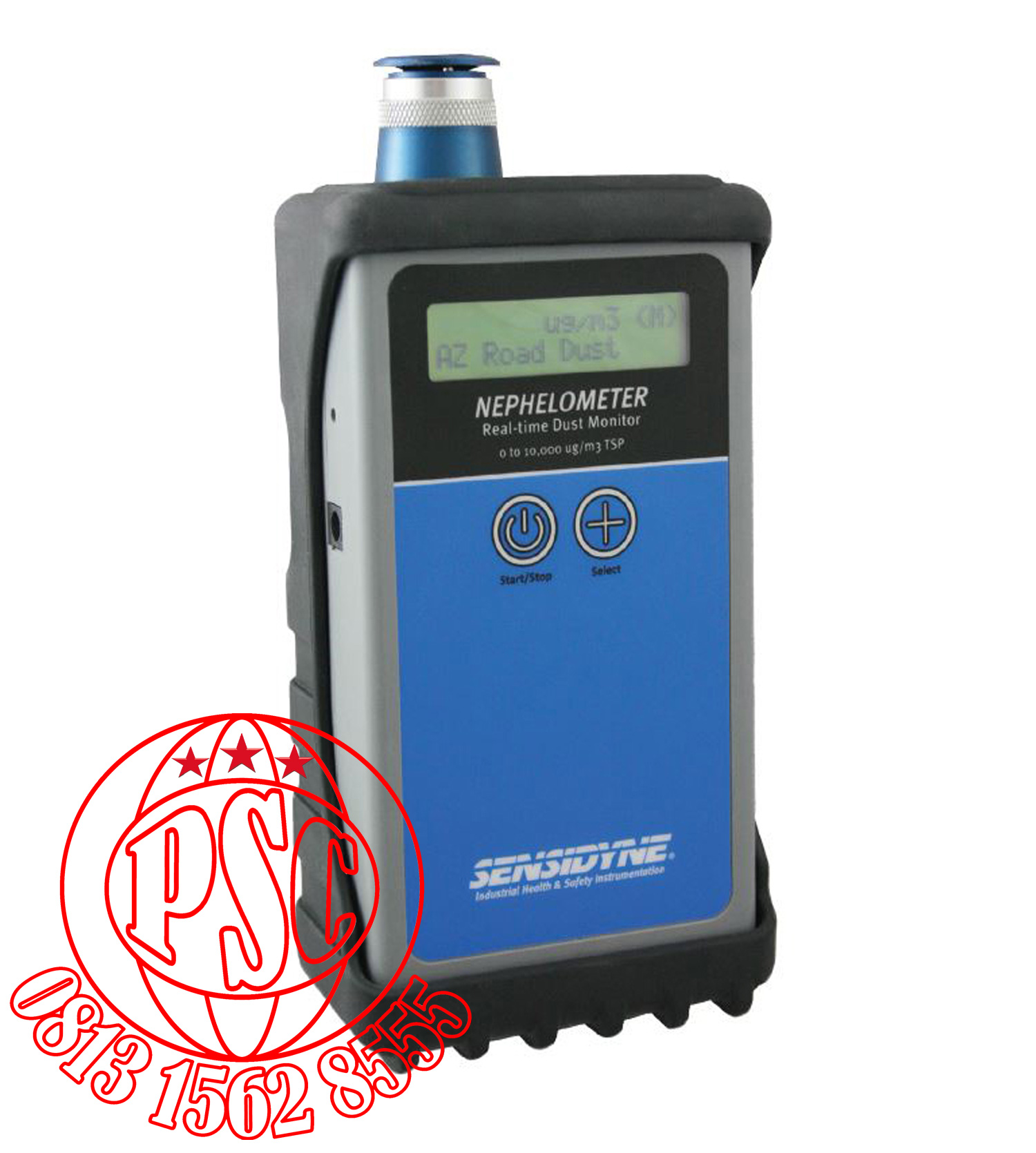

Sensidyne Nephelometer Real-Time Handheld Dust Monitor

Performance

Measurement Method

Light scatter

Particle Size Screening

Standard Model :  TSP

Deluxe Model :  TSP, PM 2.5, PM 4, or PM 10 Selective

Sample Method

Pump sample draw

Range

0.1 – 10,000 μg/m³

Sample Options

1 minute, Continuous, or 15 min STEL

Resolution

1 μg/m³

Data logging

4000 records of STEL, Max, Min and average reading and k-factor

Environmental

Temperature Ranges

Operating

32 °F to 122 °F ( 0 °C to 50 °C )

Storage

-4 °F to 140 °F ( -20 °C to 60 °C )

General

Display

2 line, 16-character LCD

Controls

2-button

Logging

4000 Record memory

Dimensions

3.75 W x 6.75 H x 2.0 D inches 9.5 W x 17.2 H x 5.1 D cm

Weight

24 oz. ( 0.67 kg )

Electrical

Light Source

Laser diode

Power

7.2V Lithium Ion self-contained battery pack providing 30 hours of typical intermittent operation and up to 12 hours continuous use.

Charger

100-240VAC Lithium Ion Charger 8.4VDC @ 1500mA typical.

Charging Time

Less than 3 hours

Communications

USB Mini BType

Standard Calibration

Arizona Road Dust. K-factors allow direct reading of other substances.

Safety Conformity

• FDA / CDRH This product is tested and complies with 21 CFR, Subchapter J, of the health and Safety Act of 1968.

• European Community ( CE ) Directive 89/336/EEC EN 55011 Group 1, Class B ( Emissions ) and EN 55082-1 ( Immunity )

• IEC 60825-1 Ed.1.1 ( 1998-01 )

• EN 60825-1 W/A11 ( 1996 )

• US 21 CFR 1040.10

Supplied

Operation manual, Charger with power cord, zero cap, spare filter, software and USB cable.

Optional

Carrying case and Rubber Protective Boot

Description

Part Number

Standard Kits

Deluxe Kits

810-1001-01-US

810-1003-01-US

810-1001-02-Euro

810-1003-02-Euro

PM-2.5 Impactor

811-1004-01

X

PM-4.0 Impactor

811-1004-04-R

X

PM-10 Impactor

811-1004-02

X

Charger

298-0027-01

X

X

Zero Cap

385-0114-01

X

X

Sheath Air Filter

385-0112-01

X

X

USB Coms Cable

297-0012-01

X

X

PC App/Manual CD

390-0048-01

X

X

Optional Accessories

Rubber Boot

375-0008-01

Carrying Case

375-0009-01

Tri-pod Mount

385-0117-01
