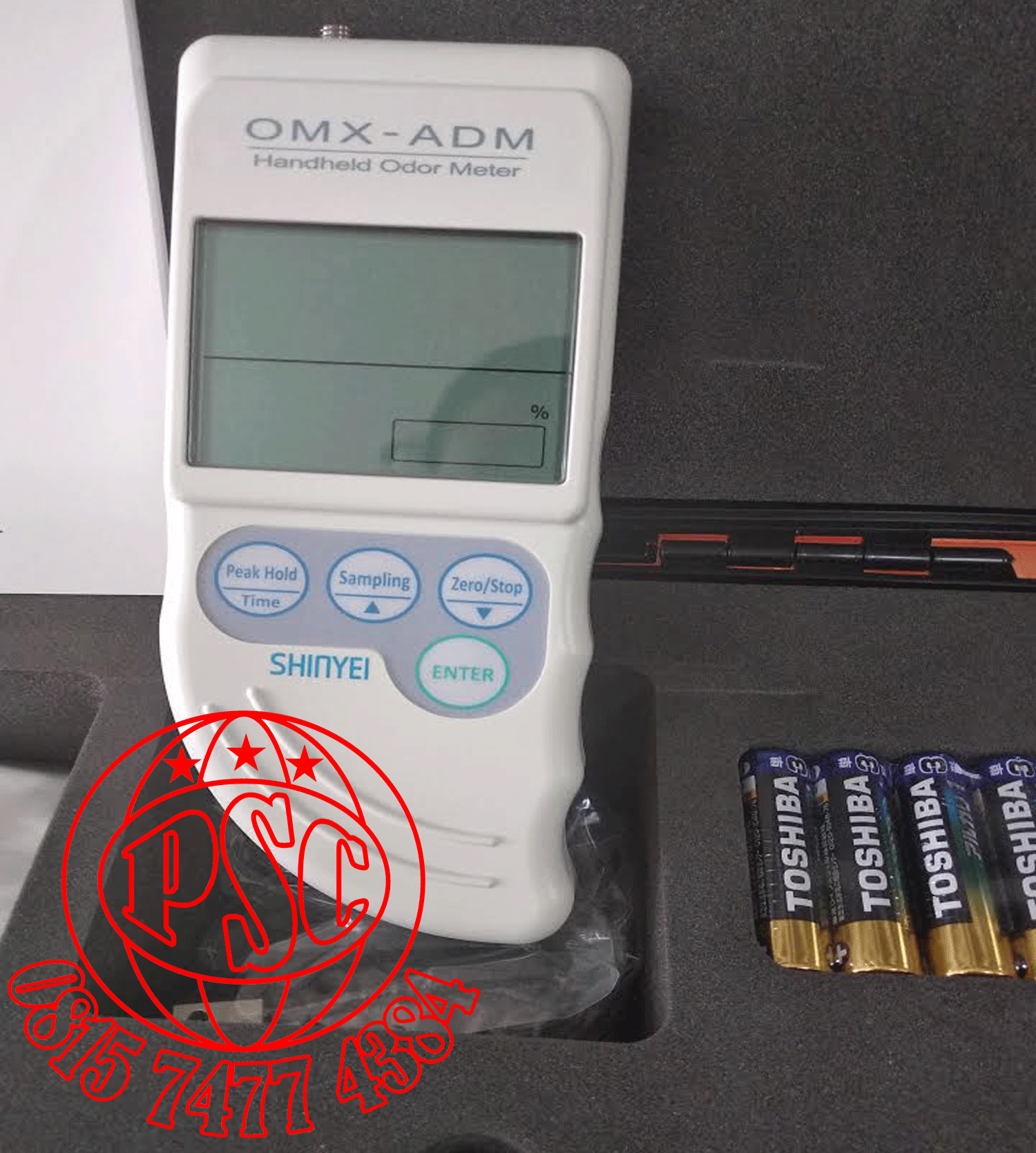

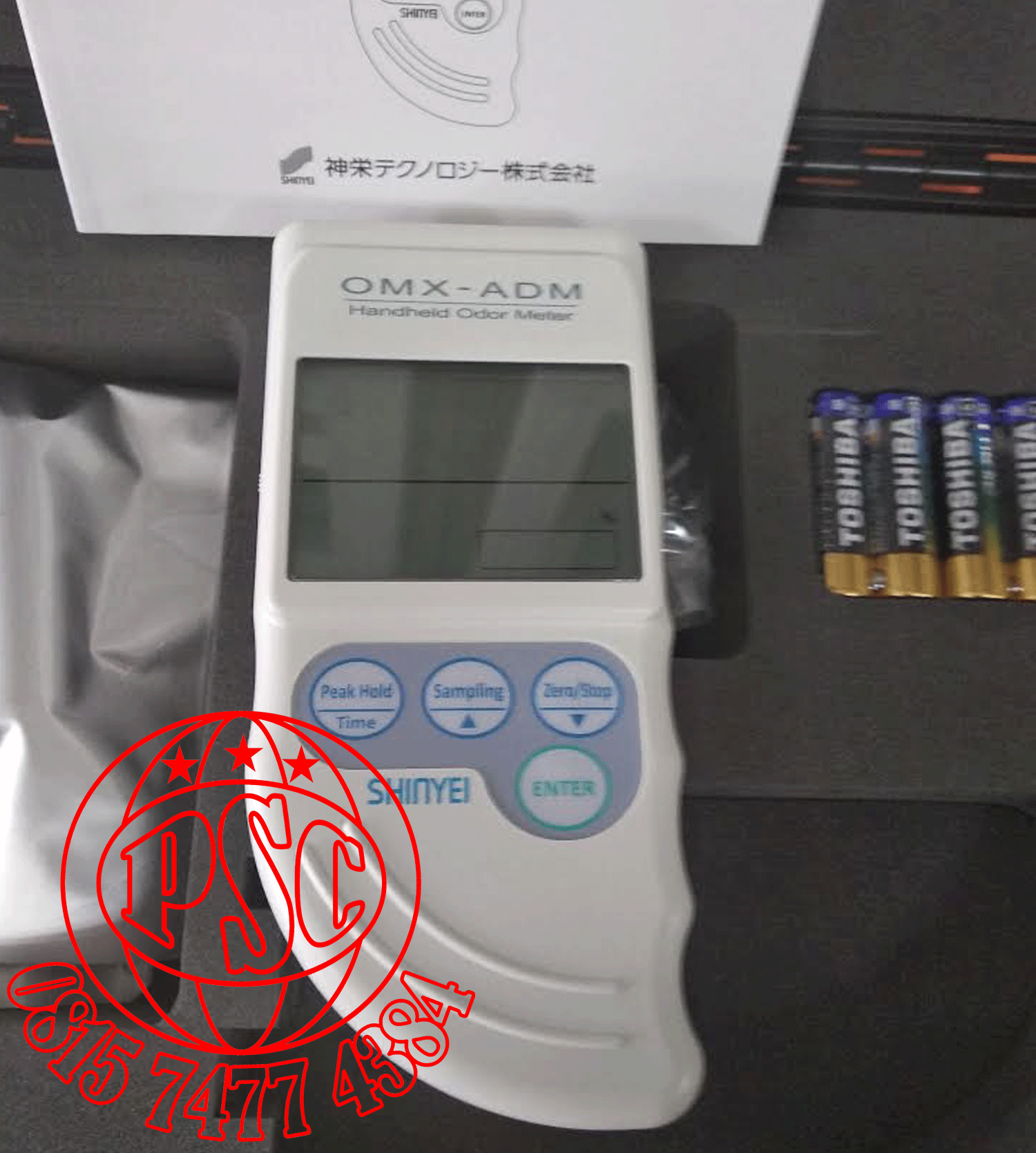

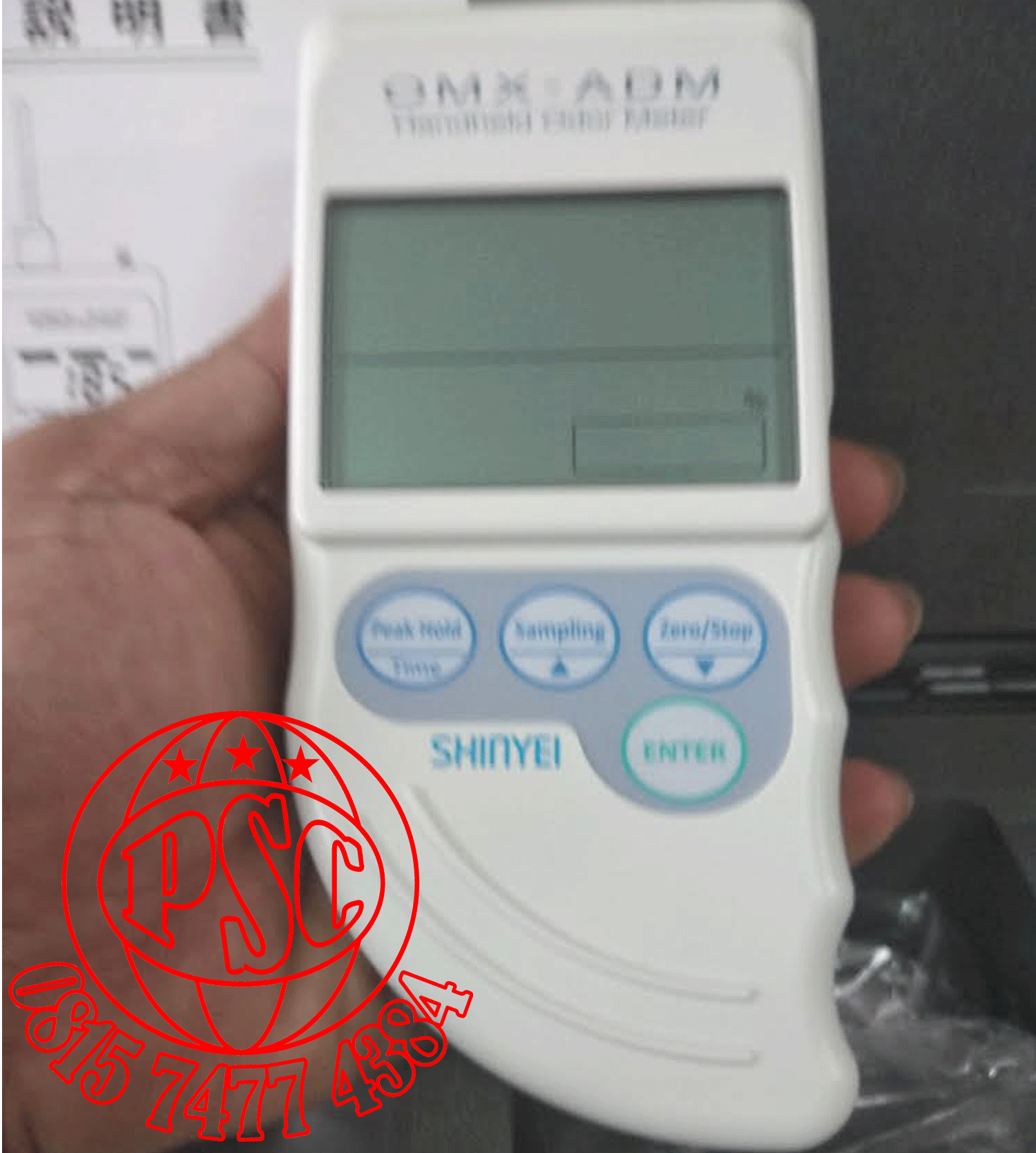

Odor Meter OMX-ADM Shinyei Technology

Specifications

Model

OMX-SRM

OMX-ADM

OMX-TDM

Detection Method

Two Semiconductor Gas Sensors

Sampling Method

Continuous Sampling with Built-in Air Pump

Object Gas

Ethanol

Hydrogen Sulfide

TVOC ( Toluene ),

Acetone

Methyl Mercaptan

etc

Hydrogen, etc

Ammonia, etc

Odor Strength Level

0.0 ～ 999

0 ～ 999

0 - 9999 ( ug/m3 )

Classification

Class 0 ～ 90

Odor Intensity 2.5～5.0

-

Power

4 × AA Size Alkaline Batteries or AC Adaptor

*Battery life for continuous measurement is approx. 7 hours.

Memory Capacity

Up to 32,732 Data

Memory Partition

Up to 511 Files

Operating Temperature

0 ～ 40℃ ( 32-104F ) *No Dew Condensation

Storage Temperature

-10 ～ 50℃ ( 14-122F ) *No Dew Condensation

Dimensions

W 74 x L 167.5 x D 35 mm approx.

Weight

250 g approx. ( Without Batteries )

Accessories

USB Cable

Air Purifying Unit

Activated Carbon

4 × AA Size Alkaline Batteries

AC Adaptor
