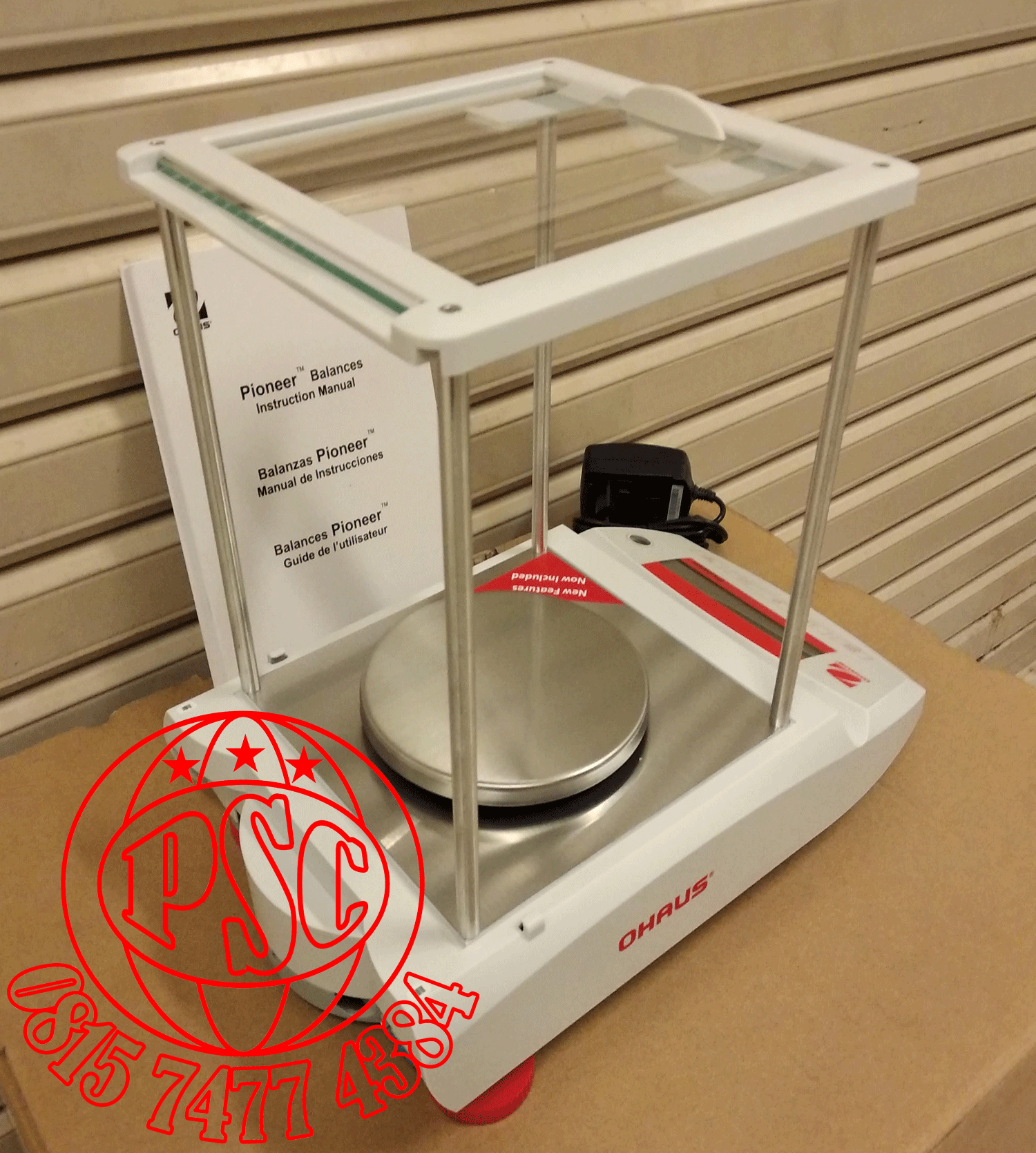

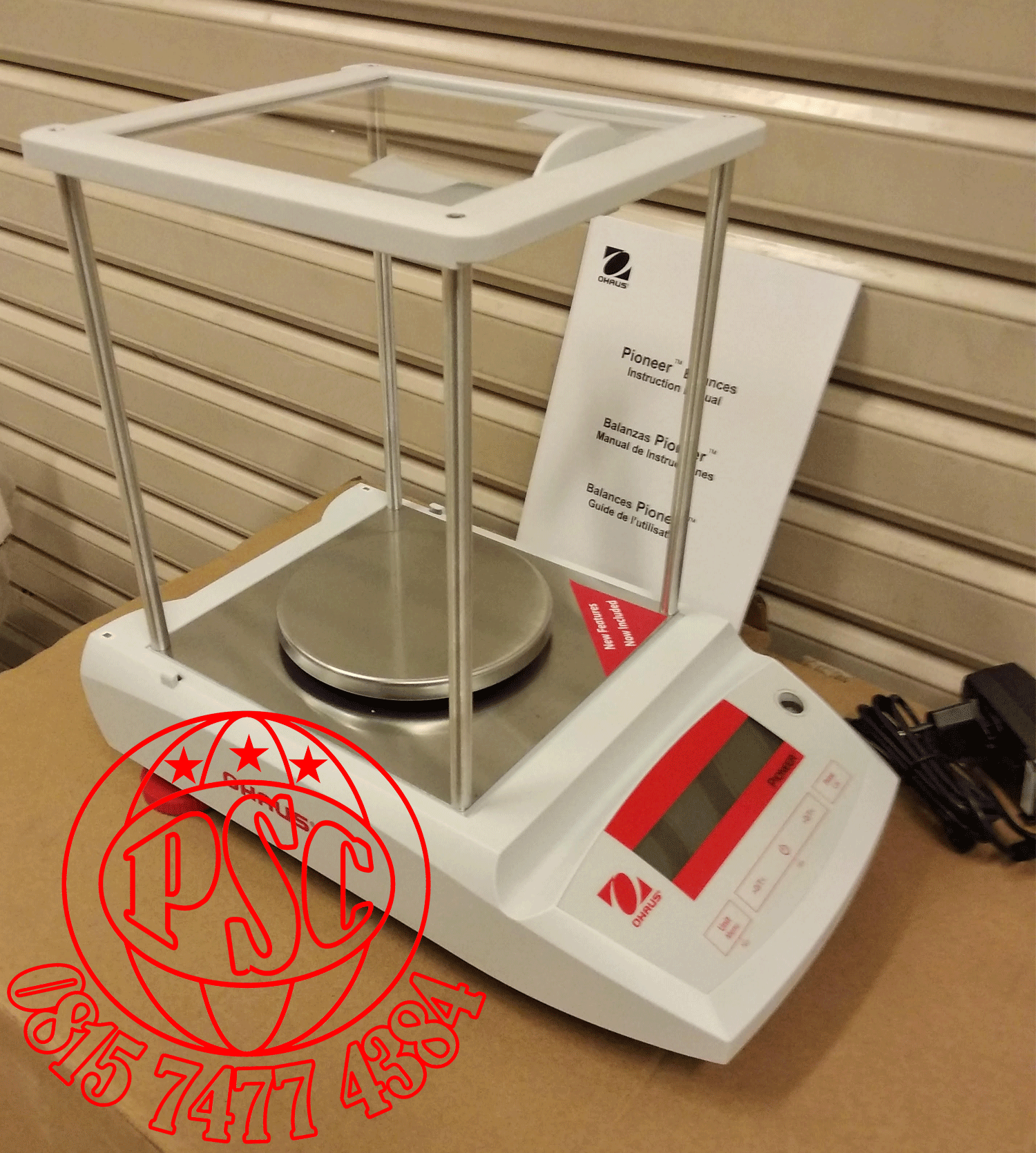

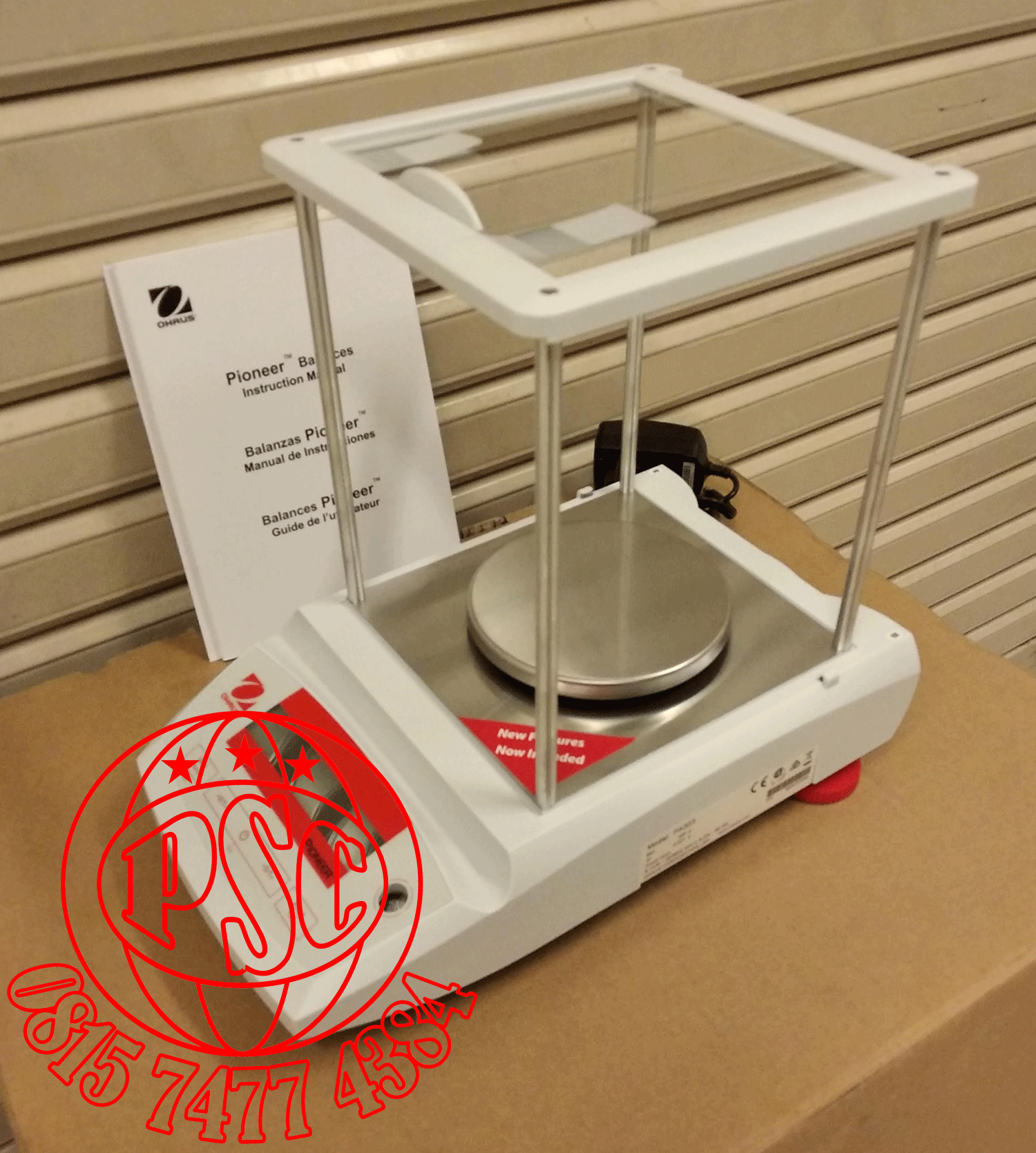

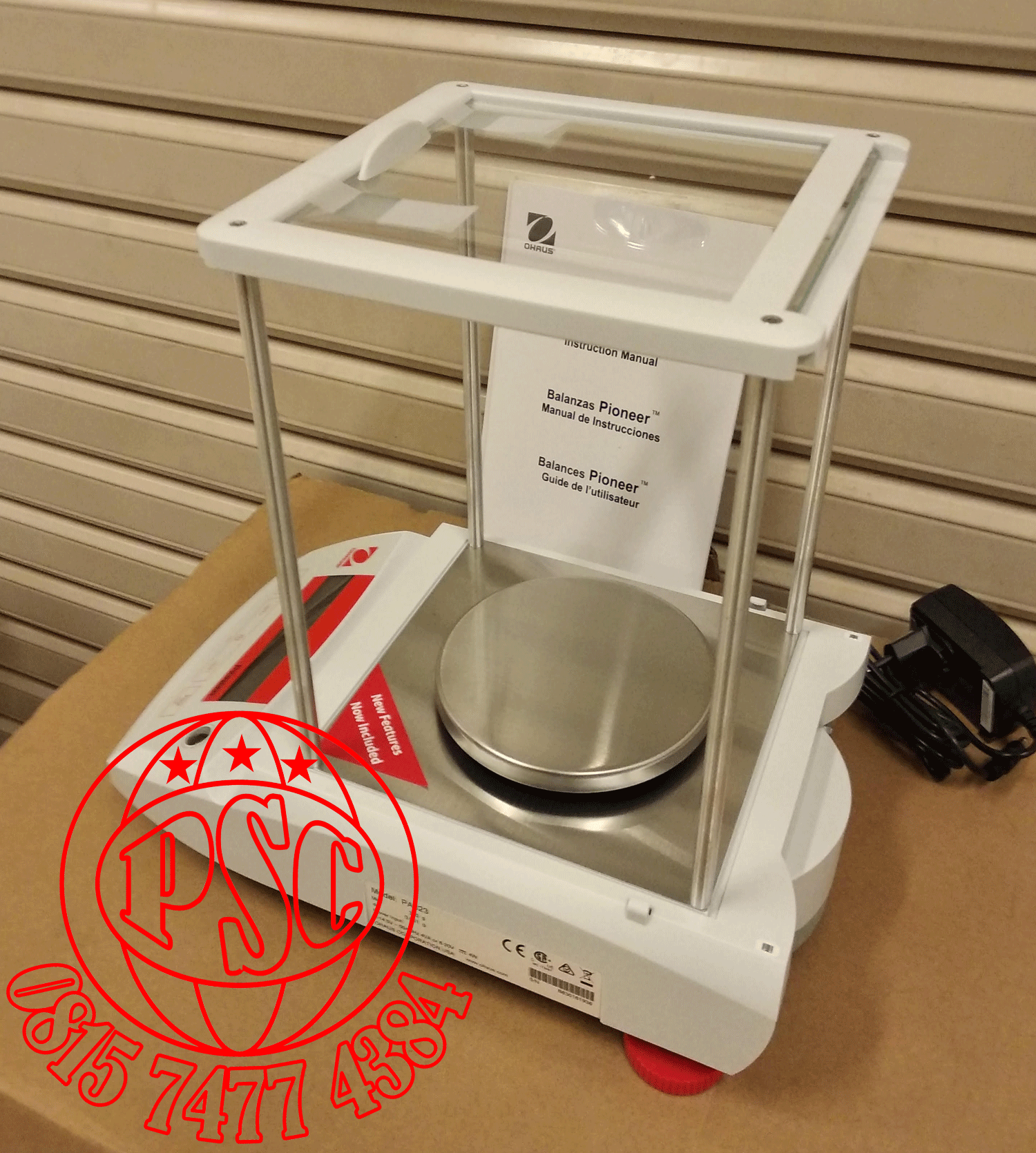

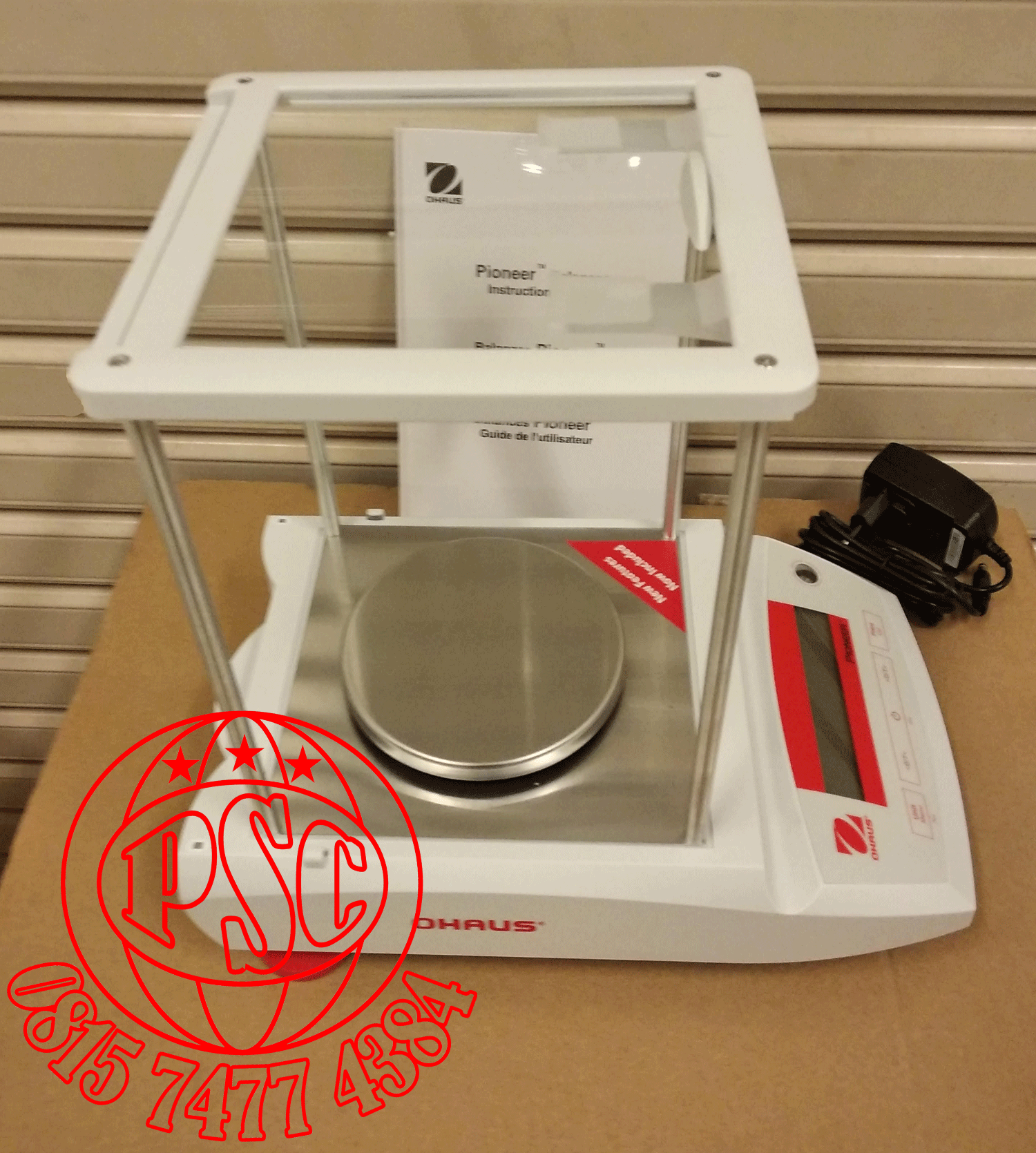

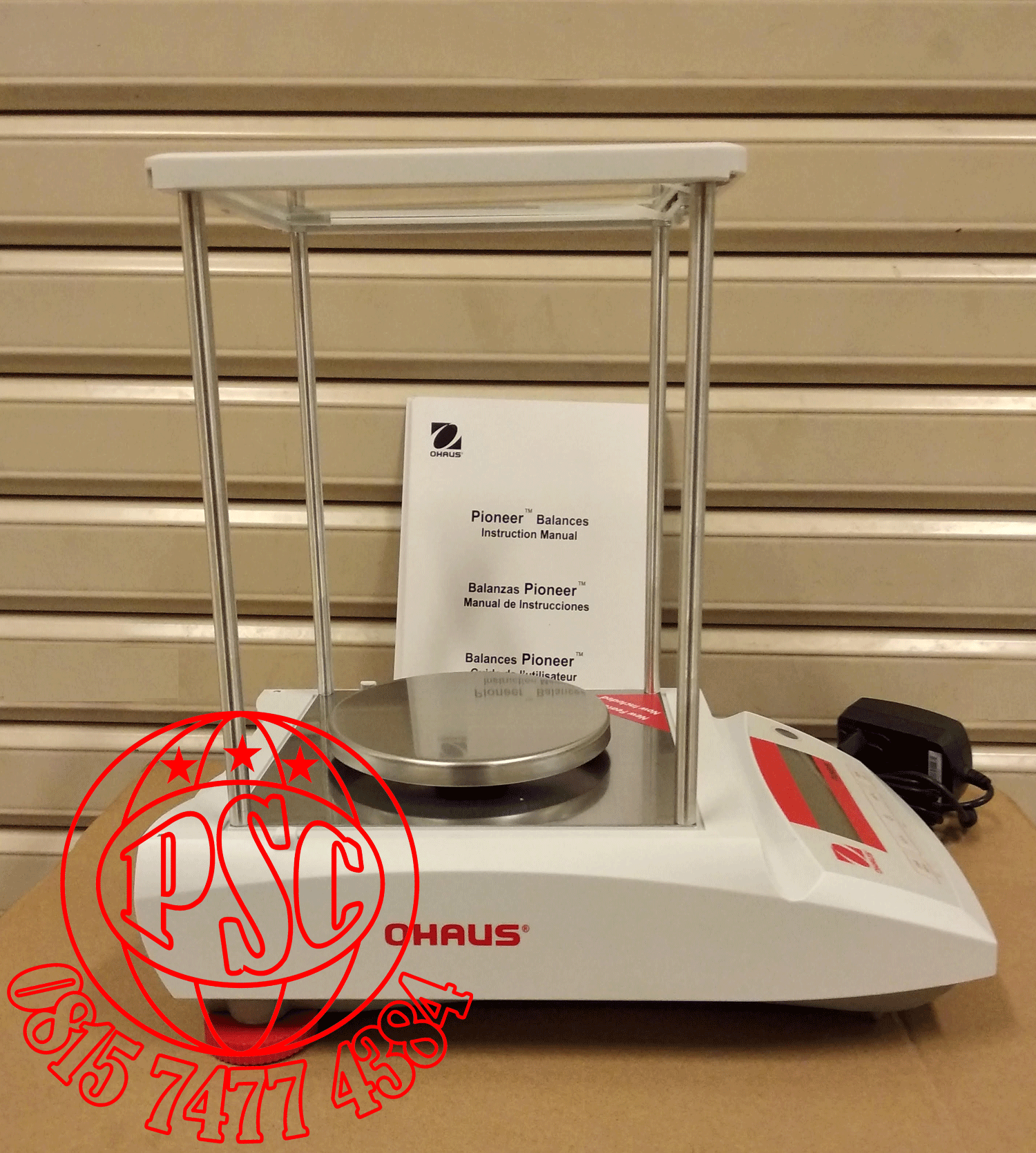

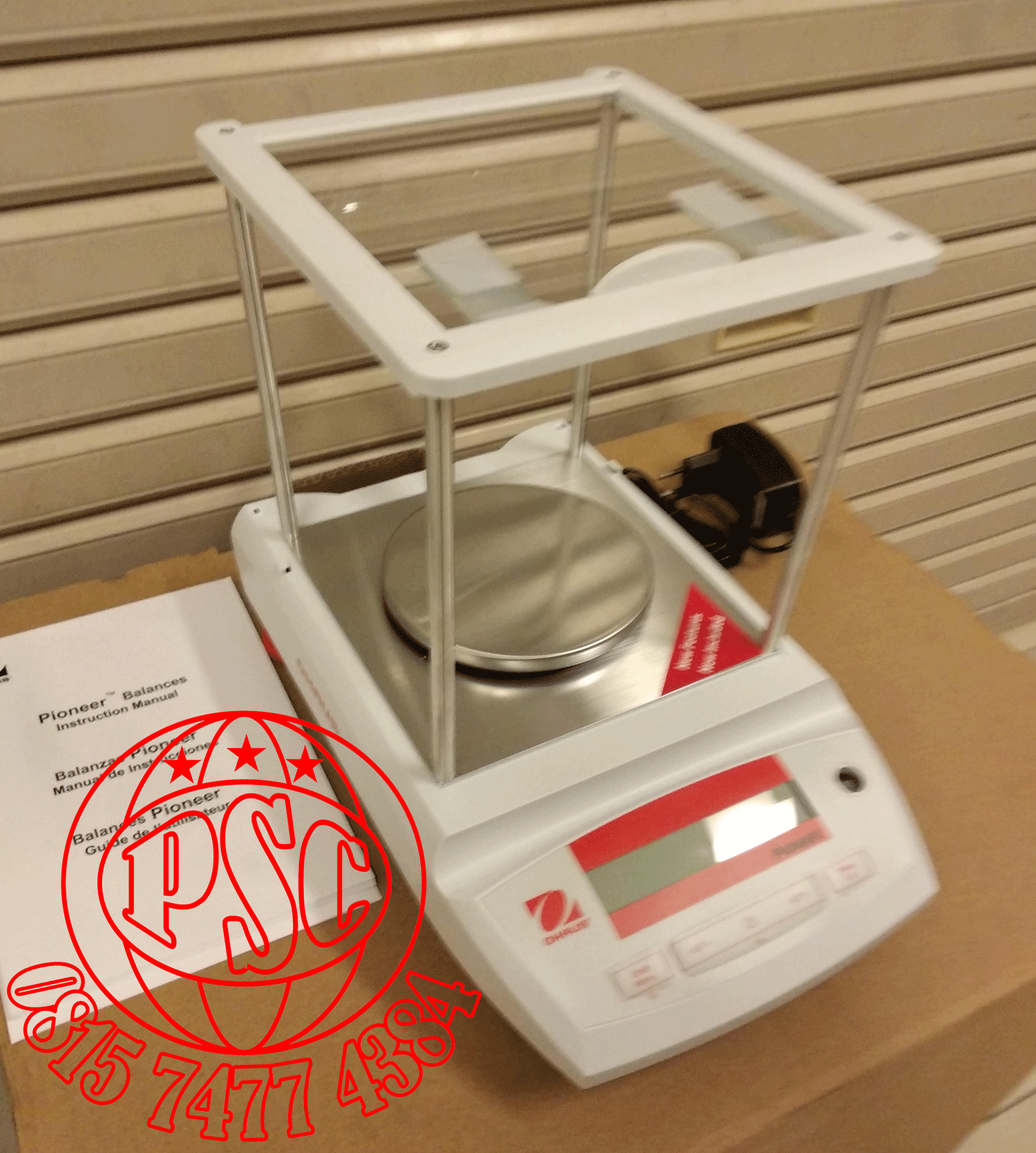

Pioneer® PA Series Analytical and Precision Balance Ohaus

Specifications

Model

PA124C

PA224C

PA223C

PA423C

PA2202C

PA4202C

PA4201C

External Calibration Model

PA124

PA224

PA223

PA423

PA2202

PA4202

PA4201

Approved Model

PA124CM/2

PA214CM/2

PA223CM/2

PA423CM/2

PA2202CM/2

PA4102CM/2

—

Capacity(g)

120

220

220

420

2200

4200

4200

210

4100

( M model )

( M model )

Readability d

0.1 mg

1 mg

10 mg

100 mg

Approved Readability

1 mg

10 mg

100 mg

—

Repeatability (Std Dev)

0.1 mg

1 mg

10 mg

100 mg

Linearity

0.2 mg

0.3 mg

2 mg

20 mg

100 mg

Application Modes

Weighing, Parts Counting, Percent Weighing, Animal/Dynamic Weighing, Density Determination

Weighing Units

mg,g,ct,oz,dwt,tical,tola,mommes,baht,grain,mesghal,Newton,ozt,custom unit

g,kg,lb,ct,oz,dwt,tical,tola,mommes,baht,grain,mesghal,Newton,ozt,custom unit

Approved Model Units

mg,g,ct,custom unit

g,kg,ct,custom unit

mg,g,ct,custom unit

g,kg,ct,custom unit

Platform Size

Ø90 mm

Ø120 mm

Ø180 mm

Cal Weight-Span

50 g,100 g

100 g,200 g

100 g,200 g

200 g,400 g

1 kg, 2 kg

2 kg,4 kg

2 kg,4 kg

Cal Weight-Linearity

50 g/100 g

100 g/200 g

100 g/200 g

200 g/400 g

1 kg/2 kg

2 kg/4 kg

2 kg/ kg

Taring Time

1 second

Stabilization Time

3 seconds

2 seconds

1 second

Min-Weight (typical) (USP, u=0.10%, k=2)

0.2 g

2 g

20 g

200 g

Draftshield

18.5 cm inside height

N/A

Op. Conditions

10 °C to 30 °C at 10 % to 80 % RH, non-condensing, up to 2000 m above sea level

Storage Temp.

-40 °C to 55 °C at 10 % to 80 % RH, non-condensing

Net Weight

4.6 kg ( except for Ext Cal Model : 4 kg )

4.5 kg ( except for Extl Cal Model : 3.4 kg)

Ship Weight

7.5 kg ( except for Ext Cal Model : 6.9 kg )

6.3 kg ( except for Ext Cal Model : 5.4 kg)

Dimensions (W×H×D)

19.6 × 28.7 × 32 cm

19.6 × 9.2 × 32 cm

Carton Dimensions

39.5 × 52.2 × 49.5 cm

39.5 × 32.7 × 49.5 cm
