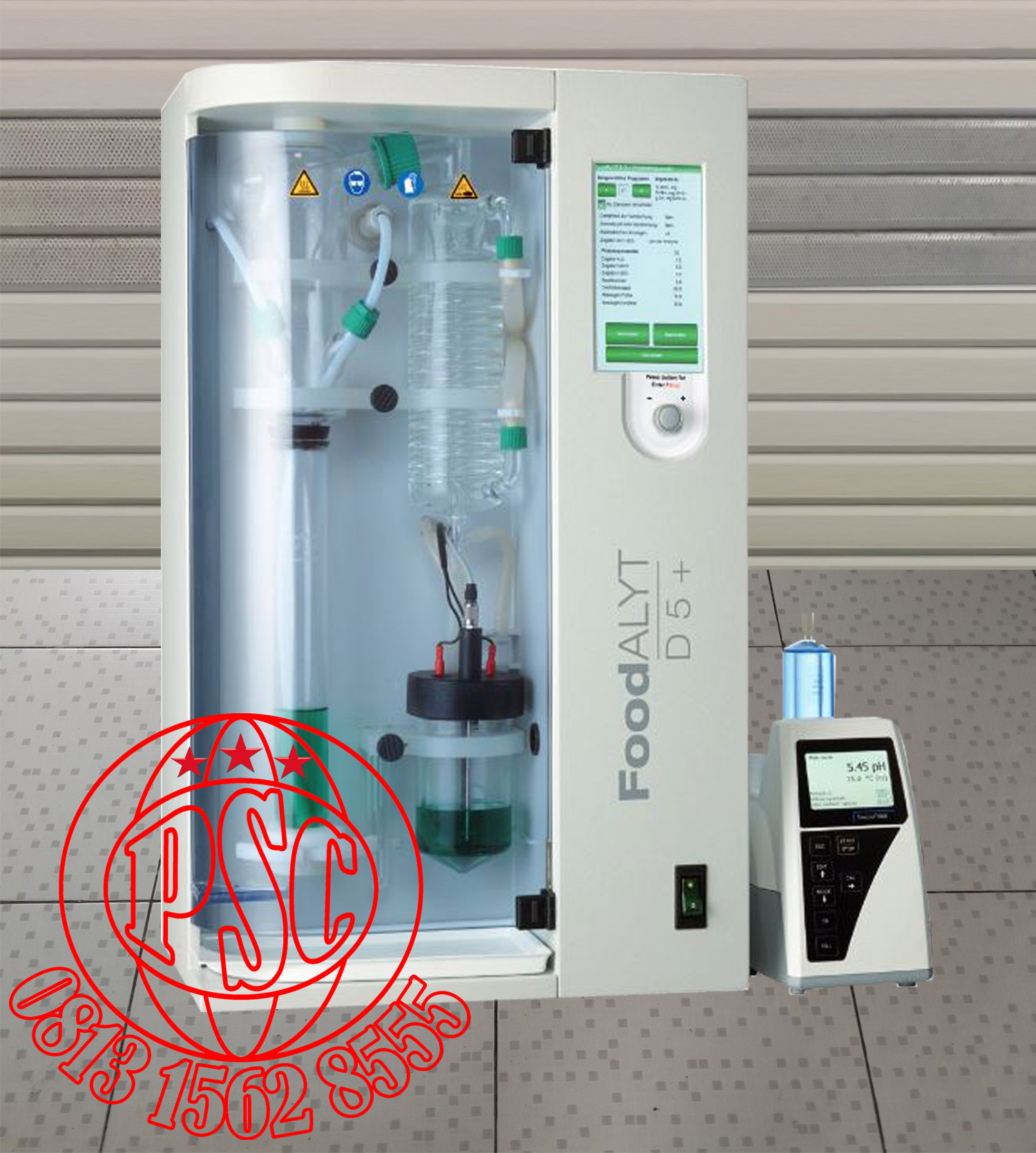

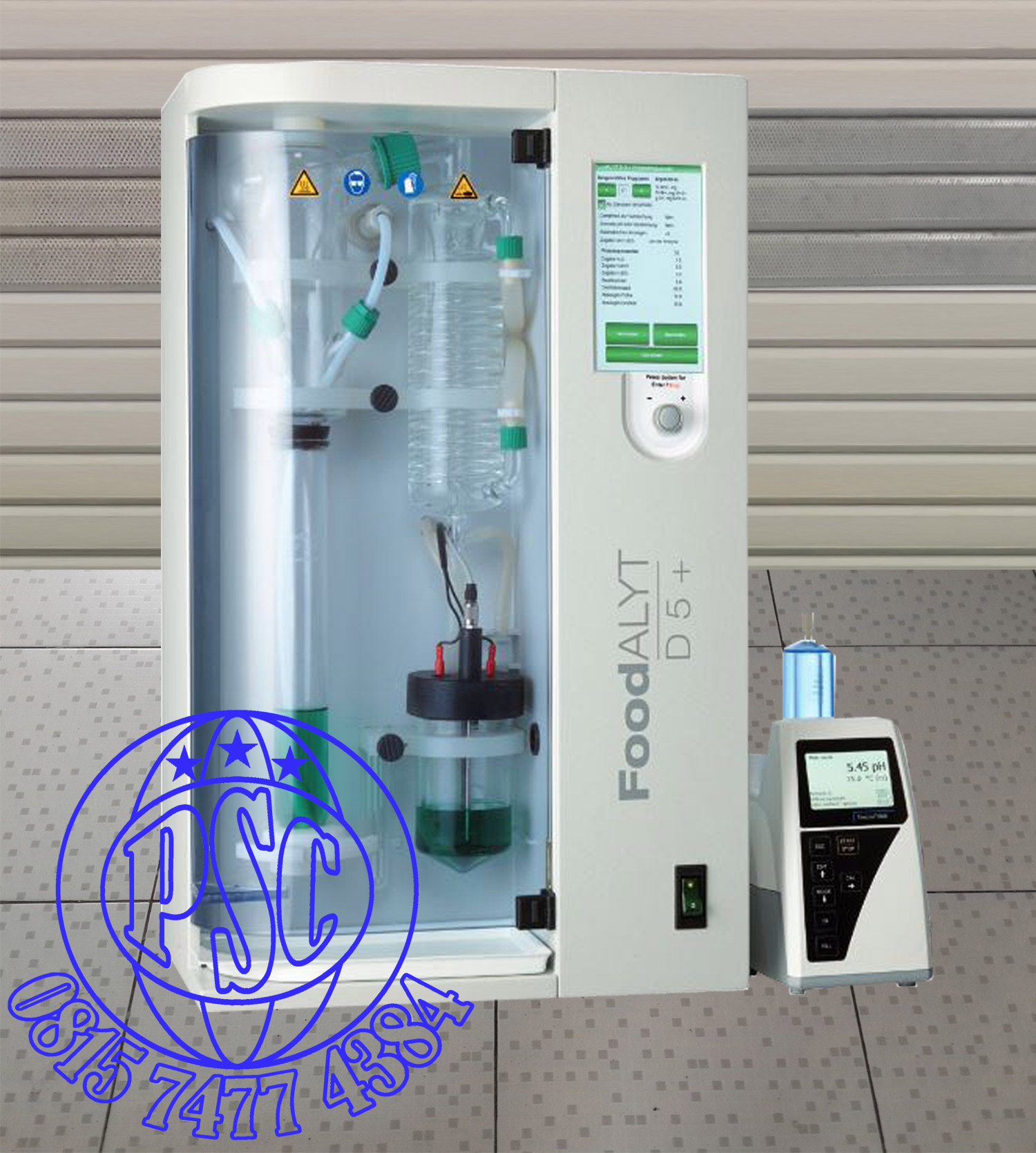

Omnilab FoodALYT D 5+ Steam Distillation

Technical Data

Mains supply

110 - 240 V, 50 - 60 Hz

Power

1700 W

Cooling water usage

Approx. 3 l / min

Distillation time

Programmable

Containers

Suitable for containers of any size

Interfaces

USB, LAN, WiFi, Bluetooth, RS232

Display

7“ touchscreen

Dimension ( W x D x H )

Approx. 43 x 39 x 71 cm

Weight

Approx. 30 kg

Technical Features of FoodALYT D Devices :

Ausstattung

D 1000

D 2000

D 3000

D 4000

D 5000

D 5+

7“ touchscreen

-

-

-

-

-

√

Monochrome display

√

√

√

√

√

 √

Language selection, many languages in memory

√ 1)

√ 1)

√ 1)

√ 1)

√ 1)

√

Storage for application methods

-

-

-

-

-

√

Creation of customised methods

-

-

-

-

-

√

Automatic addition of NaOH

√ 2)

√

√

√

√

√

Automatic addition of H₂O

-

√

√

√

√

√

Automatic addition of H₃BO₃

-

-

-

√

√

√

Programmable reaction time

√

√

√

√

√

√

Programmable distillation time

√

√

√

√

√

√

Steam generating capacity adjustable from 0 - 100 %

√ 3)

√ 3)

√ 3)

√ 3)

√ 3)

√

Aspiration sample manual / programmable

-

-

√/√

√/√

√/√

√/√

Aspiration receiving solution manual / programmable

-

-

-

-

√/√

√/√

Connection to external titrator

-

-

-

-

√

√

Monitoring of filling level for canister

√

√

√

√

√

√

Web interface (web server)

-

-

-

-

-

√

USB port front / rear side

-

-

-

-

-

1 - 1

Ethernet port ( LAN )

-

-

-

-

-

√

WIFI

-

-

-

-

-

√

Bluetooth

-

-

-

-

-

√

RS232 ( SUB D 9 pole )

√

√

√

√

√

√

Optical and acoustic error messages

√

√

√

√

√

√

Wired / wireless keyboard connection

-

-

-

-

-

√

evaluation and presentation of the measured results

-

-

-

-

-

√

Suitable for use with Kjeldahl digestion tubes

√

√

√

√

√

√

Suitable for use with Kjeldahl flaks

√

√

√

√

√

√
