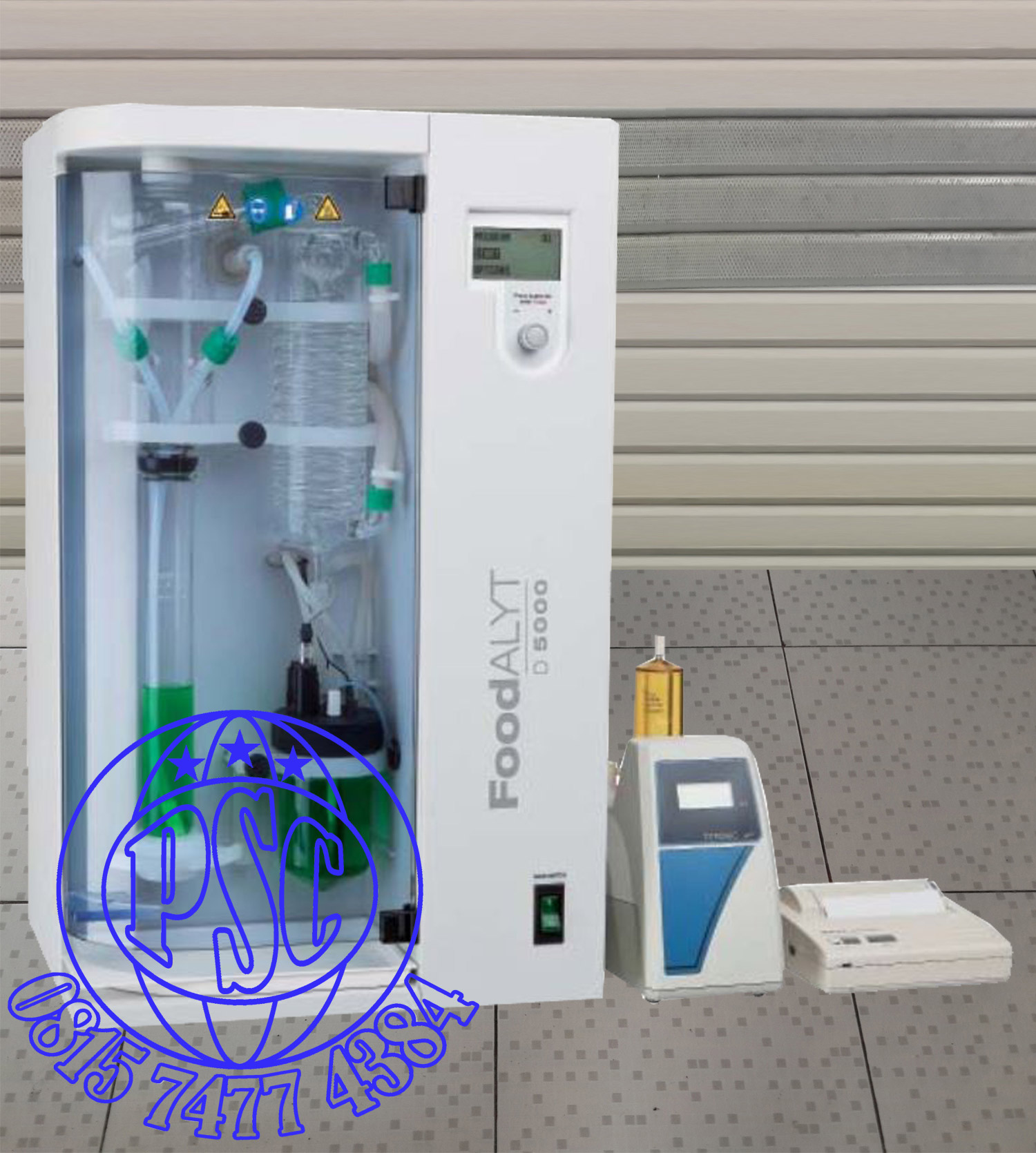

Omnilab FoodALYT D 5000 Steam Distillation

All products are CE conform and certified.

Stand-by operation between distillations.

Extremely simple and fast programming per one-button operation.

Start / Stop of the distillation via time setting.

Optical and acoustic fault alarms.

Door contact safety switch.

Menu designed in various languages.

Separate rinsing programme.

Programmable reaction and distillation time.

Automatic steam generation.

Steam generating capacity adjustable from 30 to 100 %.

Filling level monitoring for canister set.

Various glass digestion vessels usable.

Items supplied :

All steam distillation units are delivered as complete systems incl. glassware.

Field of Application

FoodALYT D 1000

• Automatic addition of NaOH.

FoodALYT D 2000

• Automatic addition of H₂O and NaOH.

FoodALYT D 3000

• Automatic addition of H₂O and NaOH.

• Automatic extraction by suction of sample residues.

FoodALYT D 4000

• Automatic addition of H₂O and NaOH.

• Automatic addition of H₃BO₃

• Automatic extraction by suction of sample residues.

FoodALYT D 5000

• Automatic addition of H₂O and NaOH.

• Automatic addition of H₃BO₃

• Automatic extraction by suction of sample and titration residues.

• Connectable to external titration and printer.

Technical Data

Mains supply

230 V / 50 Hz

Power

1700 W

Cooling water usage

Approx. 3 l / min

Distillation

Approx. 2 to 3 min per sample

Reagent containers

Any size - F-KS canister set recommended

Interface

RS232

Display

LCD

Dimensions ( W x D x H )

Approx. 41 x 39 x 71 cm

Order Information

Type

No. of programmes

Weight ( kg )

PU

Order No.

FoodALYT D 1000

1

approx. 23

1

4700014

FoodALYT D 1000 SP

1

approx. 23

1

4700109

FoodALYT D 2000

1

approx. 23

1

4700015

FoodALYT D 3000

10

approx. 26

1

4700016

FoodALYT D 4000

99

approx. 26

1

4700017

FoodALYT D 5000

99

approx. 27

1

4700018
