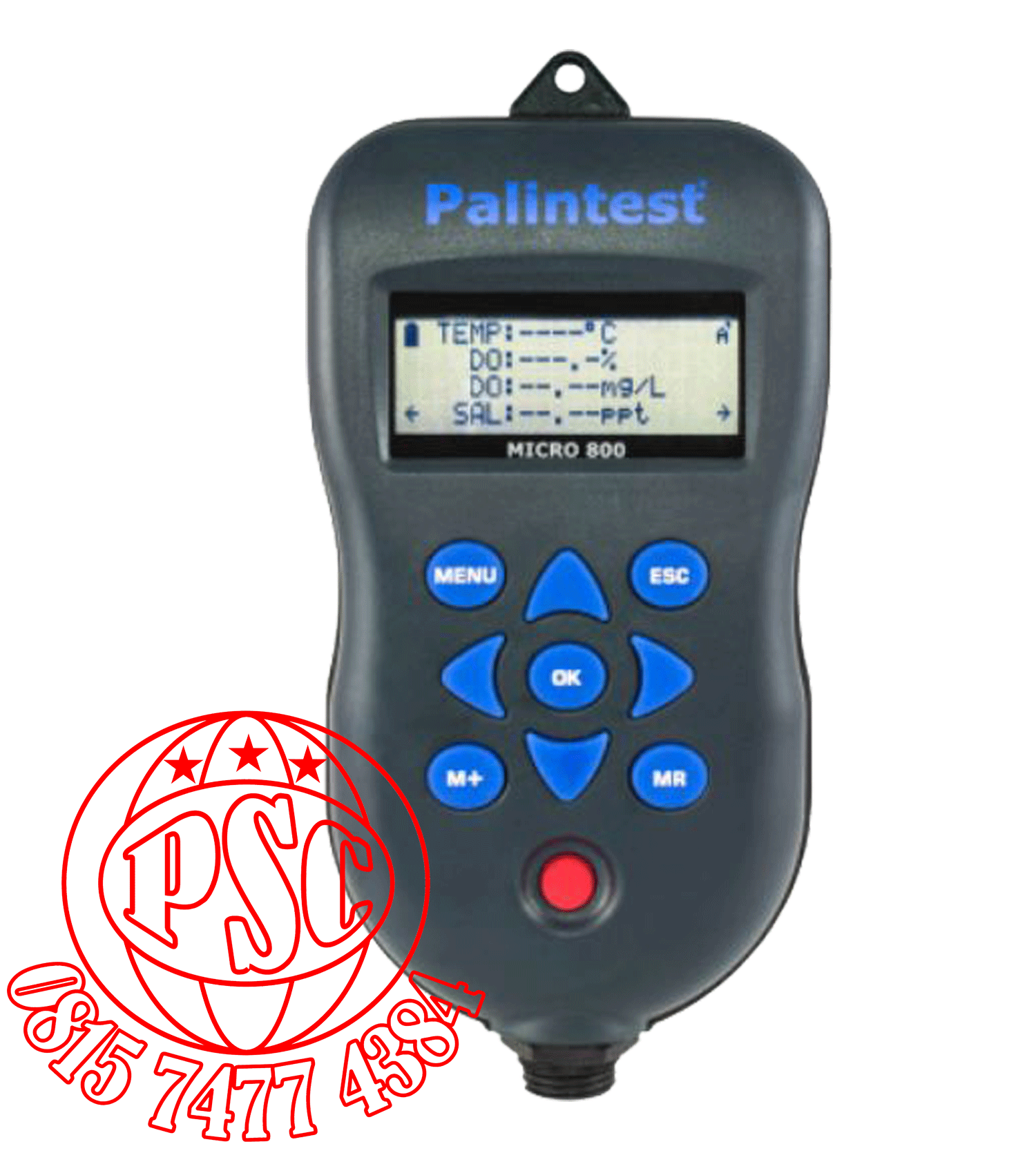

Micro 800 Optical DO Meter PT1303 Palintest
The most advanced DO Meter in the range, the Micro 800 features an Optical DO probe to provide high accuracy results and maintenance free operation :
Data storage capacity with integrated GPS function allowing for results to be viewed on a map to facilitate monitoring
Minimal calibration and maintenance required
Automatic measurement and compensation of temperature, salinity and barometric pressure
Accuracte measurement even in samples with no flow rate thanks to an advanced optical system.
Specification
DO Range	0 - 50 mg/L ( 0 - 500 % )
DO Resolution	0 - 0.01 mg/L ( 0 - 0.1 % )
DO Accuracy	± 1 % reading ( 0 - 20 mg/L )
DO Calibration	2 point
Conductivity Range	0 - 200 mS/cm
Conductivity Resolution	0.01 µS/cm - 0.1 mS/cm
Conductivity Accuracy	± 1 % full scale
Conductivity Calibration	Auto/manual; one point per range
Salinity Range	0 - 70 ppt
Salinity Resolution	0.01 ppt
Salinity Accuracy	± 1 % reading
Temperature Range	-5 °C – +50 °C
Temperature Resolution	0.1 °C
Temperature Accuracy	0.5 °C
Memory	Stores up to 3000 data sets
Output	USB
Real-Time Clock	Time, date and GPS stamp on calibration and stored data
GPS Accuracy	± 10 m
Power	5 x AA batteries
Dimensions and Weight	180 x 90 x 40 mm, 450 g
Additional Information

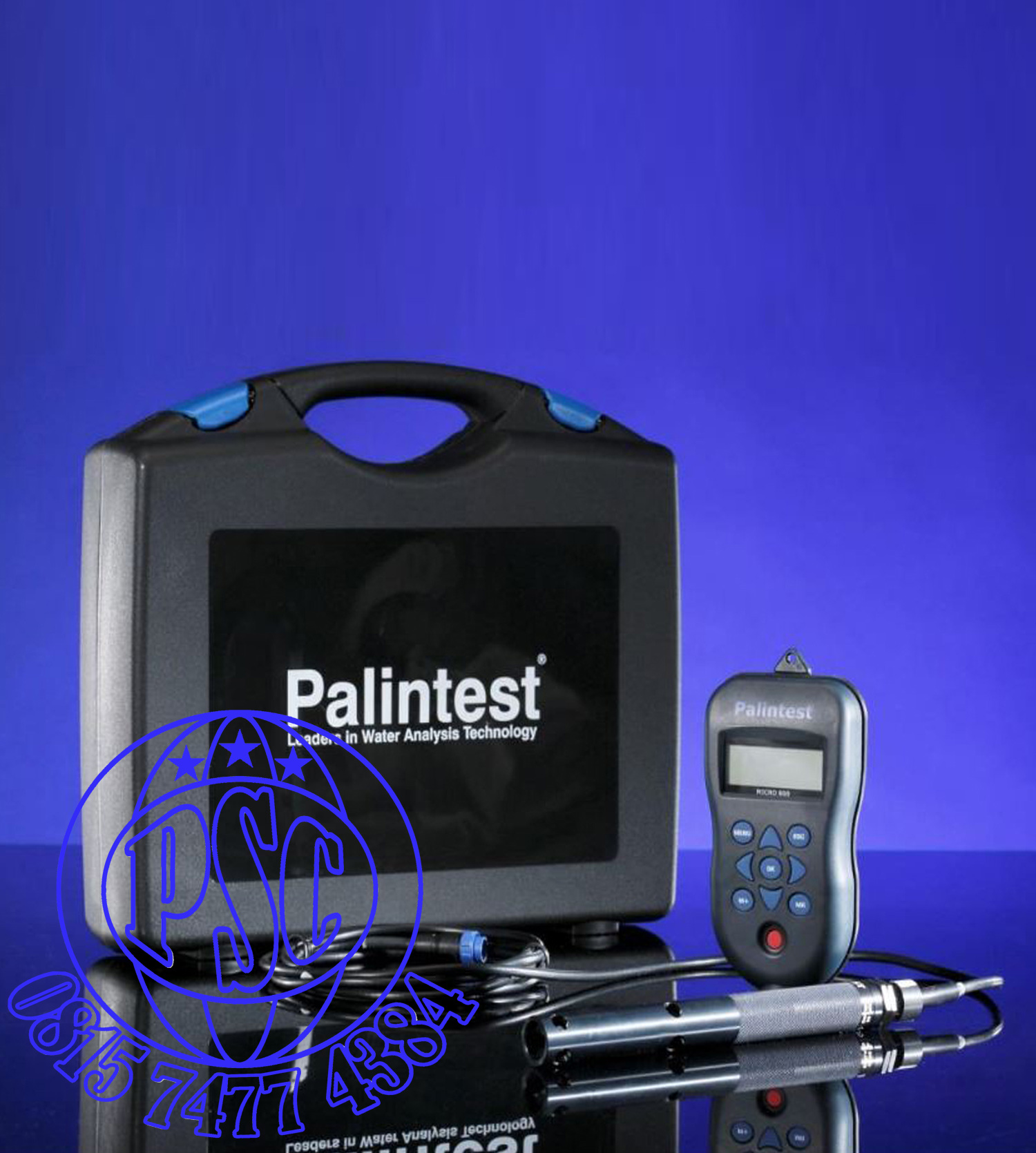

PT1303	Micro 800 Optical DO Meter and Probe, supplied in a hard case
PT1320	Replacement optical DO probe for Micro 800
PT1381	link software for Micro 800
PT1465	Replacement optical DO cap set for Micro 800
PT1484	USB cable for Micro 800
PT125/3	Zero oxygen solution, 500 ml
