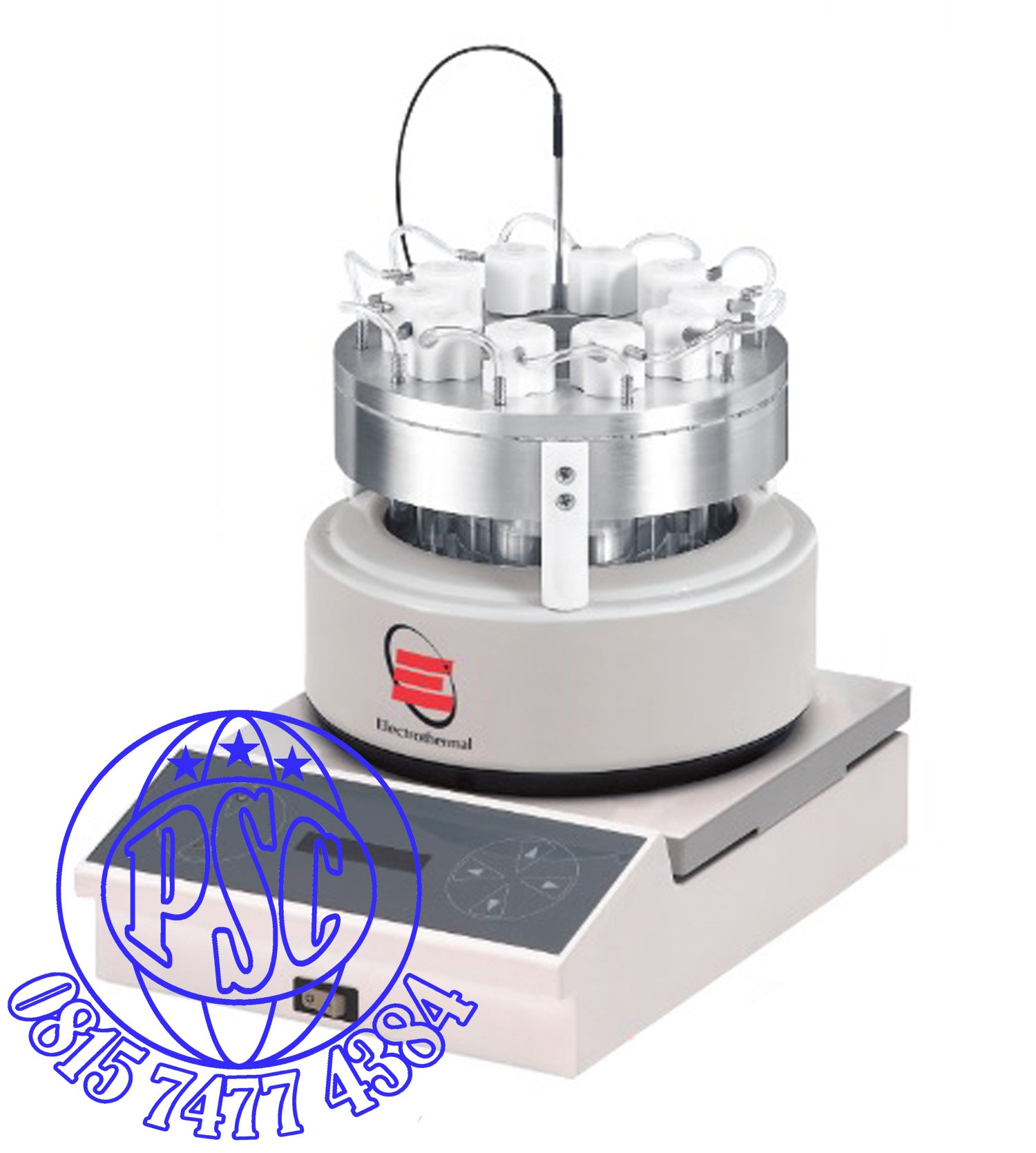

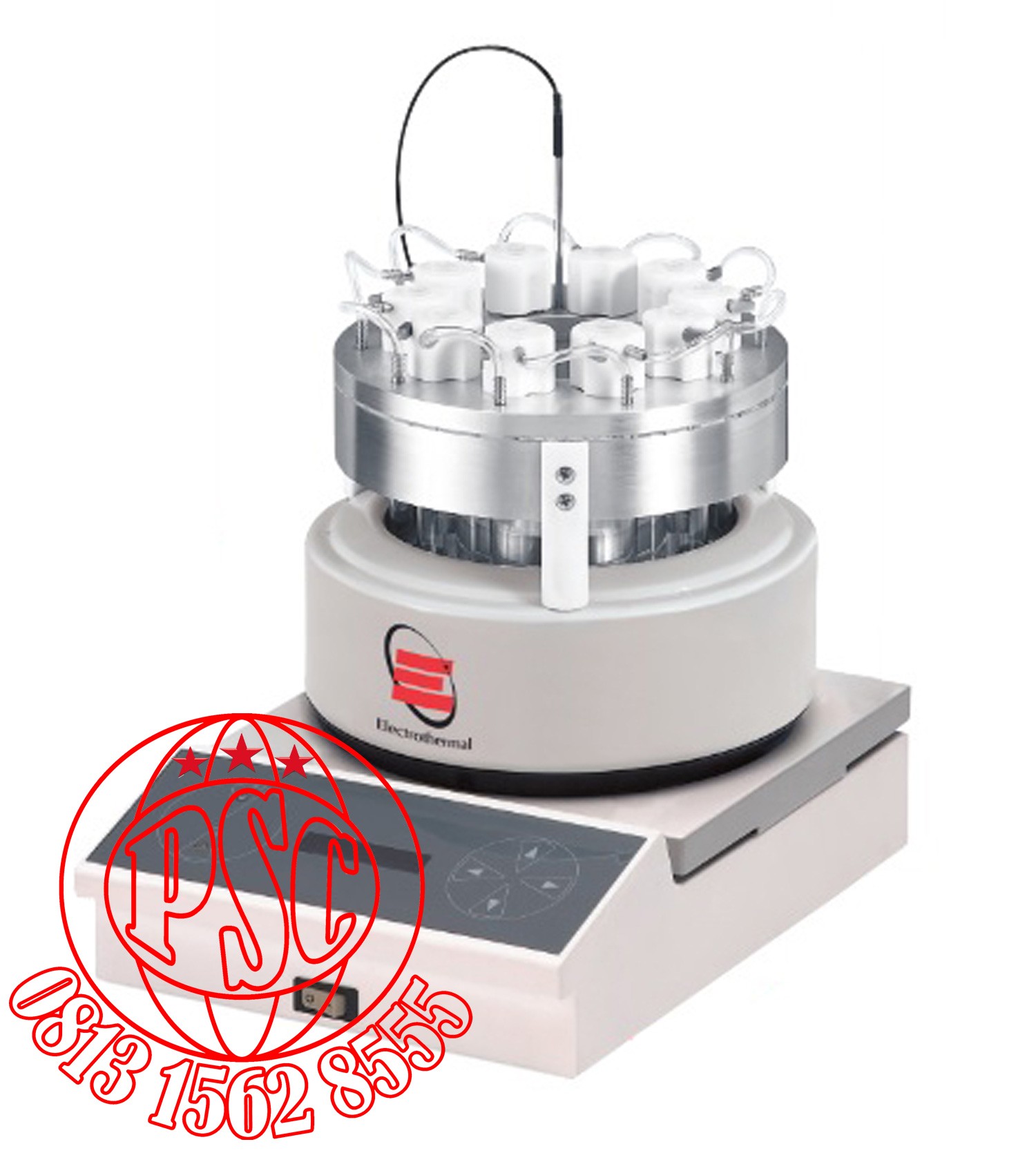

OS1025 STEM Omni Reaction Station
Our OS1025 STEM Omni Reaction Station enables you to run up to 10 reactions simultaneously at the same controlled temperature and stirring rate and a working volume of 1 to 25 ml. The modular design of the OS1025 Omni Reaction Station means that the same base unit ( OMCA ) can accommodate a variety of cartridges and sample volumes from 1 to 1000ml. This base unit can accommodate the Digi-Mantle heating cartridges making OMCA a space saving, cost effective option for all labs. All heating blocks, glassware and reflux heads are also interchangeable. In addition, its compact footprint means that it can be placed into any fume hood or onto a small bench space.
The OS1025 Omni Reaction Station has recently been upgraded to offer greater flexibility and productivity for benchtop chemistry, whilst retaining its rugged controller design.
The upgraded OS1025 Omni Reaction Station now offers :
The OS1025 Omni Reaction Station has recently been upgraded to offer greater flexibility and productivity for benchtop chemistry, whilst retaining its rugged controller design.
The upgraded OS1025 Omni Reaction Station now offers :
- Interchangeable modular design
- Greater stirring stability and stir speeds of 100 - 800 rpm
- Simple menus and touchpad interface to control the system performance
- All heater cartridges are equipped with "in block heaters" that allow temperatures up to 220°C.
- High level of stability ( ± 1.5°C ) across the heater cartridge itself
- An external temperature probe to increase temperature accuracy to 0.5°C
- An outer casing to retain the "cool to touch" safety feature that so many of our customers value
- Selected cartridges can also be used in conjunction with a cooling plug to extend the temperature range from - 30°C to 220°C
Technical Specification
| Model | OS1025 | OS1025X1 |
|---|---|---|
| Number of positions | 10 | 10 |
| Well diameter | 24.5 or 25.5 mm | 24.5 or 25.5 mm |
| Working volume | 1 - 25 ml | 1 - 25 ml |
| Controlled block temperature range | Ambient to 220°C | Ambient to 220°C |
| Temperature range using cooling plug and chiller | - 30°C to 220°C | - 30°C to 220°C |
| Stir speed range | 100 - 800 rpm | 100 - 800 rpm |
| Dimensions ( W x D x H ) | 235 x 330 x 300 mm | 235 x 330 x 300 mm |
| Shipping weight ( kit ) | 10 kg | 10 kg |
| Electrical requirements | 230 V, 50 - 60 Hz, 500 W | 115 V, 50 - 60 Hz, 500 W |
| Part Code | Model |
| OS1025* | Series 1025 kit for 10 position Omni Reaction Station ( working volume of 1 - 25 ml ) |
| OMCA | Omni base Controller |
| ATS10114 | Cooling plug for OS1025 |
*Add X1 suffix for 115V model
OS1025 kit contents
| Kit Contents | OS1025 kit | OS1025X1 kit |
|---|---|---|
| OMCA Omni Controller | + | + |
| Omni heating cartridge | 10 x 25 mm bores | 10 x 25 mm bores |
| Omni reaction Vessels ( glassware ) | 10 x 25 ml | 10 x 25 ml |
| Inerting caps | + | + |
| Stirrer bars | + | + |
| Omni reflux head | + | + |
| External Temperature Probe | + | + |
Accessories Ordering information
| Part Number | Description |
|---|---|
| ATS10055 | Small volume test tubes 24 - 16 mm taper ( 3 ml ) x 10 |
| ATS10056 | Reducing sleeves for ATS10055 x 10 |
| ATS10209 | Small volume test tubes 24 - 11 mm taper ( 1 ml ) x 10 |
| ATS10101 | Reducing sleeves for ATS10209 x 10 |
| AZS4206 | Stirrer bars 10 6 mm, pack of 10 |
| AZS4235 | Stirrer bars 12 4.5 mm, pack of 10 |
| ATS10170 | Dropping funnel ( 50 ml ) x 1 |
