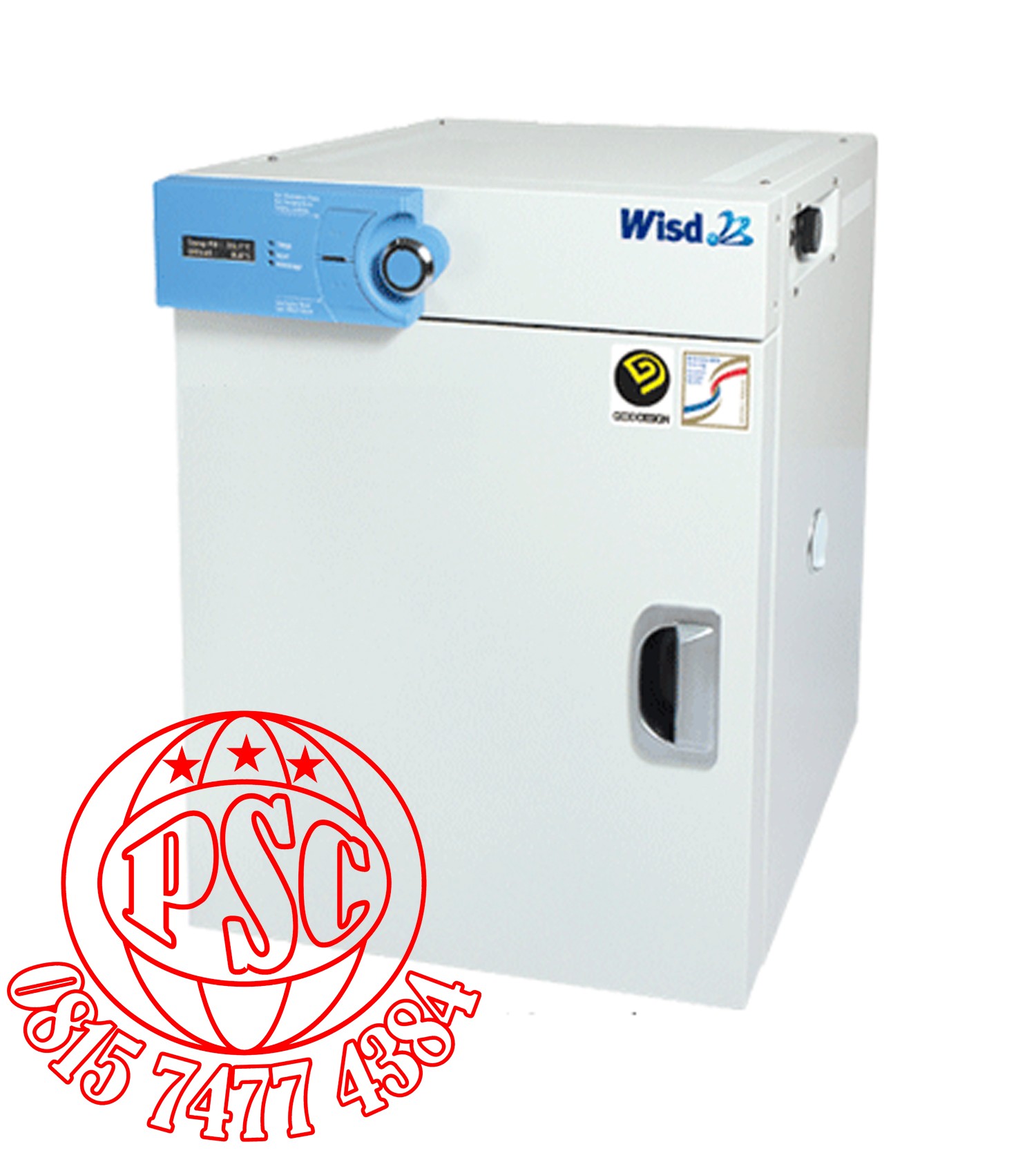

ThermoStableTM  OF Ovens Forced Convection Daihan Scientific

Specification

Model

Standard Model

ThermoStable OF-50

ThermoStable OF-105

ThermoStable OF-155

Window Model

ThermoStable OF-W105

ThermoStable OF-W155

Capacity

50 Lit

105 Lit

155 Lit

Dimension

( W x D x H )

Interior mm

370 × 345 × 420

485 × 415 × 535

550 × 480 × 600

Exterior mm

518 ×647 × 724

653 × 712 × 882

718 × 777 × 947

Heater Power

650 W

1.4 kW

1.6 kW

Temp.

Range

Ambient Temperature +5 ℃ to 250 ℃

Fluctuation

±0.3 ℃ at 100 ℃, ±0.5 ℃ at 150 ℃

Variation

±1 ℃ at 100 ℃, ±1.8 ℃ at 150 ℃

±1 ℃ at 100 ℃, ±2 ℃ at 150 ℃

Sensor

PT 100

Control Resolution

±0.1℃

Heat-up Time

25 min. to 100 ℃,

25 min. to 100 ℃,

45 min. to 150℃

40 min. to 150℃

Recovery Time

8 min. to 100 ℃,

6 min. to 100 ℃,

( Door open 30 sec )

8 min. to 150℃

6 min. to 150℃

Controller

Digital Fuzzy Control by Advanced Microprocessor

Jog-Dial with Push Button

RS232 Port

Available to connect with PC

Display

Digital LCD with Back Light

Timer

99 hr 59 min ( delay/continuous function )

Material

Internal

Stainless steel ( #304 )

External

Powder Coated steel

Insulation

Glass Wool

Shelves

2 ea of Stainless steel Wire Shelves included, Load per Shelf : 16 kg

Ventilation hole with Stainless steel Cap, Hole Diameter 40 mm

Ventilation

1 ea

2 ea

Circulation

Forced Air Convection Type

Safety device

Over Temp. and Over Current Protector, Sensor Error Detector

Others

UL/CUL Certified, CE Certified, GD-mark Storage Function ( Temp. and Time ) Locking Mode ( Jog-Dial Input Disabled ) Alarm ( Error Status and Timer-end )

Net Weight

44 kg

69 kg

78 kg

Packing Size ( W x D x H )

622 × 754 × 807 mm

743 × 819 × 1,068 mm

808 × 884 × 1,133 mm

Shipping Weight

59 kg

79 kg

92 kg

Power Consumption

674 W

1390 W

1566 W

Energy Consumption, at 100°C

117 Wh

187 Wh

204 Wh

Energy Consumption, at 150°C

230 Wh

337 Wh

398 Wh

Power Supply

1 Phase 120V, 60Hz or 230V, 50/60 Hz
