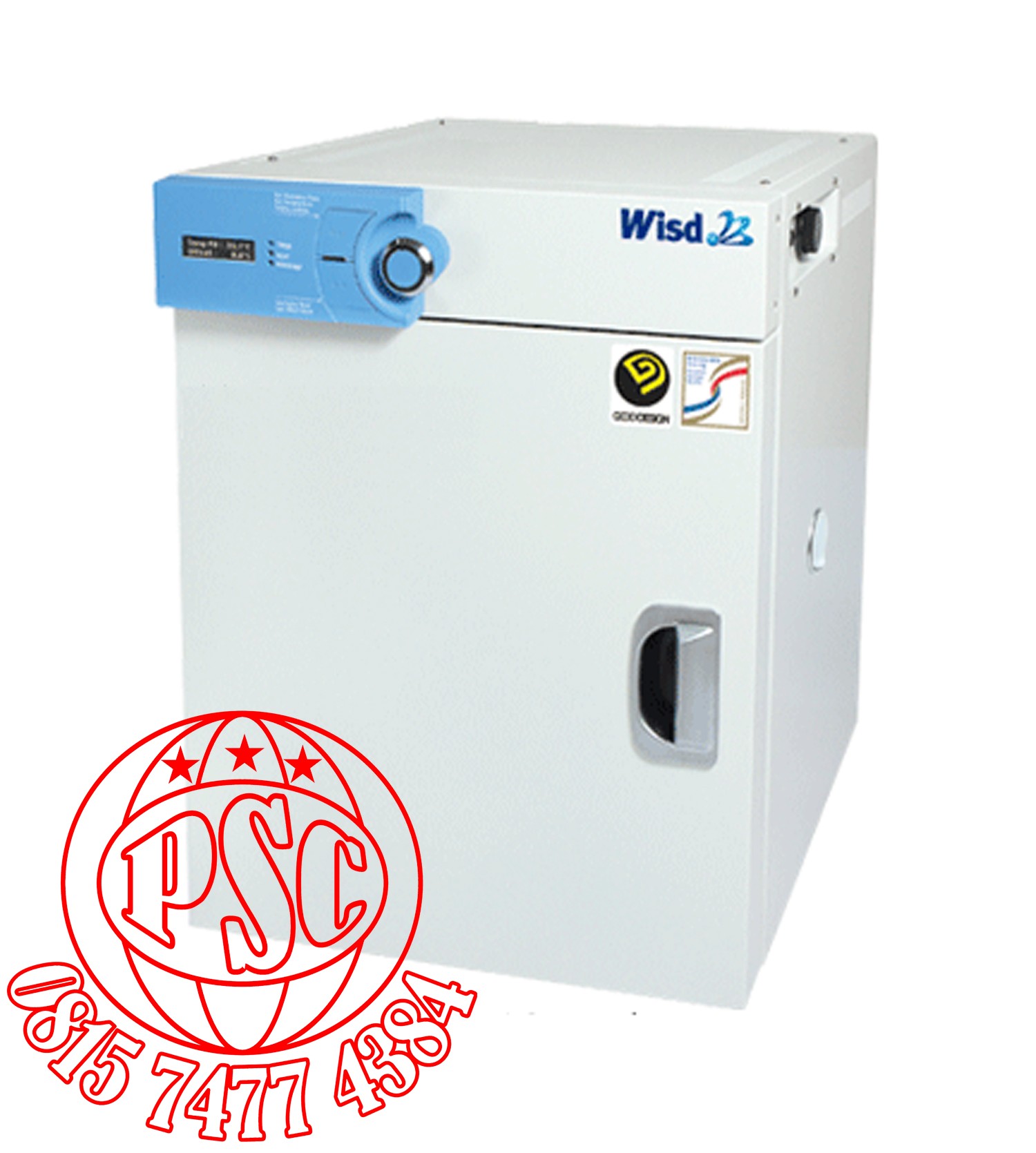

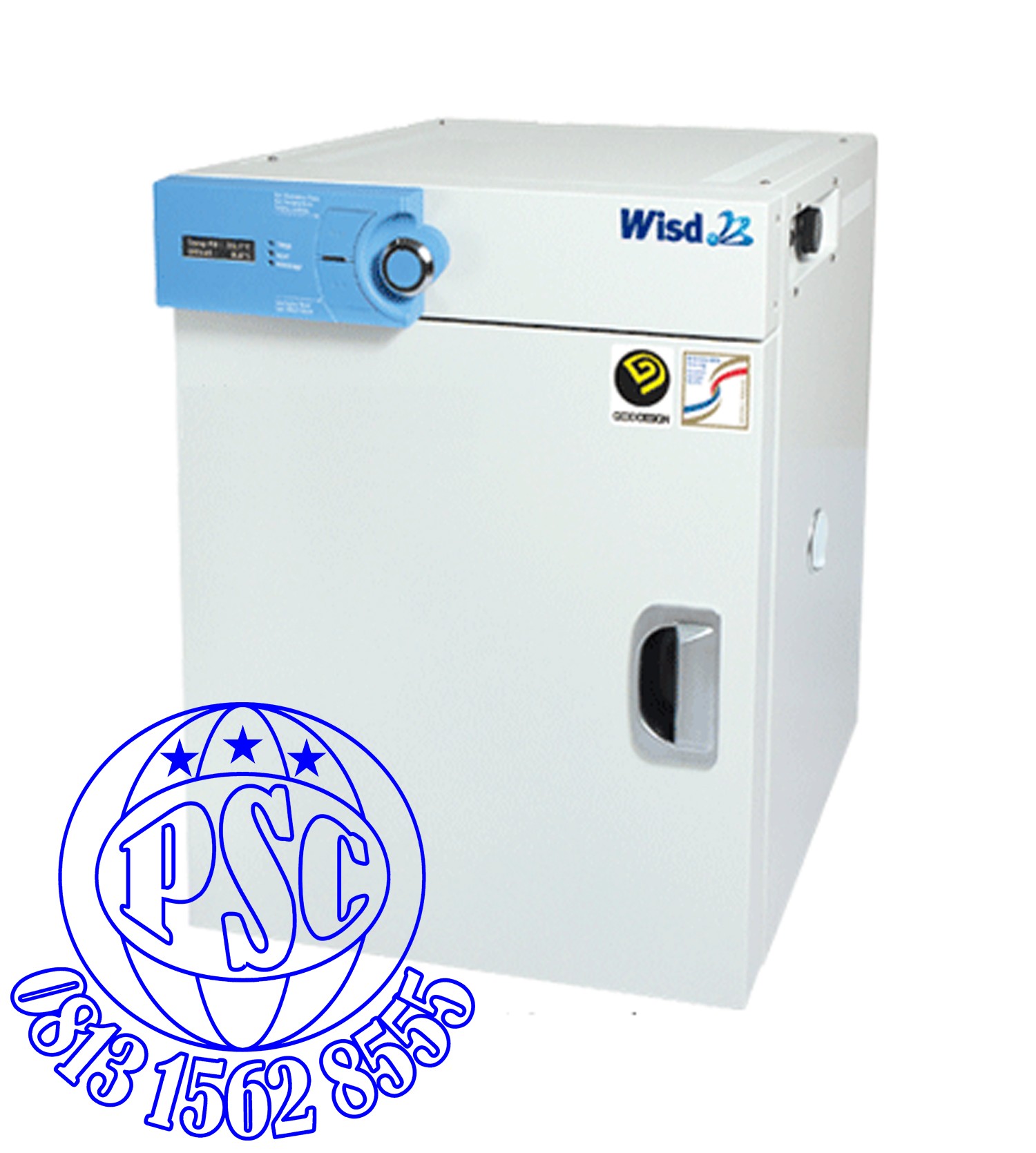

ThermoStable SON SMART Ovens Gravity Convection Daihan Scientific

 Specification

“ThermoStable SON” Model

Standard Model

SON-32

SON-50

SON-105

SON-155

Window Model

SON-W105

SON-W155

Capacity

32 Lit

50 Lit

105 Lit

155 Lit

Dimension

( W x D x H )

Interior (mm)

310 × 290 × 360

370 × 350 × 420

485 × 409 × 535

550 × 474 × 600

Exterior (mm)

458 × 557 × 664

518 × 647 × 724

653 × 712 × 882

718 × 777 × 947

Heater Power

500 W

650 W

1.4 kW

1.6 kW

Temp.

Range

Ambient Temp. +5 ℃ to 230 ℃

Fluctuation

± 0.5 ℃ at 100 ℃, ± 0.6 ℃ at 150 ℃

± 0.5 ℃ at 100 ℃

± 0.8 ℃ at 150 ℃

Variation

± 1.2 ℃ at 100 ℃, ± 2.2 ℃ at 150 ℃

Sensor

PT 100

Control Resolution

±0.1 ℃

Heat-up Time

30 min. to 100 ℃,

30 min. to 100 ℃,

35 min. to 100 ℃,

43 min. to 150 ℃

45 min. to 150 ℃

50 min. to 150 ℃

Recovery Time

8 min. to 100 ℃,

12 min. to 100 ℃,

( Door open 30 sec )

10 min. to 150℃

10 min. to 150℃

Controller

Smart-LabTM  Controller

RS232 Port

Available to connect with PC

Display

4″Full Touch Screen TFT LCD

Timer

99hr 59 min ( delay/continuous function )

Material

Internal

Stainless steel ( #304 )

External

Powder Coated steel

Insulation

Glass Wool

Shelves

2 ea of Stainless steel Wire Shelves included, Load per Shelf : 16 kg

Ventilation

Ventilation hole with Stainless steel Cap, Hole Diameter 40mm

1 ea

2 ea

Circulation

Gravity Convection Type

Safety device

Over Temp. and Over Current Protector, Sensor Error Detector

Others

UL/CUL Certified, CE Certified, GD-mark Storage Function ( Temp. and Time ) Locking Mode ( Jog-Dial Input Disabled) Alarm ( Error Status and Timer-end )

Net Weight

36 kg

44 kg

69 kg

78 kg

Packing Size ( W x D x H ) (mm)

562 × 664 × 747

622 × 754×807

743 × 819 × 1,068

808 × 884 × 1,133

Shipping Weight

43 kg

59 kg

79 kg

92 kg

Power Consumption

502 W

674 W

1390 W

1566 W

Energy Consumption, at 100°C

90 Wh

117 Wh

187 Wh

204 Wh

Energy Consumption, at 150°C

181 Wh

230 Wh

337 Wh

398 Wh

Power Supply

1Phase 120 V, 60Hz or 230V, 50/60 Hz
