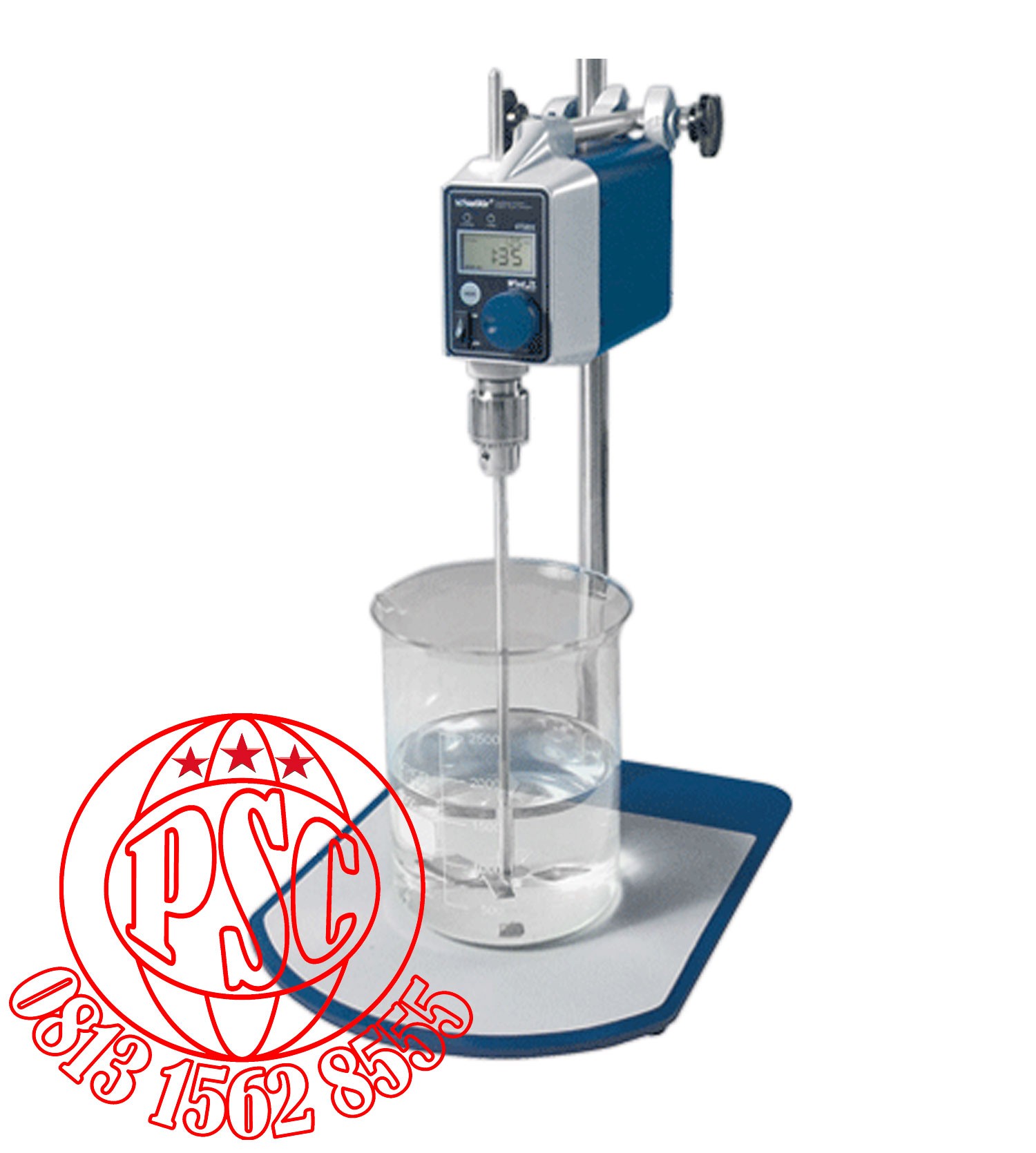

Digital Overhead Stirrer HT-DX Daihan Scientific

Specification

Stirring Capacity & Models

Max. 40Lit. ( H2O ) “HT-50DX”

Max. 60Lit. ( H2O ) “HT-120DX”

Maximum Viscosity

100,000 mPas

150,000 mPas

Maximum Torque

300 Ncm

500 Ncm

Speed Range & Resolution

50 ~ 1,000 rpm, 1 rpm-Display / 1 rpm-Control

Motor

Worm - Geared DC Motor ( 3.5:1 Ratio )

Motor Rating (Input / Output)

83 / 75 W,  1/10 HP

130 / 120 W,  1/6 HP

Timer & Alarm

99 hr 59 min ( with Continuous run.),  Error status & Timer-end

Display

Digital LCD with Back - Light Function

Controller

Digital Feedback Controller with Jog Shuttle Switch ( Turn + Push )

Max. Impeller Shaft Diameter

10 mm

Permissible Temp. & Humidity

0 ~ 40 ℃, 80 %

Safety Device

Overload & Heat Protector for Motor

Material

ABS and Aluminum

Dimension & Weight

90 × 180 × h130 mm, 3.5 kg

90 × 210 × h130 mm, 4 kg

Packing Size & Gross  Weight

320 × 300 × h180 mm, 5 kg

320 × 300 × h180 mm,  8 kg

Power Consumption

85 W

130 W

Power Supply & Cord Plug**

1 Phase, AC 120 V, 60 Hz or  AC 230 V, 50 / 60 Hz
