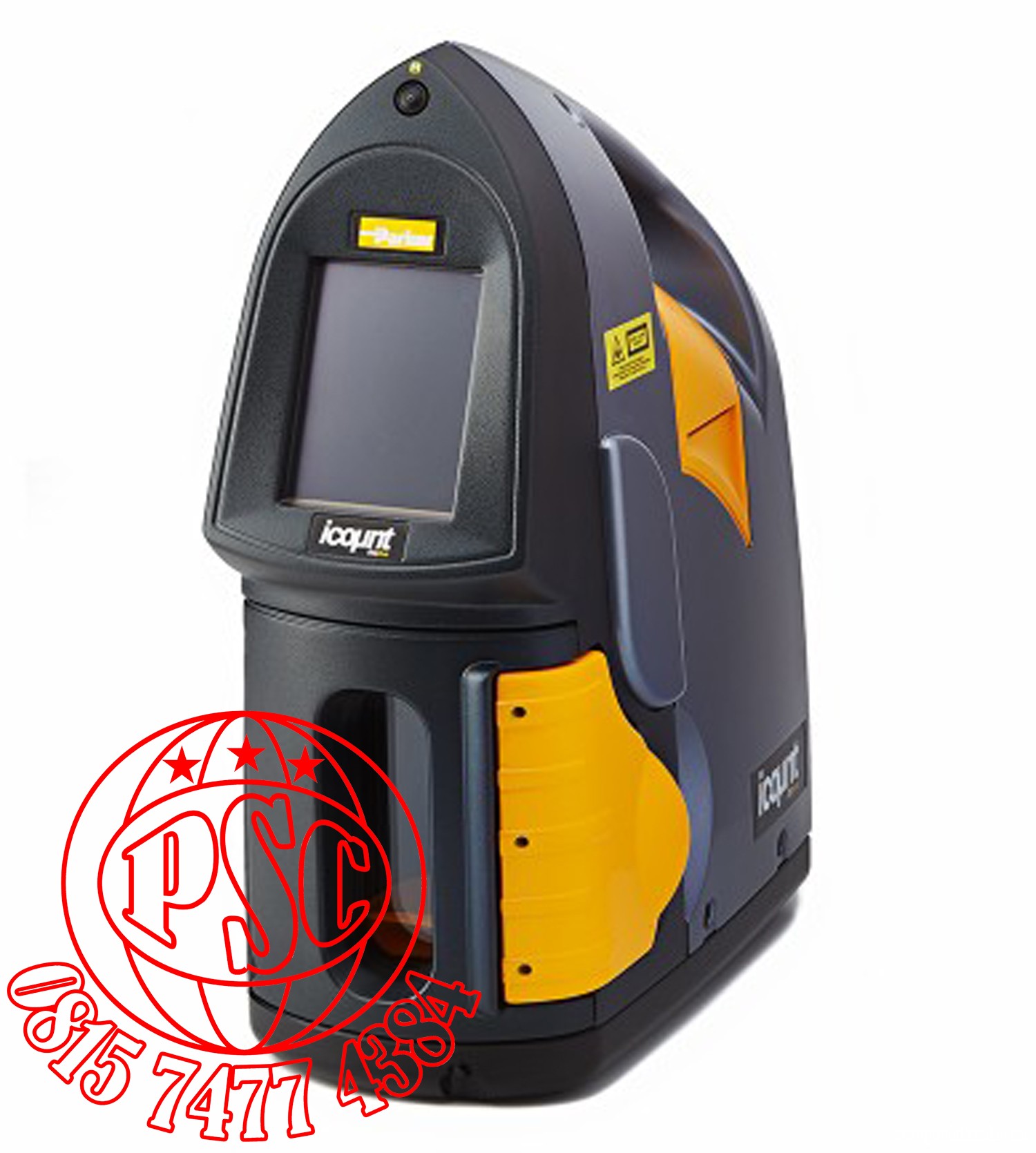

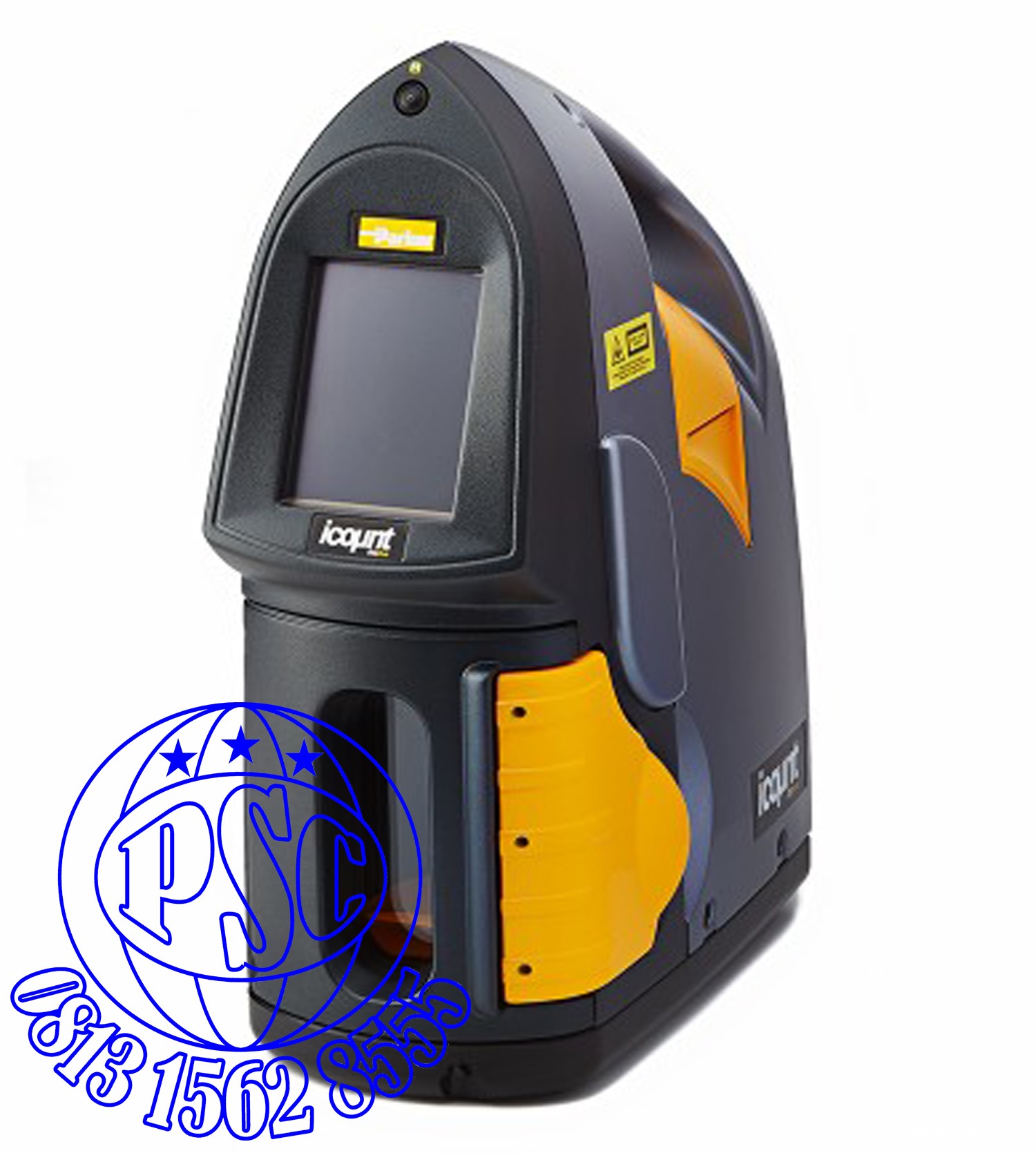

Parker icountBSplus - Bottle Sampler Kittiwake
Specifications
Principle of operation	Laser diode optical detection of actual particulates
Dimensions	H 530 mm x W 210 mm x D 410 mm
Weight	Approx 18 kg
Operating temp. & humidity	+5°C to +60°C ( -41°F to +140°F )
	20 - 85% RH ( tested at 30°C (86°F), non-condensing )
Storage temp. & humidity	-40°C to +90°C ( -40°F to +194°F )
	10 - 90% RH ( tested at 30°C (86°F), non-condensing )
Moisture sensor calibration	± 5% RH (over a compensated temperature range of +10°C to +80°C (+50°F to +176°F)
Moisture sensor stability	± 2% RH typical at 50% RH in one year
International codes	ISO 7 to 21, NAS 0 to 12, AS 0 to 12
Contamination standards	Refer to Parker 'Guide to Contamination Standards' (DD0000015) on CD
	MTD: ISO 4406:1999; NAS 1638; AS4059E (Differential); AS4509E (Cumulative)
	ACFTD: ISO 4406:1987; ISO4406:1991; NAS 1638; AS4509E (Differential); AS4509E (Cumulative); GOST 17216:2001
Calibration	MTD: via a certified primary ISO 11171 automatic particle detector using ISO 11943 principles, with particle distribution reporting to ISO 4406:1996
	ACFTD: fully traceable to gravimetric first principles
Recalibration	Contact Parker Hannifin for advice
Fluid compatibility	Mineral-based oils and petroleum-based fuel. Contact Parker Hannifin for advice
Fluid management	Selectable on screen between 25 m to 100 ml
Viscosity range	1 to 300 cSt
Working pressure	3 bar maximum input pressure, if used on-line. Contact Parker Hannifin for further advice
Flow range through icountBSplus	Test: 60 ml/min
Connection interface (on-line)	INLET: 6 mm push-fit, DRAIN: 4 mm push-fit
Fluid operating temp. (oil)	+5°C to +70°C (-41°F to 176°F)
Fluid operating temp.(fuel)	+20°C to +70°C (-4°F to 158°F)
Sample bottle size	See Parker ACC Spares list. Contact Parker Hannifin for advice
Flush sample size	Selectable option within the icountBS software: 25 ml to 100 ml
Memory storage	500 tests (Integrated Warning Level)
Printer	Thermal dot line printer - see ACC spares list for replacement paper
Battery type	Polymer Lithium Ion Battery pack (ACC6NW032)
Power requirements	Integrated supply into the icountBSplus unit
Certification	CE Certified. Supplied with EC Declaration of Conformity Certificate
Ordering Information
IBS3000	iBSplus (online)
IBS3100	iBSplus (offline)
