pH 150 Eutech Instruments
Specifications
Product	Description
pH
Range	-2.00 to 16.00 pH
Resolution	0.01 pH
Accuracy	±0.01 pH
Calibration	Up to 5 points ( USA & NIST )
	Up to 6 points ( DIN )
mV
Range	±2000 mV
Resolution	0.1 mV ±999.9 mV; 1 mV beyond
Accuracy	±0.2 mV +2 LSD or +0.5 % of reading;
	whichever is greater
Calibration	±200 mV
Temperature
Range	-10.0 to 110.0 ºC ( 14.0 to 230.0 ºF )
Resolution	0.1 ºC/ºF
Accuracy	±0.5 ºC; ±0.9 ºF
Calibration	Offset in 0.1 increments, ±10 ºC or ±18 ºF
Others
Display	Three line custom LCD
Temp. Compensation	Automatic or manual from -10 to 110 ºC
Memory	Stores up to 150 data sets
Power	Two AA batteries ( included ), >700 hours continuous use; AC adapter ( optional )
Dimensions ( L x W x H )	Meter : 7 7/8" x 3 1/8" x 2 1/4" ( 20 x 8.3 x 5.7 cm )
	Boxed : 9 1/8" x 9 1/8" x 2 3/4" ( 23 x 23 x 7 cm )
Weight	Meter  : 1 lb ( 0.5 kg )
	Boxed : 1.4 lb ( 0.7 kg )
Order Information
Order No.	Item
Meter
ECPHWP15000	pH 150 Meter Only: Meter, Grip-Clip™, two AA batteries
ECPHWP15002	pH 150 Meter & Electrode: Meter with double-junction pH electrode and ATC probe, Grip-Clip™, two AA batteries

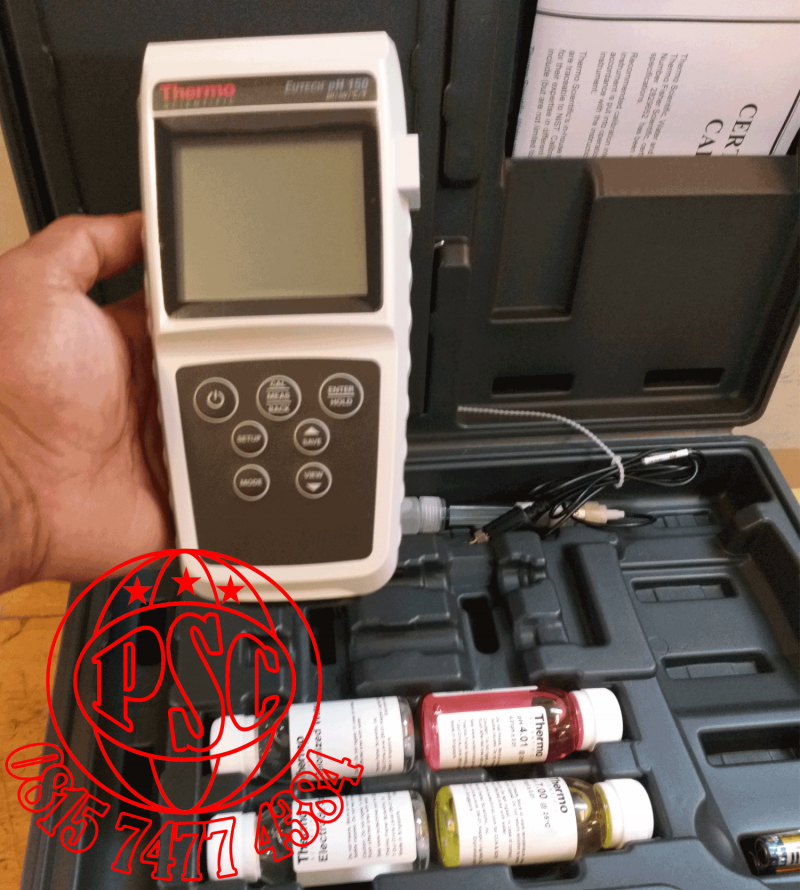

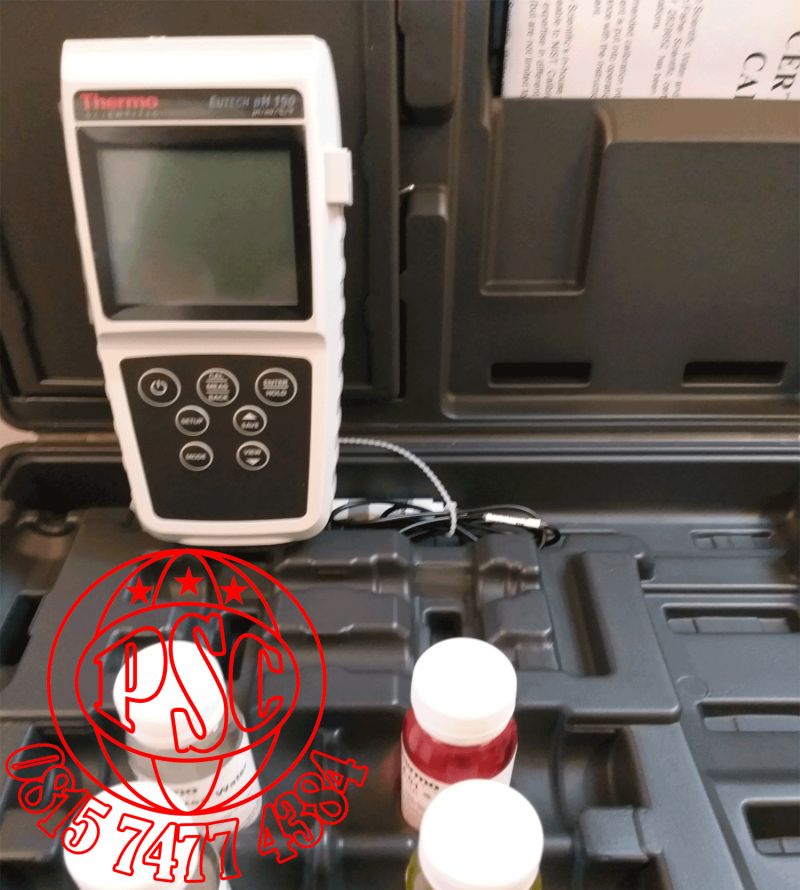

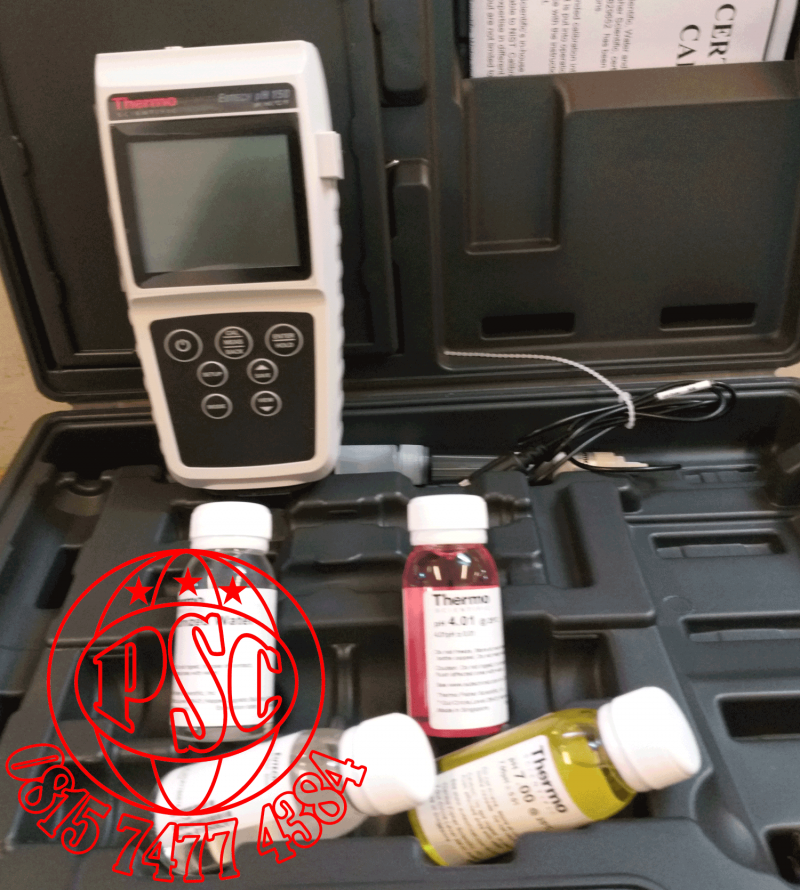

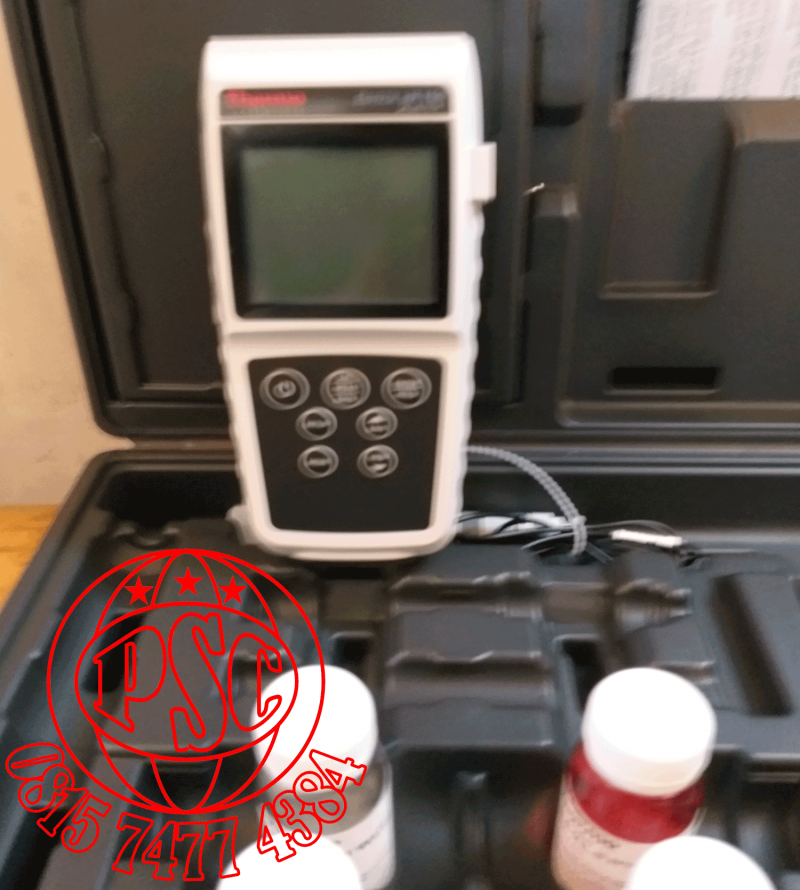

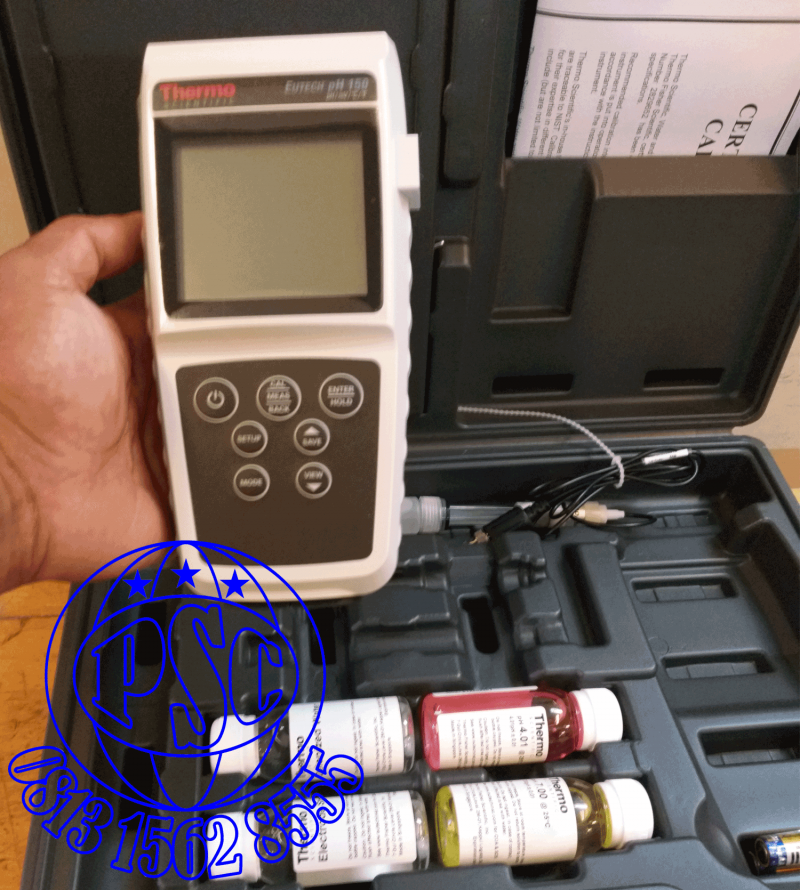

ECPHWP15002K	pH 150 Meter Kit: Meter with double-junction pH electrode and ATC probe, Grip-Clip™, two AA batteries, hard carry case, pH buffers, storage solution, rinse solution
Electrodes
ECFC7252201B	Replacement pH electrode, double-junction, epoxy body, BNC
ECFE7372801W	pH electrode with built-in ATC. Double-junction, epoxy body, BNC
ECFC7352901W	pH electrode with built-in ATC. Single-junction, epoxy body, BNC
ECFC7960201B	ORP electrode. Double-junction, epoxy body, gel-filled, BNC
PHWPTEM01W	ATC probe. Use with any standard pH electrode for temperature compensation
Accessories
GRIPCLIP	Grip-Clip™
60x426401	Optional 100 / 240 VAC SMPS power adapter, 9 V, 6 W
ECPHBUFKITC	pH buffer set, pH 4 ( red ), 7 ( yellow ), 10 ( blue ), 480 mL each
ECPHBUFKIT	Colourless pH buffer set, pH 4, 7 and 10 ( 480 mL each )
