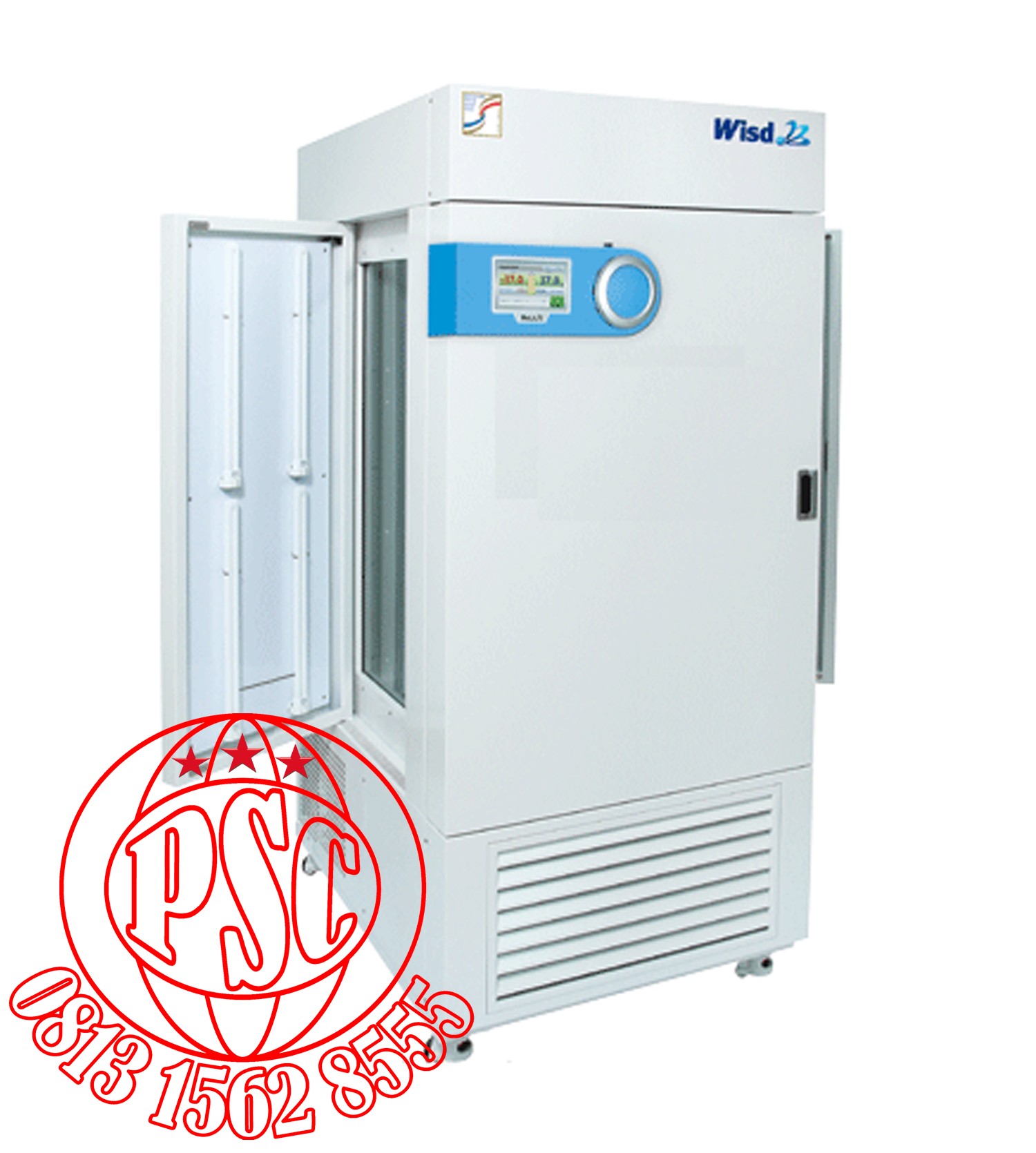

Plant Growth Chamber SWGC Smart-Lab System

Specification

Capacity & Models

432 Lit. “SWGC - 450”

864 Lit. “SWGC - 1000”

Temp.

Range & Variation

10 ℃ ~ 60 ℃, ±1 ℃ at 20 ℃

Fluctuation

± 0.5 ℃ at 10℃, ± 0.5 ℃ at 25 ℃ ( 0% light intensity )

± 1 ℃ at 10 ℃, ± 1℃ at 25 ℃ ( 100 % light intensity )

Humidity

Range & Variation

30 % ~ 95 % RH, ±3 % at 60 ℃

Fluctuation

±1 %

Humidifier

Evaporation by Fan with Heater

Illumination

Range

0 to 12,000 Lux

0 to 15,000 Lux

Lamp

FPL 55 W × 14

FPL 55 W × 28

Bank

3 Side Walls

3 Side Walls & Ceiling

Temp. & Humidity Sensor

Temp. : PT100,  Humidity : Capacitive Sensor

Heat-up Time ( up to 37 ℃ )

11 min. ( 0 % illumination ) / 9 min. ( 100 % illumination )

Cool-down Time ( down to 10 ℃ )

13 min. ( 0 % illumination ) / 15 min. ( 100 % illumination )

Temp. Recovery

3 min. at 10 ℃, 1 min. at 37 ℃ ( 0 % illumination )

( After Door was opened for 30 sec )

5 min. at 10 ℃, 1min. at 37 ℃ ( 100 % illumination )

Heating Power

for Temp.

1.5 kW

3.0 kW

/Consumption

for Humi.

1.5 kW

3.0 kW

Compressor

1/2 HP

1 HP

Refrigerant

CFC – Free ( R404a ) Refrigeration System

Display

7″Full Touch Screen TFT LCD ( Smart-LabTM Controller )

Controller

Smart-LabTM  Controller

Program Function

Temp. and Humidity : 120 Patterns, 1,200 Segments

Light Bank : 7 steps

Door

Internal

Tempered Safety Glass with Silicon Packing

External

3-Side Magnetic Packing Door with Light Bank

Shelves

4 Teflon Coated Steel Shelves

8 Teflon Coated Steel Shelves

Permitted Total Load

64 kg ( 16 kg × 4 Shelves )

128 kg ( 16 kg × 8 Shelves )

Safety Circuit

Over Temp Protector, Over Current & Leakage Breaker

Material

Internal : Stainless Steel ( ＃304 ), External : Power Coated Steel

Dimension

Interior

650 × 700 × 1050 mm

1,200 × 790 × 1050 mm

 ( W x D x H )

Exterior

850 × 1090 ×1965 mm

1400 × 1150 × 1965 mm

Packing Size & Gross Weight

1400 × 1220 × h2210 mm

1600 × 1500 × h2200 mm

435 kg

585 kg

Power Consumption

4.8 kW

6.5 kW

Power Supply

1 Phase AC 120V, 60Hz or AC 230V, 50/60Hz or 3 Phase with Terminal Block
