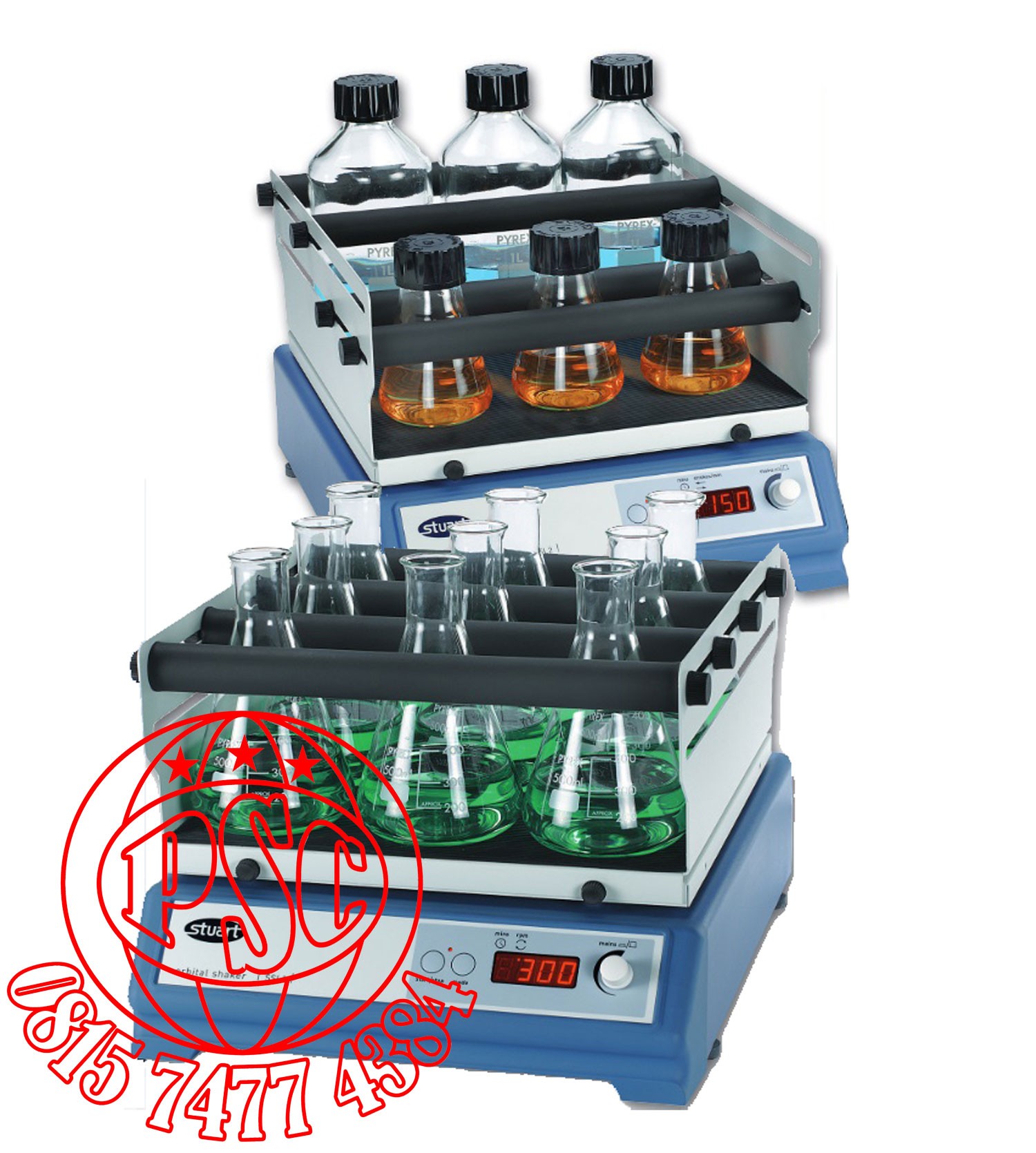

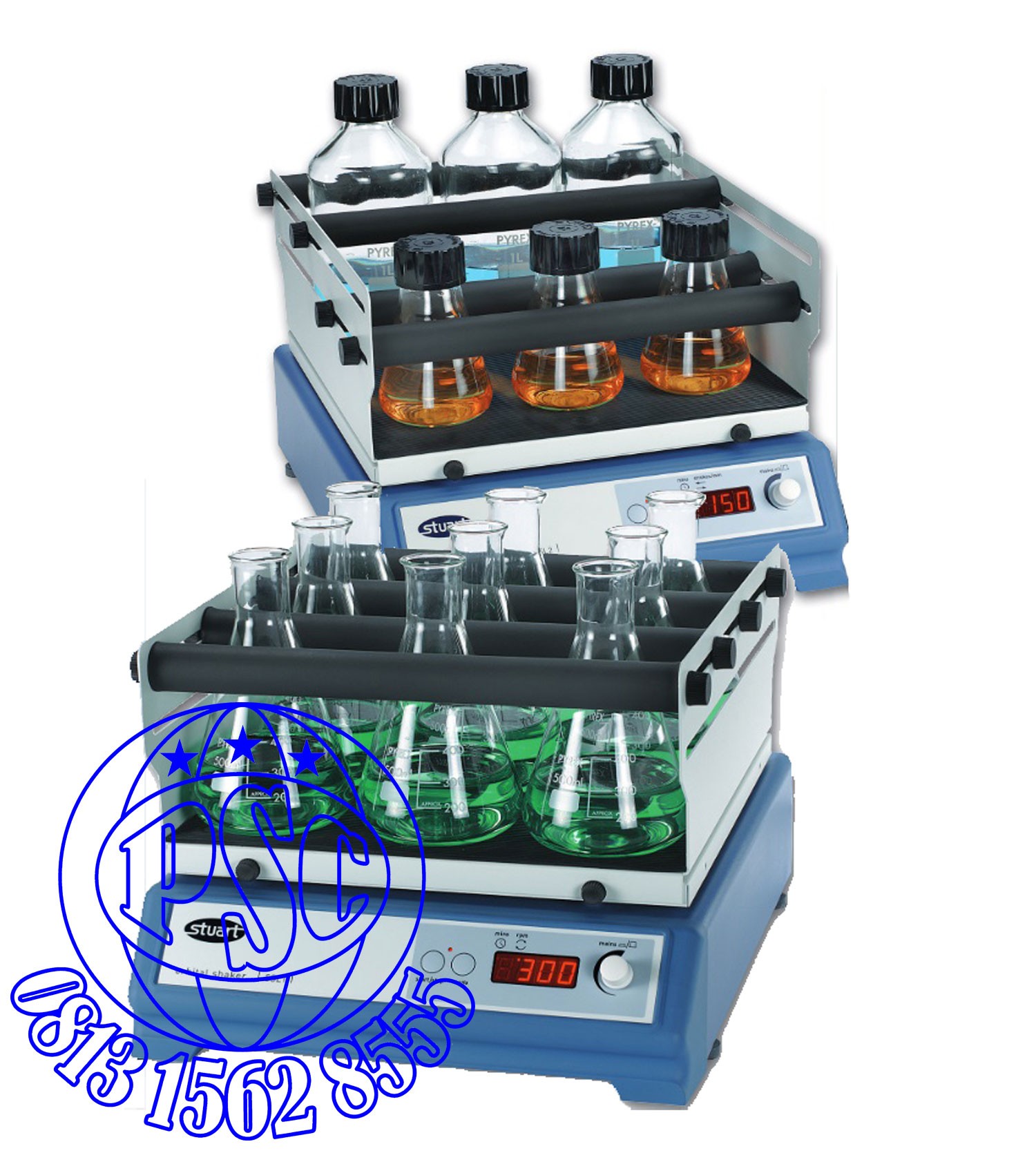

Linear Orbital Shaker - SSL2 Stuart
Linear reciprocating shaking action
Digital speed selection to 250 rpm with soft start
Built-in digital timer
Reliable quiet drive mechanism
Fully adjustable cradle system
This lab scale platform shaker has a powerful yet quiet shaking mechanism that has been designed for problem free continuous use.
Model SSL2 provides a linear reciprocating shaking action with an amplitude of 20 mm and speed range of 20 to 250 rpm, ideal for extractions. It can be used in environmental chambers and CO2 incubators.
The cradle type platform has four rubber cushioned horizontal securing bars with quick release handles. They can be easily adjusted both vertically and horizontally to hold most sizes and types of vessel, including flasks, bottles and beakers. For example, they will accommodate the following Erlenmeyer flasks or bottles : 12 x 250 ml or 9 x 500 ml or 4 x 1000 ml or 2 x 2000 ml.
The main advantage of this cradle system is that it can accommodate different sizes of vessel, a common requirement where shakers are used by different people in the laboratory. Speed is fully variable and is set digitally for consistency. The speed is microprocessor controlled and accurately maintained even over long runs. A digital built-in timer allows shaking times from 1 to 999 minutes to be set. After the timer has counted down, the shaker stops and sounds an alert. Alternatively the unit can be set for continuous operation.
Shaking action	Reciprocating
Platform dimensions ( w x l )	335 x 335 mm
Speed range 2	25 to 250 rpm
Orbit amplitude	20 mm
Maximum load	10 kg
Operational temperature range	+4 to +40 °C
Maximum permissible humidity	80 %
Overall dimensions ( w x d x h )	360 x 420 x 270 mm
Net weight	11 kg
Electrical supply	230 V, 50 Hz, 50 W
