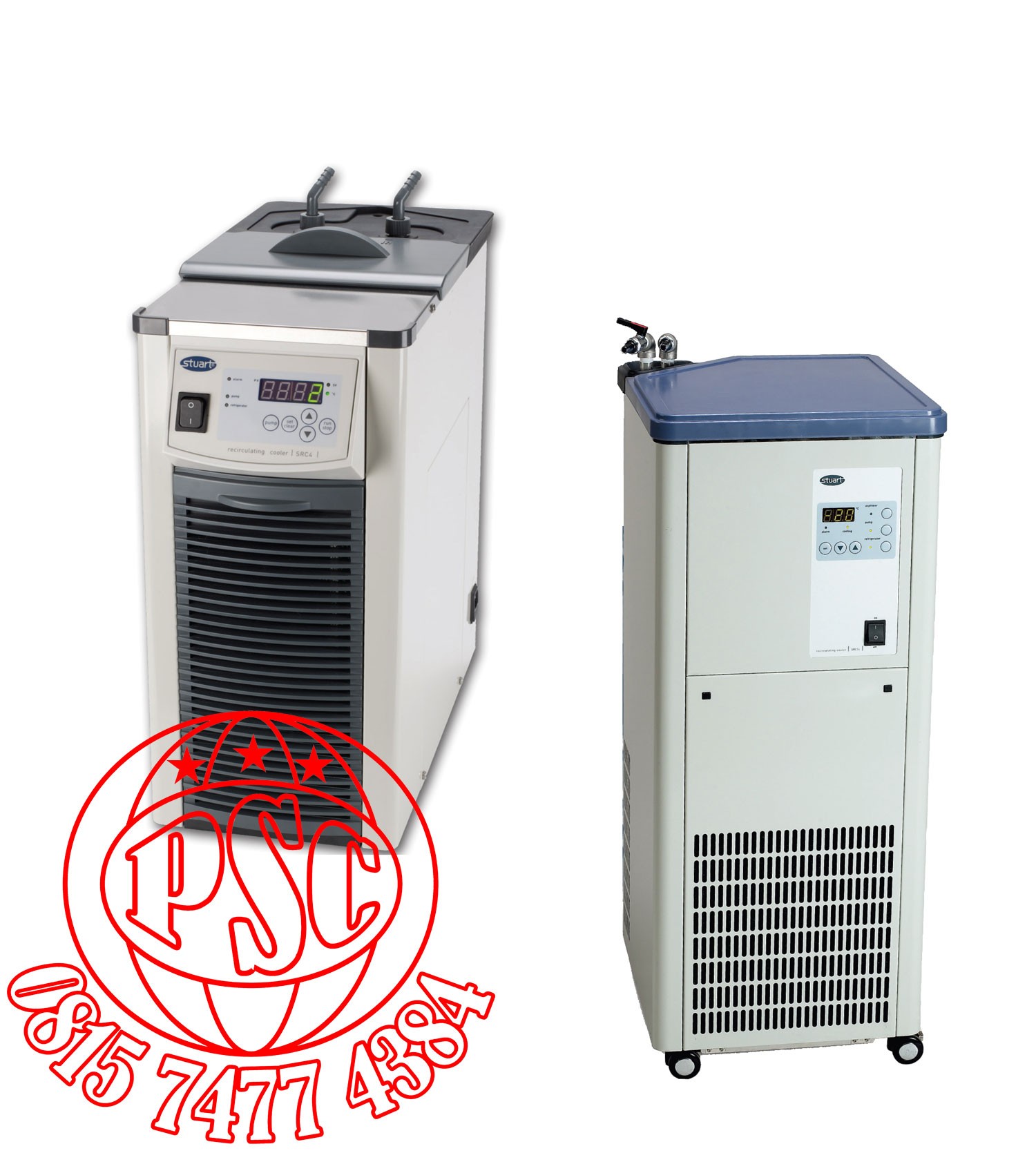

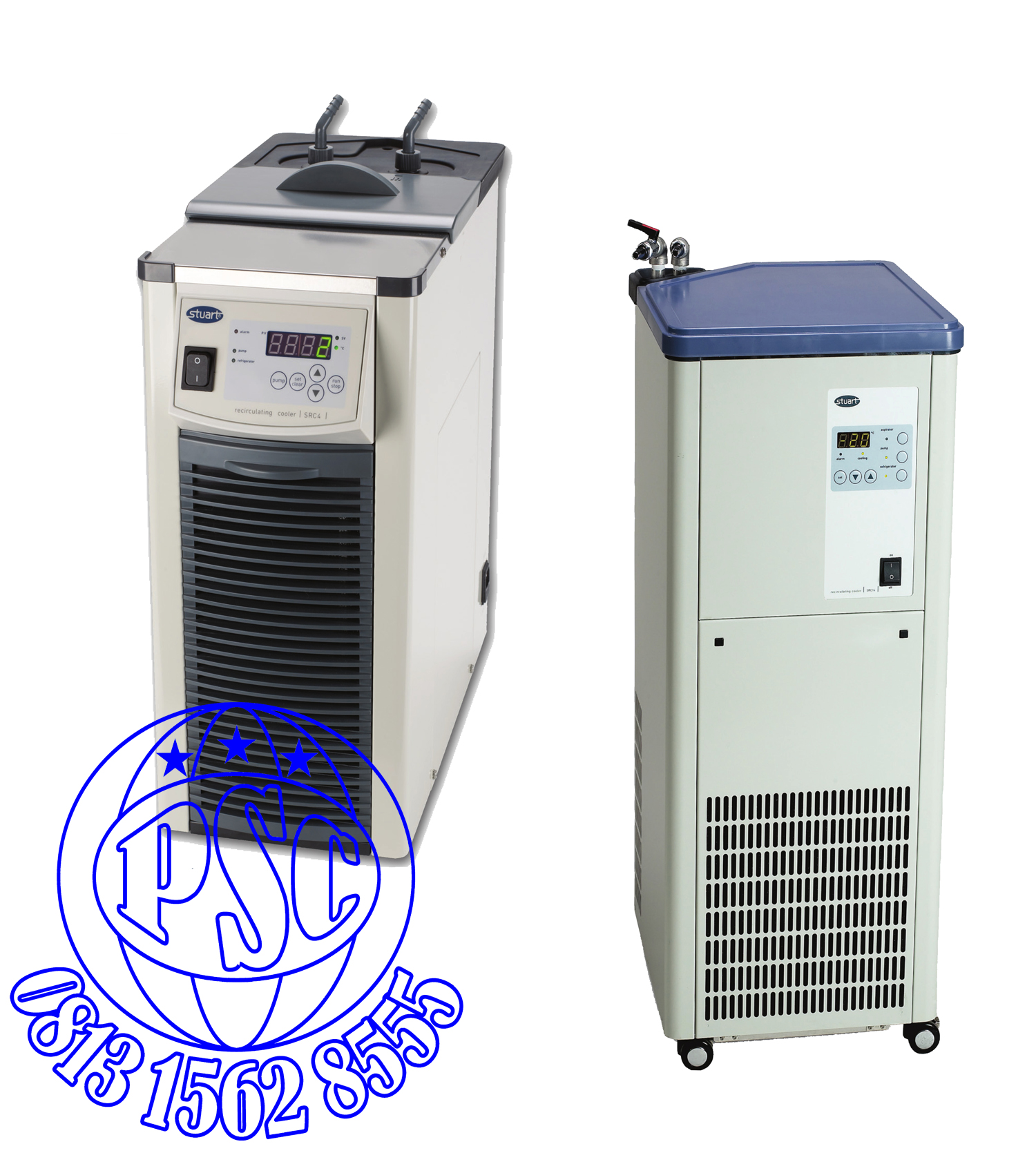

Recirculating Cooler's - SRC4, SRC14

Digitally set temperature

Easy to read LED display

Quiet operation

Powerful 450W cooling capacity

Safety cut out feature

The recirculating cooler offers powerful cooling for an external device. By accurately controlling the temperature of your cooling medium down to -20°C, efficiency of operations such as condensing can be greatly improved. A recirculating cooler is not only much more powerful than conventional water cooling, but is also an ideal alternative when water consumption is an issue for economical, environmental or practical reasons.

The SRC4 provides a powerful cooler with a compact footprint suitable for mounting on or under a bench. The LED digital display clearly shows the current temperature of the cooling medium to ±2°C, while the set temperature is revealed by a one button press.

The unit has a dedicated drain for easy emptying and cleaning. It also incorporates a built in safety alarm to indicate an overload relay for the refrigeration unit. A dust filter is incorporated and can be accessed without tools via the removable front panel.

Recirculating cooler, SRC14

With all the features of the SRC4 the SRC14 is ideal where larger volumes are required, or when extra cooling capacity is needed, electron microscopes for example. The unit is floor standing with lockable easy roll castors to ensure excellent mobility.

Specification

Model

SRC4

SRC14

Cooling capacity

450 W at 10ºC

1200 W at 10ºC

Temperature range

-20 to +30ºC

-20 to +30ºC

Control accuracy

±2ºC

±2ºC

Bath capacity

3 litres

14 litres

Pump rate

9 litres minute

18 litres minute

Dimensions ( w x d x h )

232 x 497 x 490 mm

354 x 384 x 851 mm

Net weight

25 kg

41 kg

Electrical supply

230 V, 50 Hz

230 V,50 Hz

Ordering Information

Model

Description

SRC4

Recirculating cooler, 3 litre capacity

SRC14

Recirculating cooler, 14 itre capacity
