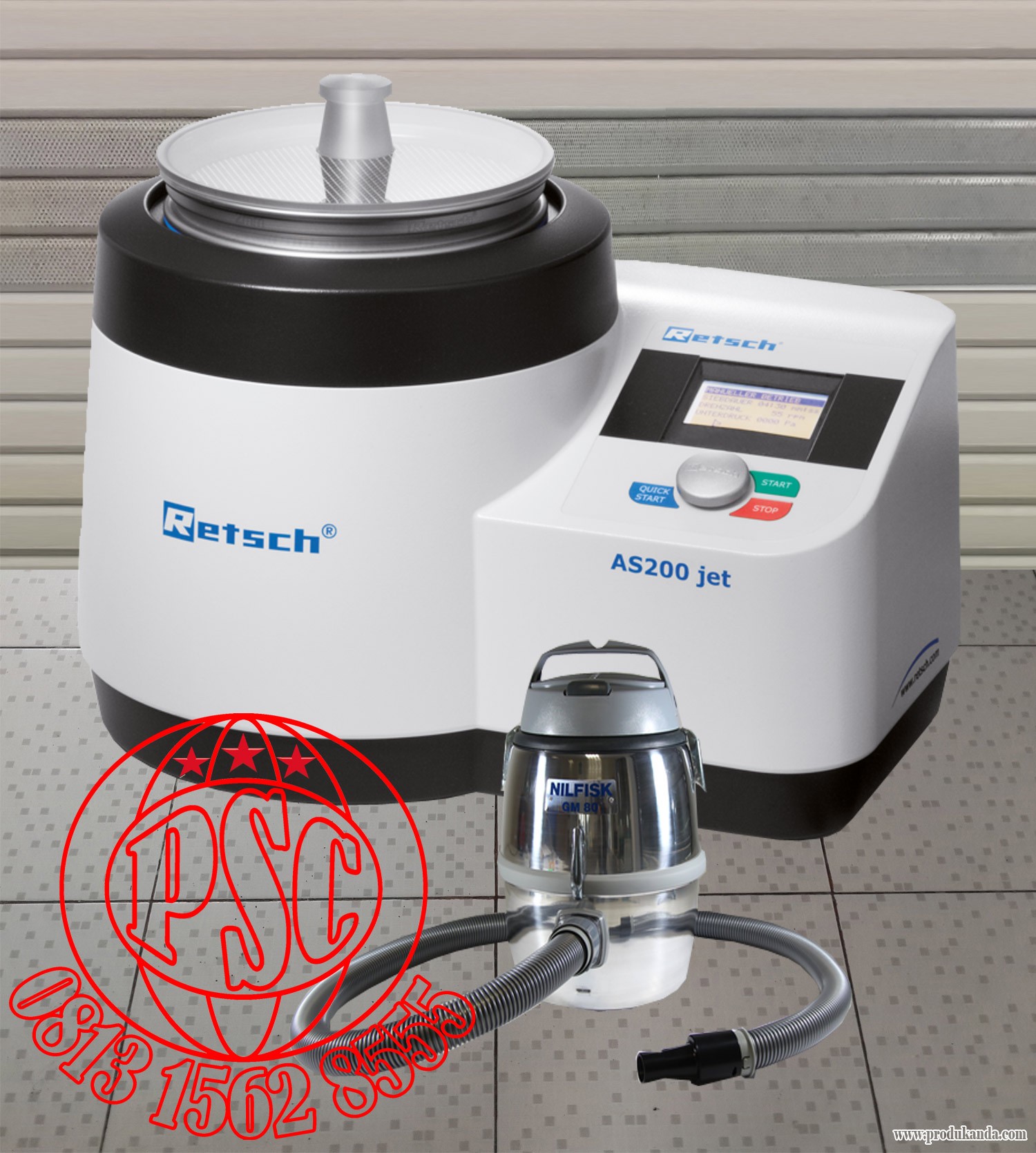

Air Jet Sieving Machine AS 200 Jet Retsch

The new Air Jet Sieve AS 200 jet is particularly suitable for sieve cuts of powdered materials which require efficient dispersion and desagglomeration. The option to store up to 10 SOPs and the automatic vacuum regulator ( accessory ) guarantees reproducible and meaningful results.

Innovative features such as the Open Mesh function, the selection of the nozzle speed as well as optional use of standard 2" high test sieves perfects the new air jet technology.

Application Examples

Ceramics, chemical products, cosmetics, food, minerals, pharmaceutical materials, pigments, plastics,powder coating, rubber, toner, washing powder, ...

Product Advantages

Sieving with air jet technology for dispersion and desagglomeration of fine powders

Open Mesh Function to reduce the number of near-mesh particles

High flexibility through adjustable nozzle speed

Operation with standard Retsch sieves, 203 mm (8") Ø or 200 mm Ø ( with adapter ), 1" or 2" high

Free manual ( standard ) or automatic ( accessory ) pressure regulation

Optional software EasySieve for control through RS232 serial interface, easy evaluation & documentation of results

Free digital adjustment of all process parameters ( time, vacuum, speed )

Additional Quick Start mode

Silent operation due to integrated silencer

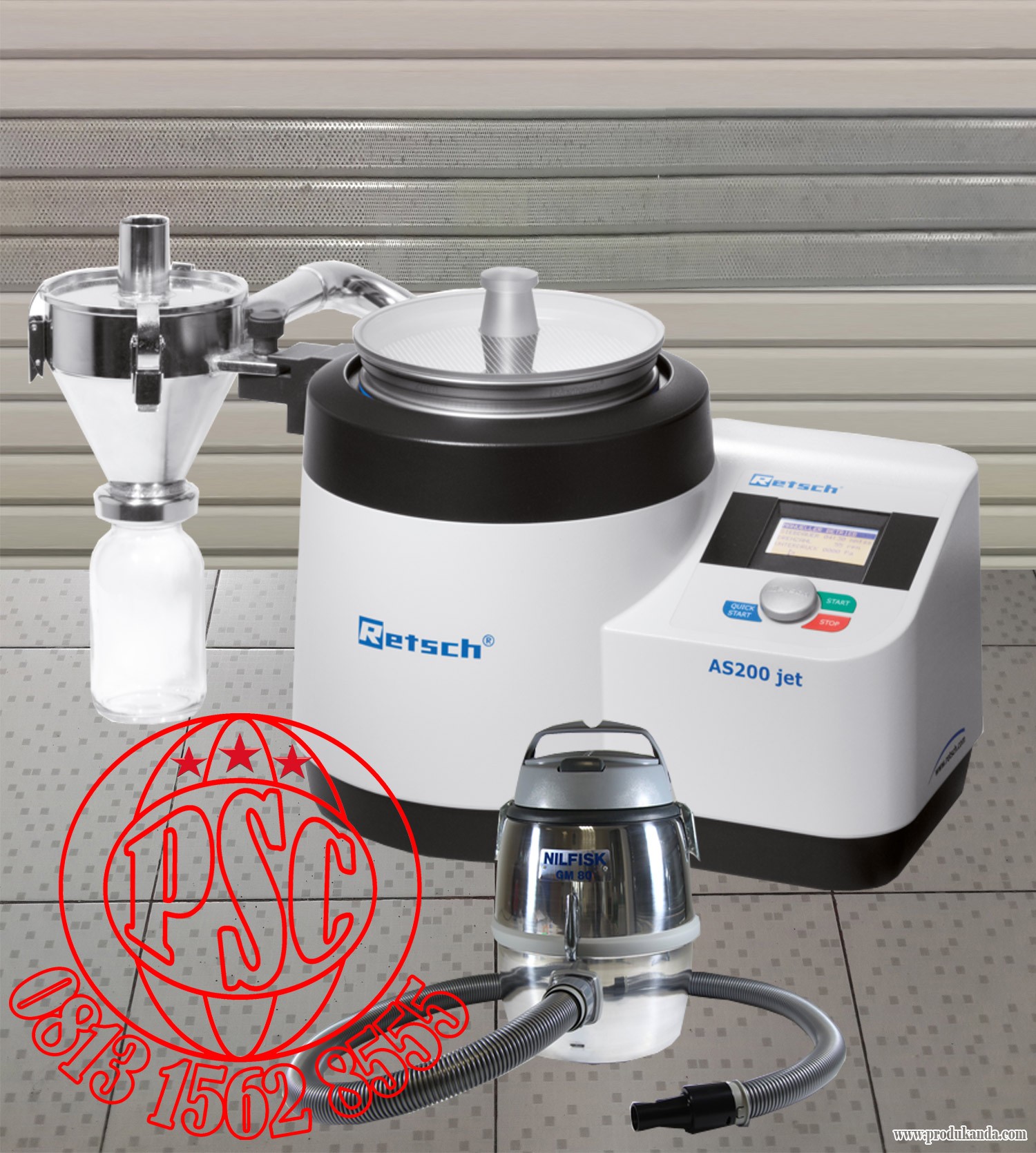

Collection of two fractions possible by use of cyclone

Air jet produced by a powerful industrial vacuum cleaner

Fulfils all criteria for measuring equipment related to ISO 9001

Easy operation, ergonomic design

Maintenance-free

Memory for up to 9 SOPs

Features

Applications

Separation, fractioning, particle size determination

Field of application

Chemistry / plastics, construction materials, environment / recycling, food,geology / metallurgy, glass / ceramics, medicine / pharmaceuticals

Feed material

Powders

Measuring range*

10 µm - ~ 4 mm

Sieving motion

Dispersion by air jet

Max. batch / feed capacity

0.3 - 100 g

Max. number of fractions

1 ( by using a cyclone : 2 )

Speed

Digital, 5 - 55 min-1 ( nozzle )

Time display

Digital, 00:01 - 99:59 min

Interval operation

-

Vacuum

2,000 - 9,999 Pa / 20 - 99 mbar / 0.3 – 1.45 psi

Storable SOPs

9 / Quick Start mode

Suitable for dry sieving

Yes

Suitable for wet sieving

-

Serial interface

Yes

Including test certificate/ can be calibrated

Yes

Suitable sieve diameters

203 mm ( 200 mm with adapter )

Max. height of sieve stack

1 sieve ( 25 mm ( 1" ) / 50 mm (  2" )

Accessories

Cyclone / automatic vacuum regulation

Electrical supply data

100-240 V, 50/60 Hz

Power connection

1-phase

W x H x D

460 x 288 x 305 ( without cover )

Net weight

~ 14 kg

Standards

CE
