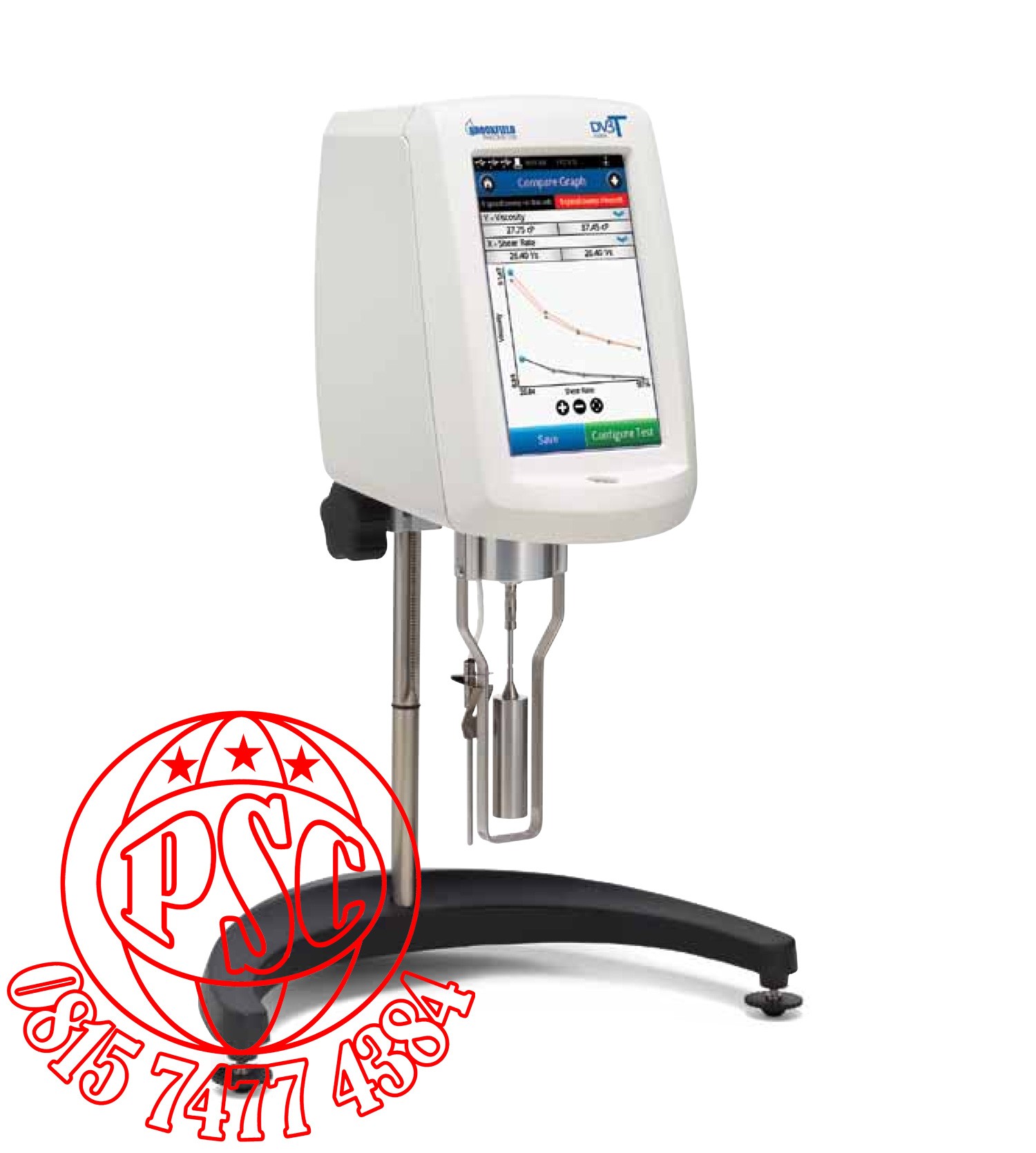

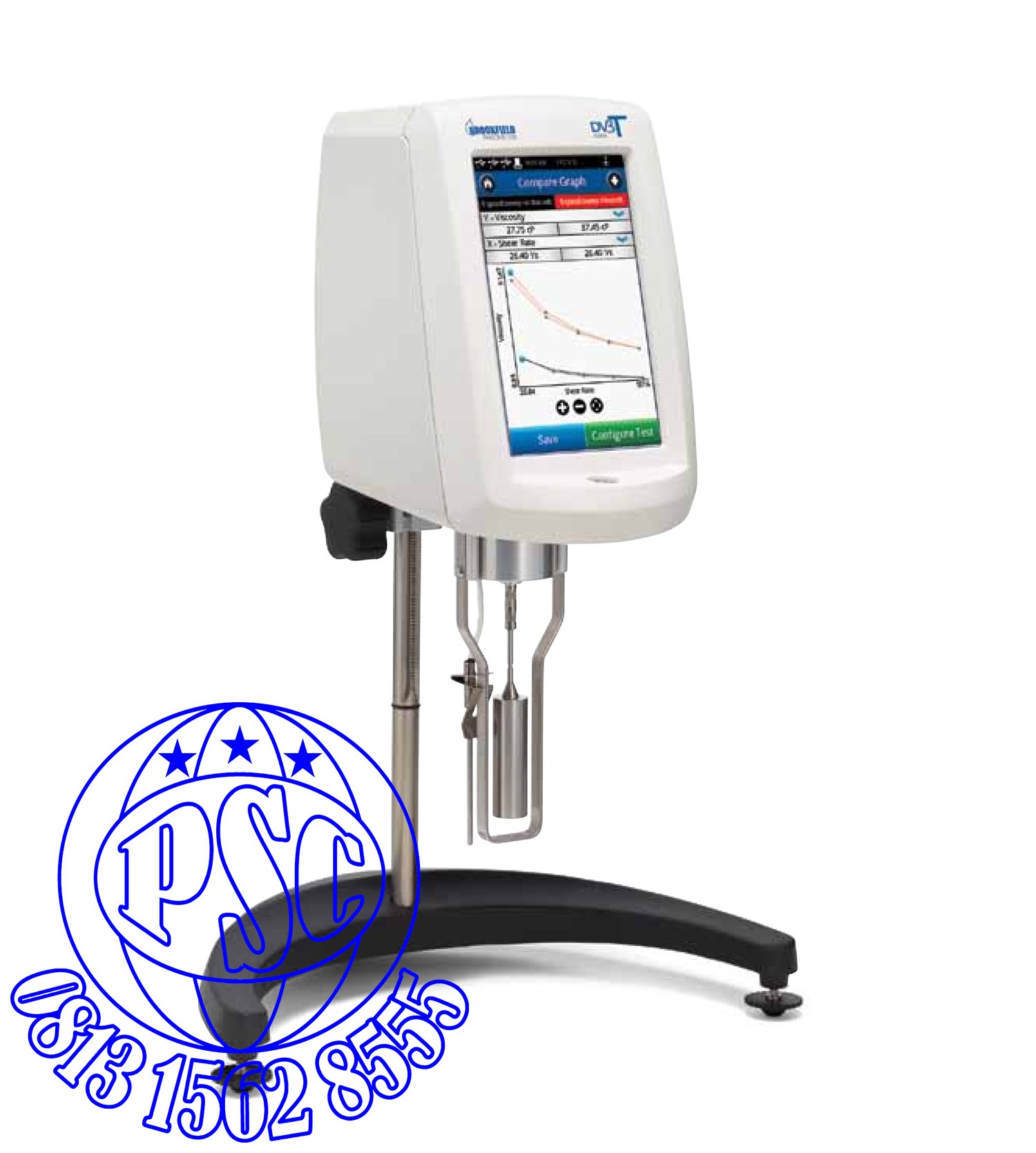

Rheometer DV3T Brookfield

A Sophisticated Rheometer With Easy-To-Use Intuitive Controls

A 7-inch full color touch screen conveniently displays all test parameters along with measured values for yield stress, viscosity and temperature. On screen graphing shows real-time test data which can be captured in stand-alone mode, recorded on a printer or sent to a PC. Built-in math models, such as Power Law, can provide rapid data analysis for flow index and other selectable variables. Quick, straight-forward, single point viscosity is also easily accomplished with the DV3T making it the ideal "all-in-one" instrument for busy QC labs as well as demanding R & D departments doing comprehensive flow behavior.

Features & Benefits

7-inch full color, touch screen display supports multiple languages

Displayed info includes: viscosity ( cP/mP·s ), temperature ( °C/°F ), shear rate/stress, % torque, spindle/speed, step program status, math model calculations

Enhanced Security with customizable user access, date/time stamp file, password access, portable log-in settings

Built-In options include math modeling, yield tests, timed tests, data averaging, programmable QC limits/alarms, customizable speed/spindle lists, on screen data comparison

Auto range shows maximum viscosity measured with any spindle/speed combination

Analyze characteristics such as yield stress, flow curves, leveling and recovery

Integrated temperature control with connection to a Brookfield TC series bath and AP Controller

USB PC interface provides optional computer control and automatic data gathering capability ( included )

Download custom test programs with included PG Flash software

PG Flash

Front-facing bubble level for convenient viewing

Built-in temperature probe

Accuracy of ±1.0 % of range with displayed test data

Repeatability of ±0.2 %

NIST traceable viscosity standards available

SPRING TORQUE

DV-I SPRING TORQUE

Each of our standard Laboratory Viscometers/ Rheometers are supplied with an internal spring used to calculate the viscosity of a material. These springs have different measuring capabilities:

LV is for low viscosity materials and can measure the “thinnest” materials. Typical examples include inks, oils, and solvents.

RV is for medium viscosity materials than those measured with an LV torque. Typical examples include creams, food, and paints.

HA is for higher viscosity materials than those measured with an RV torque. Typical examples include gels, chocolate and epoxies.

HB is for even higher viscosity materials than those measured with an HA torque spring. Typical examples include asphalt, caulking compounds, and molasses.

Additional special springs are also available upon request. To learn more about spring ranges and model selection, please call Brookfield AMETEK or one of our authorized dealers.

Annual Calibration Service ( recommended )

We recommend that this instrument be returned to Brookfield or an authorized dealer on an annual basis for our Calibration & Certification Service. Having this annual maintenance done will ensure the instrument's long life and optimal performance.
